Customizable Card Stand
Print Profile(2)
Bill of Materials
- 12x 3mm magnets x 2: File to use your own magnets includes
- m5 x 30 cap head x 1: I used .8 thread but is self threading anyways
Description

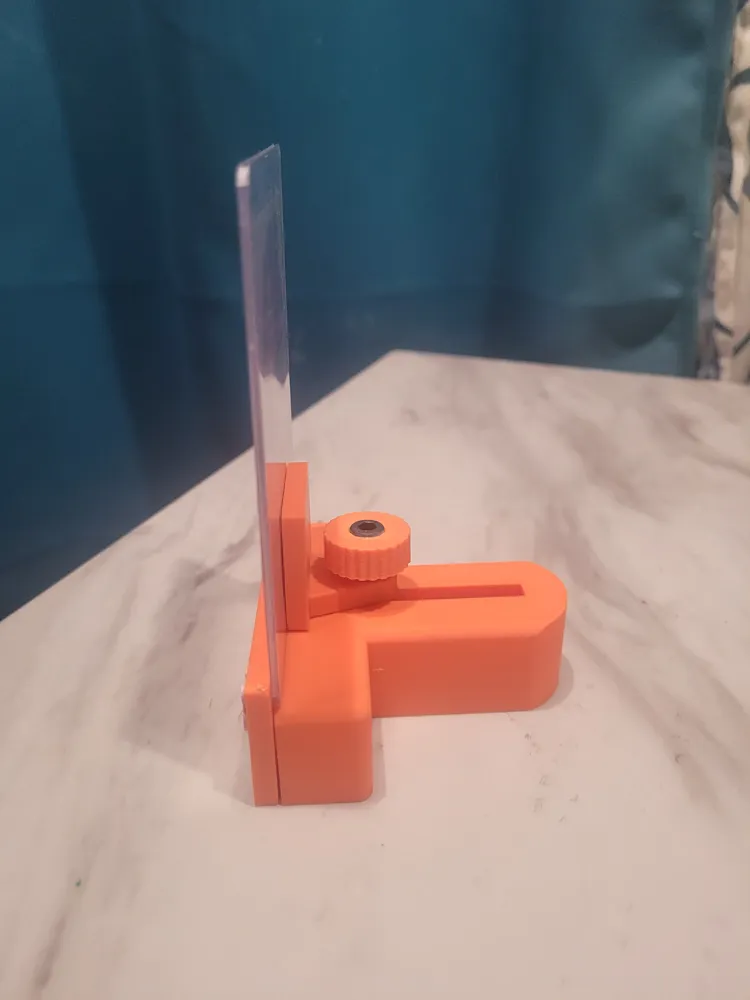

Adjustable and Customizable Card Holder!

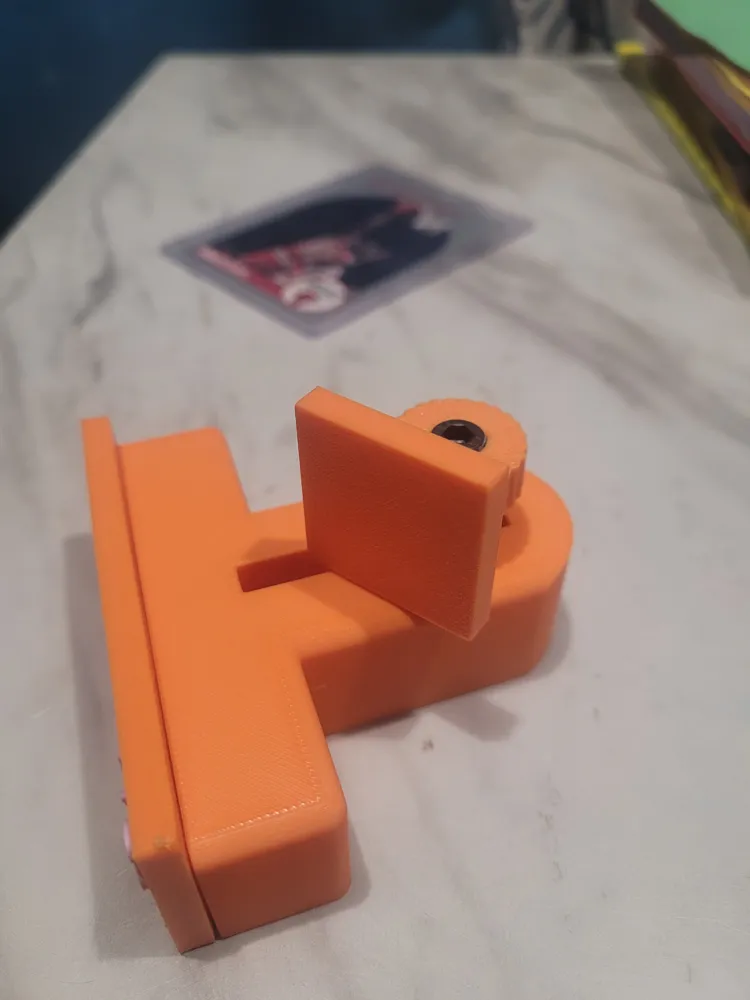

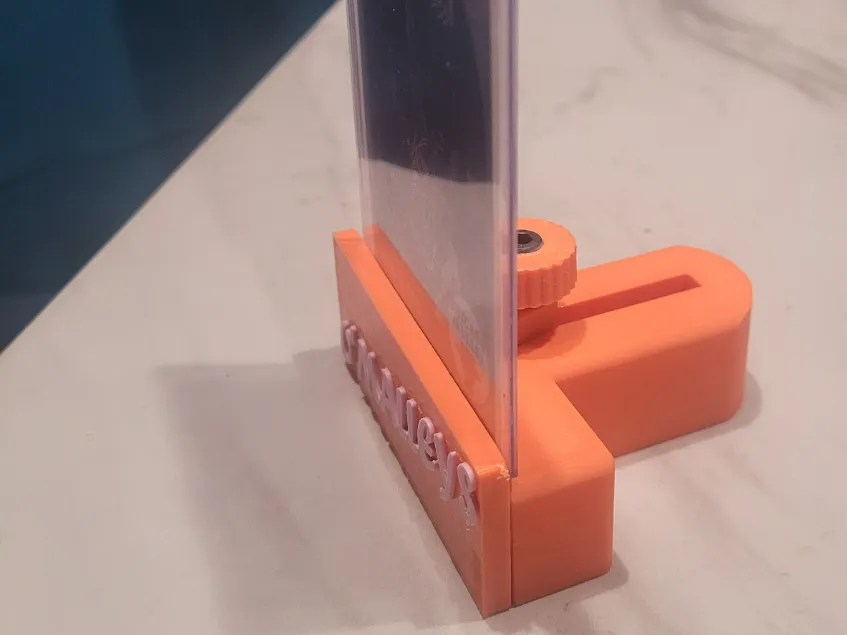

Use a slide and a knob locking feature to adjust to the size of your cards. PSA case, slim case, or no case it doesn't matter. You can even stack them.

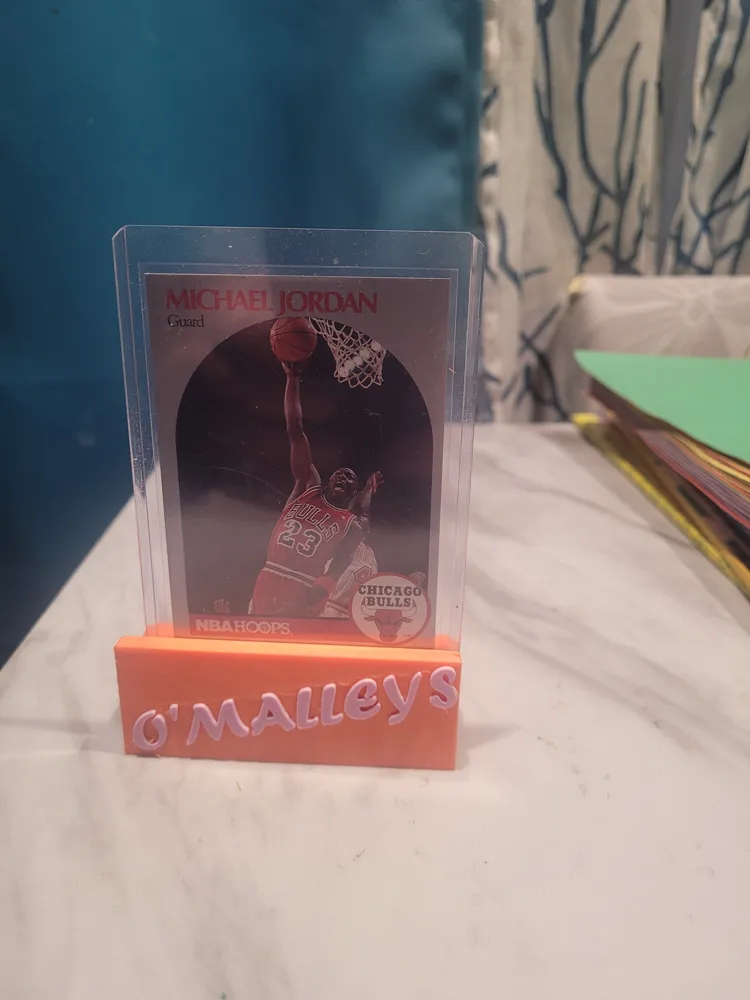

Use your slicer to add text, images and/or logos to sell your cards and promote your page in style.
Magnetic design to allow for quick swapping of front making switching plates easy.
Current and ready to go design uses 2 Qty 12x 3 magnets and 1Qty M5 x 30 cap screw. Press fit no glue.
Also have .stl's with no magnet holes so you can add holes for magnets you have on hand.
Instructions
Insert glue in the top of the knob push or thread screw all the way and slide through slide and base. Screw into locking nut may need an allen key at first. If lock nut wears out 5 minute print for a new one
Please let me know how you like it and suggestion, problems you may have.
Boost Me (for free)
Please give me a boost! Learning to do this for fun and is a process at the moment lol Would appreciate it thank you.
