Below Lathe Dust Collector
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
22 h
2 plates
Open in Bambu Studio
Boost
19
84
2
0
40
9
Released
Description

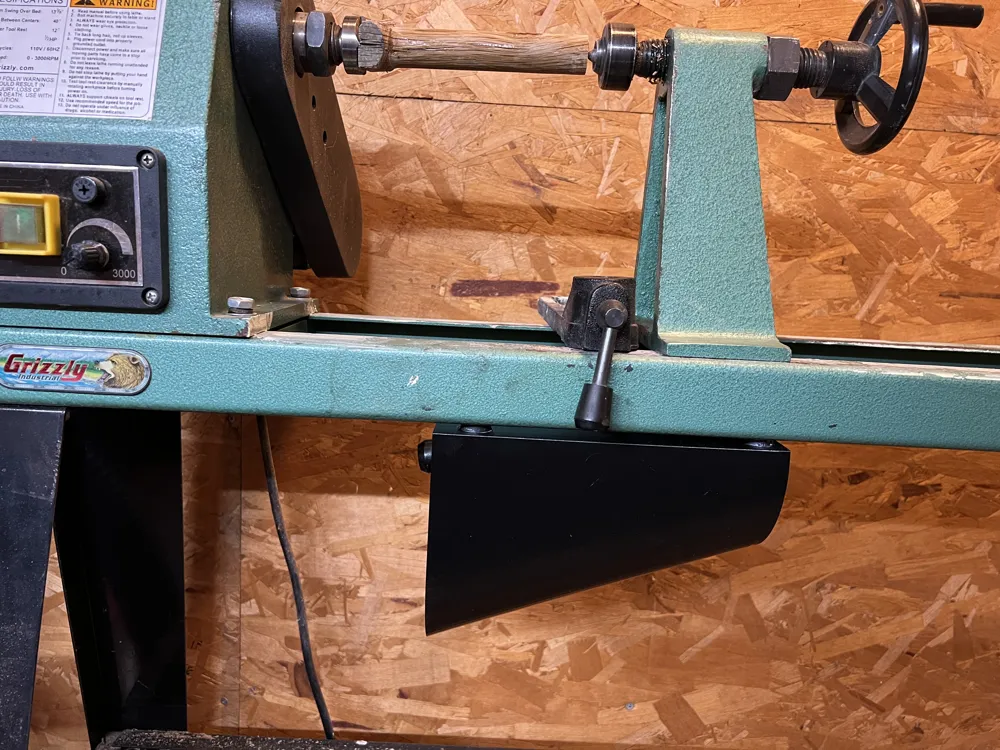

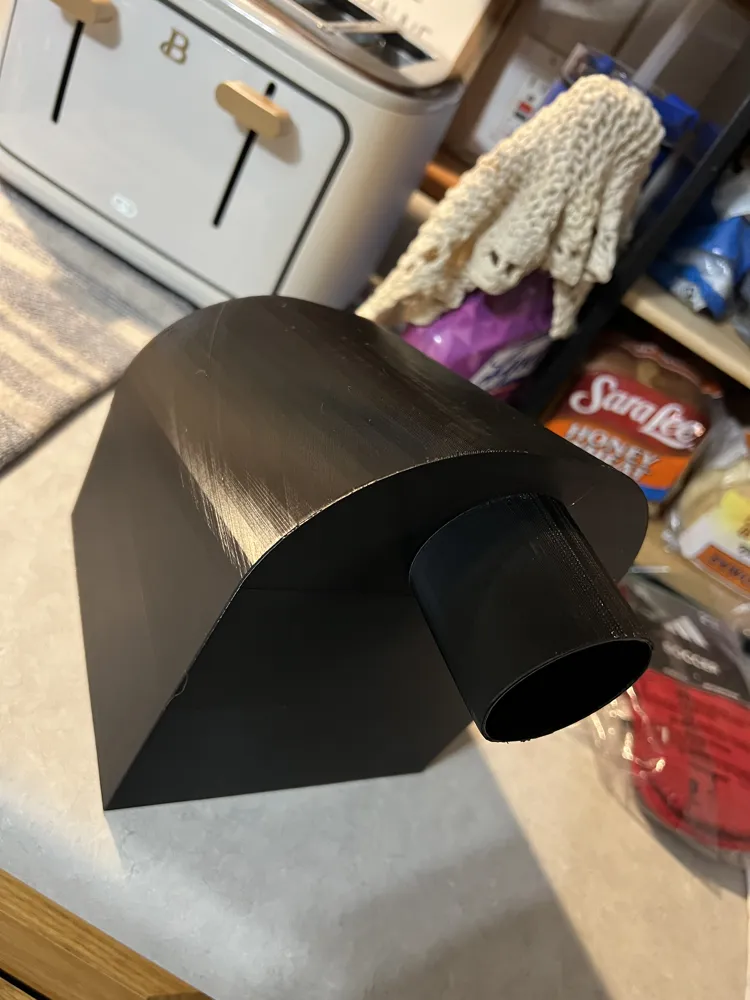

This is my below lathe dust collector I designed specific gor my Grizzly wood lathe, but can be used for others as well. The model is split into 2 pieces and epoxy together as it is 14 inches long. The duct outlet fit my Harbor Freight cyclone dust separator. I glued magnets to the flat and that allows it to stick to the bottom of the lathe and be removable and mobile if need be.
