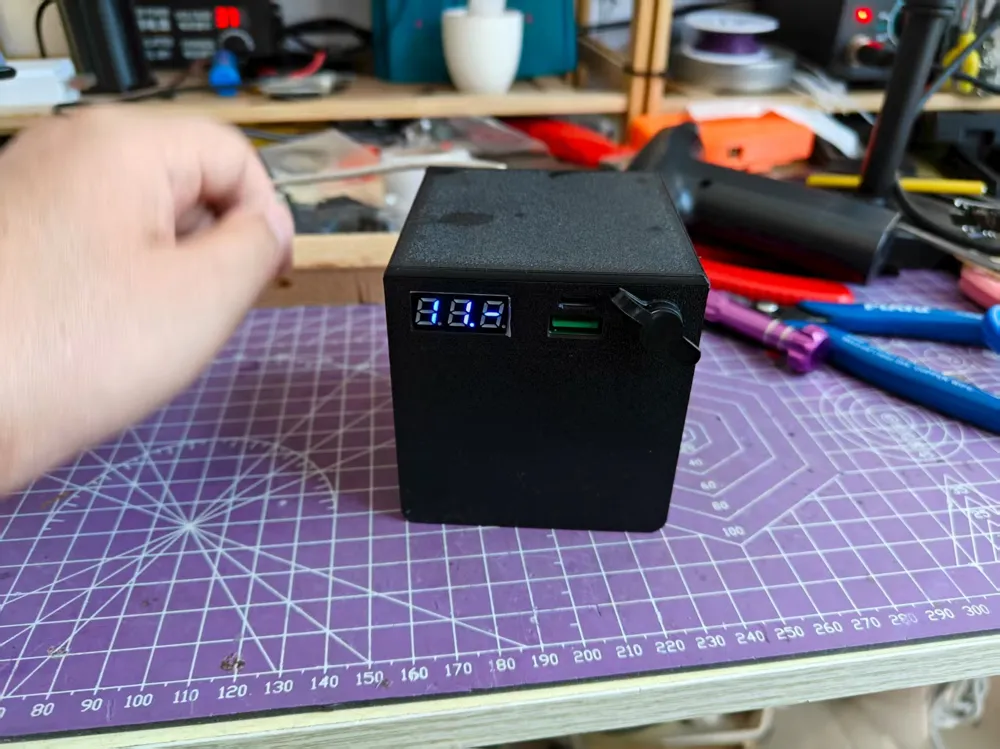

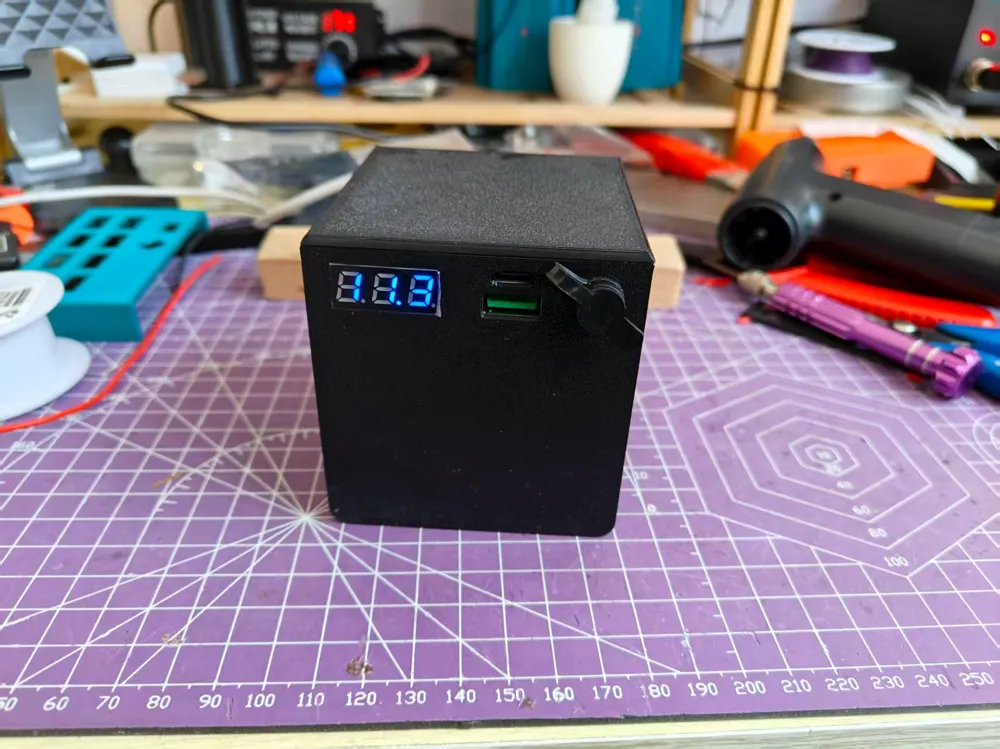

12V Powered Mini Cube (21700*6)
Print Profile(1)
Description

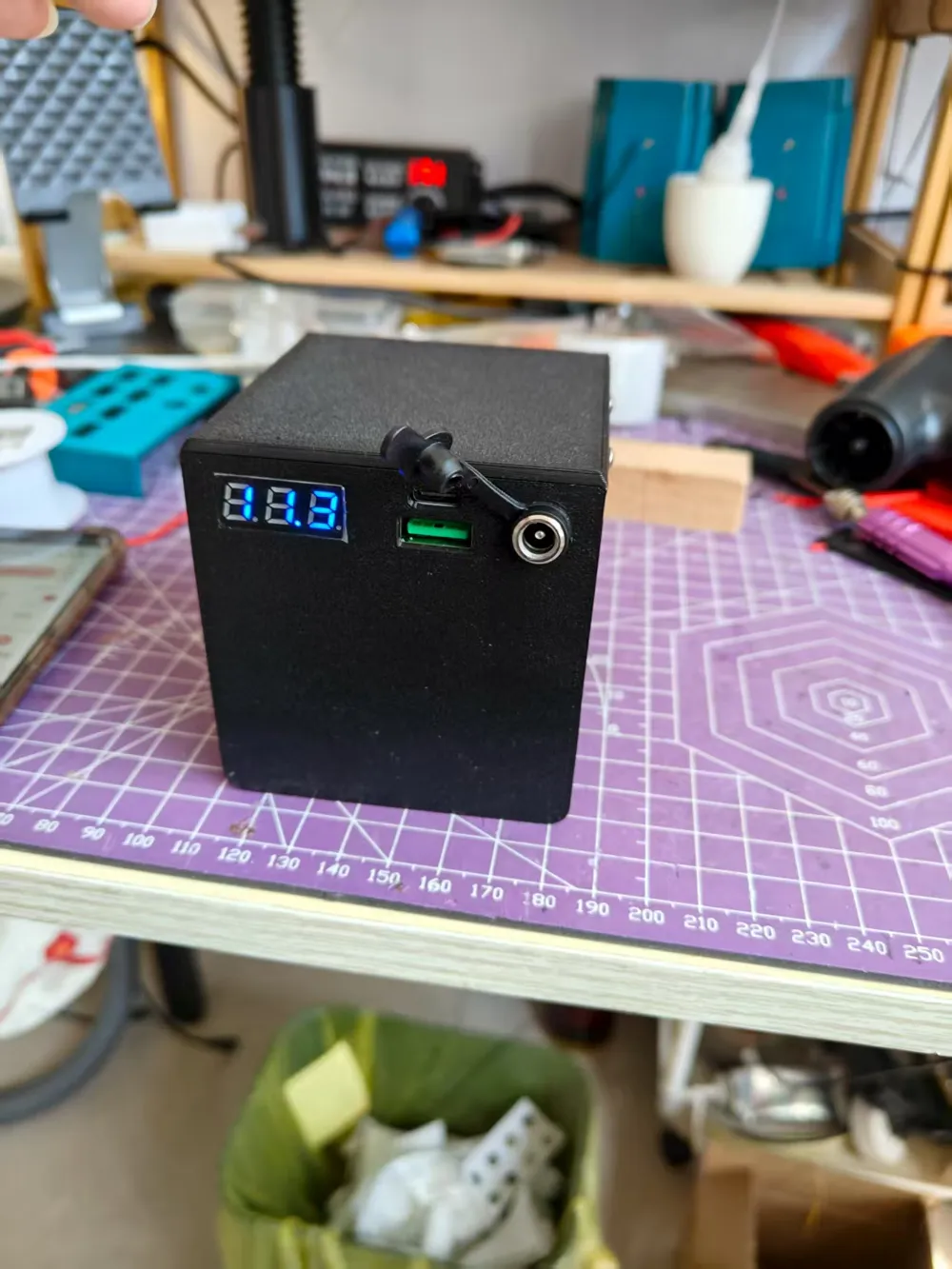

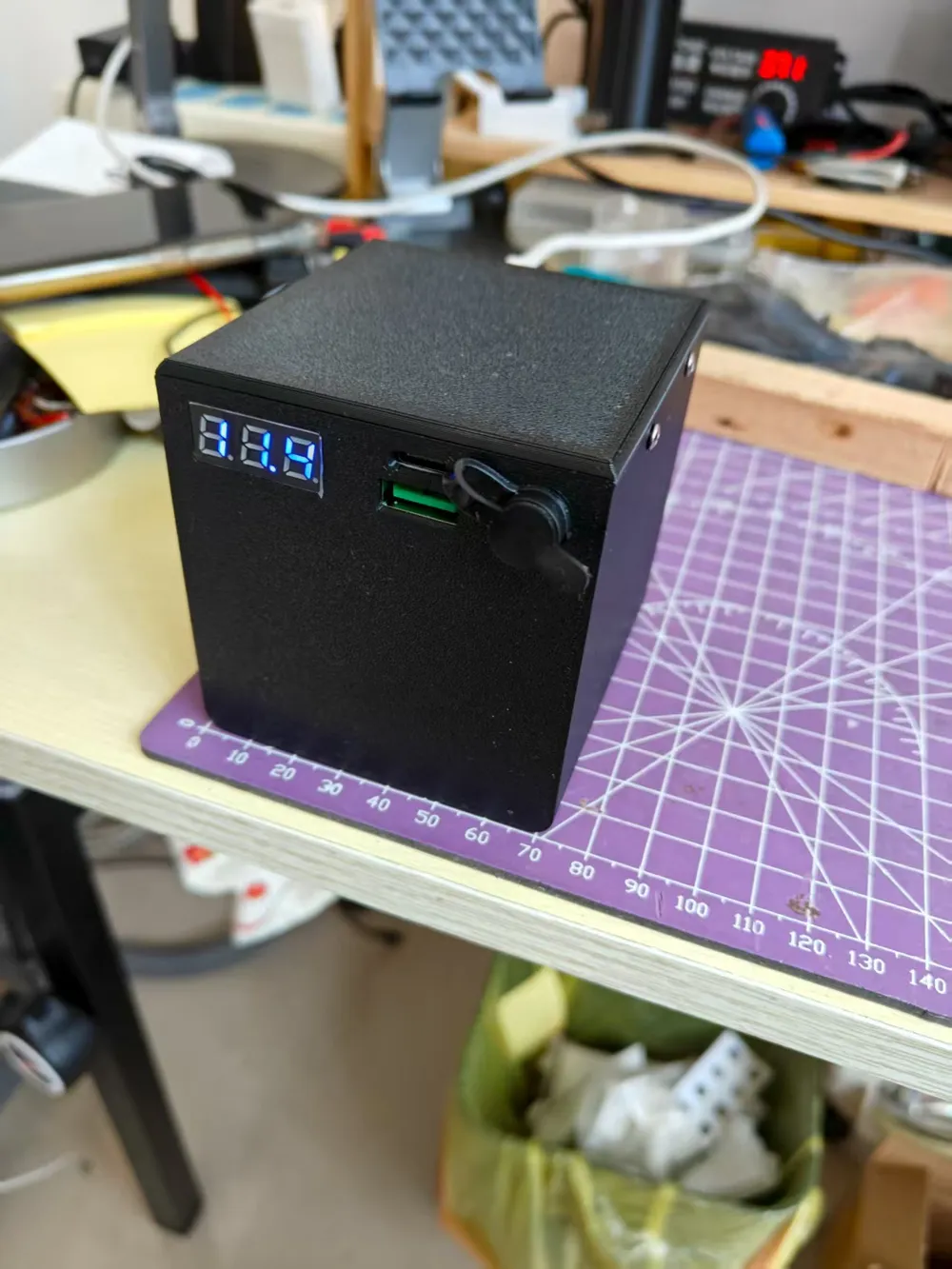

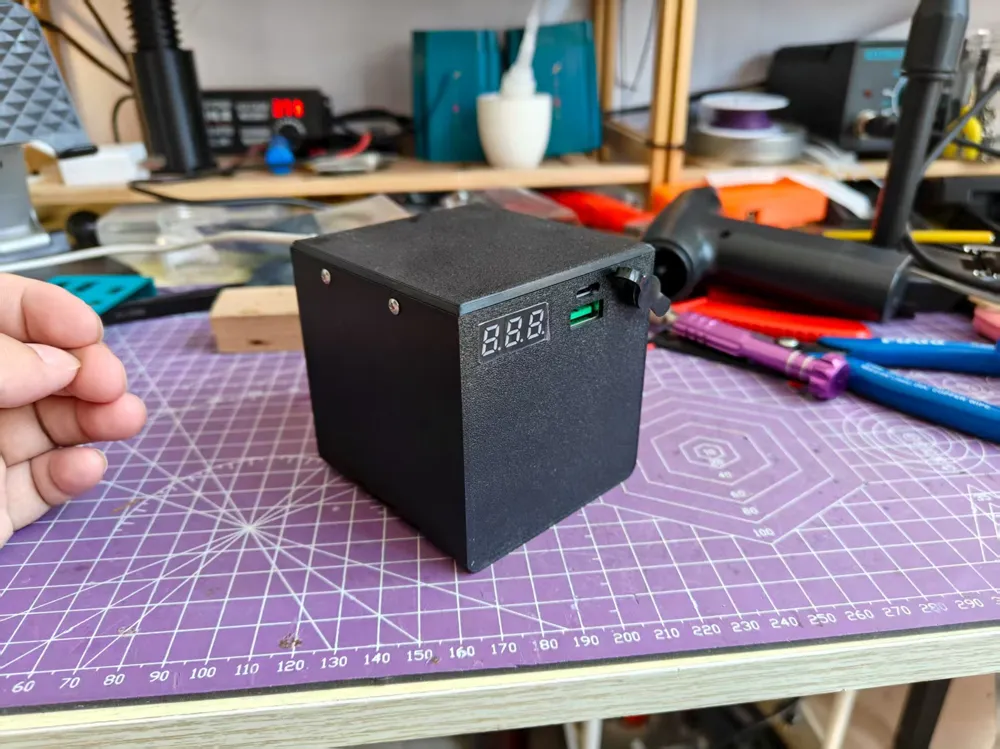

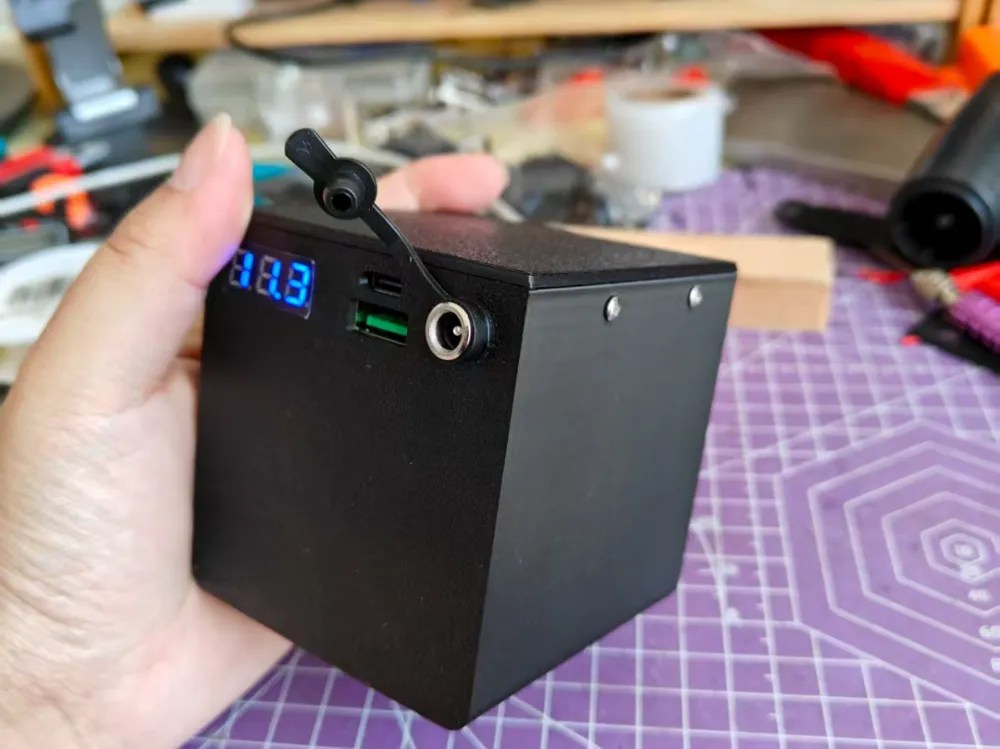

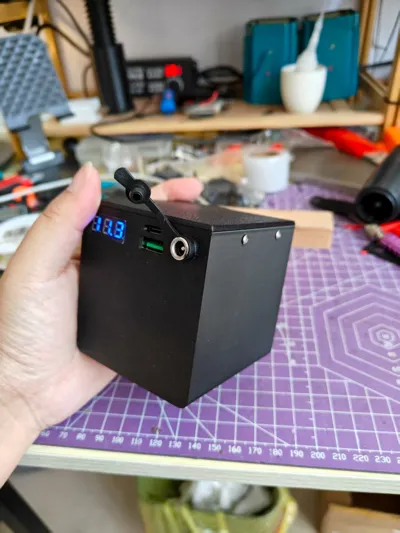

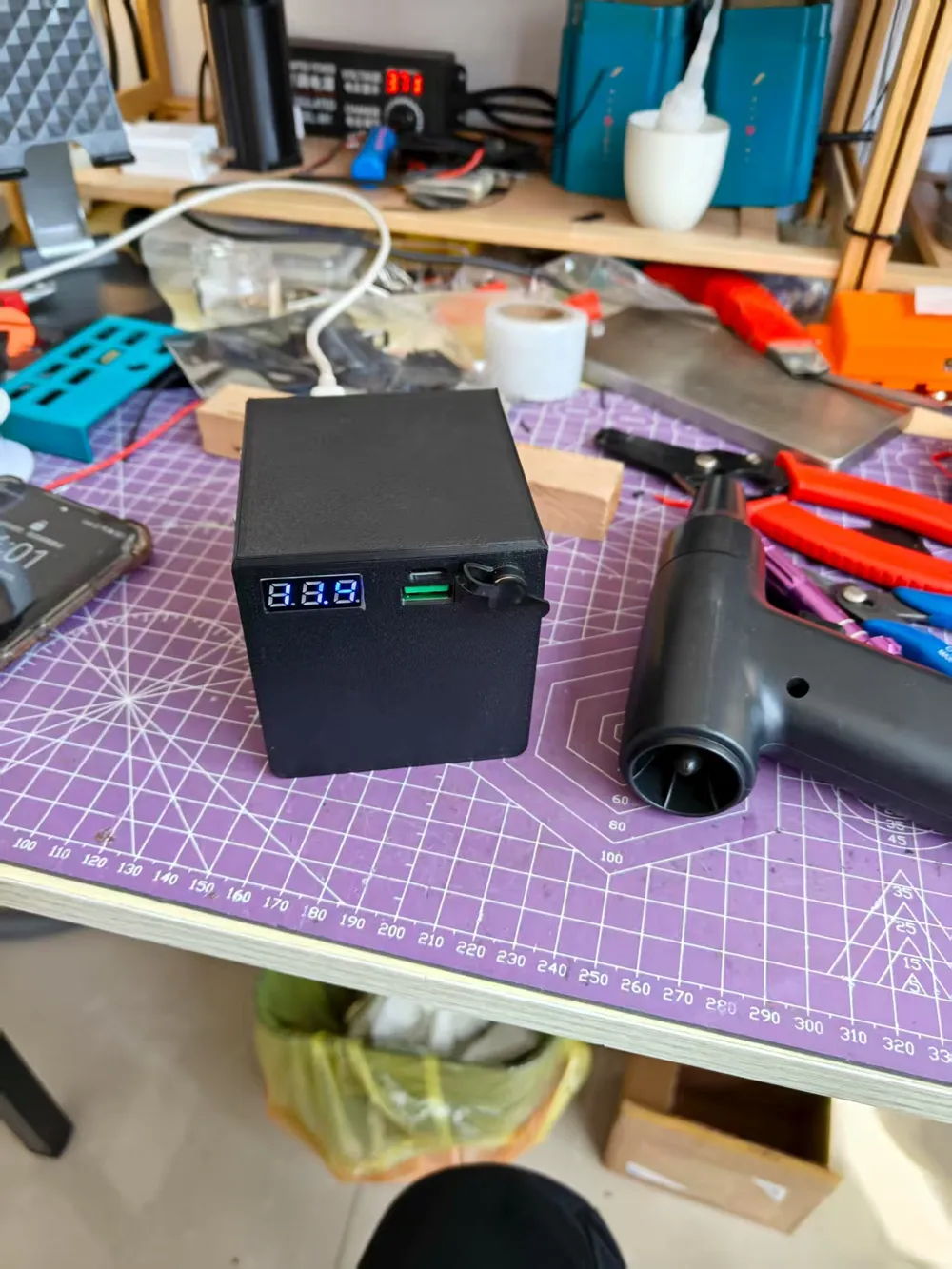

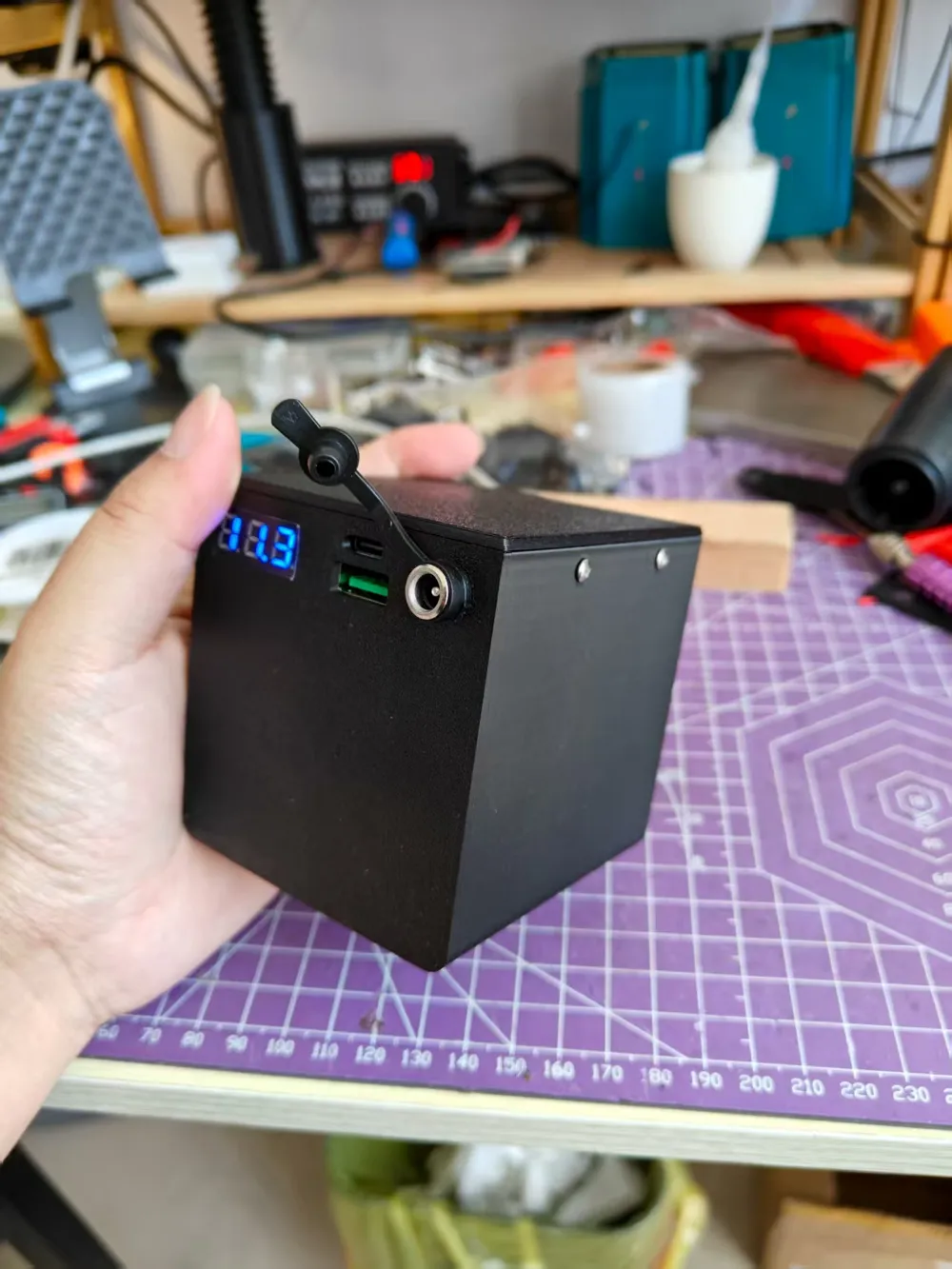

This is a 12V powered mini cube, a 12V power station, designed by me, which can output 12V to power air pumps, and also output 5V USB basic voltage. The 3518 chip circuit supports mobile phone fast charging. The shell is best printed with PETG material. The display surfaces are based on the bottom surface, so using a matte textured printing plate can make the appearance better

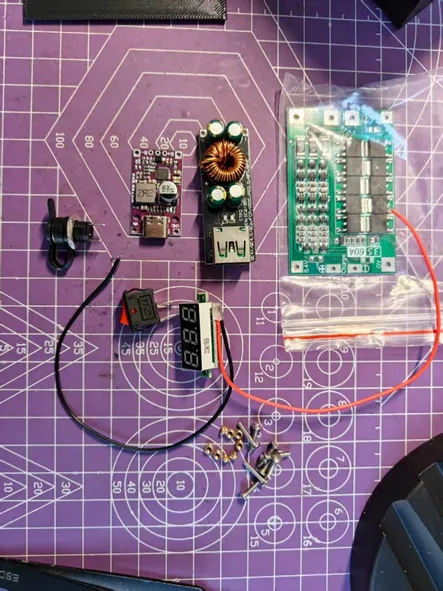

The following materials need to be prepared in advance
3S Protection Board 50A
21700 batteries 6 pieces
Voltmeter 1 piece Installation size slightly less than 23*10mm
Rocker switch 1 piece Installation size slightly less than 14.5*9mm
DC output port Installation hole diameter 4mm
3518 Discharge Module 1 piece
3s Charging Module 1 piece
Heat set brass inserts M2 several
Stainless steel screws M2*8 several
Boost Me (for free)
Thank you for your support!
