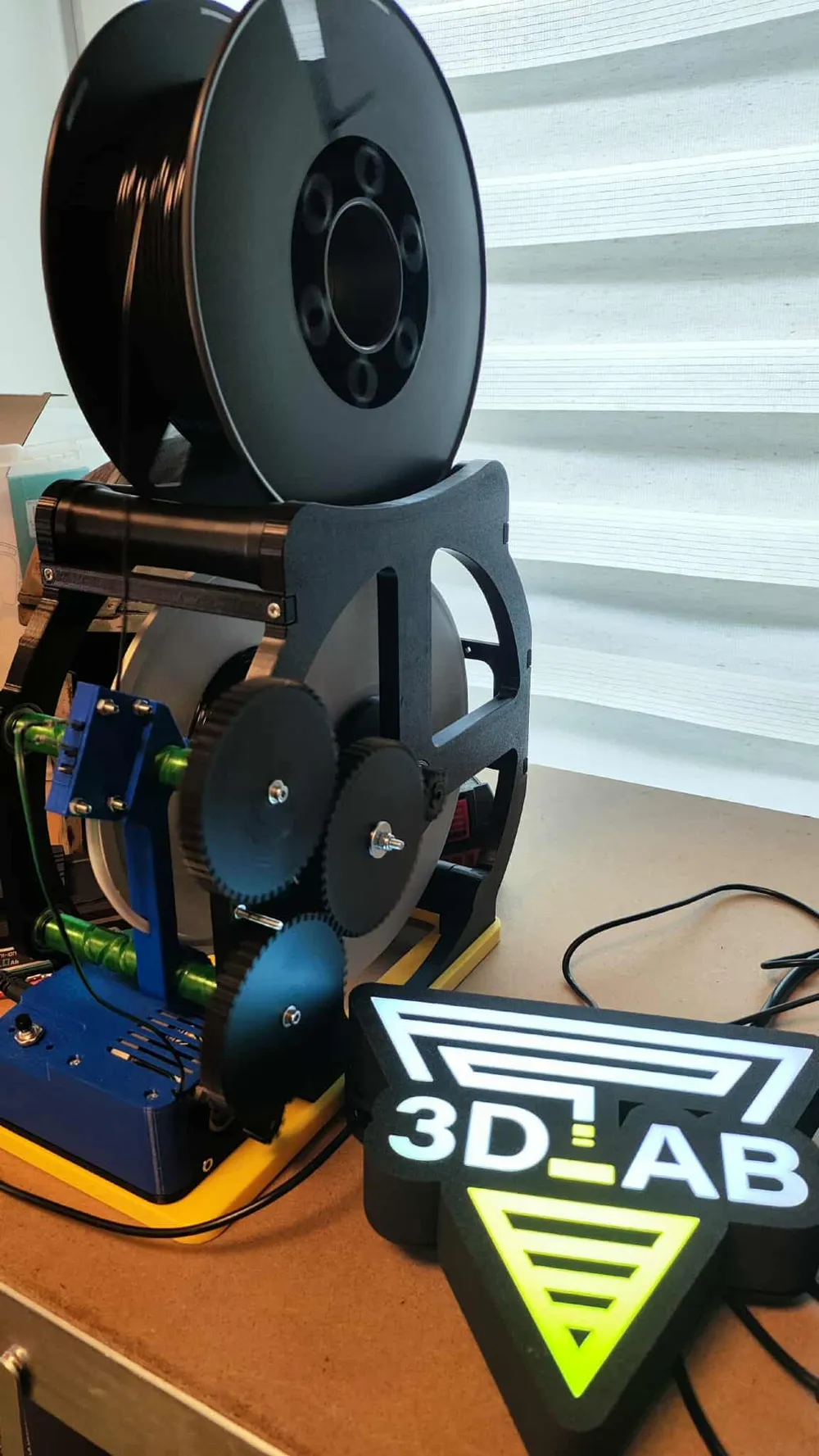

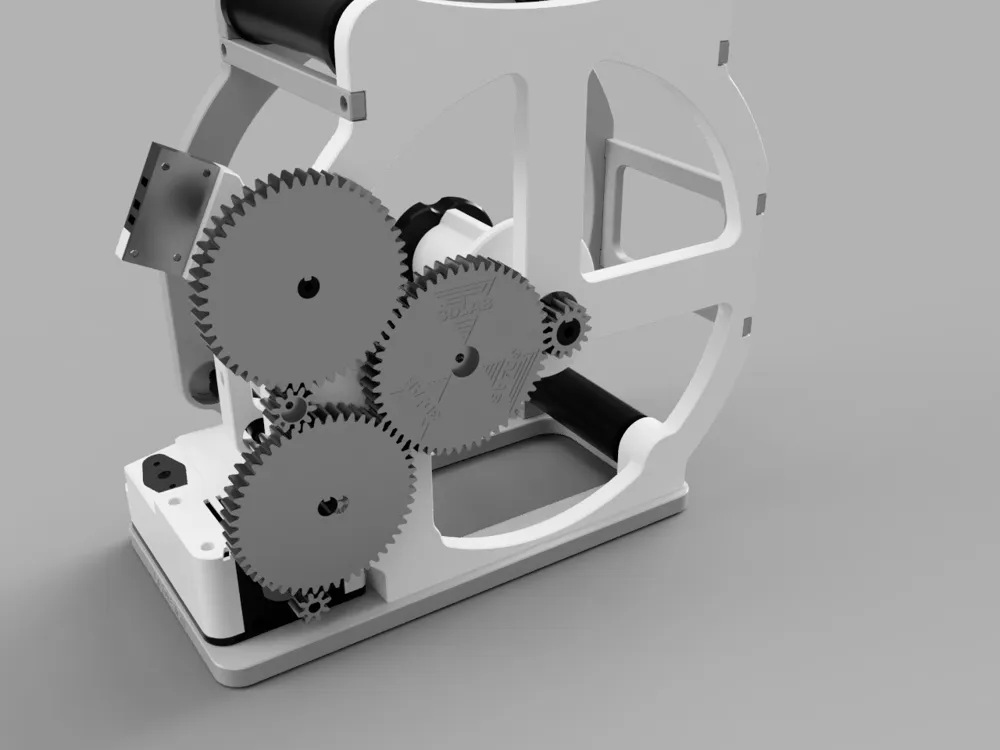

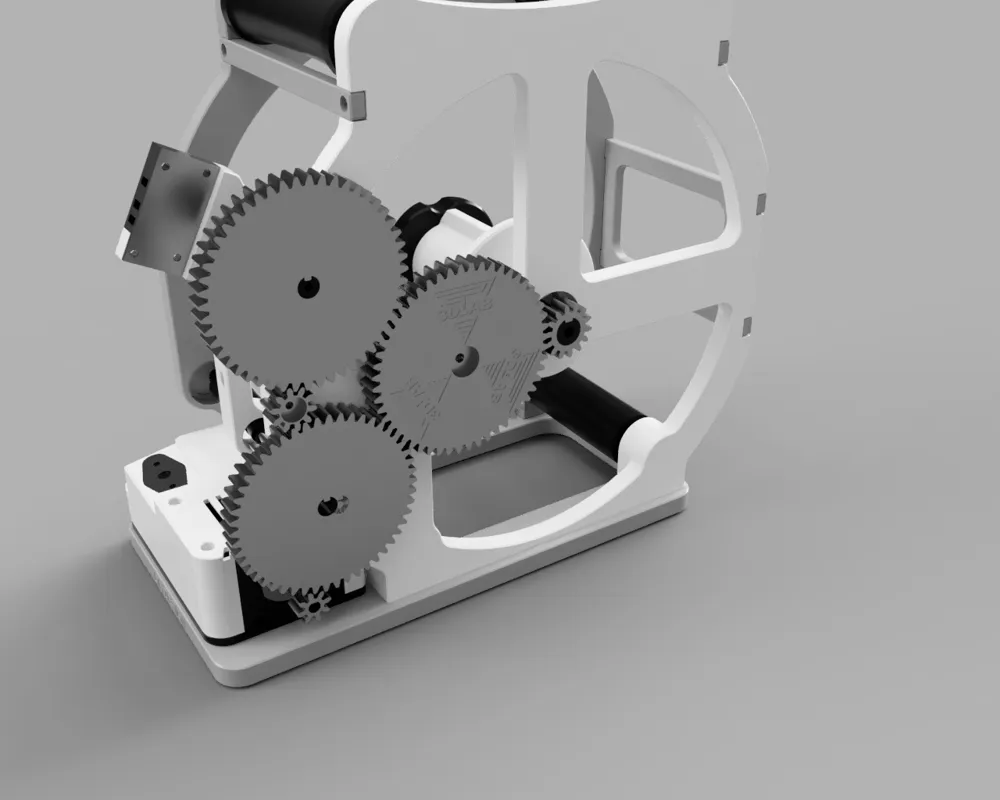

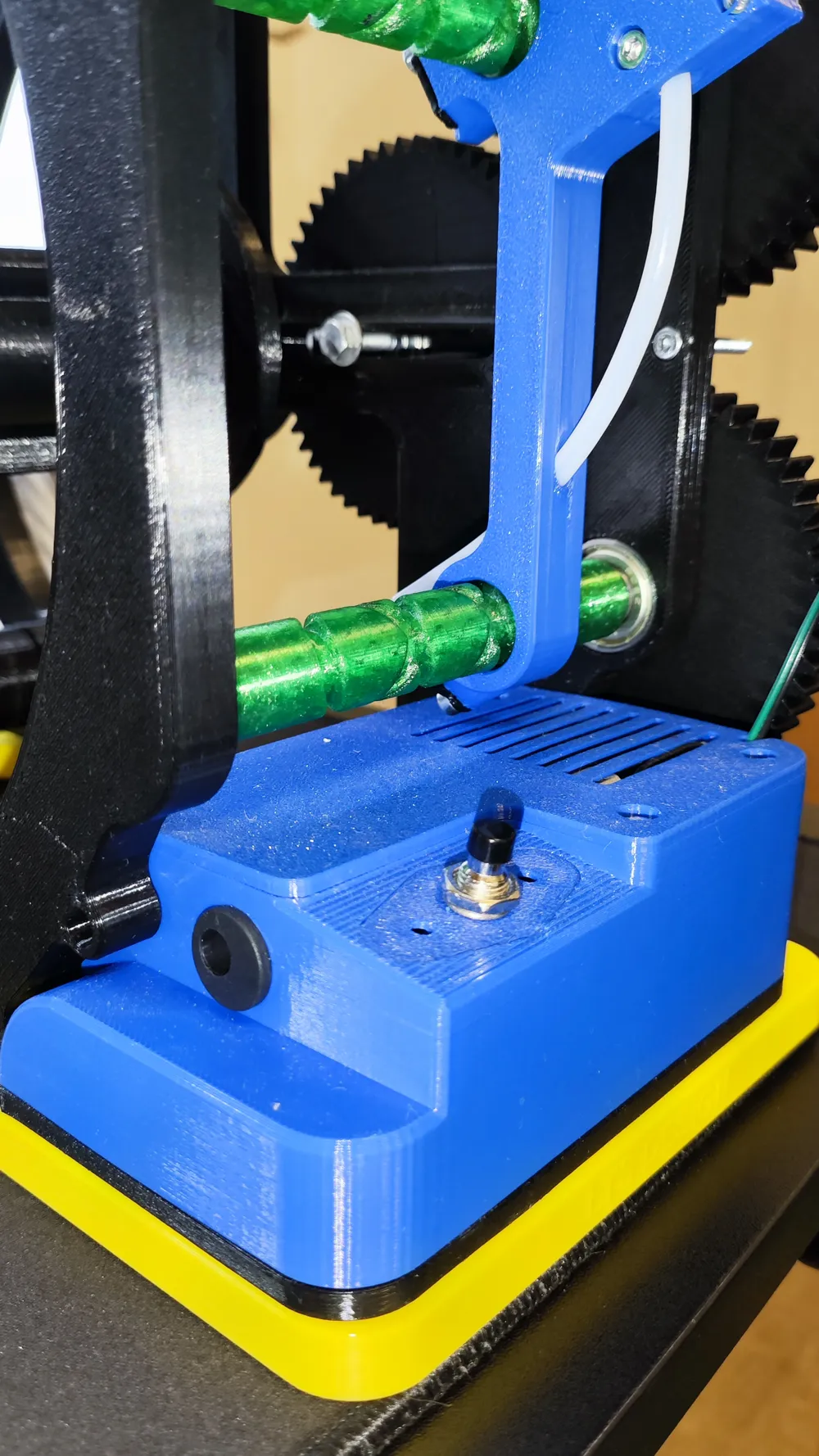

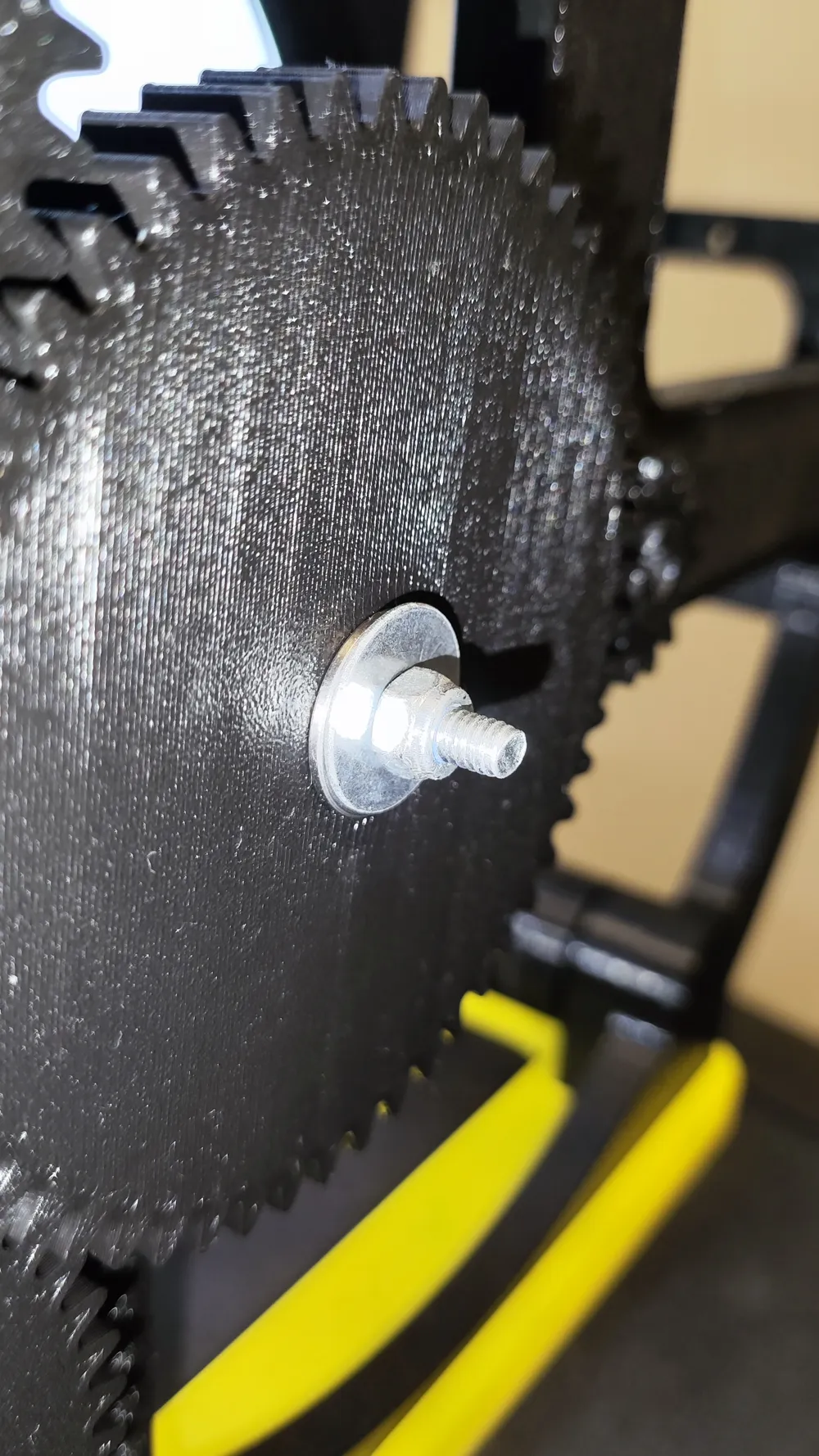

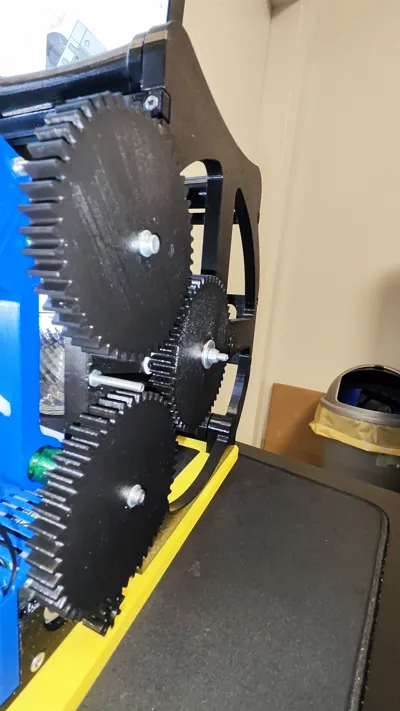

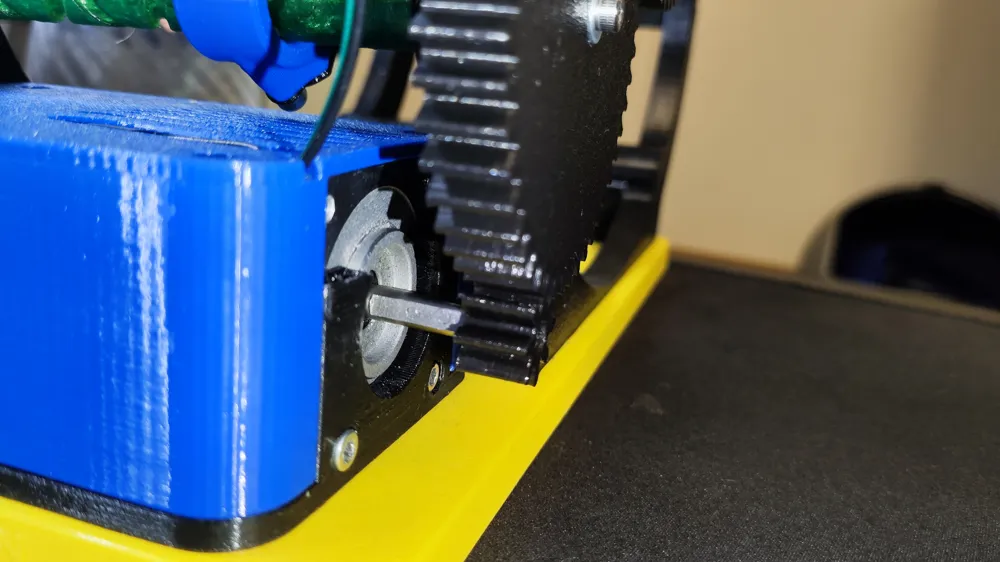

LTS Respooler - 3D_AB Gear Remix - Without Stripes
Print Profile(1)
Description
Boost Me (for free)
🔥 Boost this project and help it take flight! 🔥
Every boost fuels my motivation to deliver this PCB worldwide 🌍. The more boosts, the stronger the support and the faster the global distribution!
Join the mission — with your help, this project will gain unstoppable power! 💪🚀
Remix created with @Amarozoo
----------------------------------------------
Oryginal model: LTS Respooler
----------------------------------------------
[Version 1.1]
-Assembly instructions added
-Step source file added
[Version: 1.0]
-The PCB will be developed in the near future
----------------------------------------------
BOM
1.Mechanical
| Part Name | Quantity | Link |
|---|---|---|
| Bearing 28×12 mm | 2 | Amazon |
| Bearing 22×8 mm | 12 | Amazon |
| Bearing 15×13×4 mm | 2 | Amazon |
| Bearing 10×3 mm | 2 | Amazon |
| Screw M3×6 mm | 4 | — |
| Screw M3×12 mm | 16 | — |
| Screw M3×16 mm | 8 | — |
| Screw M3×35 mm | 2 | — |
| Screw M4×12 mm | 1 | — |
| Nut M3 | 6 | — |
| Nut M4 | 1 | — |
| Limit switch 3-pin | 1 | Amazon |
2.Electronic
| Part Name | Quantity | Link |
|---|---|---|
| ESP C3 Mini | 1 | Amazon |
| TMC 2209 / 2208 | 1 | Amazon |
| AMS 1117 | 1 | Amazon |
| LED SMD | 2 | Amazon |
| JST 2-pin | 2 | Amazon |
| JST 4-pin | 2 | Amazon |
| DC Jack | 1 | Amazon |
| Button | 1 | Amazon |
| Ceramic capacitor 100nF | 2 | Amazon |
| Tantalum capacitor 22µF | 2 | Amazon |
| Resistor 200Ω | 2 | Amazon |
| Wires | 1 m | — |
🔗 The provided links are for reference only to help you find the necessary parts. As the project creator, I do not require you to purchase from these listings — feel free to source the components from anywhere you prefer.
----------------------------------------------

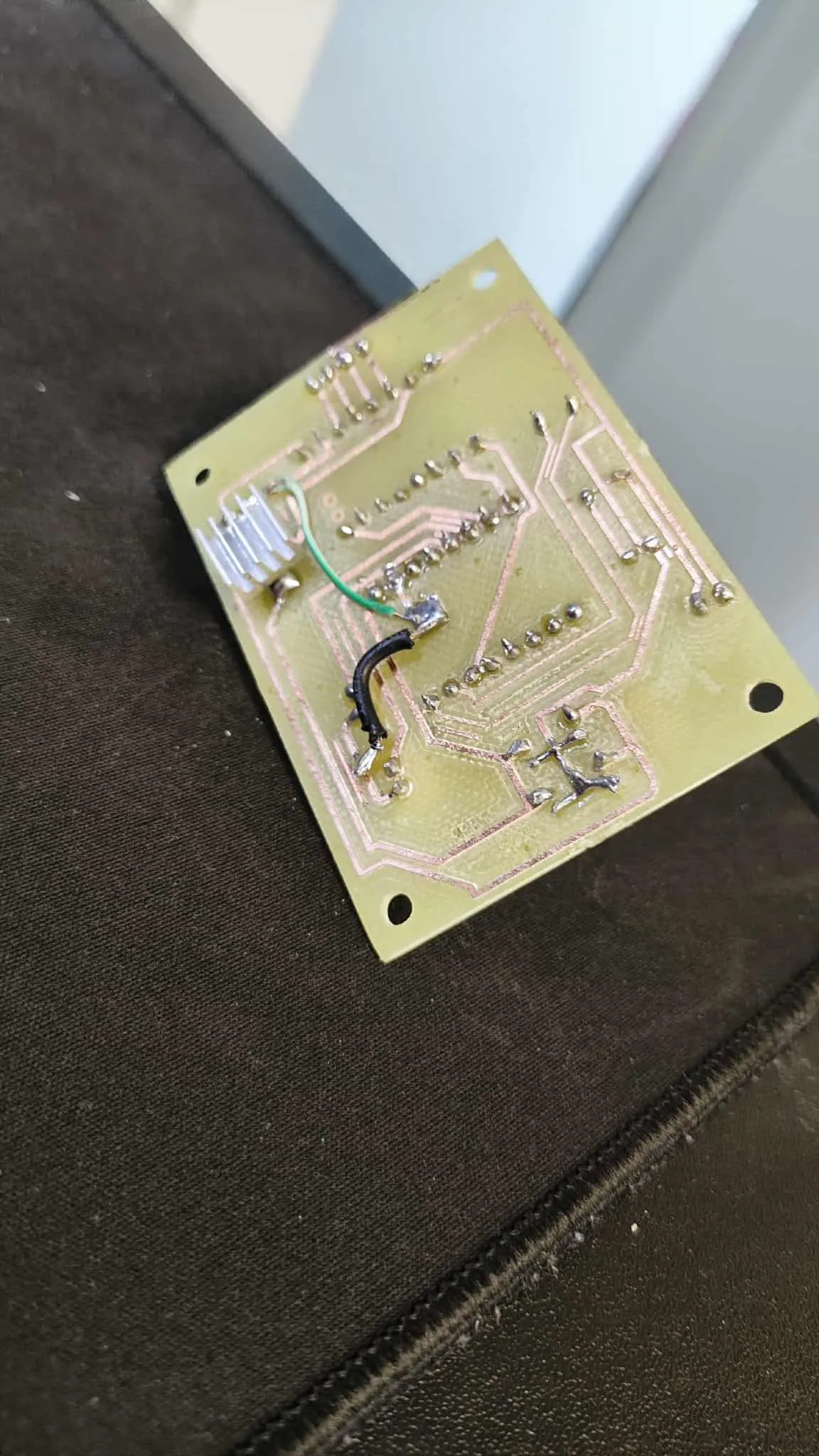

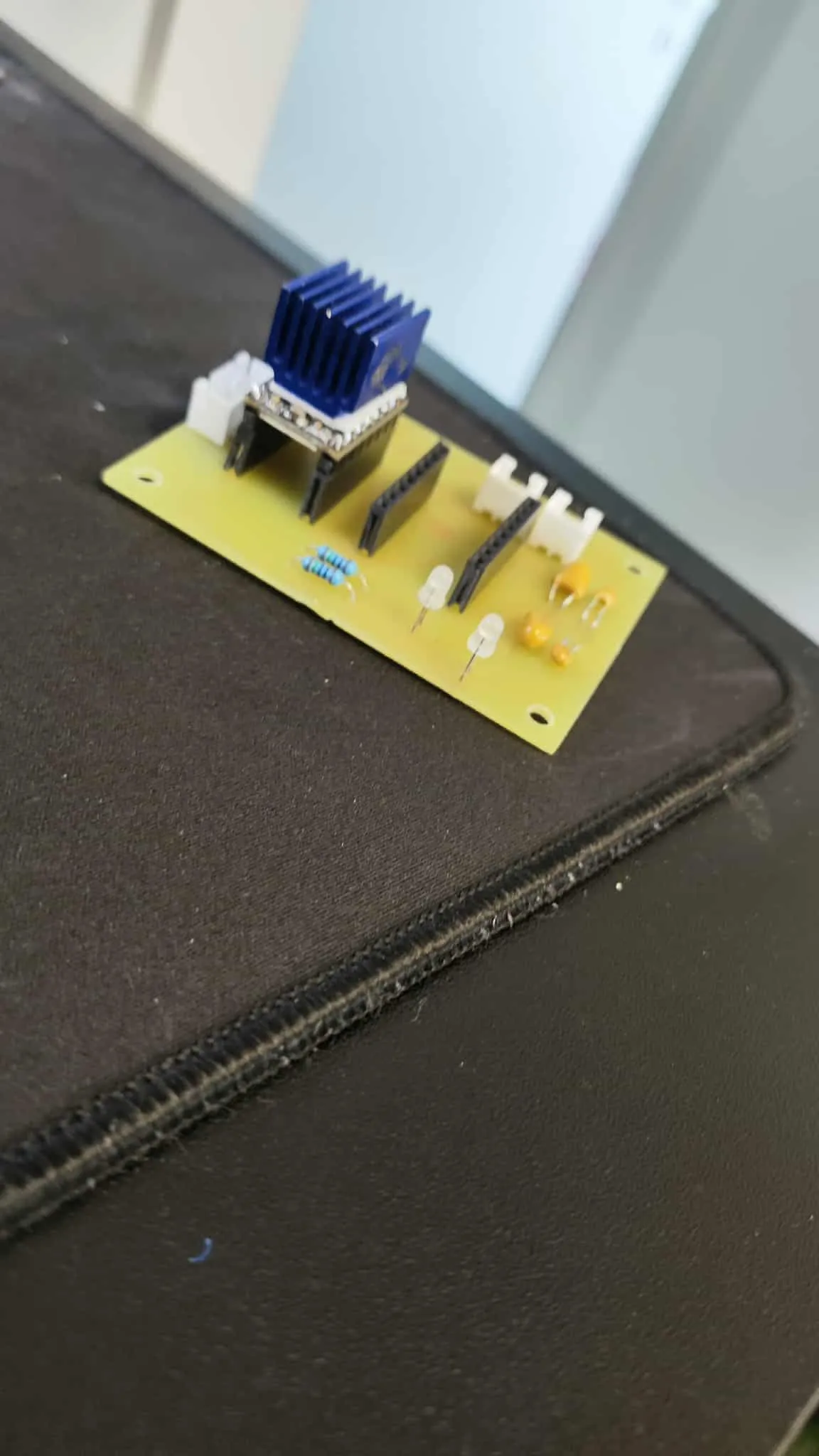

PCB
The PCB is my own design, but it is also possible to use the version provided by the creator of the original LTS project — the code and dimensions are similar, so there should be no problem with compatibility.
For recipients ONLY in Poland, I offer the possibility to purchase the PCB board at the link below:
[If you are from Poland and want to buy a dedicated PCB, write to me in DM]
----------------------------------------------
Montage
