ModRetro Chromatic Case
Print Profile(1)
Bill of Materials
- Medium CA Glue x 1: Rec. Starbond
Description

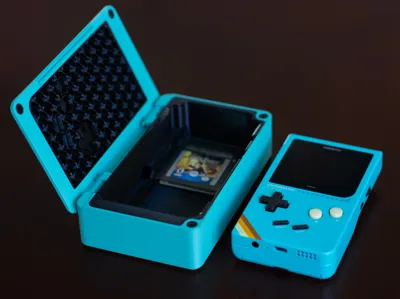

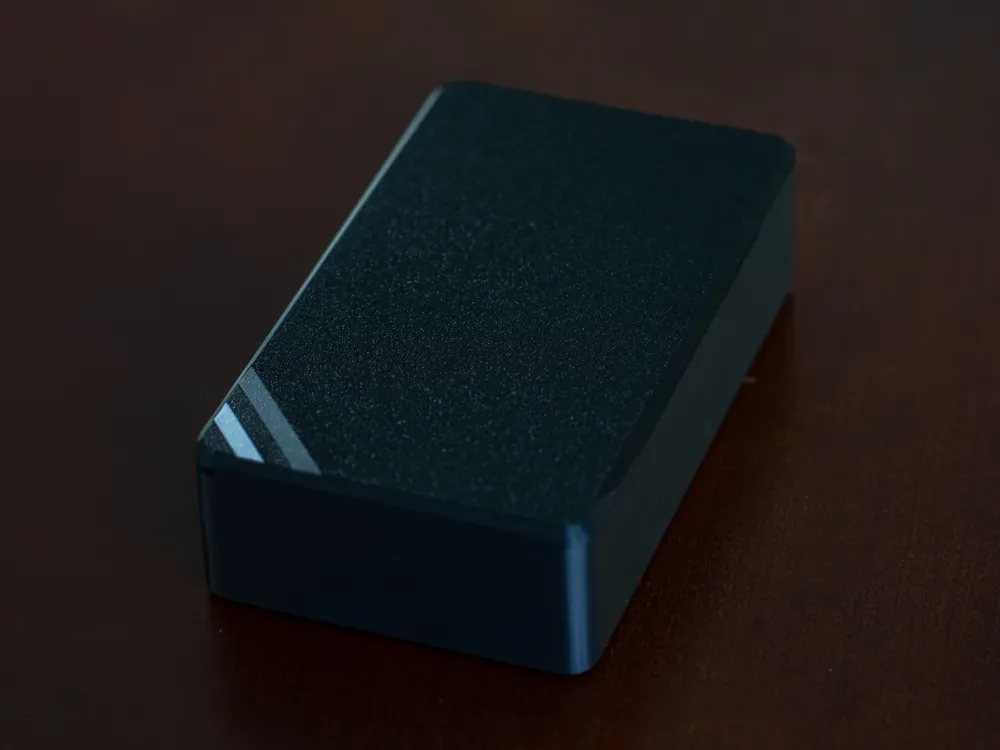

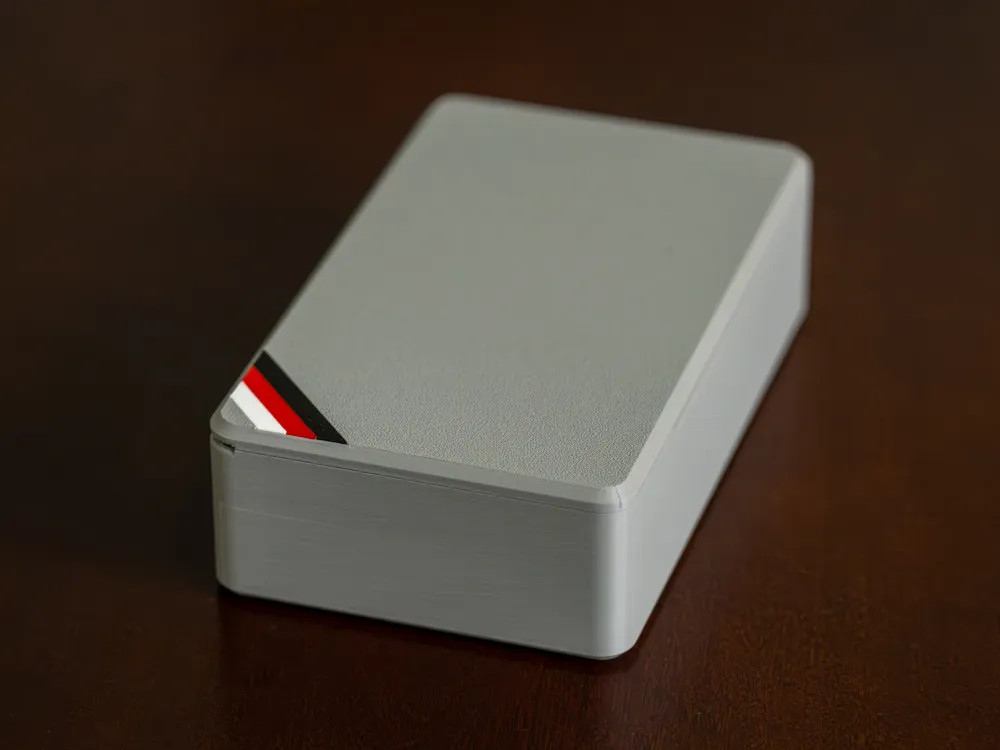

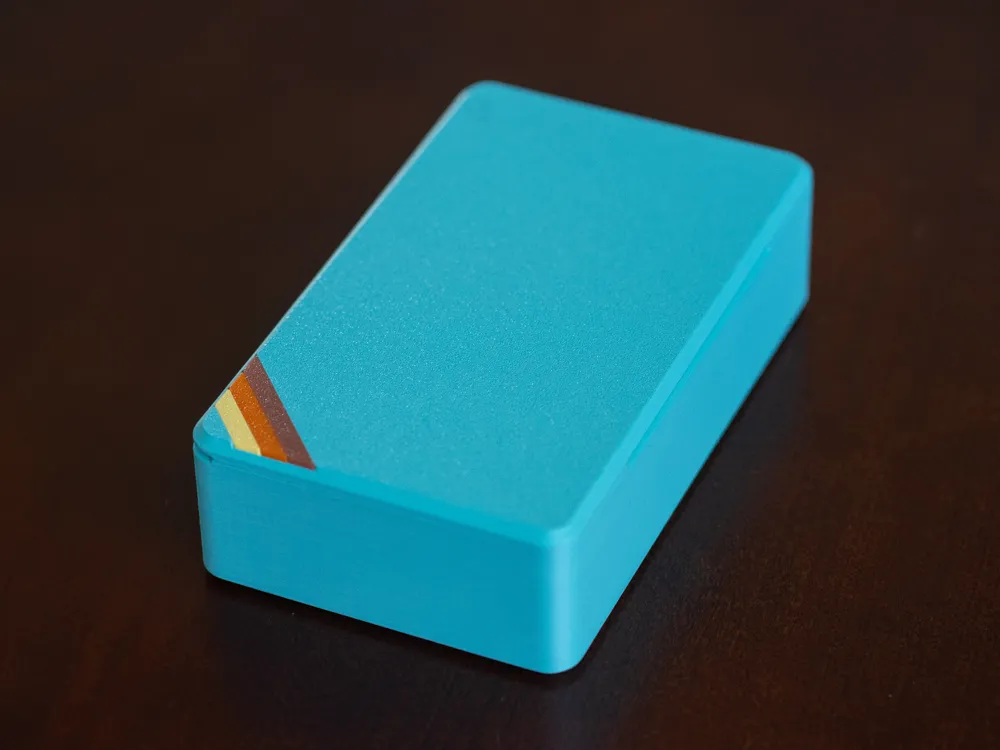

Here is another design for the ModRetro Chromatic in the same style as my Analogue Pocket, GBC, and GBA cases. This features the same PLA/Hard exterior with a soft TPU interior for carrying your device and a few games or a cable.
Purchase
If you would prefer to purchase this model it is for sale on my Etsy shop: https://r0adkllprints.etsy.com/listing/1882796558
These sales support me as a creator and help to fund future device models.
My Print Settings:
Lid Insert
- 10% Gyroid Infill
- 3 Bottom Layers
- 0 Top Layers
Body Insert
- 10% Gyroid Infill
- 3 Bottom Layers
- 5 Top Layers
Assembly
- Connect the Lid to the Case using 2 x 30mm M3 socket head bolts. The body is modeled to be self threading so you will meet a little resistance when inserting
- Insert the TPU case insert into the body, the fit should be Just Right and slide in
- Super glue the Lid insert into the the Case Lid. (I use Starbond Medium CA Glue for this, but any should do)
- Super glue the 4 8x3mm Magnets into the case and lid. PLEASE BE SURE TO DOUBLE CHECK MAGNET POLARITY!!!!
—
Changelog
v1
- Initial Release
