WOPR 10 Inch Rack Mount
Print Profile(1)
Description

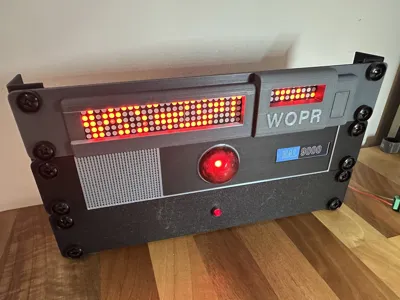

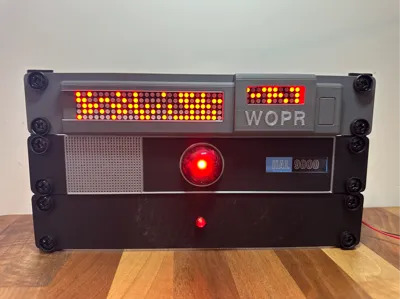

This is a 10 Inch rack mount plate inspired by the WOPR (War Operation Plan Response) computer.

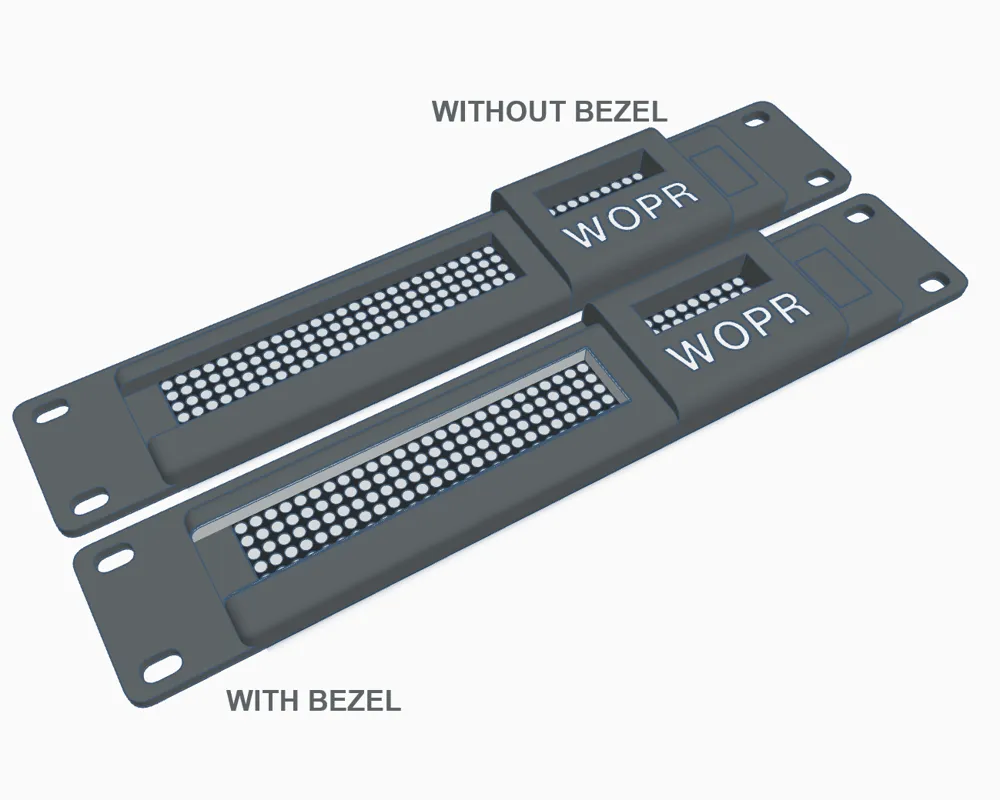

There are two complete versions that require an AMS, one with and one without Bezel. The one with is probably more authentic, however it increases the print time and you're not likely to notice when lit up, so would recommend the version without. If you're just printing single colour then use "WOPR main.stl"
Video:
Arduino Code can be found here:
https://github.com/jebbett/WOPR/

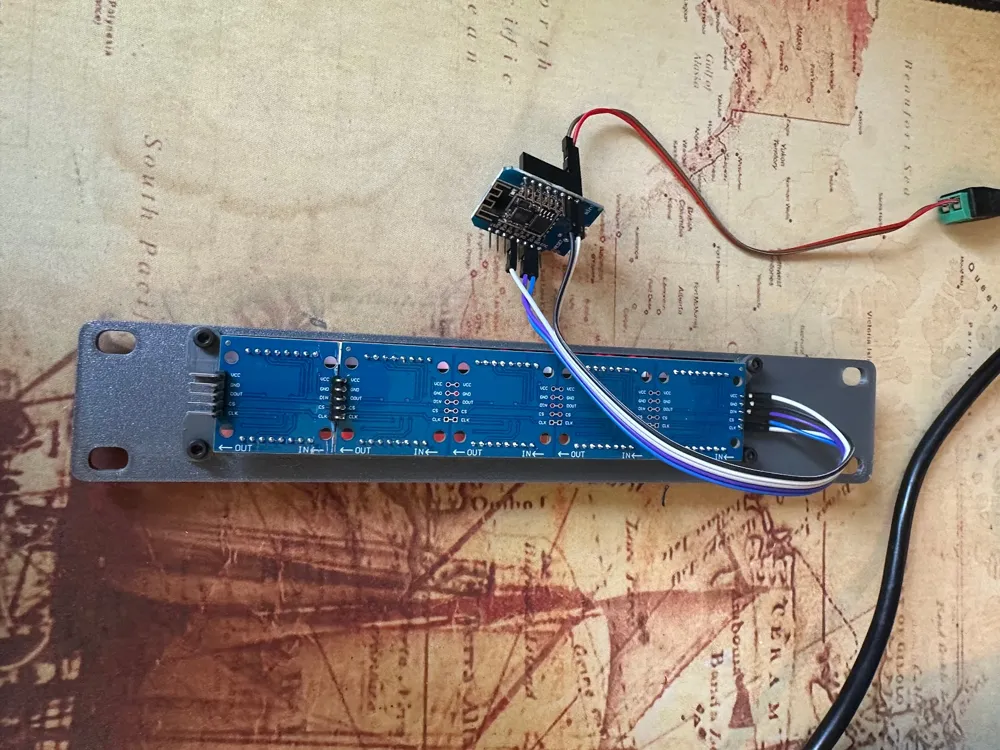

This requires:
- 5 x 8x8 red matrix displays (MAX7219)
- Some kind of ESP - I used Wemos D1 Mini (ESP8266)
- 4 x M3 bolts to hold the bracket, 5 or 6mm are best
- And ideally an AMS to print the text
A 19 Inch adapter for this model can be found here: https://makerworld.com/en/models/1784485-10-inch-to-19-inch-network-server-rack-adapter
My other 10 inch rack mount models can be found here: https://makerworld.com/en/collections/3262188-10-inch-rack-mount
