Gameboy Advance SP Case
Print Profile(1)
Bill of Materials
Description

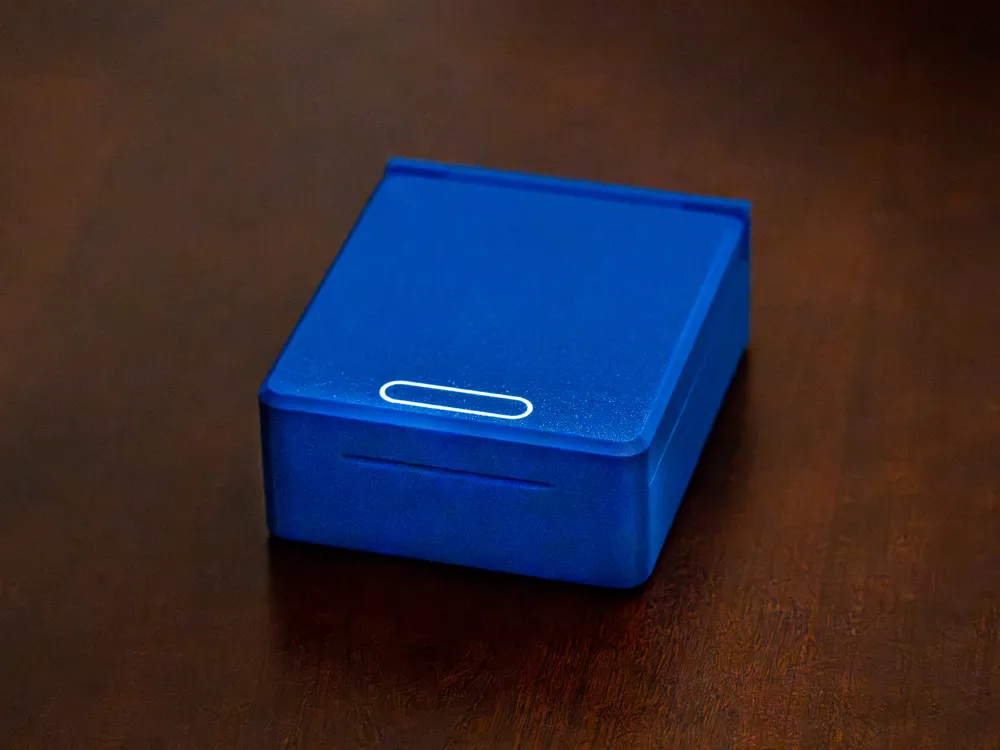

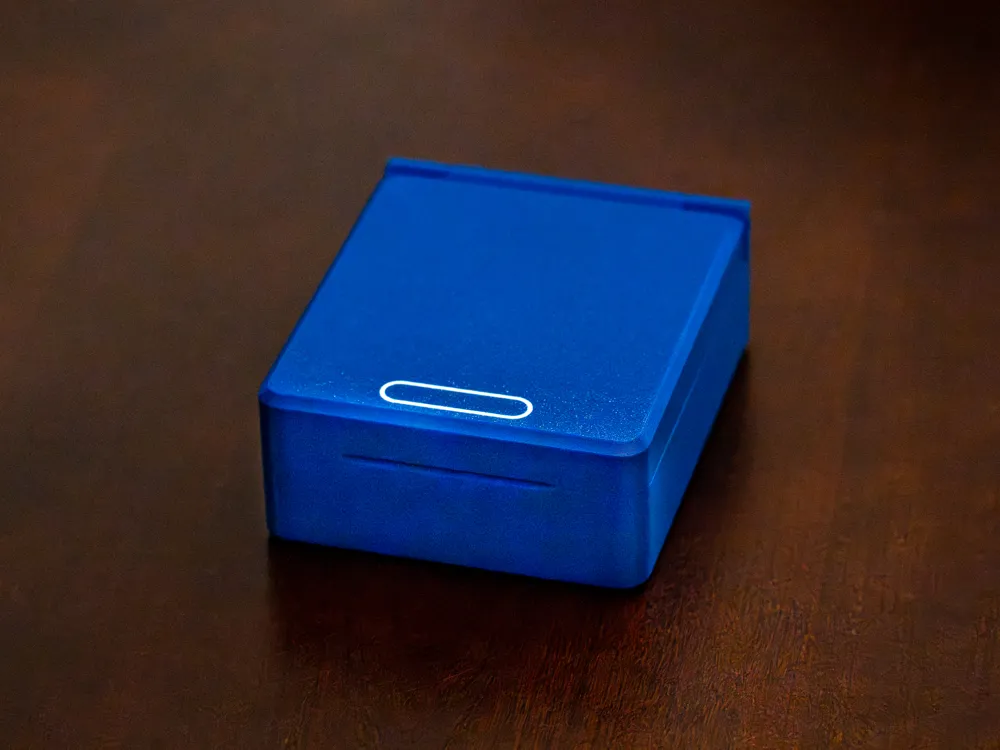

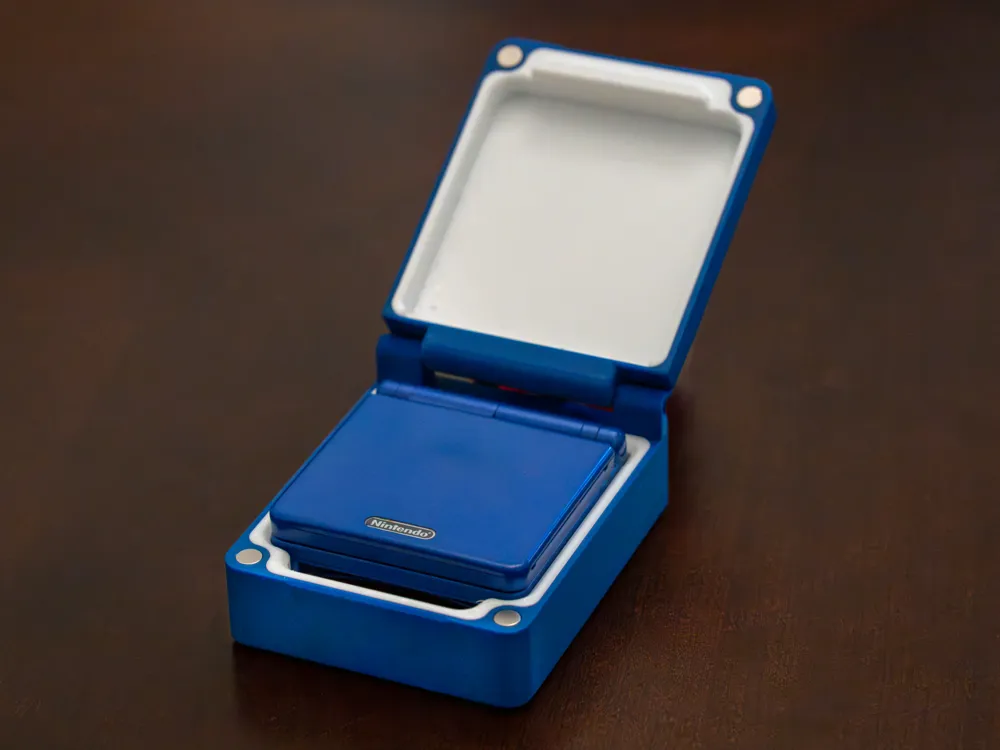

Here is my design for the Gameboy Advance SP in the same style as my Analogue Pocket, GBC, and ModRetro Chromatic cases. This features the same PLA/Hard exterior with a soft TPU interior for carrying your device and a couple games.
Purchase
If you would prefer to purchase this model it is for sale on my Etsy shop: https://r0adkllprints.etsy.com/listing/4352513740
These sales support me as a creator and help to fund future device models.
My Print Settings
Lid Insert
- 10% Gyroid Infill
- 3 Bottom Layers
- 0 Top Layers
Body Insert
- 10% Gyroid Infill
- 3 Bottom Layers
- 5 Top Layers
Assembly
- Connect the Lid to the Case using 2 x 30mm M3 socket head bolts. The body is modeled to be self threading so you will meet a little resistance when inserting.
- Be careful to not over tighten! There should be a little game on each side so the lid can hinge unimpeded.
- Insert the TPU case insert into the body, the fit should be Just Right and slide in
- Insert the TPU lid insert into the lid.
- You shouldn't need to glue this, but it is an option.
- Super glue the 4 8x3mm Magnets into the case and lid. PLEASE BE SURE TO DOUBLE CHECK MAGNET POLARITY!!!!
