Tool Chit Dispenser

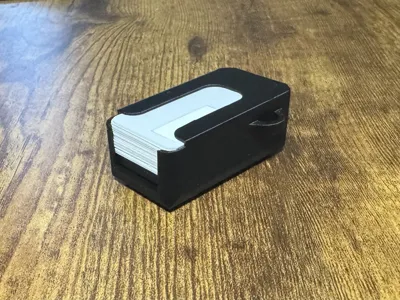

This is a spring-loaded toolchit dispenser designed for technicians. It holds about 15 toolchits in one compact box and keeps them under constant pressure using two 0.4*5*25mm springs springs.

You can find springs here.(springs from a pen will work as well)

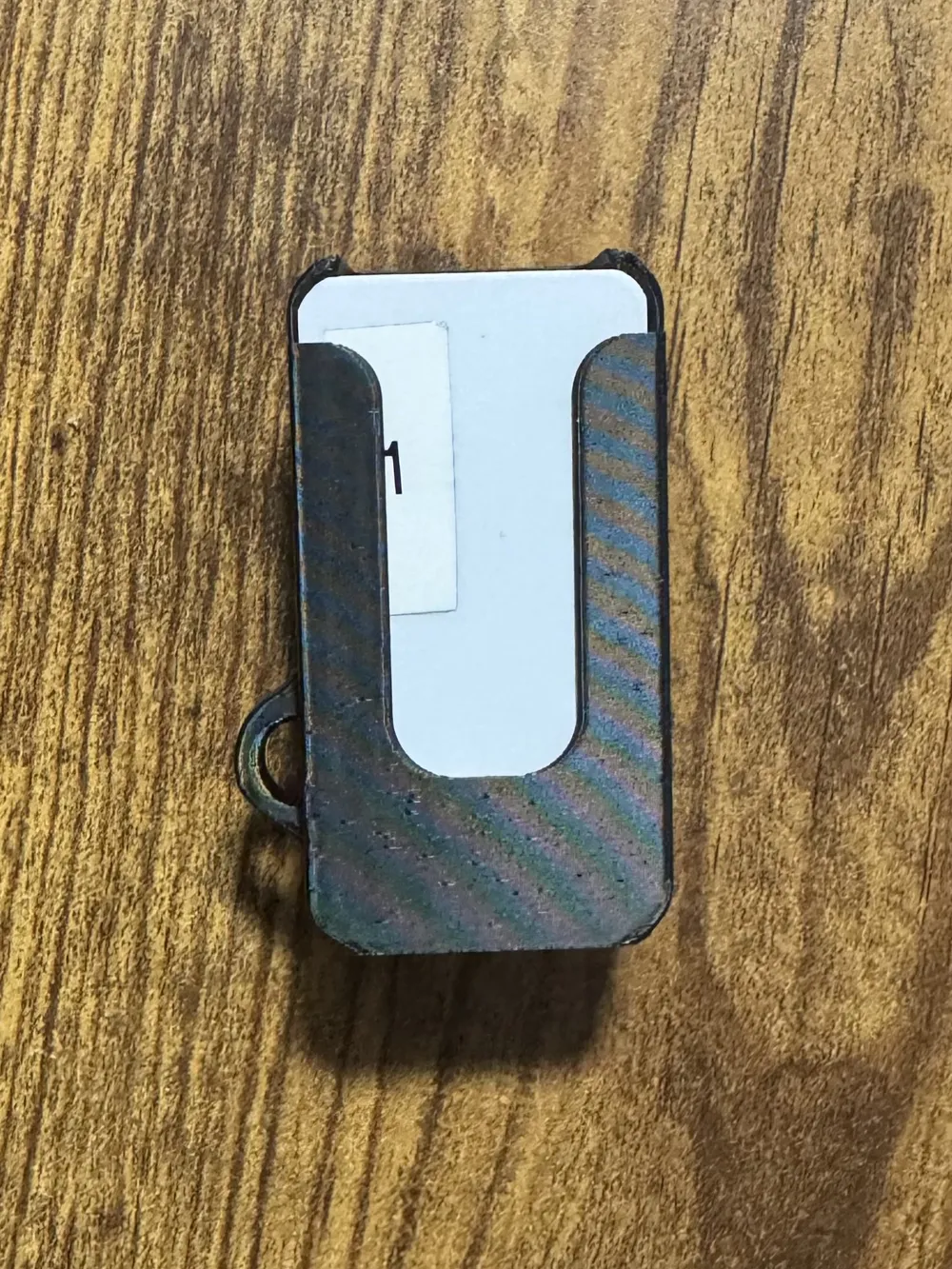

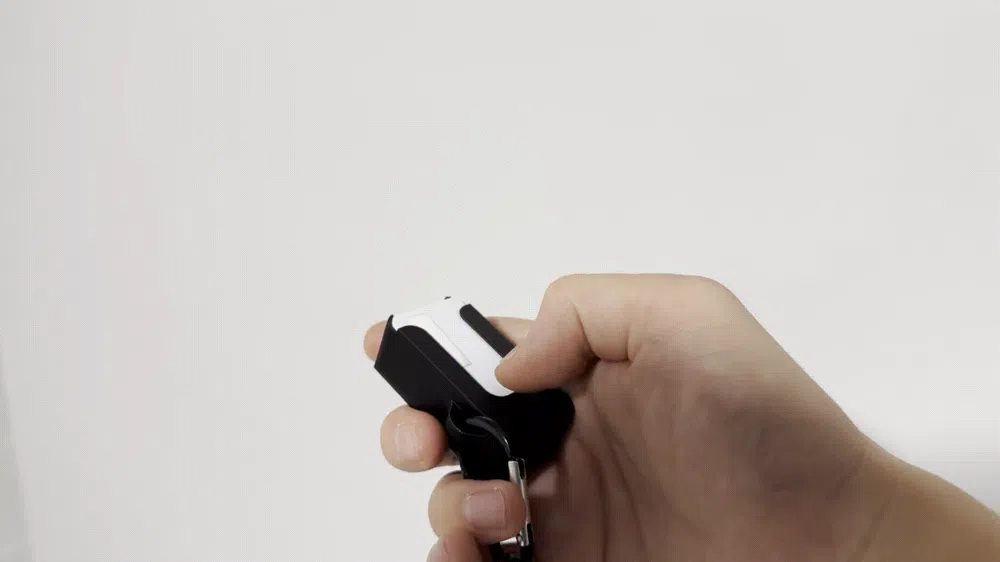

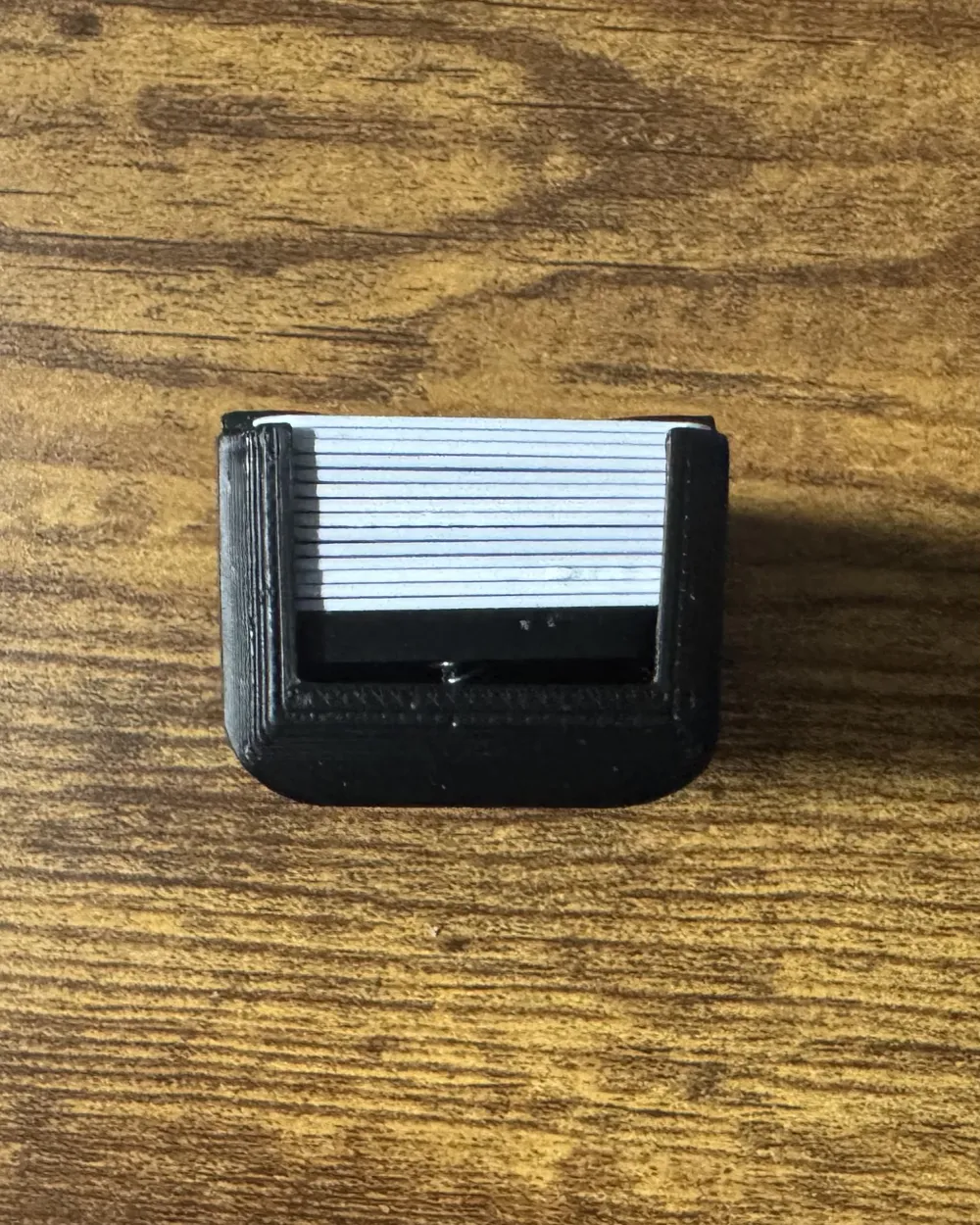

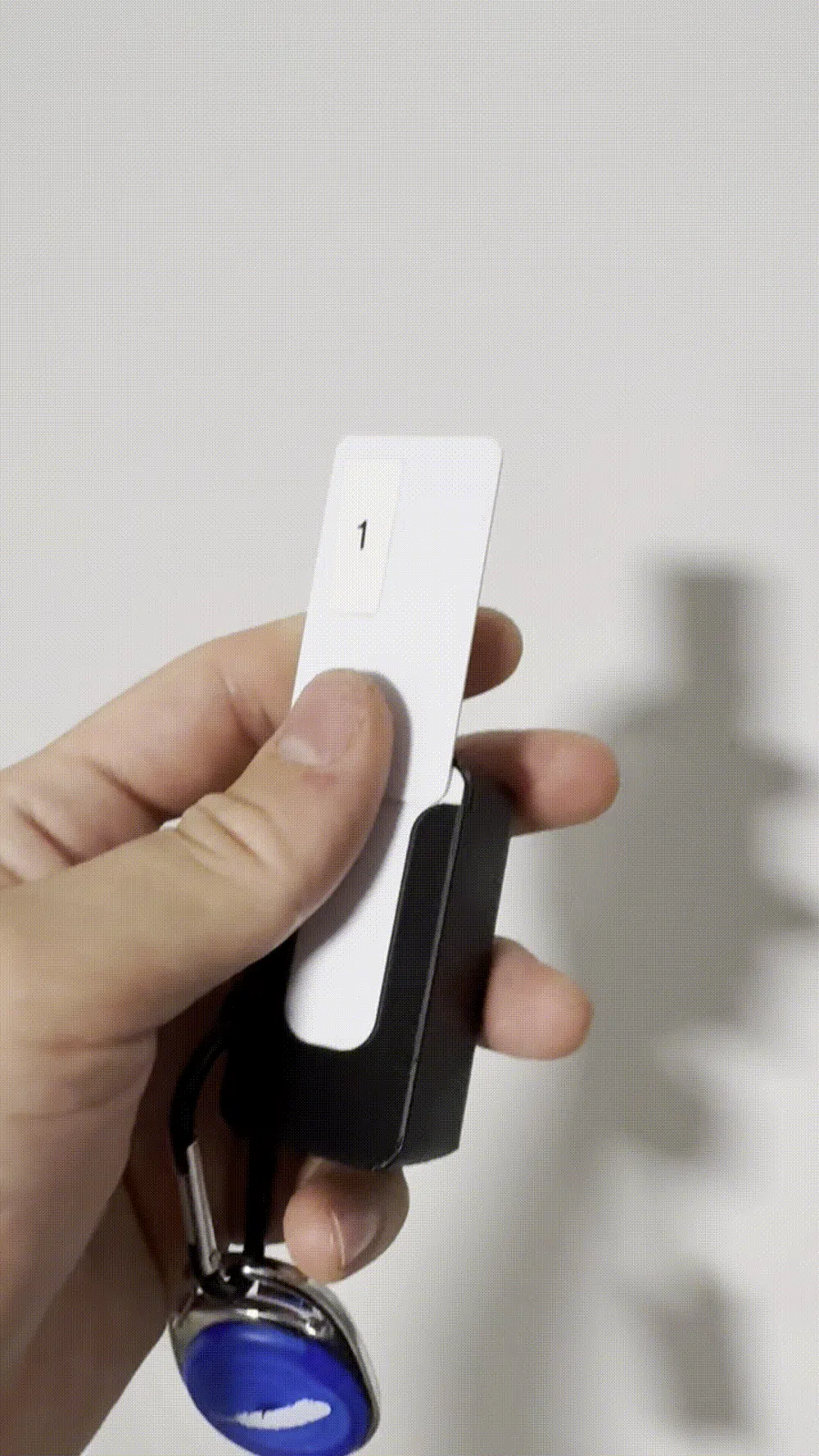

To use it, just slide your finger at the top. The chit pops out smoothly from the side opening. A small viewing window lets you quickly check how many chits remain. This makes chit handling much faster and more organized compared to pockets or clips.

Printing Instructions

• Tested in PLA (works great).
• Supports are not required.
• Brim is not required.
• Print in the default orientation provided.
• Feel free to scale up or down to match your specific tool chit size if needed.

Assembly

1. Take two springs.

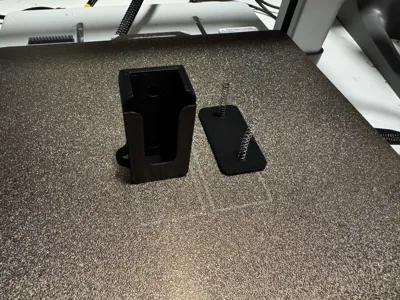

2. Place the springs on the inner part of the dispenser assembly.
3. Insert the inner part into the housing. It can be a little tricky, but it is designed to fit.
4. Use a small pick or similar tool to help guide the springs into the designated spring holes inside the dispenser.
5. Once seated, the springs will apply pressure to keep the toolchits pushed toward the opening.
