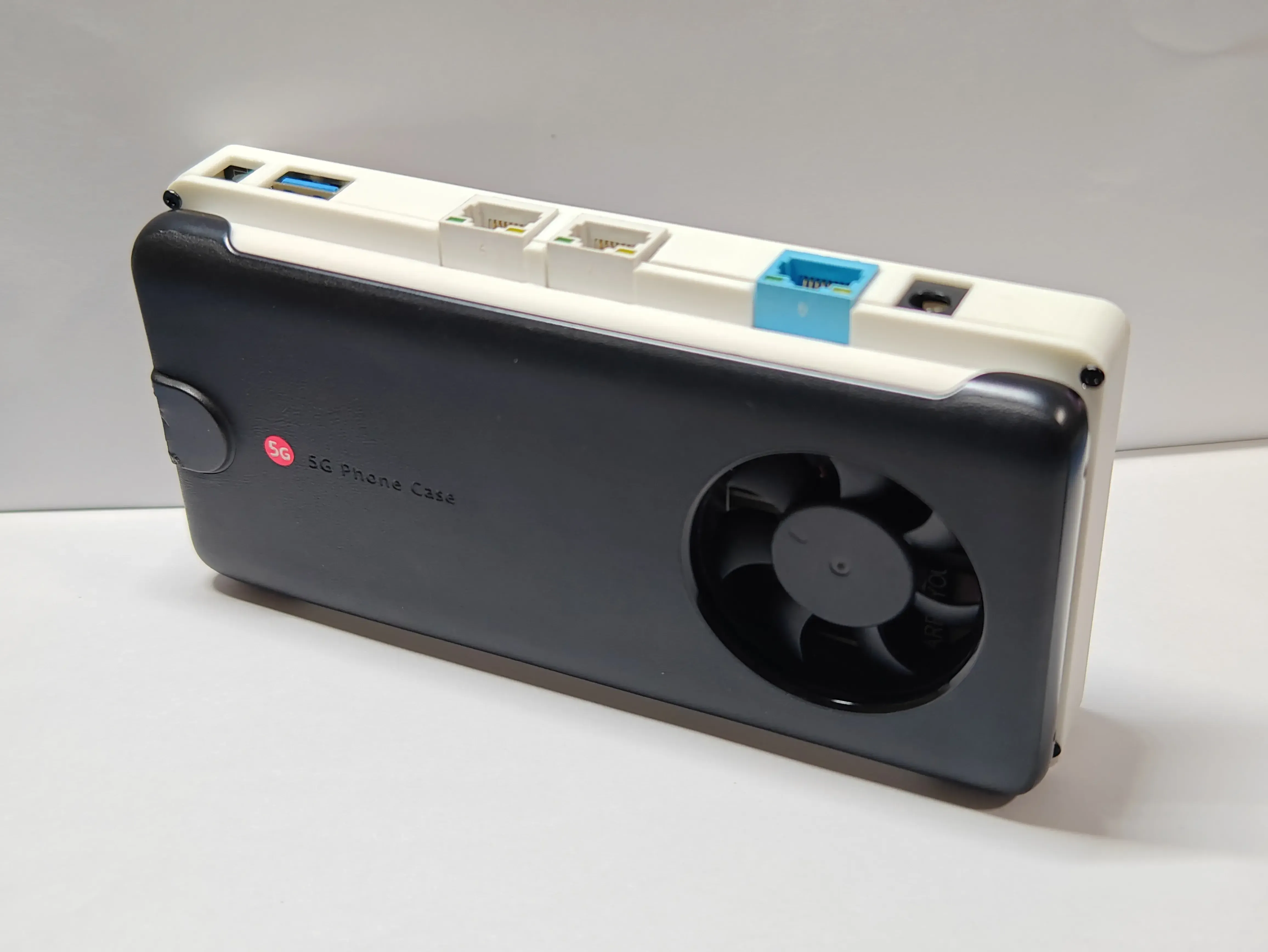

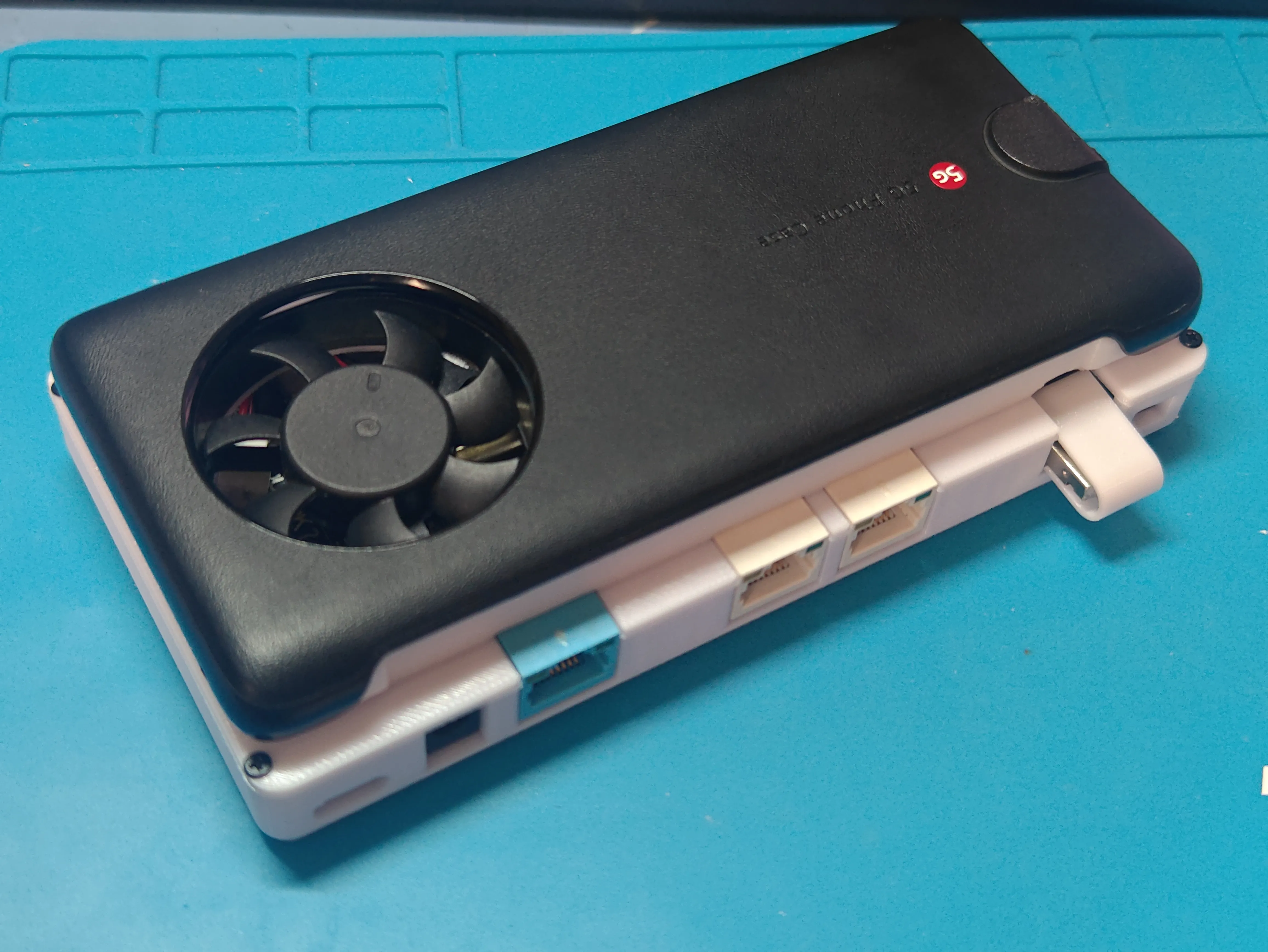

Huawei 5G Communication Case Modified Enclosure, 5G CPE Made with R3G Router Motherboard
For Mate 50, Pro, RS 5G Communication Case
Retains the communication case itself, router has built-in antenna, active fan cooling
Reserved TypeC opening, can be modified for PD power supply
Overall assembly: heatsink attached to the inside of the communication case, fan has locating slots
Bottom layer has antenna slots, wiring slots for easy installation
Communication case secured by clips (similar to a phone case), upper and lower cases fixed by screws
All accessories:
- Mate 50\Pro\RS 5G communication case
- Xiaomi R3G router
- Flat head Phillips self-tapping screw M2*6 -- 4 pieces
- 5010 fan, 5V or 12V is fine
- mini560 5V DCDC buck module, used for power supply modification
- 40*40*11 heatsink, with thermal adhesive
- 15*65mm router WiFi antenna, dual-band, IPEX 1st generation interface, cable length 10cm or more is sufficient
Detailed assembly tutorial: https://r0p9d116vqz.feishu.cn/wiki/TsY6w7DnIihnyRkbIbMcPMRTnte?from=from_copylink
