IKEA Skadis Pegboard Mario Modular Storage Box Tool Box Perfect Size Freely Combinable Single Color Print No Multi-Color Print Required
Print Profile(1)
Description
Boost Me (for free)
Every original design goes through countless prints and revisions, I hope you like and support it!
This is a set of perfectly fitting IKEA Skadis Pegboard and modular Mario-themed storage boxes, all parts can be printed in a single color.

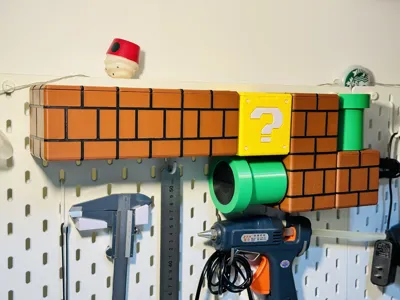

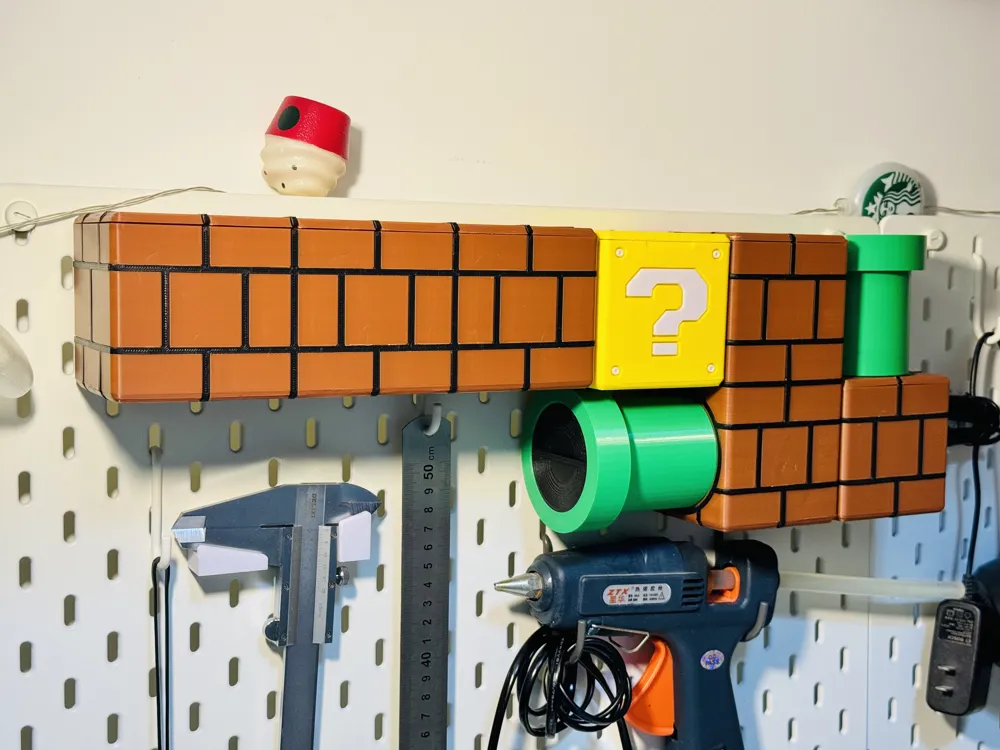

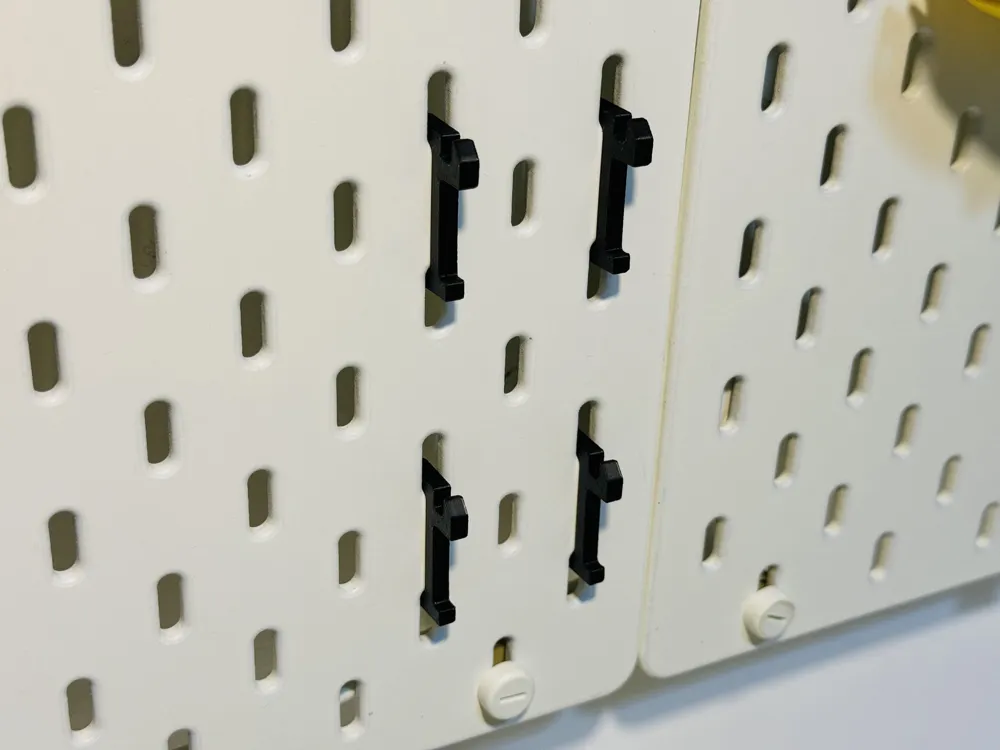

The single block box measures 80x80x80mm, fixed to the IKEA Skadis Pegboard with hooks. The question mark, block, and pipe positions can be arranged anywhere, fulfilling storage needs while also serving an aesthetic function, making your pegboard a highlight of the room.
No hardware required. Each box needs 8 6mm diameter, 2mm thick neodymium magnets for magnetic adsorption (optional).

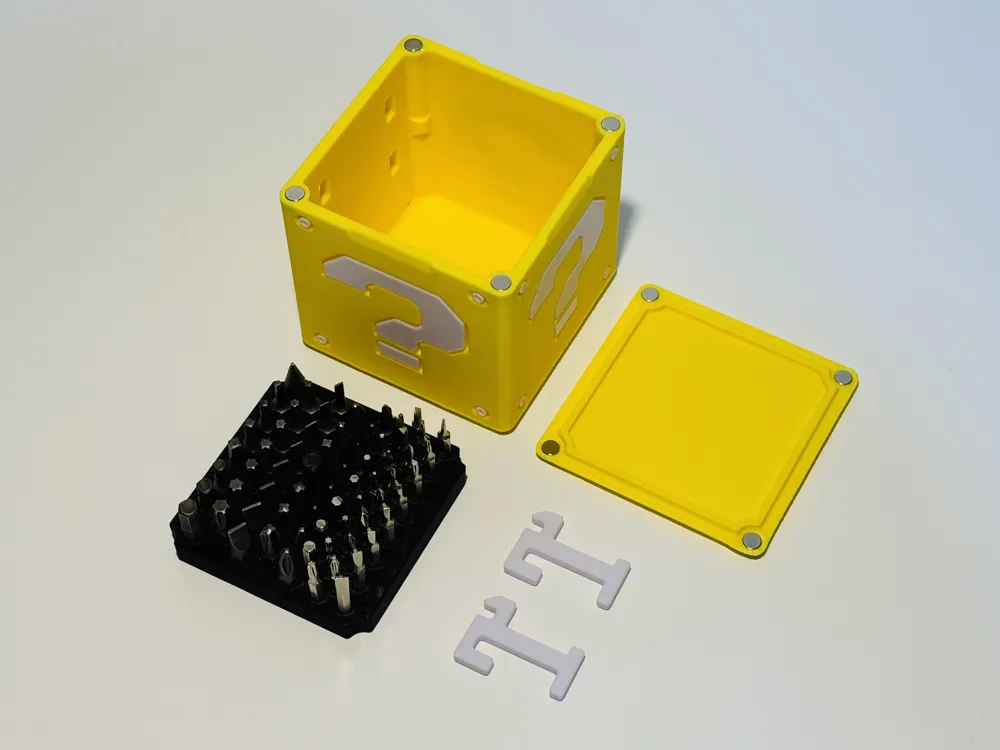

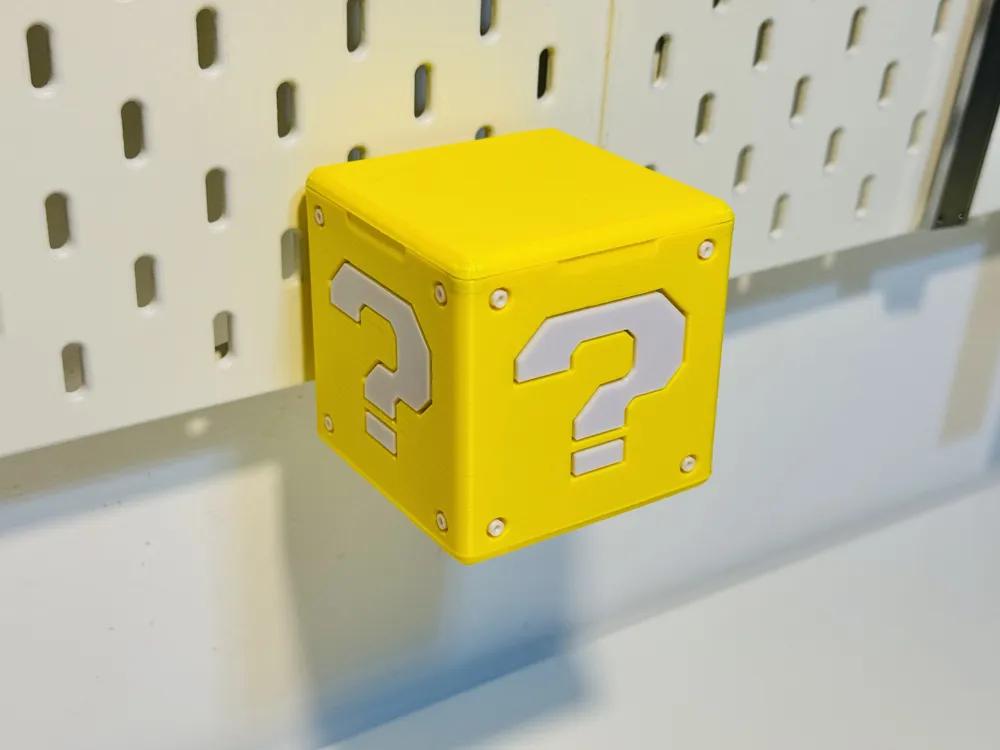

Question Mark Box:
To print: Box body + Lid + Question mark decoration*3 + Screw decoration*12 + Screwdriver bit storage board
Question mark and screw decorations need to be glued. The screwdriver bit storage board is optional.

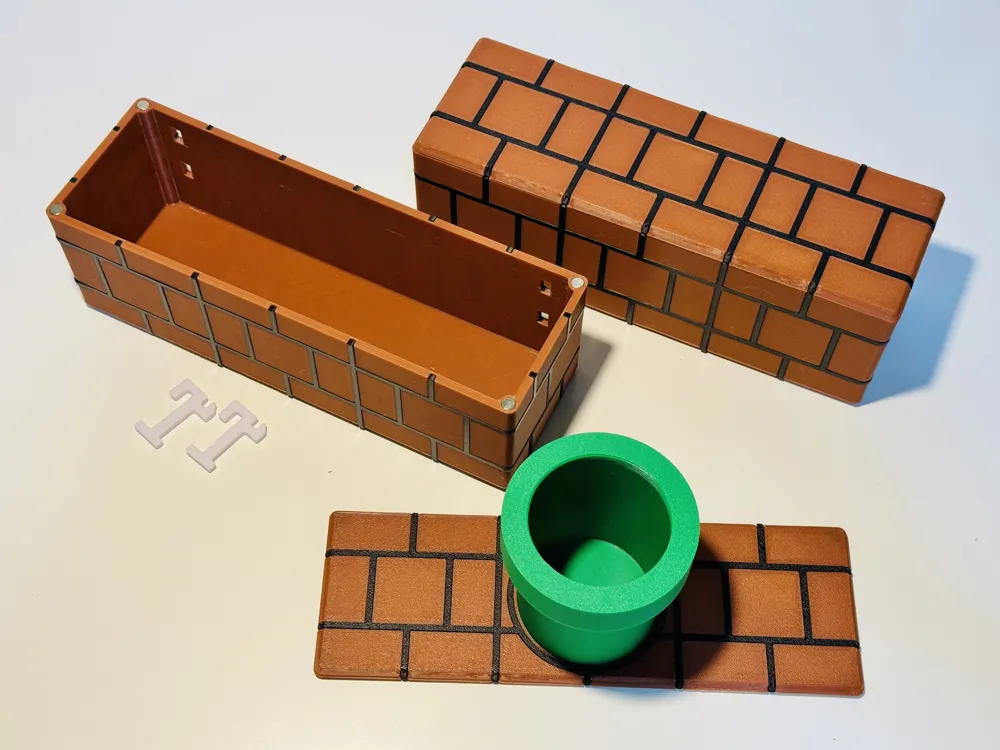

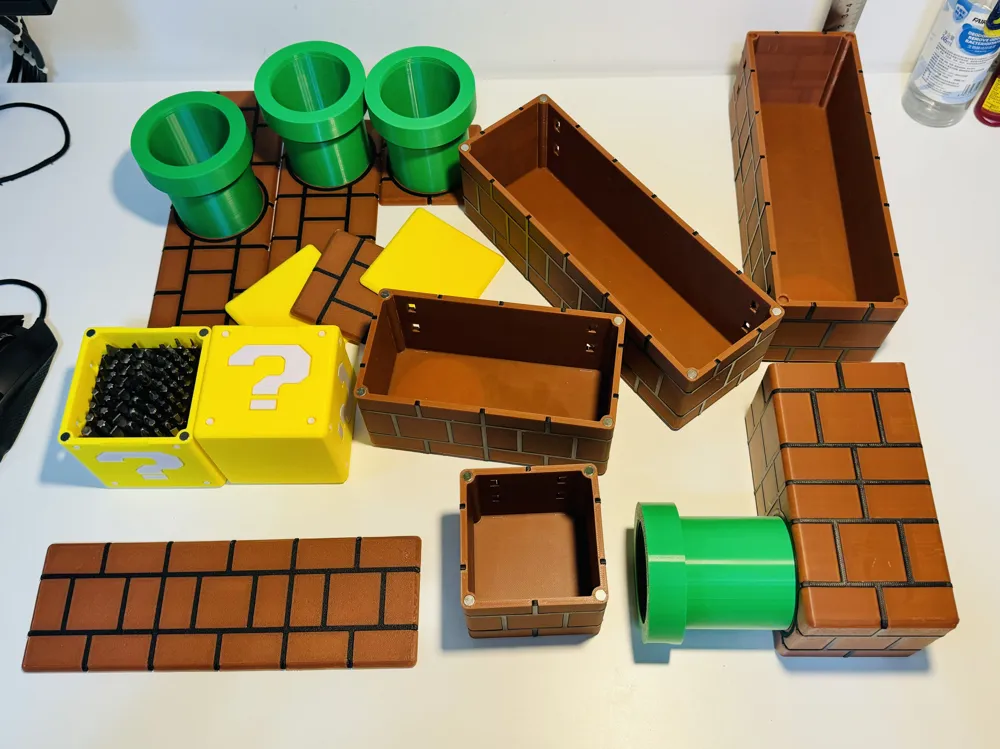

Brick Box: 3 sizes, N combinations.
To print: Box body + Lid + Brick seam line + Pipe (optional)

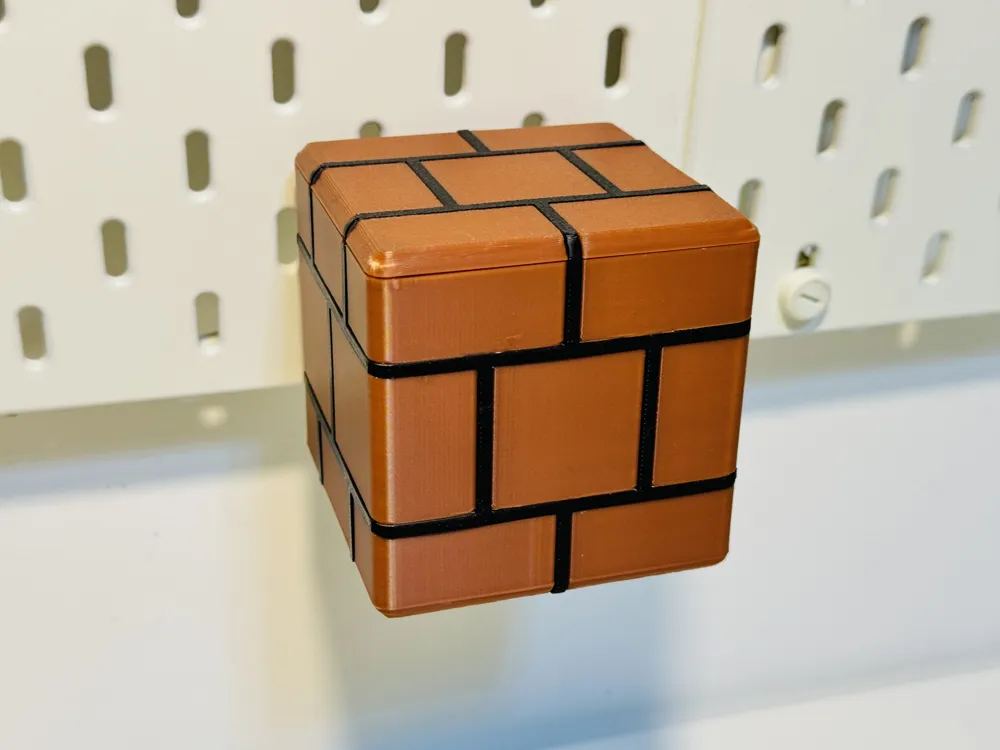

Single block box: 80x80x80mm; Double block box: 80x160x80mm/80x80x160mm; Triple block box: 80x240x80mm.
Each size of the brick box is designed with a box body, lid, and brick seam line that includes an assembly position for the pipe.
Brick seam line:
Needs to be glued to the box body. The brick seam line for each type of box can be found in the file. Each box has only 6 faces, so it's easy to identify the position of the brick seam line.

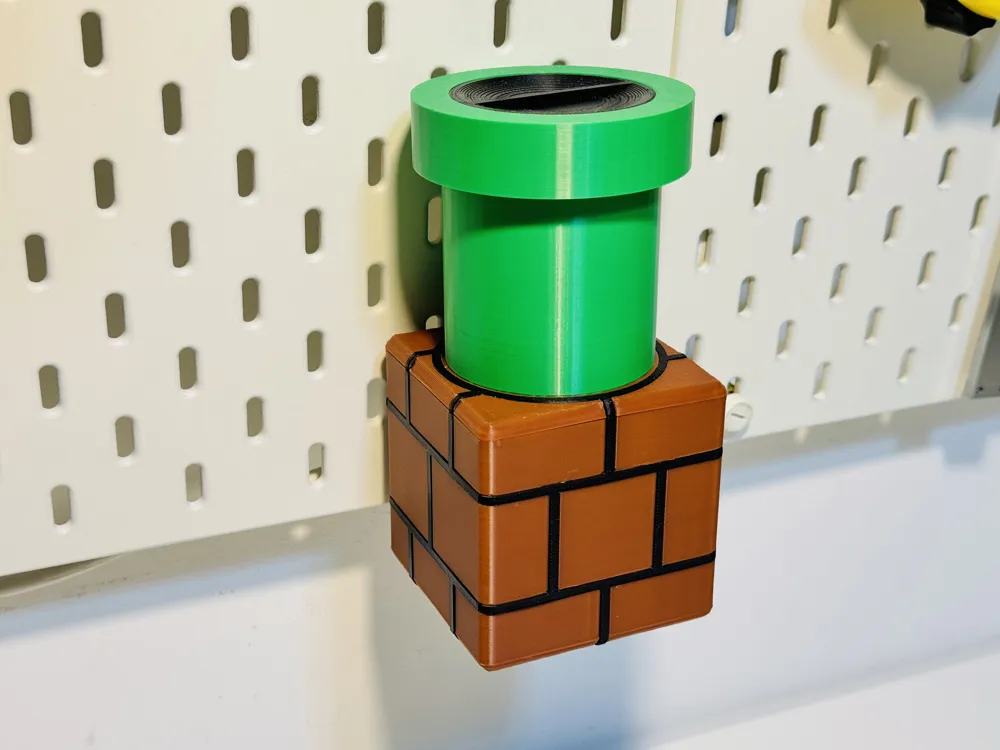

Pipe Box:

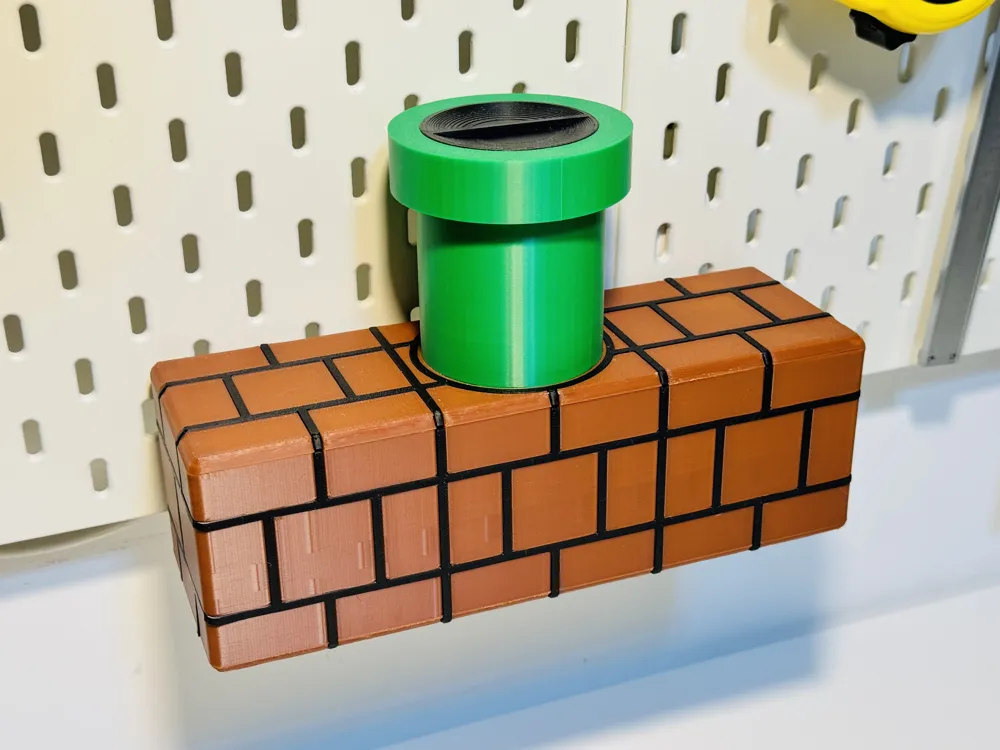

Different pipe installation positions are designed for the double and triple block boxes (left and right positions can be changed by mirroring) to meet your various placement needs.

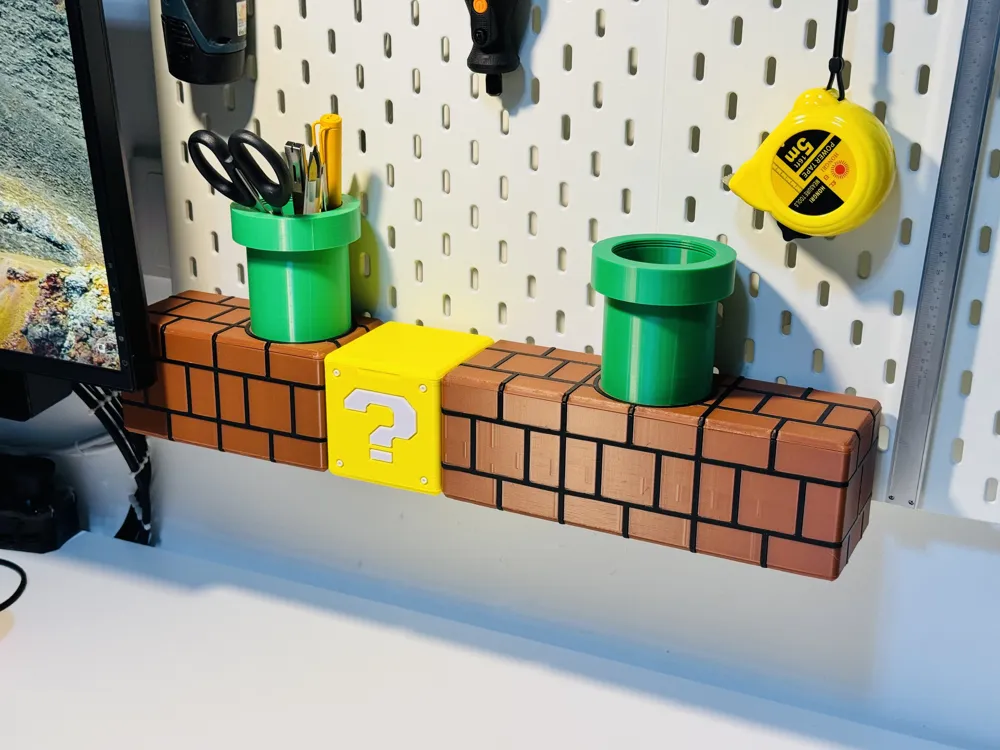

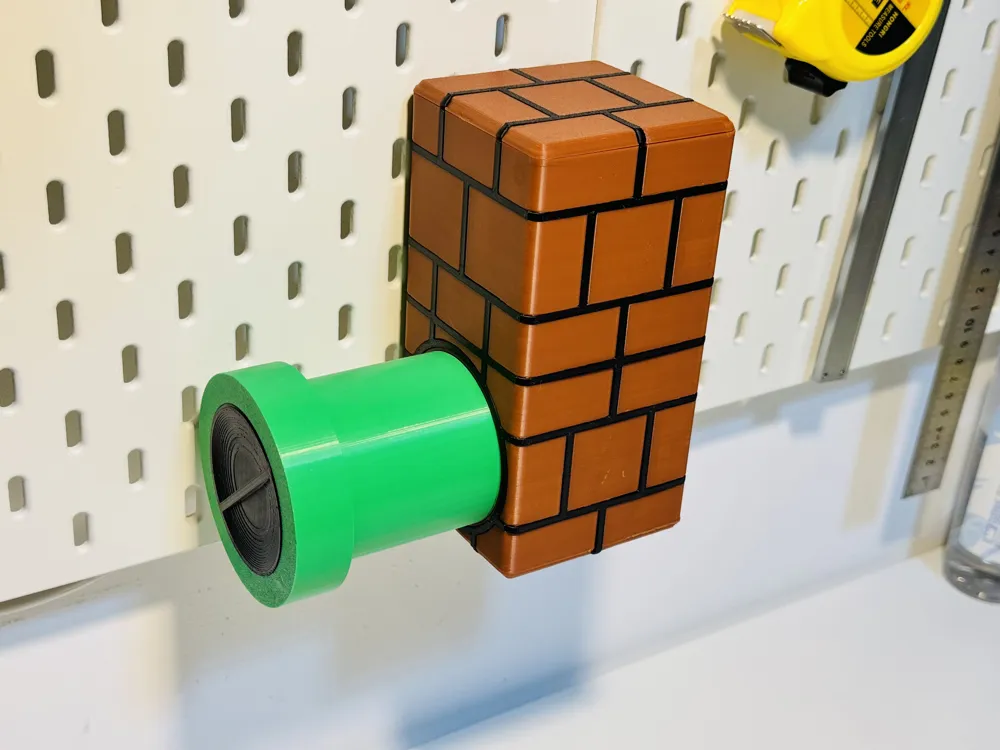

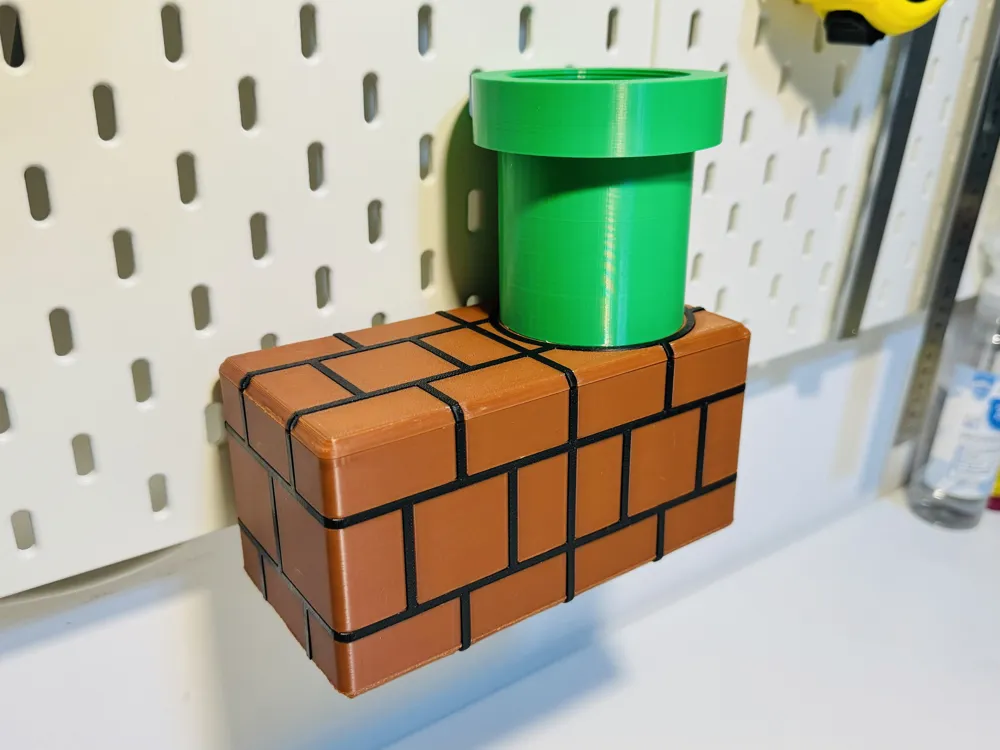

Upward-facing pipe boxes can be used as pen holders if the lid is not installed. Horizontal or downward-facing pipe boxes can be used for storing small items.

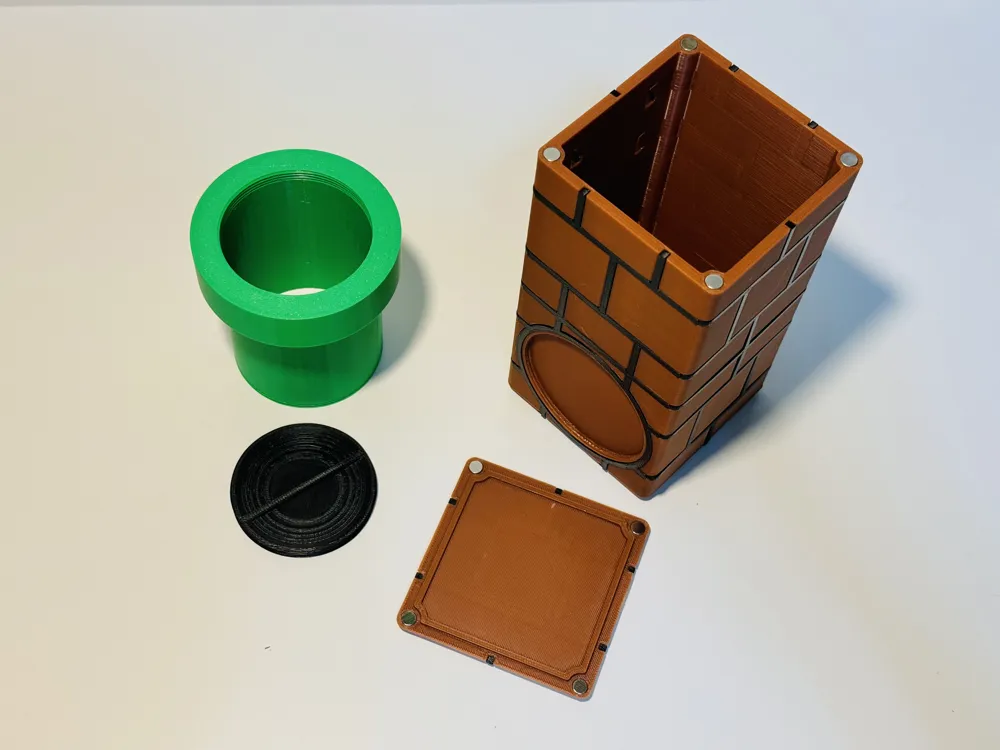

Note: Pipe boxes that fit the lid have a bottom, while pipe boxes that fit the box body do not. The thread lengths are different, please do not print the wrong one. (Lid is universal)

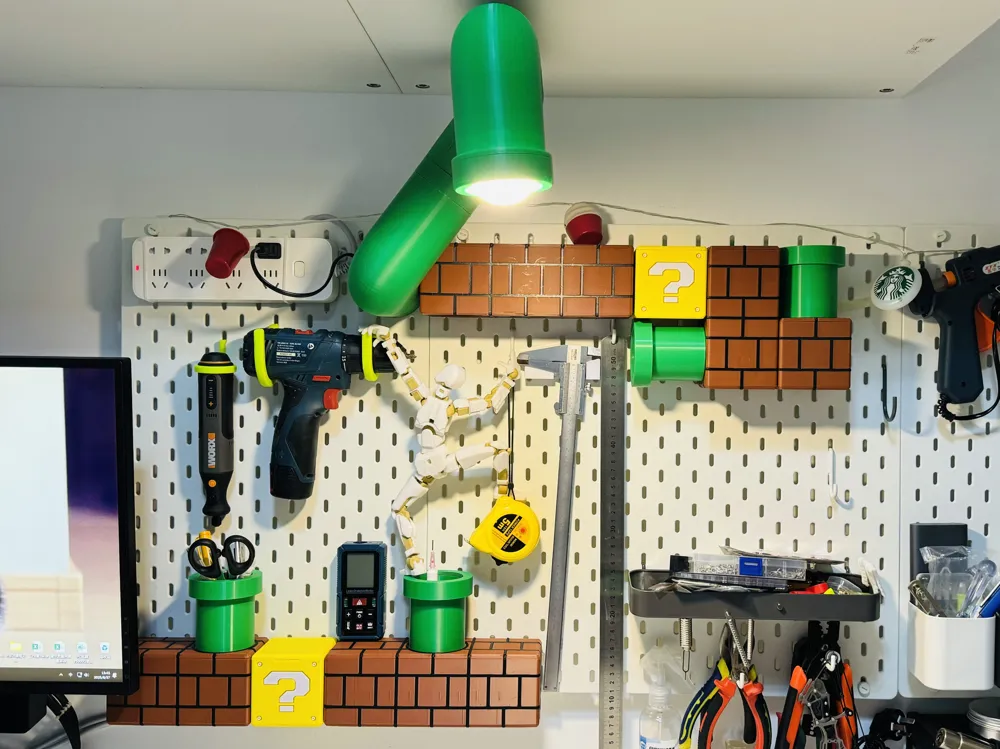

The omnidirectional adjustable Mario Pipe Desk Lamp shown in the picture is here. It's very useful, feel free to make it!
