Kitchen Helper Shelf
Print Profile(1)
Description
Small simple shelving system
For doors 19 mm thick

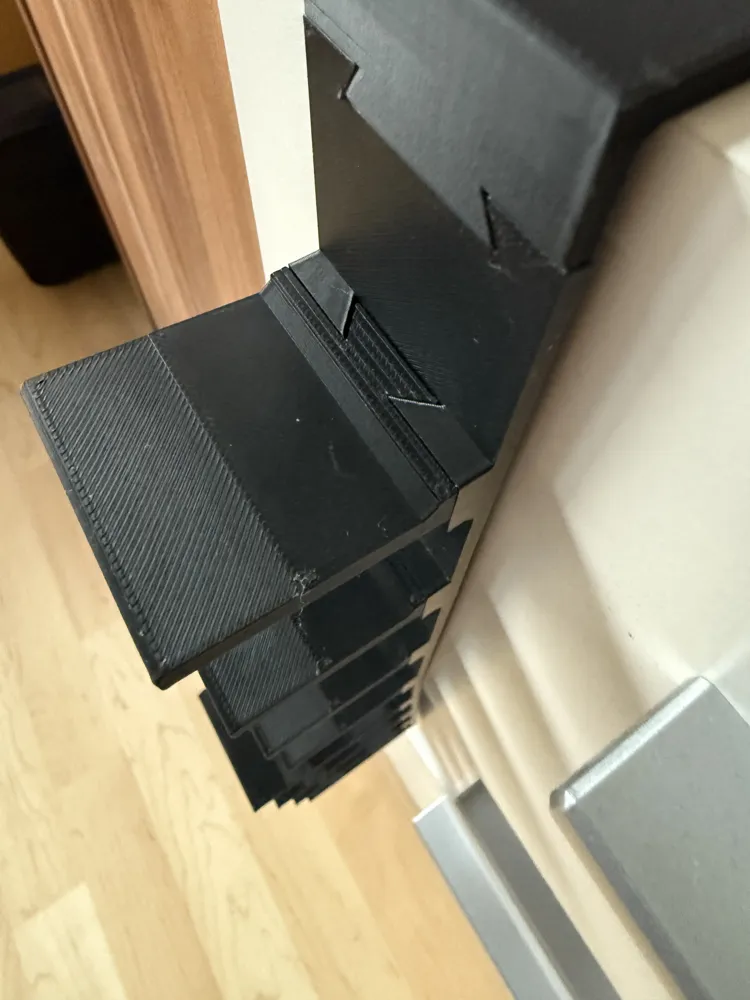

For other thicknesses, it should be sufficient to scale the small upper angled part in the slicer in one direction. Note: only change the direction for the 19 mm dimension, otherwise the connector will no longer fit
Width 4 cm
Length 40 cm

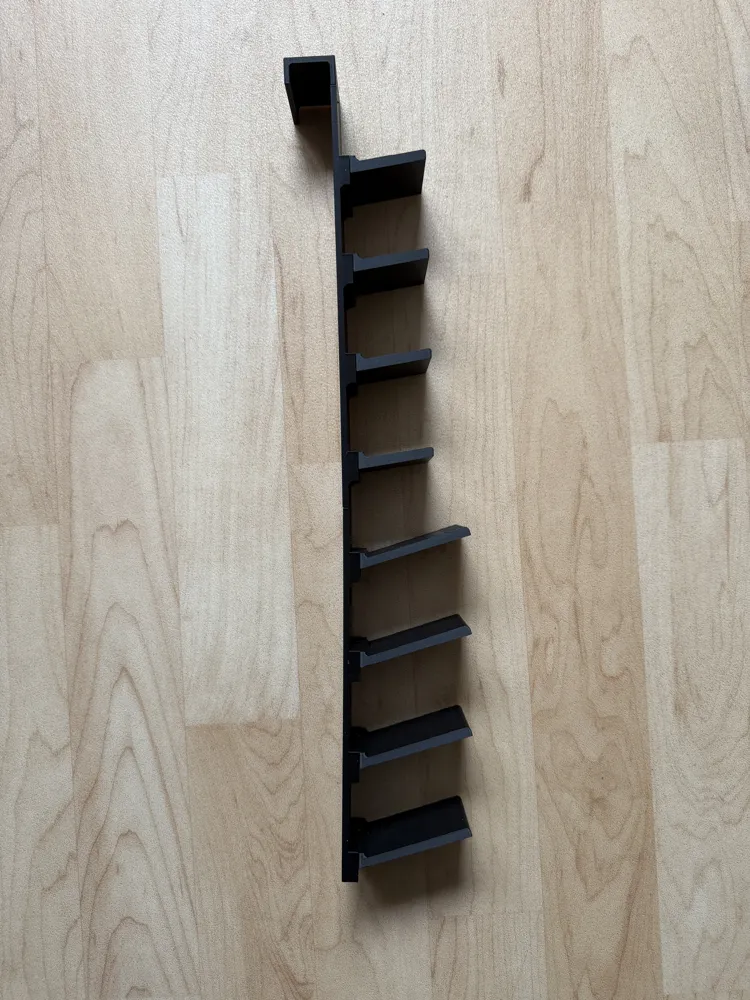

8 shelves with approx 5 cm spacing

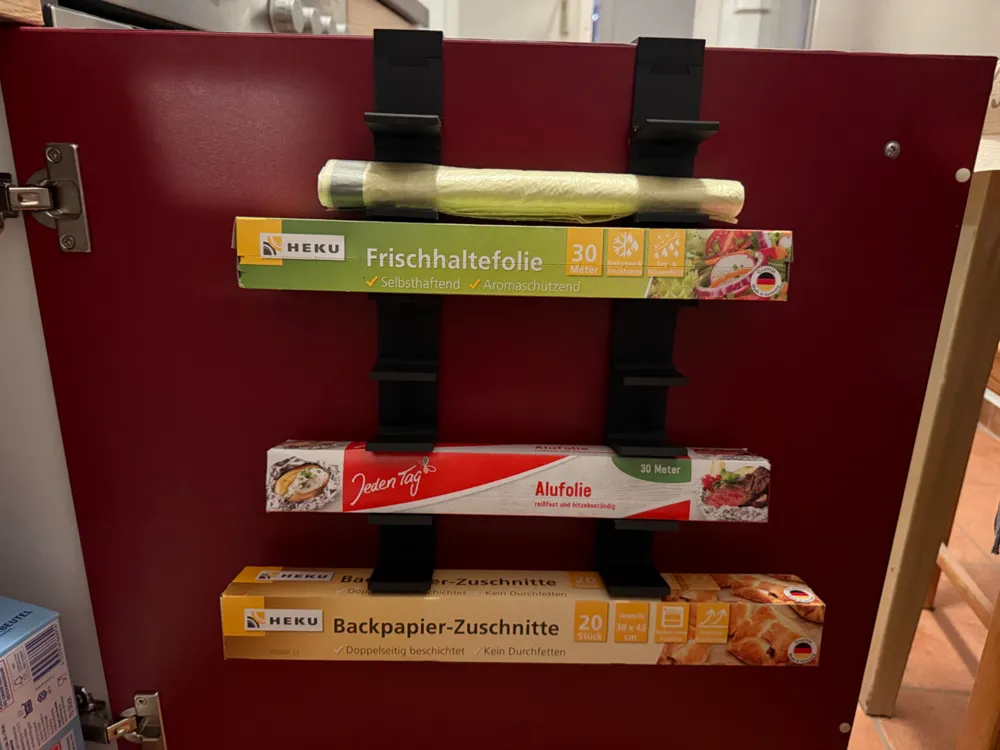

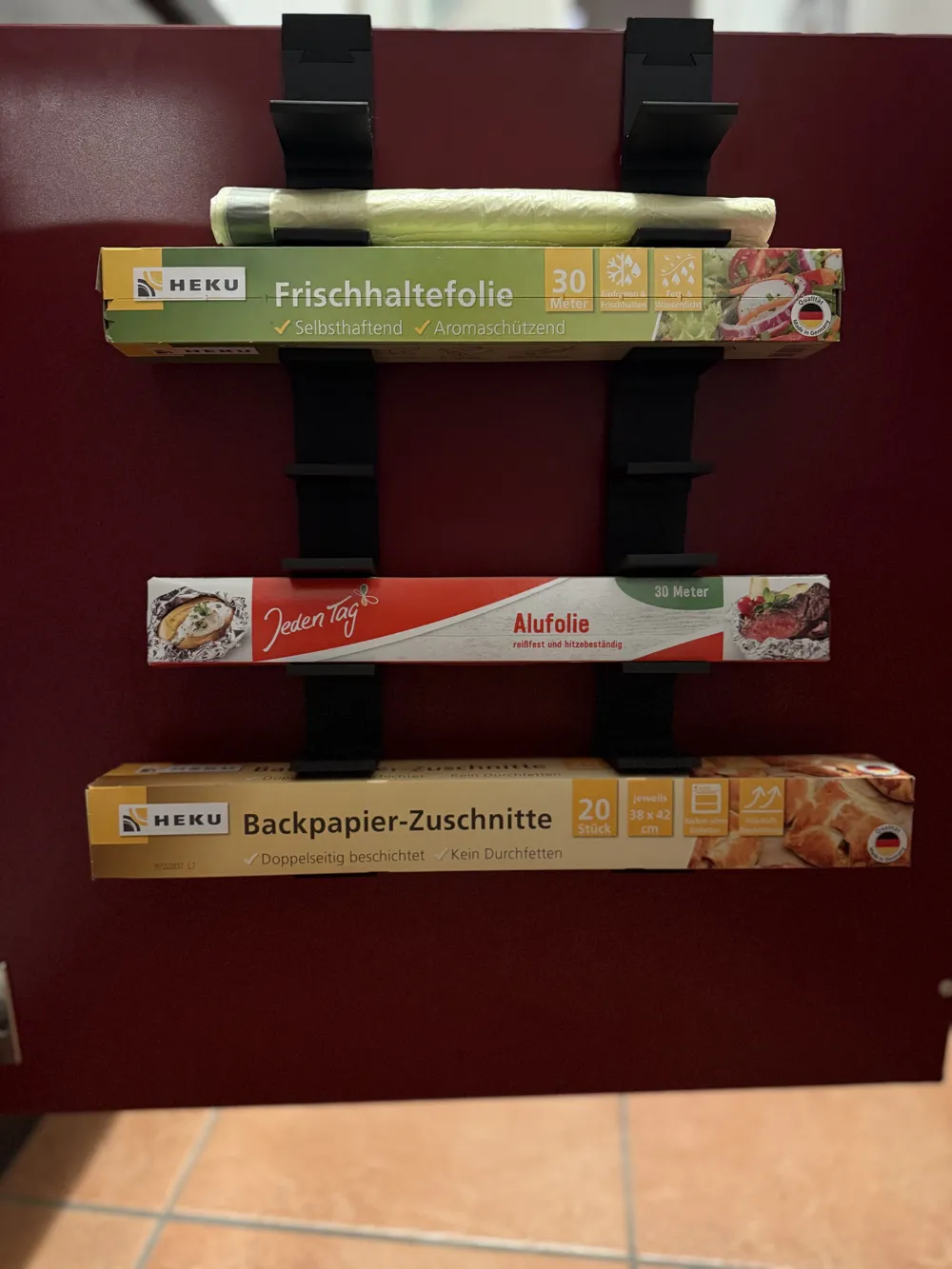

Ideal for space-saving storage of aluminum foil, cling film, yellow bags, or similar

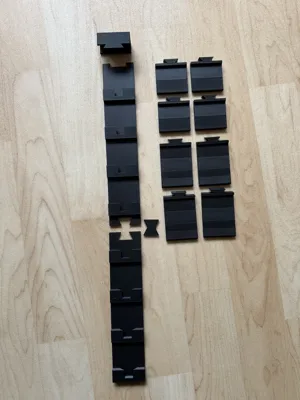

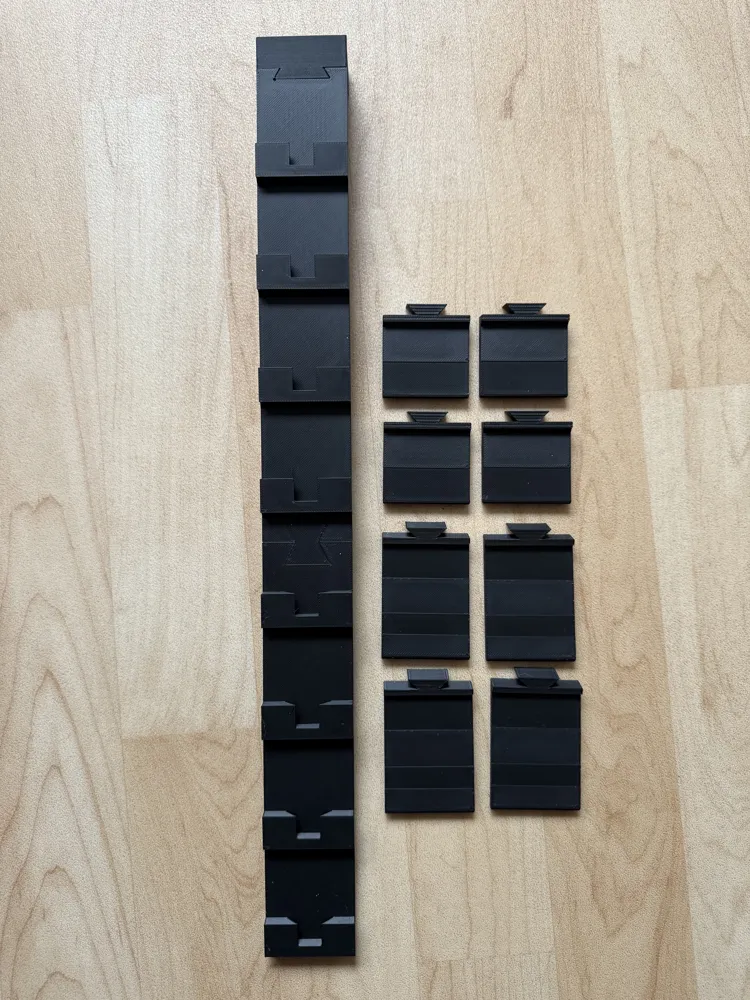

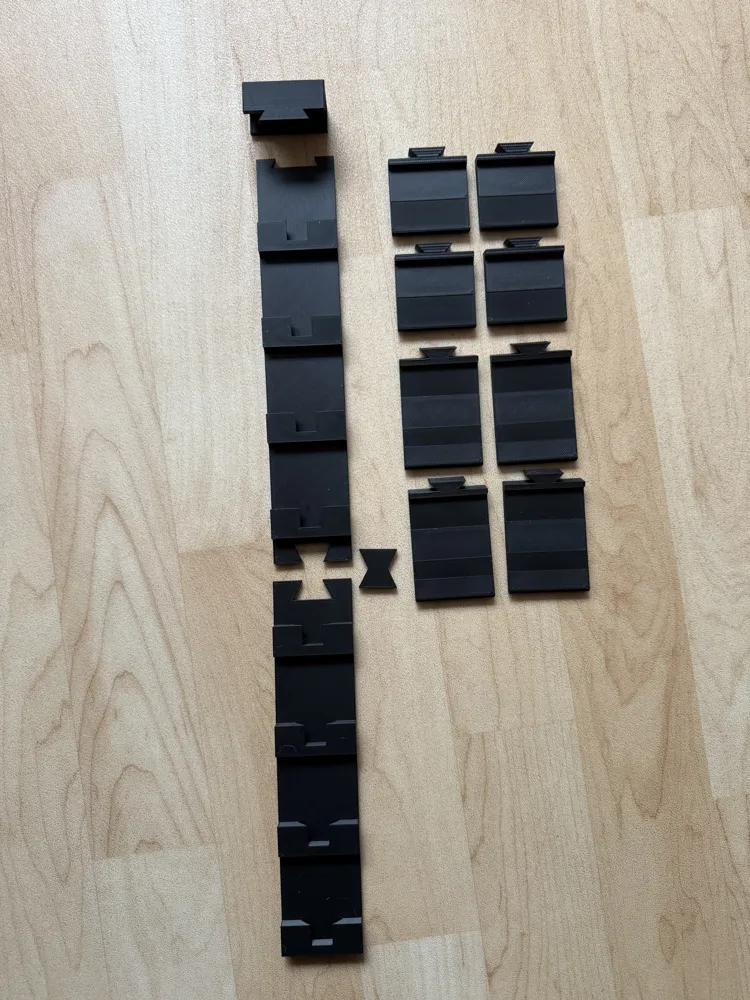

Assemble the individual parts using dovetail connectors and secure with a little super glue
The shelves are available in 2 different lengths, which can simply be slid into the desired height
