Foxeer Aura V2 7" | Antenna and GPS mount
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
2.5 h
1 plate
Open in Bambu Studio
Boost
4
9
0
0
13
3
Released
Description

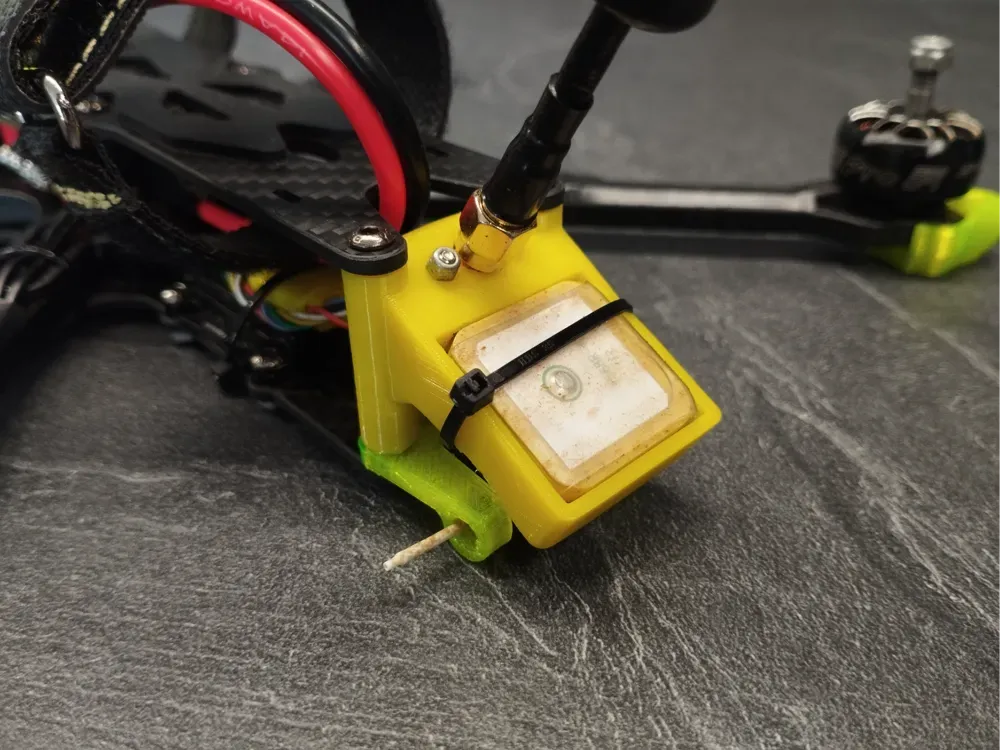

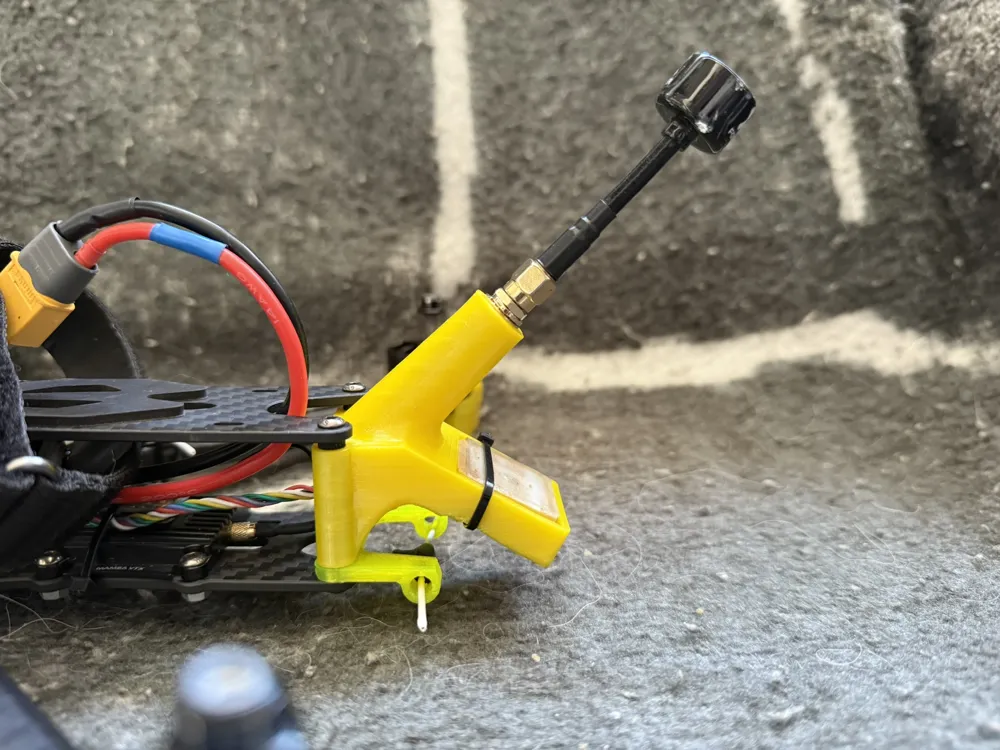

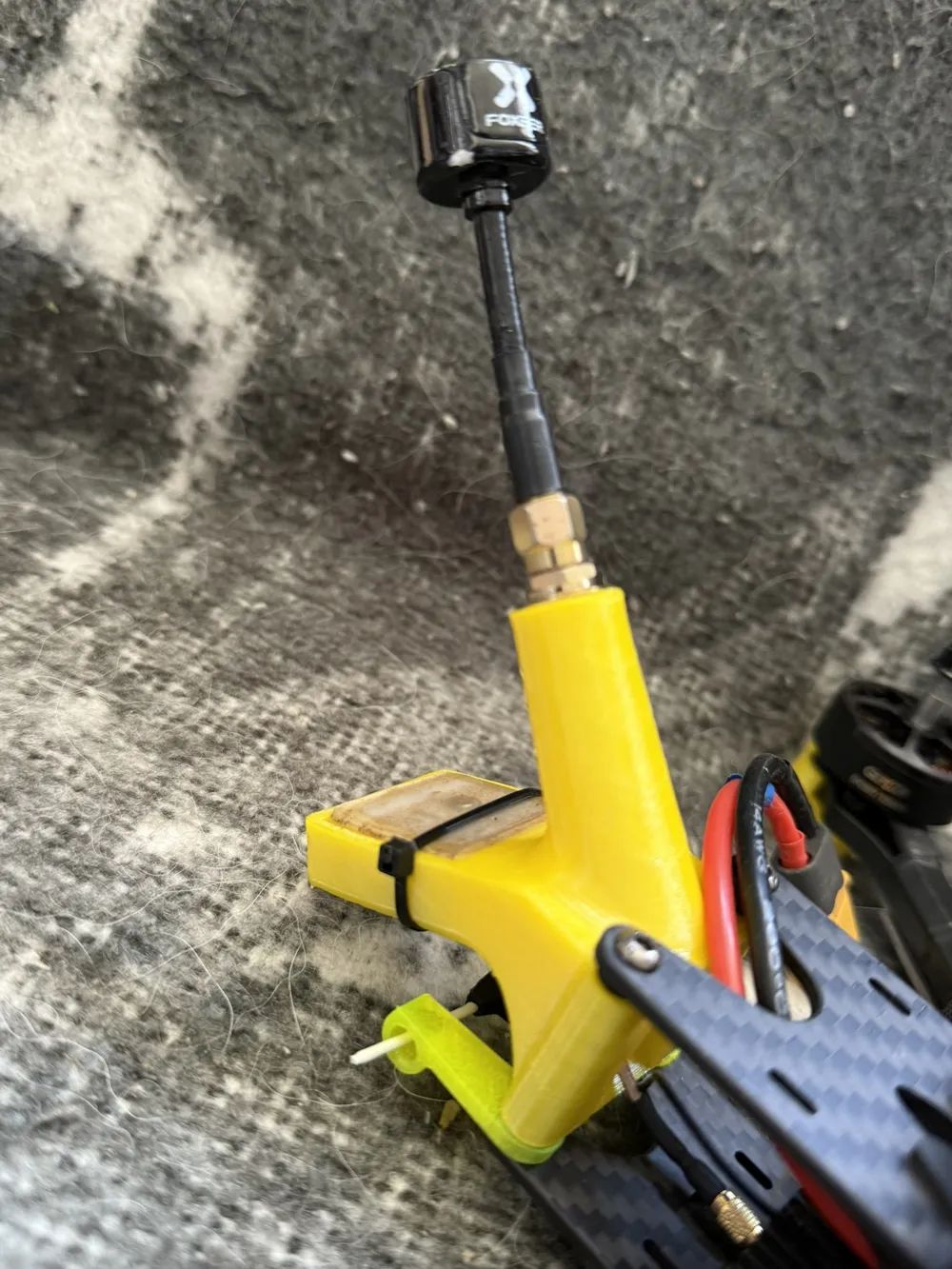

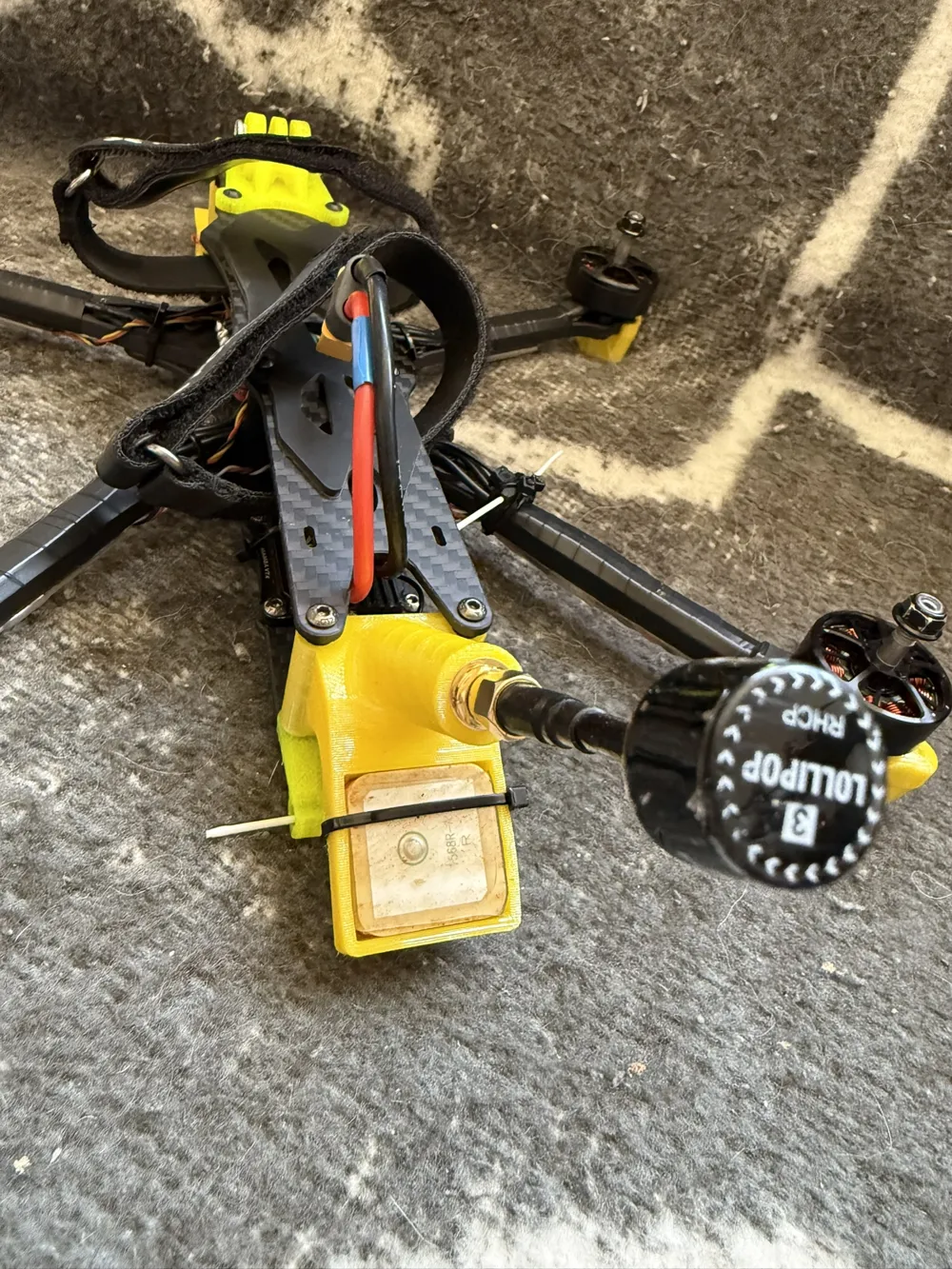

Simple mount for Foxeer Aura 7" frame for HGLRC M80 PRO GPS and SMA antenna with MMCX->SMA Pigtail (7,5cm) → The length of the pigtail is very important. It is designed to keep the antennas as straight as possible.
Holes are 5.6mm.
Hole for GPS is 26x26x8mm.
I highly recommend TPU material.
Other mount version for Aura frame here:
https://makerworld.com/en/models/1237746-foxeer-aura-v2-7-gps-mount
