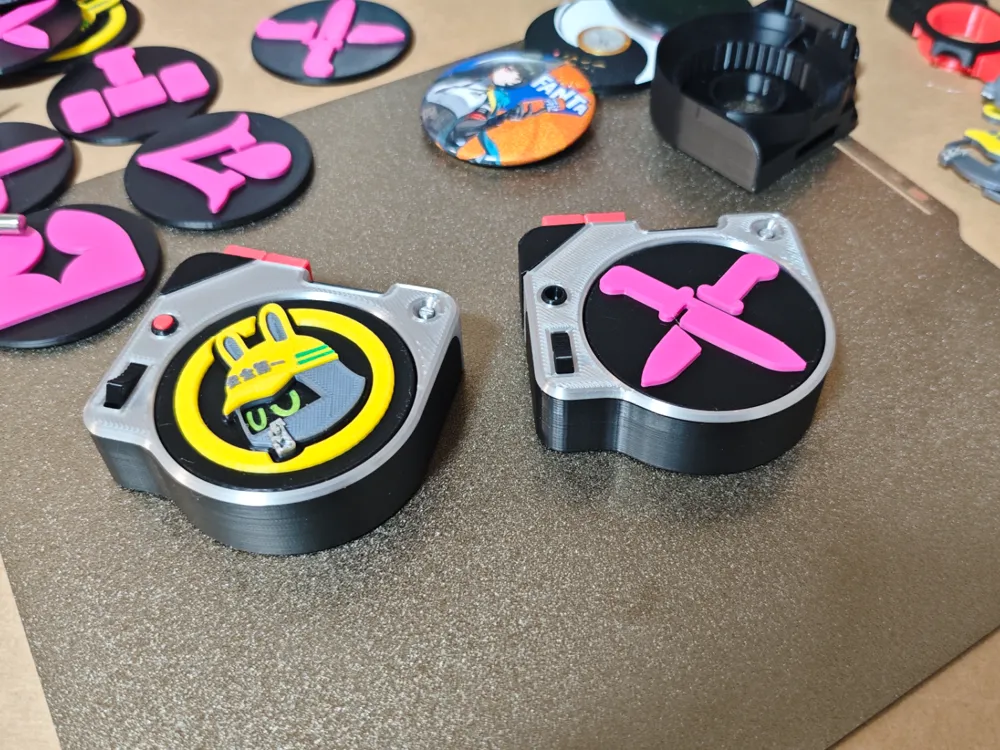

Zenless Zone Zero fan-made audio engine breakthrough component fidget badge holder ratchet toy fridge magnet

Accessories:

m3*14 flat head or round head Phillips or slotted screws, m3 nuts

N52 strong magnets, 2mm thick, 5mm diameter, 9 pieces (3 for the back, 2 placed repulsively for the toggle switch, 2 attractively for the plate, and 2 for the tray)

Spring, 10mm length, 3mm diameter, 0.3 wire diameter

Steel ball, 4mm

Bearing: 8mm inner diameter, 22mm outer diameter, 7mm thickness

Mechanical keyboard switch optional

(For lighting: cr1220 3v button cell battery, 3mm diameter LED diode, double-sided tape - for fixing electronics)


Installation order:
Install the toggle switch into the shaft, press a strong magnet into the switch position of the base, install a repulsive strong magnet on the toggle switch, and place it in the corresponding position on the silk silver printed cover. Then simply attach the base. Other orders are flexible. (LED auxiliary installation parts are placed at the bottom of the key switch, research on your own)
