Description:

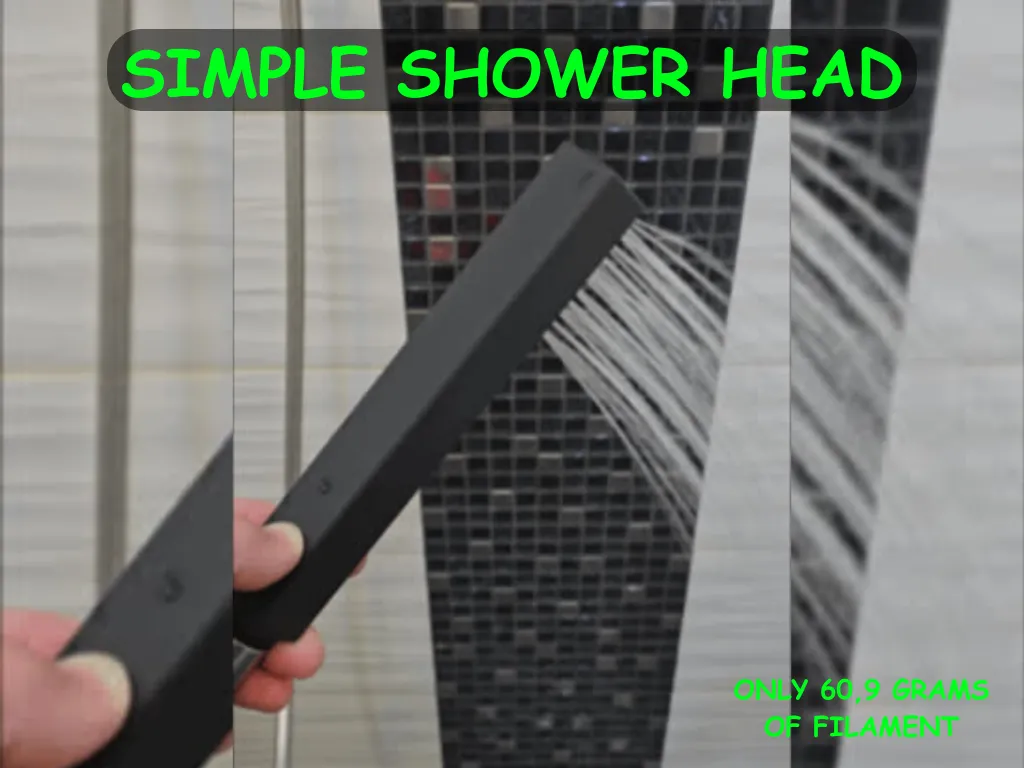

A very easy-to-print, minimalistic yet elegant shower head.

A standard 1/2-inch thread connection is provided.

58 holes with a diameter of 1.2 mm.

Feels very comfortable in the hand.

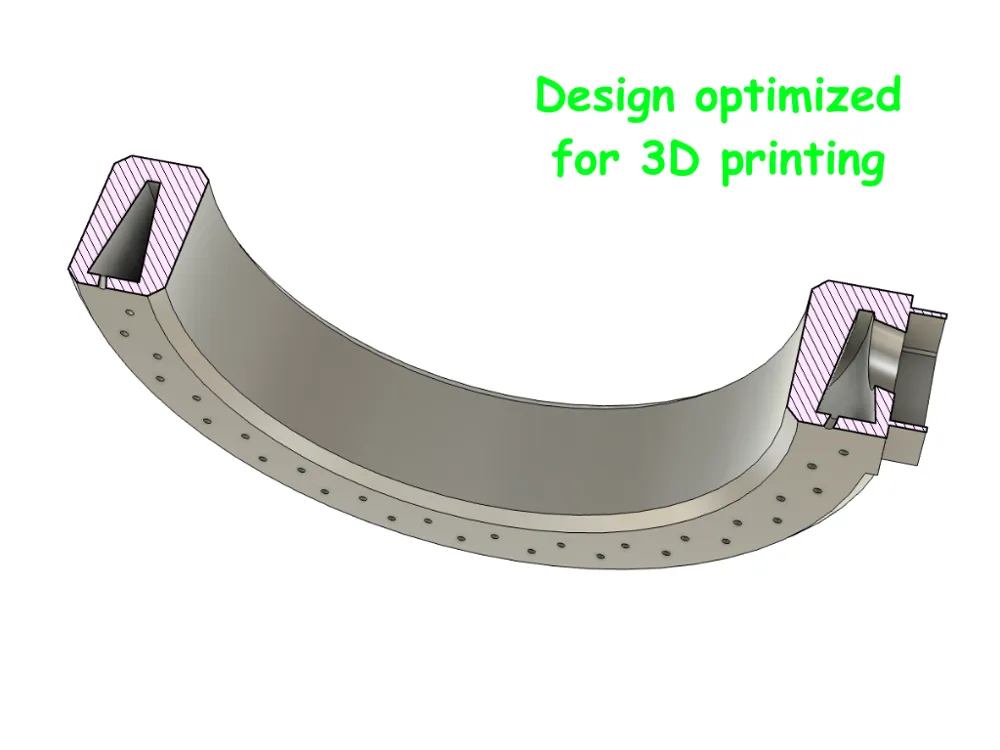

Design optimized for 3D printing.

The shower head consists of two parts, positioned at an angle to each other.

It can be printed on smaller printers.

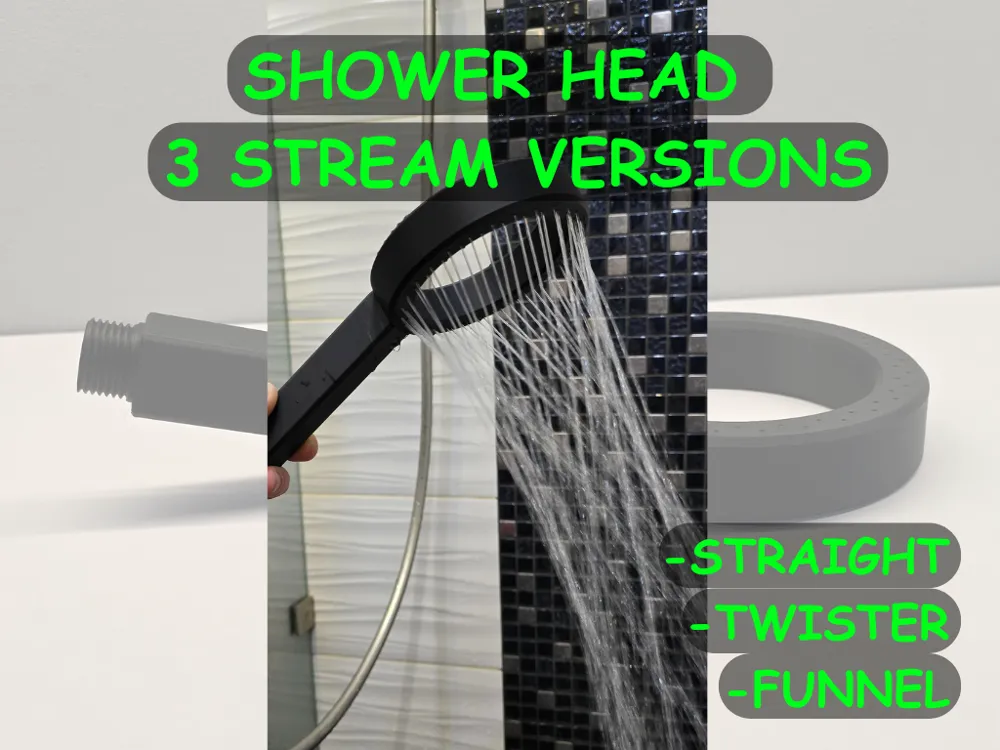

3 versions of the stream:

- Straight -

The direction of the water flow is normal

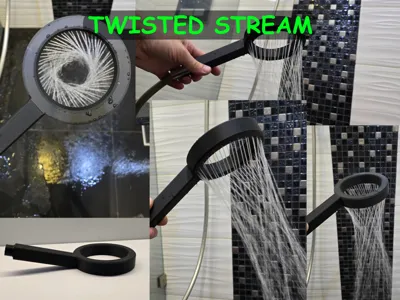

-Twister-

The direction of the water flow is slightly inward and to the right

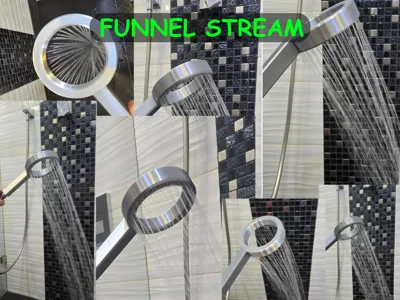

-Funnel-

The direction of the water flow is slightly inward

Print:

Printing material: PLA, PLA Silk or PETG.

PLA and PLA Silk can withstand temperatures up to 60°C, so it should be sufficient.

However, if you want to ensure your print will last for a long time, print in PETG,

which can withstand temperatures up to 80°C.

Gluing:

I recommend gluing with two-component glue to avoid the glue drying too quickly when connecting the elements.

I recommend applying glue to the slot in the handle, the slot is deepened by 0.5 mm to provide space for the glue.

Check out my other Shower Head models:

If you have any questions, I'm here to help ;)

Good luck and I invite you to test my other projects ;)
