Brighten Your Keys: The Mini LED Key Cover

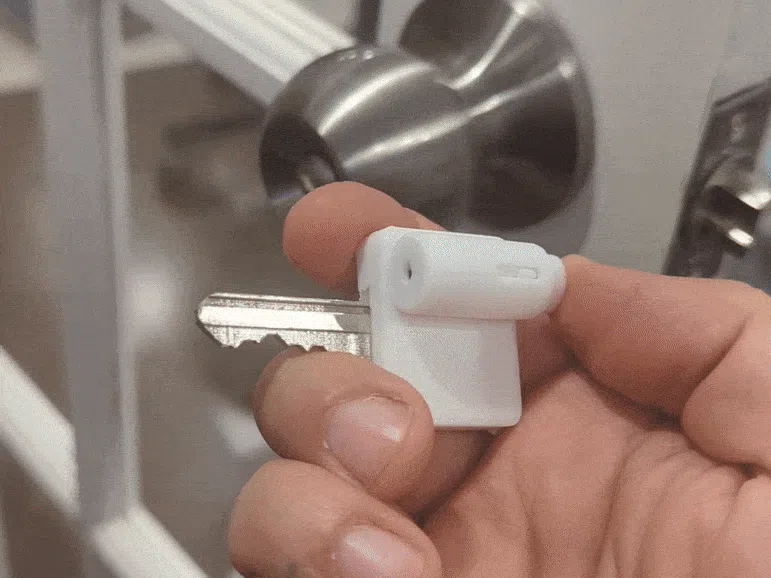

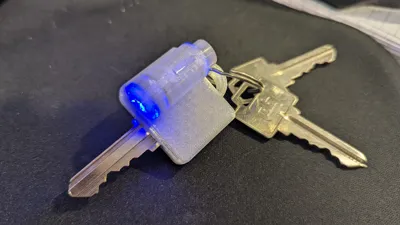

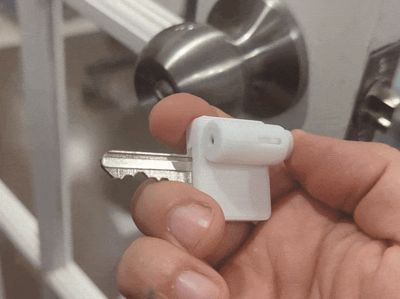

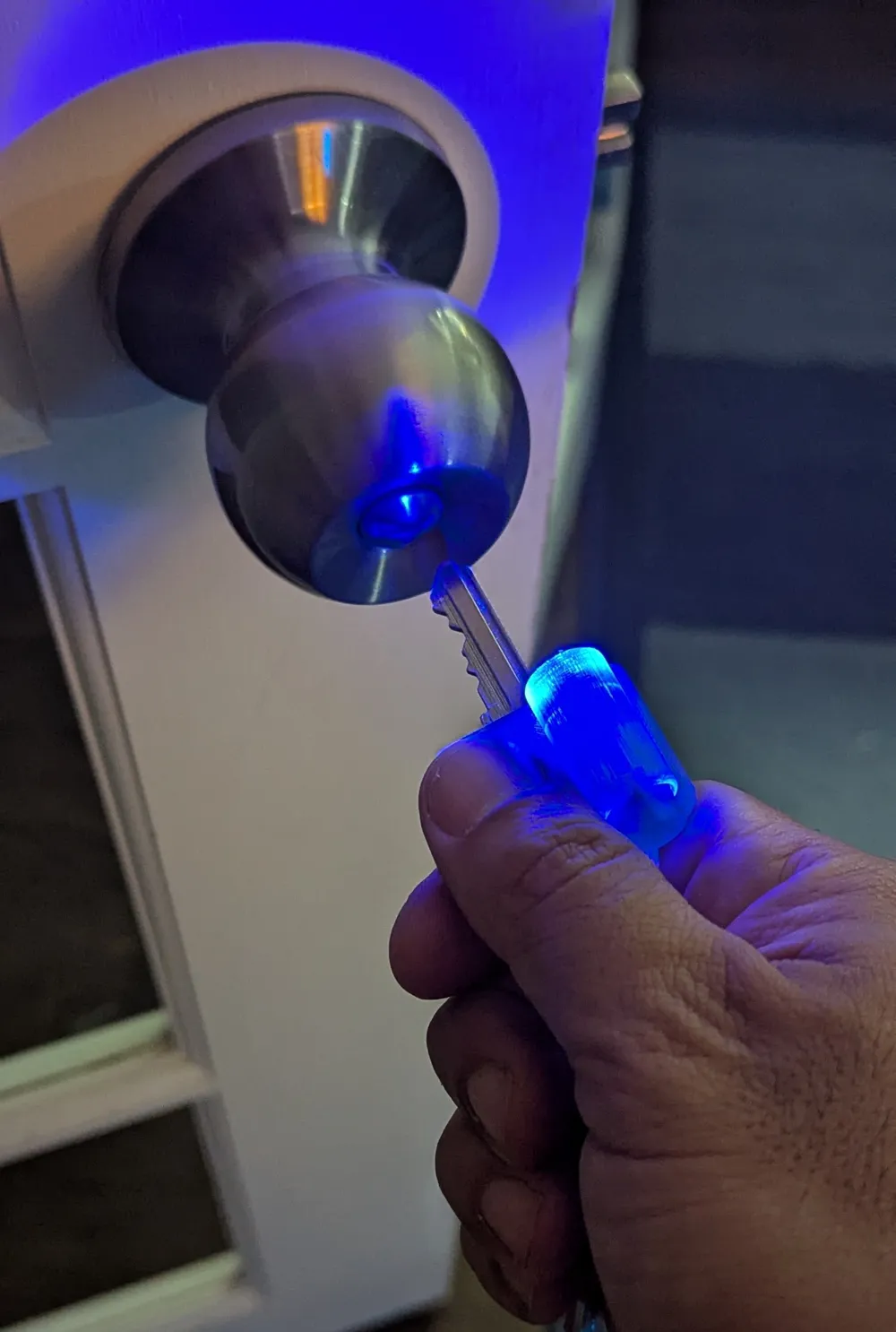

Light up your keys with this witty 3D-printed key cover! Featuring a magnetically activated mini LED light, supporting multiple key types and is designed for quick, easy printing. Perfect for those who want their keys to shine — literally and figuratively! Don't fumble in the dark trying to insert your key into the door.
Key Features
- Small Compact Design
- Readily Available Components from Maker's Supply (Five different Light Colors to Choose From)
- Magnetically Activated via Push Button
- Supports the common key types (more key types to follow!)
- Small discreet LED light won't emit a blast of sunlight that will alert the world to your presence
- Three Light modes:
- Slow Flash
- Fast Flash
- Steady/Solid
- 3D printed Spring - no need to source hardware for the spring!
- Built-in Key Ring Hoop
- Reversible Design Accomodates Left and Right Hands

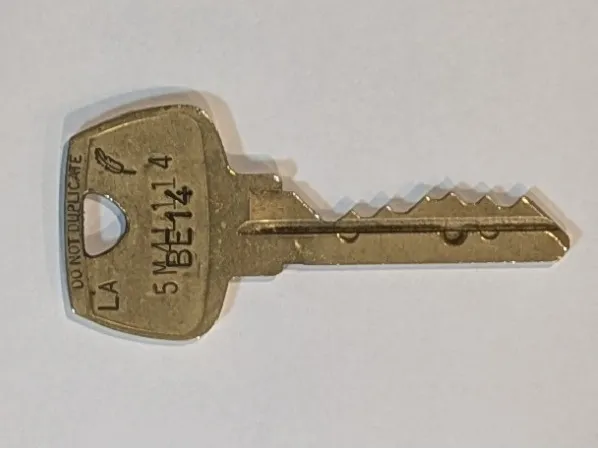

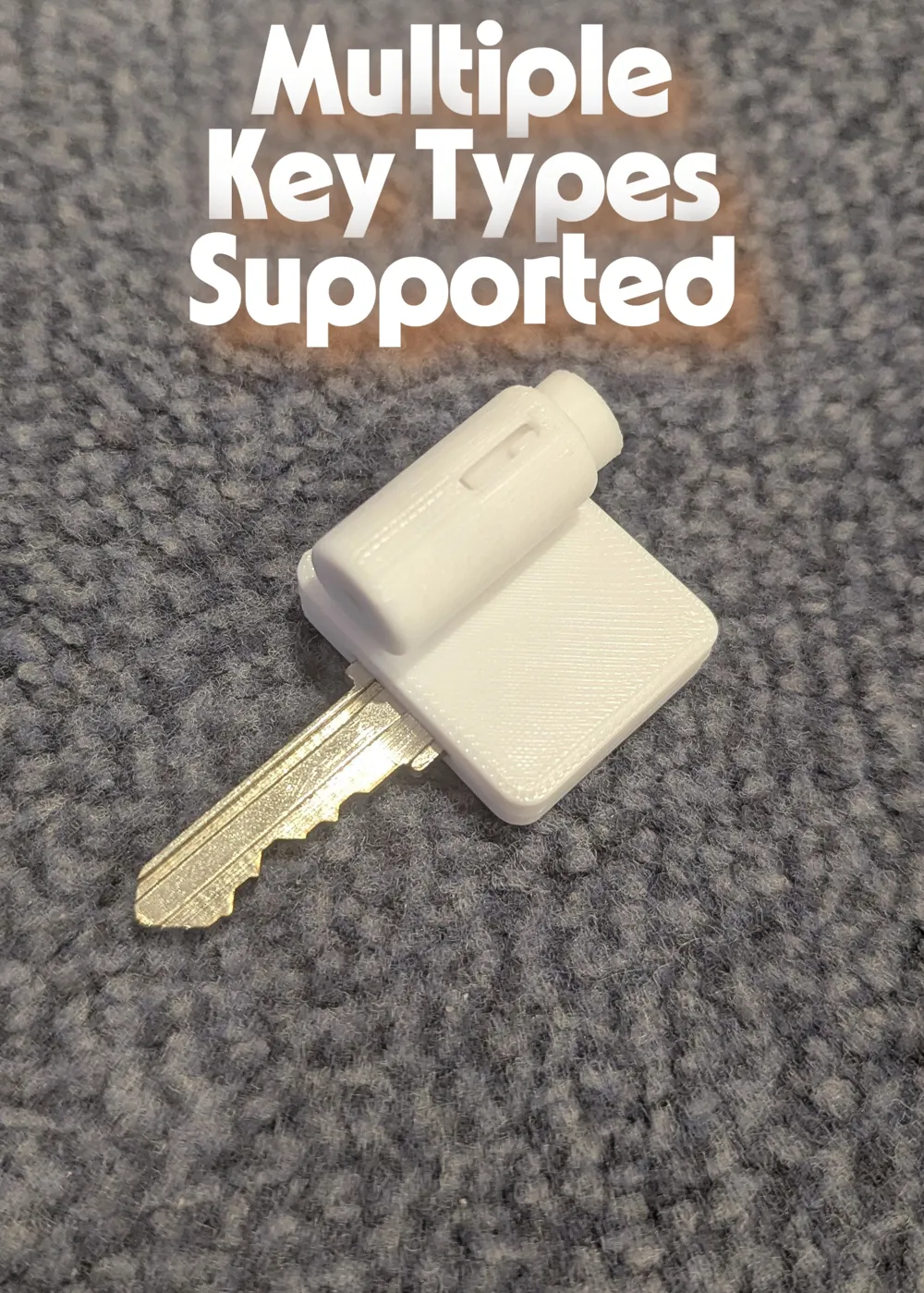

Supported Key Guide
Key Model | Key Cover Type |
 | A - Plate A |
 | A - Plate A |
 | B - Plate B |
 | Coming Soon! |
More Key types coming!

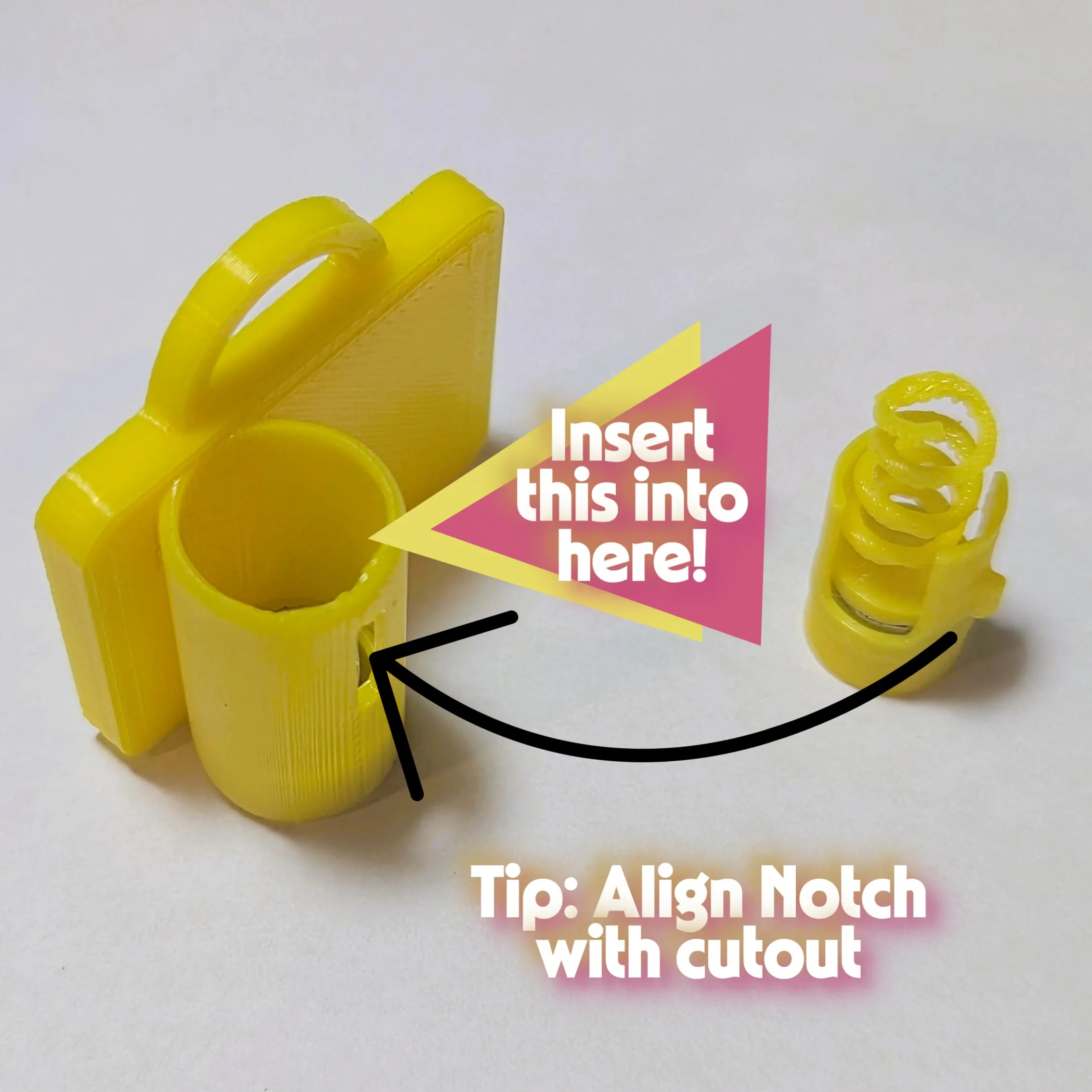

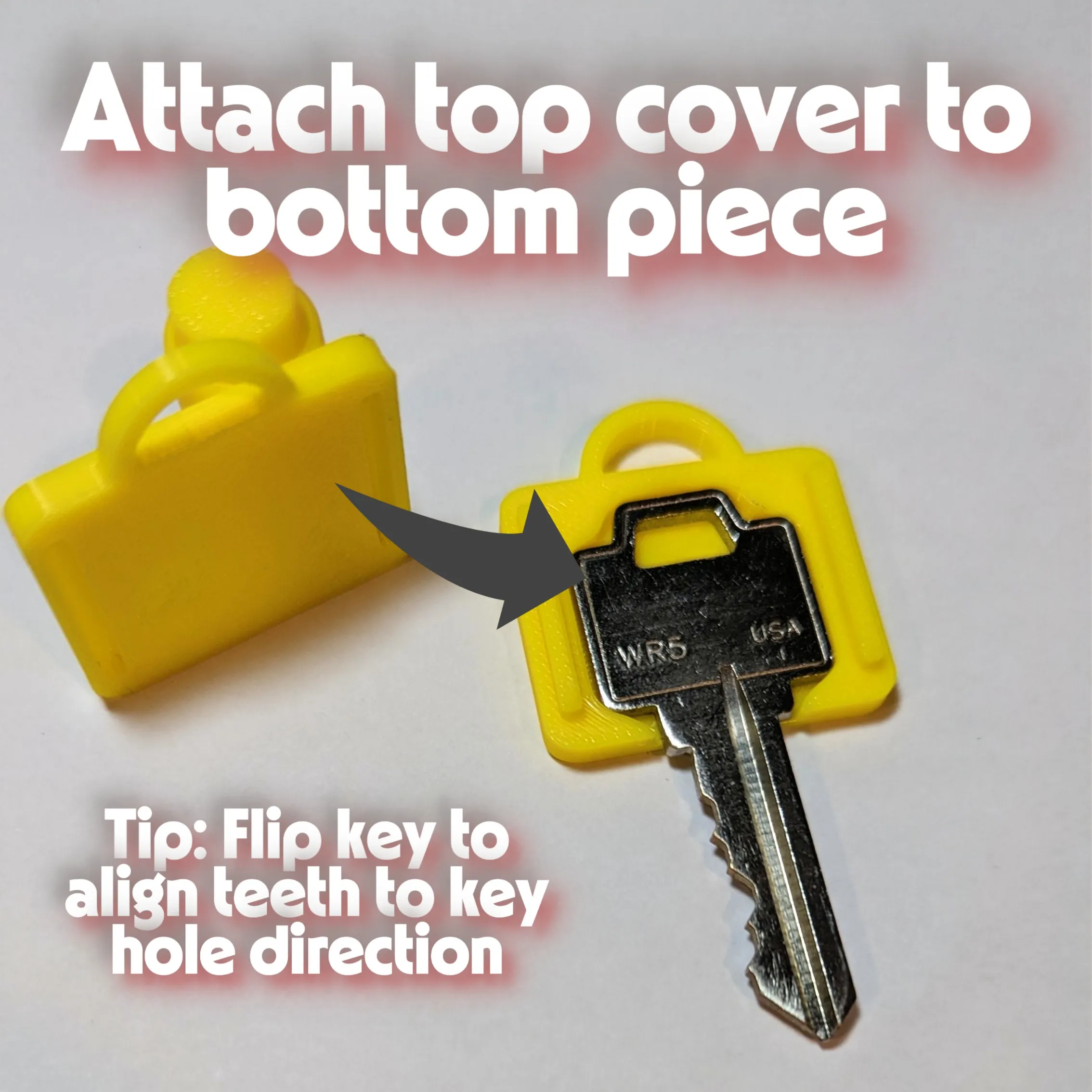

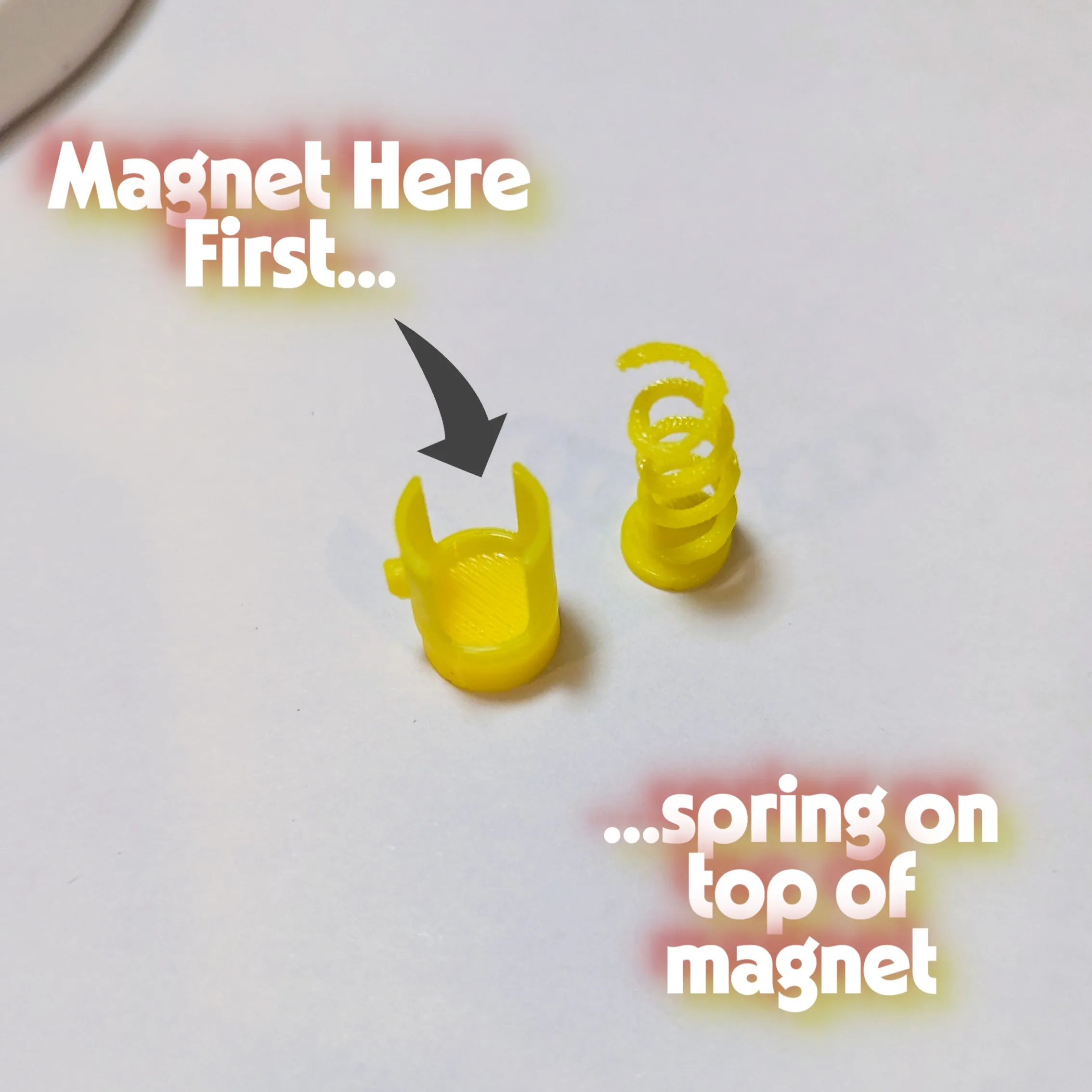

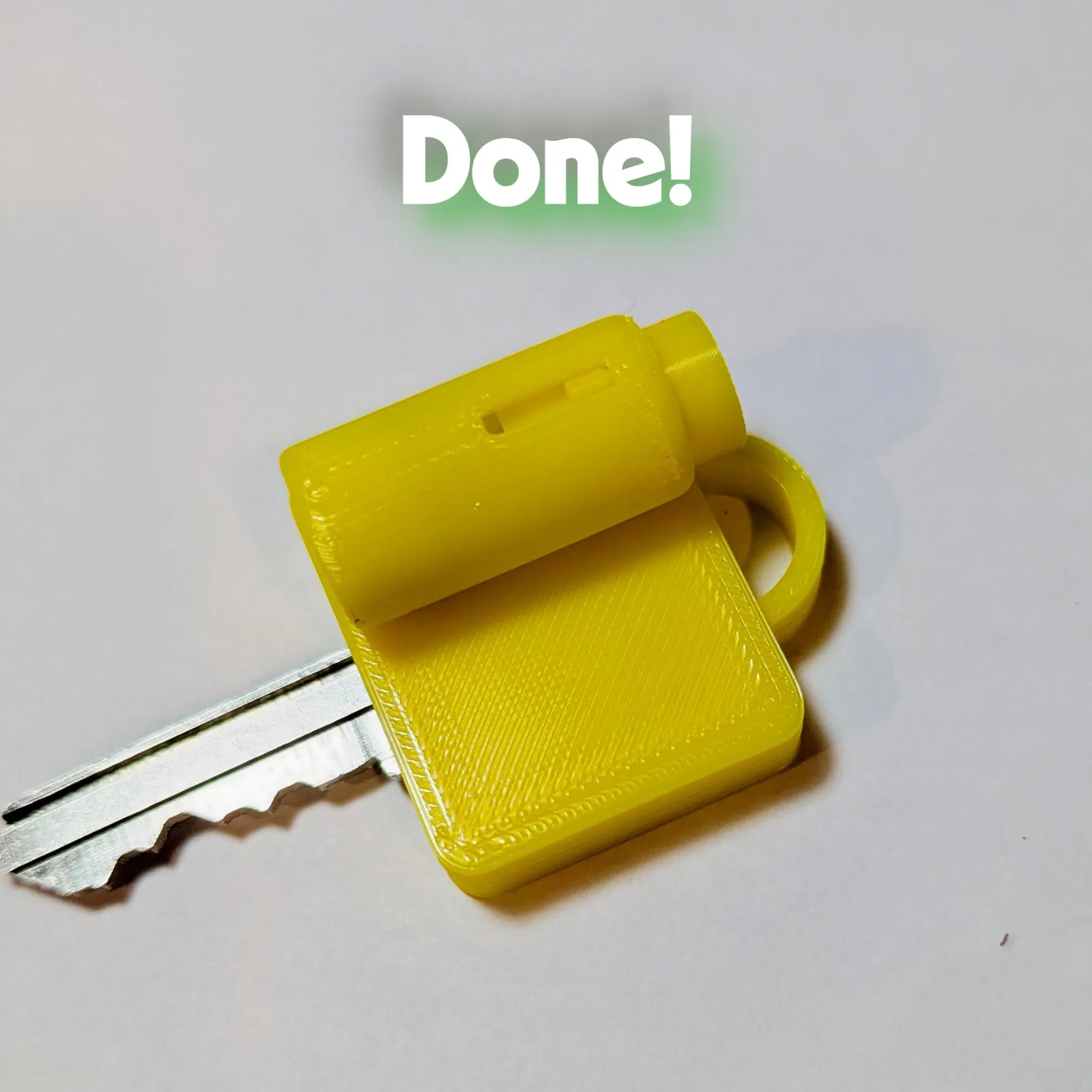

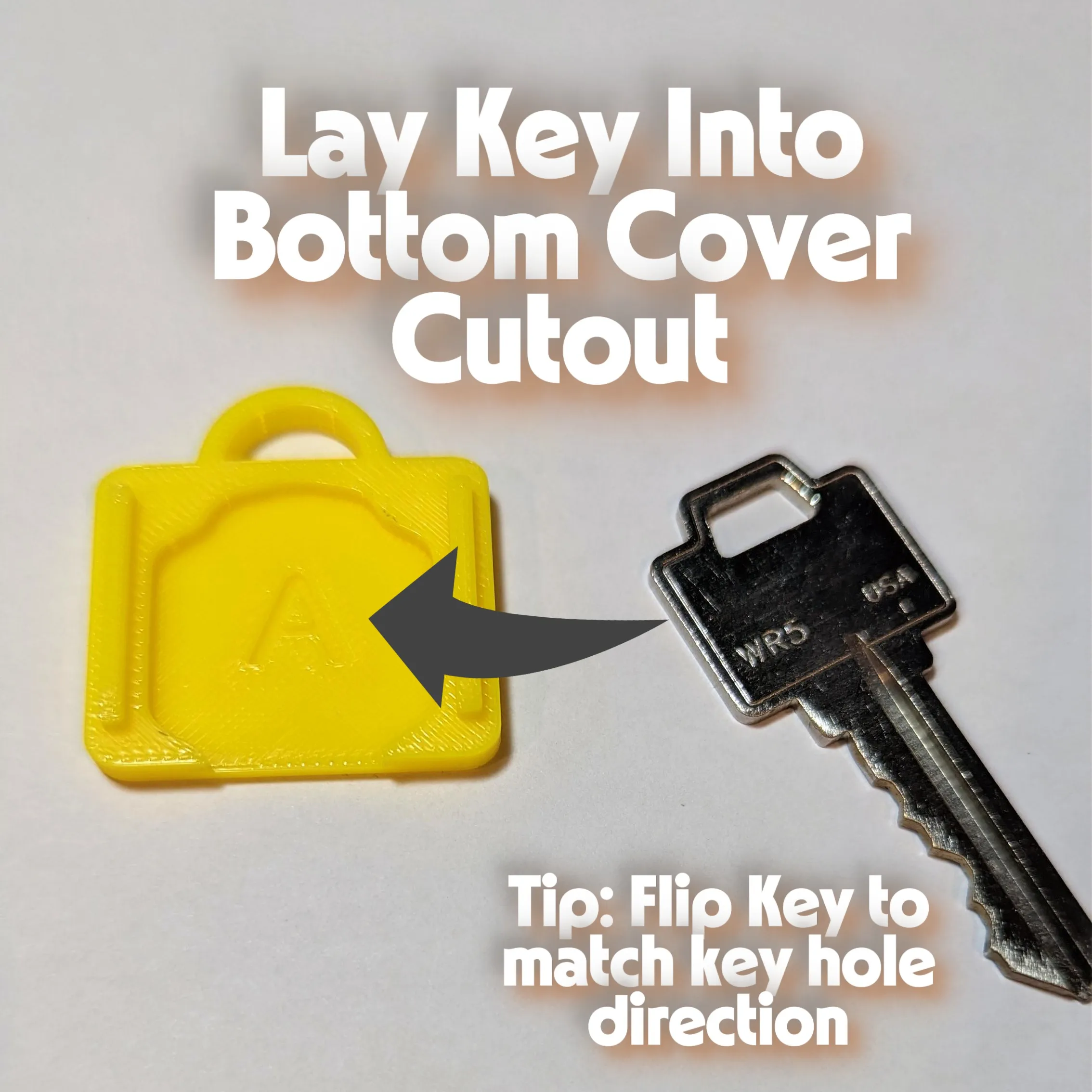

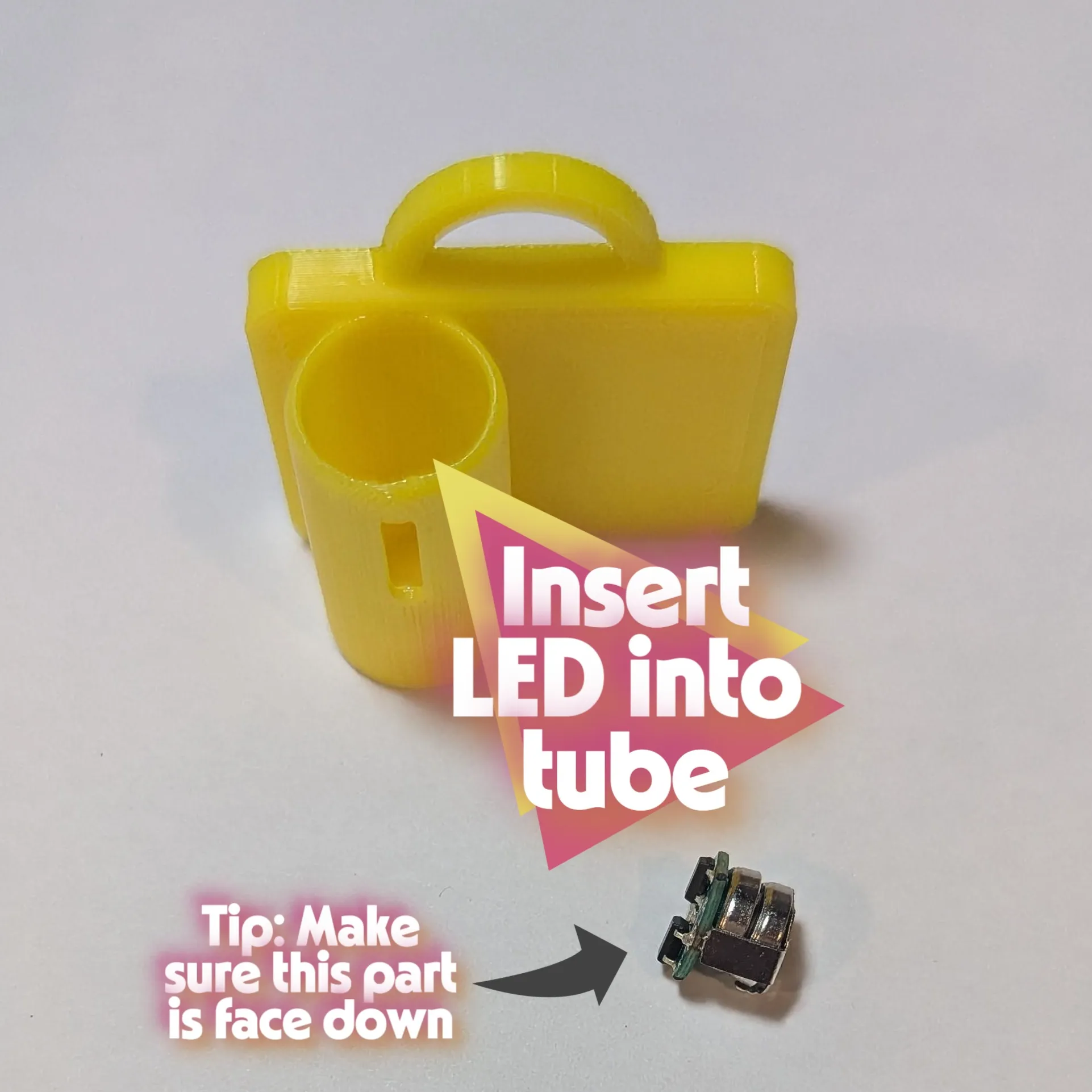

Assembly Instructions
 |  |
 |  |
 |  |
Other Tips!

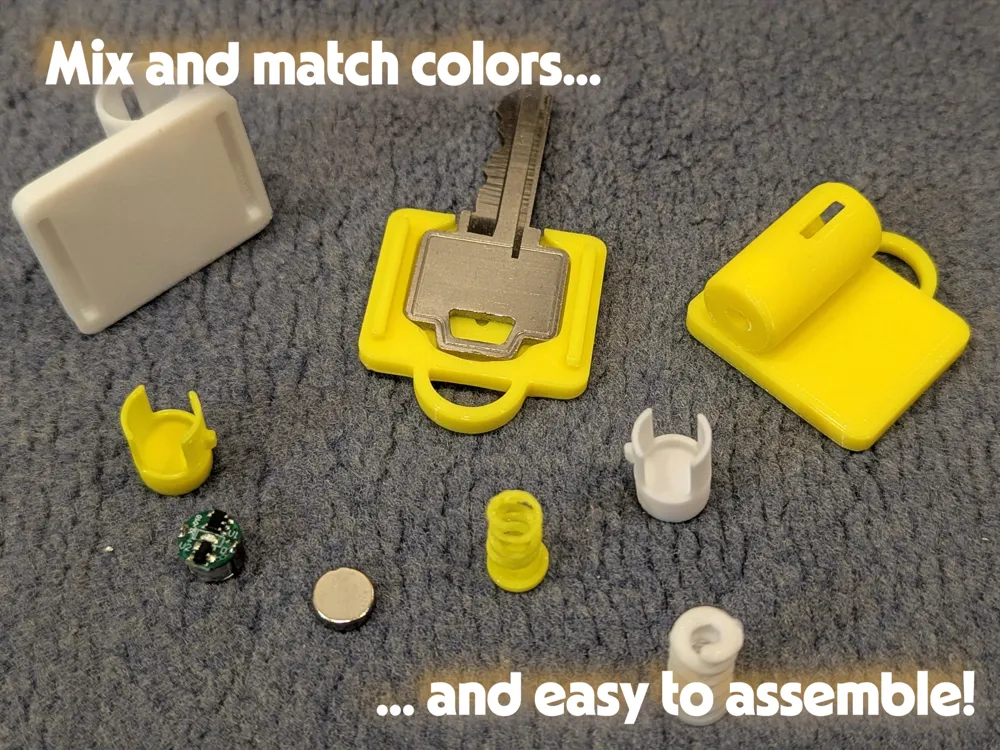

- Mix and match colors to suit your unique aesthetics
- Transparent Filaments will emit more light
- Note this is intended to be a tight friction fit. Some force is needed to connect the cover pieces.
- The 3D Printed spring model may not work/print well in other filaments like PETG or ABS. PLA seems to have the right toughness and flex resistance for the spring use-case.
A design brought to you by 3D Werks
