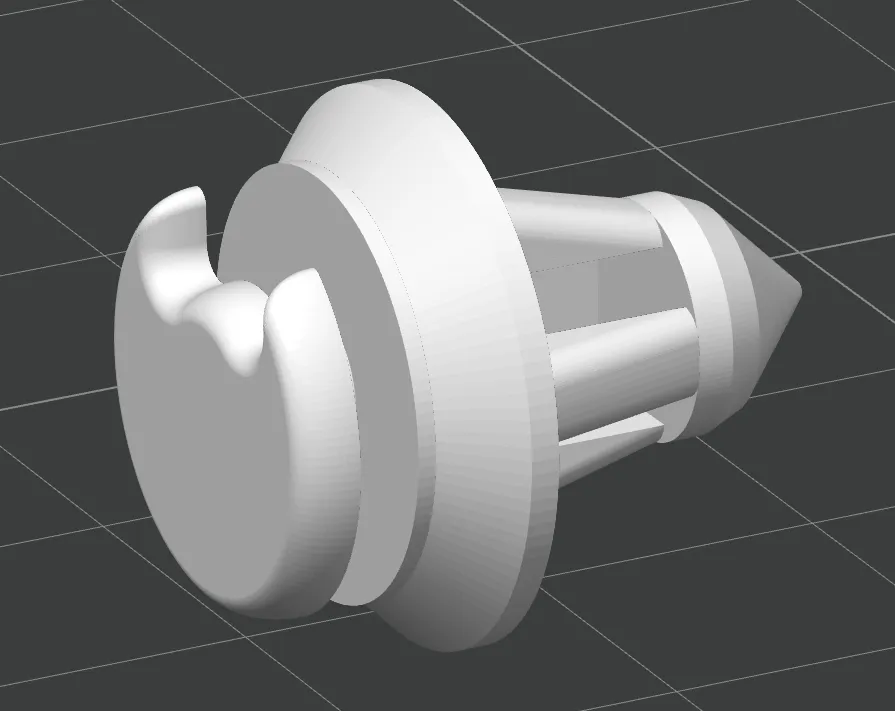

BMW and Mini Cooper Door Panel Clips - 51418224768
Print Profile(2)
Description

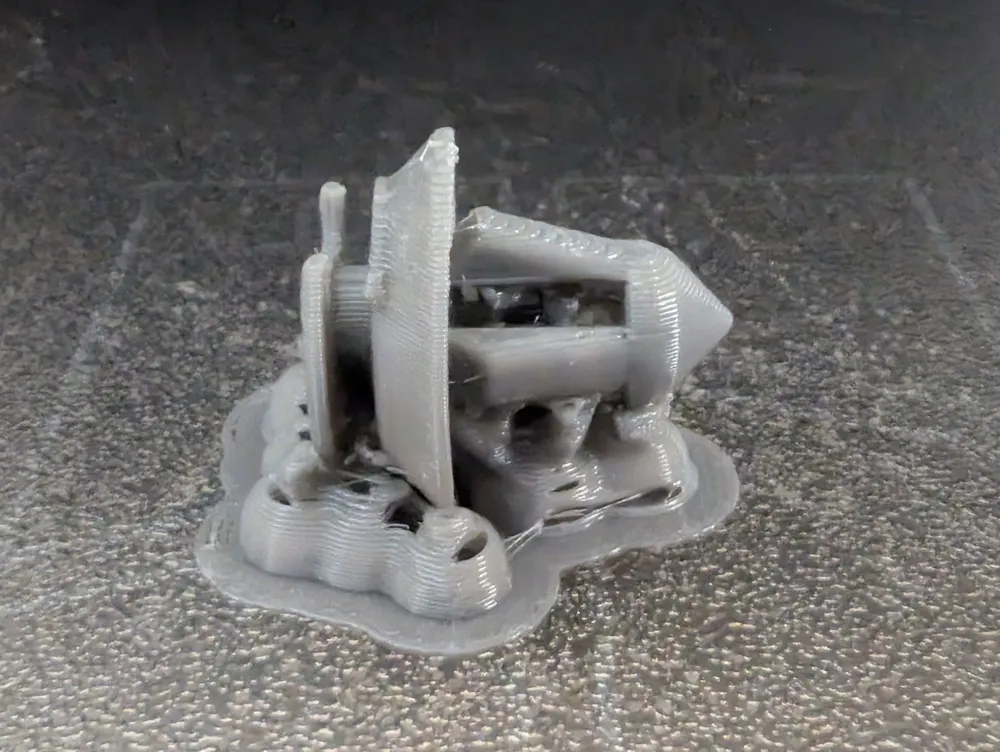

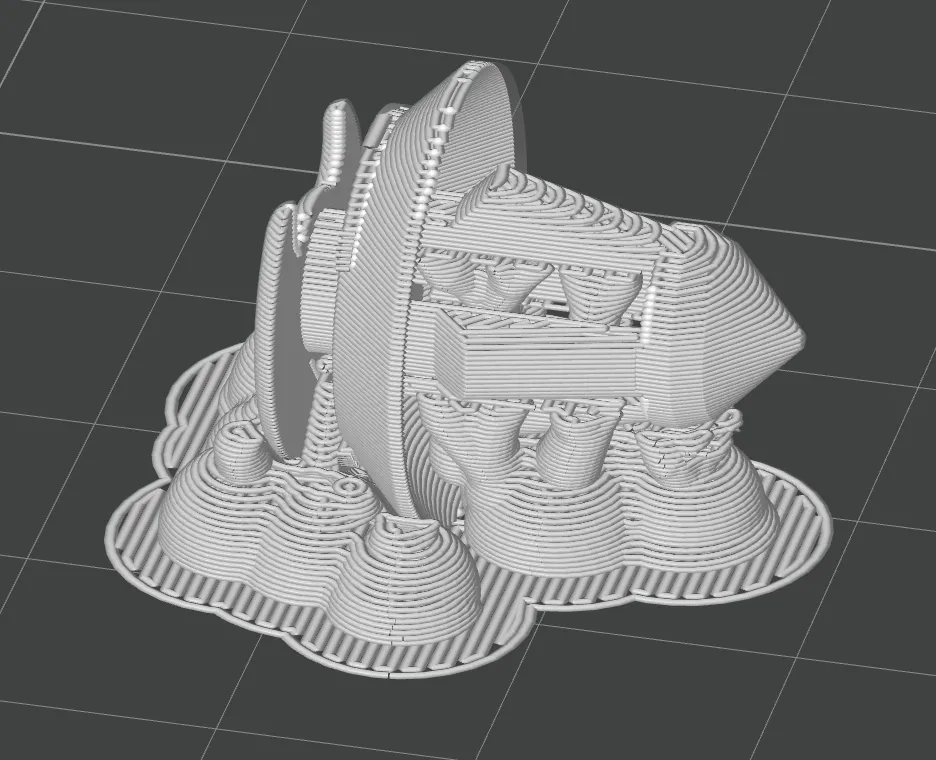

MUST be printed in the orientation in the print profile for maximum strength. Printing it sideways with all walls creates horizontal walls along the stress points creating a stronger structure. Highly Recommended to print in at least PETG for strength and heat resistance.
- V2 - I made the base twice as thick - Updated 02.28.26
V3 - Reinforced center tangs - Updated 04.5.26

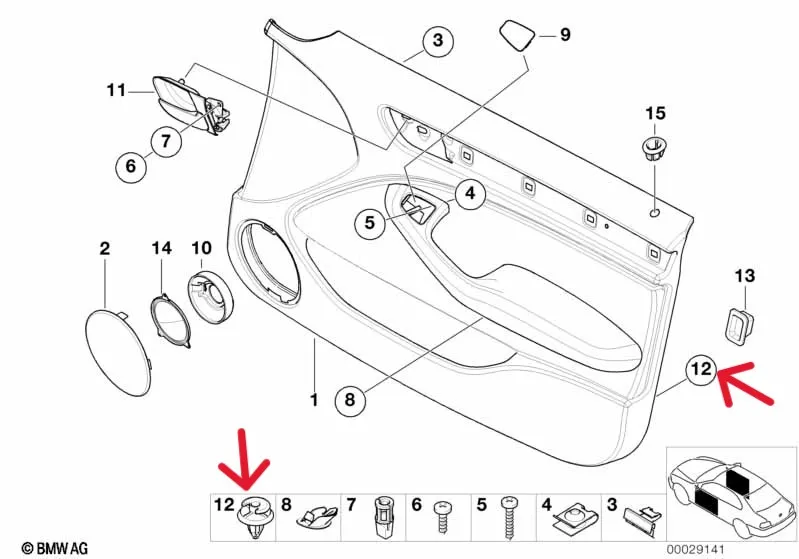

Part number 51418224768
Boost Me (for free)
Thanks for viewing my print. If you have BOOST to spare and find my prints useful, please consider sending me a BOOST. It's free for you and goes a long way for us makers.
Fits Most BMWs, Minis and Rolls Royce vehicles
Part 51418224768 was found on the following vehicles:
- 1' E82 (11/2006 — 10/2013)
- 1' F20 (07/2010 — 02/2015)
- 1' F20 LCI (05/2014 — 06/2019)
- 1' F21 (07/2010 — 02/2015)
- 1' F21 LCI (05/2014 — 06/2019)
- 2' F22 (10/2012 — 06/2017)
- 2' F22 LCI (09/2016 — 06/2021)
- 2' F87 M2 (11/2014 — 06/2017)
- 2' F87 M2 LCI (09/2016 — 06/2021)
- 2' F23 (03/2014 — 06/2017)
- 2' F23 LCI (09/2016 — 07/2021)
- 2' F45 Active Tourer (11/2013 — 02/2018)
- 2' F45 Active Tourer LCI (04/2017 — 10/2021)
- 2' F46 Gran Tourer (07/2014 — 03/2018)
- 2' F46 Gran Tourer LCI (05/2017 — 12/2022)
- 3' E46 (04/1997 — 08/2006)
- 3' E90 (02/2004 — 09/2008)
- 3' E90 LCI (07/2007 — 12/2011)
- 3' E91 (02/2004 — 08/2008)
- 3' E91 LCI (07/2007 — 05/2012)
- 3' E92 (05/2005 — 02/2010)
- 3' E92 LCI (11/2008 — 06/2013)
- 3' E93 (09/2005 — 02/2010)
- 3' E93 LCI (11/2008 — 10/2013)
- 3' F30 (02/2011 — 07/2015)
- 3' F30 LCI (09/2014 — 10/2018)
- 3' F80 M3 (04/2012 — 06/2015)
- 3' F80 M3 LCI (01/2015 — 10/2018)
- 3' G20 Sedan (10/2017 — 06/2022)
- 3' G20 Sedan LCI (07/2021 — 03/2025)
- 3' G80 M3 (11/2018 — 06/2024)
- 3' G80 M3 LCI (06/2023 — 03/2025)
- 3' G28 Sedan (01/2018 — 09/2022)
- 3' G28 Sedan LCI (07/2021 — 03/2025)
- 3' F31 (07/2011 — 07/2015)
- 3' F31 LCI (09/2014 — 06/2019)
- 4' F32 (11/2012 — 02/2017)
- 4' F32 LCI (05/2016 — 06/2020)
- 4' F82 M4 (02/2013 — 02/2017)
- 4' F82 M4 LCI (05/2016 — 06/2020)
- 4' F33 (03/2013 — 02/2017)
- 4' F33 LCI (05/2016 — 07/2020)
- 4' F83 M4 (06/2013 — 02/2017)
- 4' F83 M4 LCI (05/2016 — 07/2020)
- 5' E60 (05/2003 — 12/2009)
- 5' E60 LCI (10/2005 — 12/2009)
- 5' E61 LCI (11/2005 — 05/2010)
- 5' F07 GT (09/2008 — 06/2013)
- 5' F07 GT LCI (08/2012 — 02/2017)
- 5' G60 Sedan (06/2022 — 03/2025)
- 5' G68 Sedan (09/2022 — 03/2025)
- 5' G90 M5 (11/2022 — 03/2025)
- 5' G61 Touring (11/2022 — 03/2025)
- 5' G99 M5 Touring (06/2023 — 03/2025)
- 6' F06 Gran Coupé (05/2011 — 03/2015)
- 6' F06 Gran Coupé LCI (05/2014 — 09/2018)
- 7' E65 (02/2002 — 07/2008)
- 7' E66 (02/2002 — 07/2008)
- 7' E67 (10/2002 — 06/2008)
- 7' F01 (06/2007 — 06/2012)
- 7' F01 LCI (05/2011 — 05/2015)
- 7' F02 (07/2007 — 06/2012)
- 7' F02 LCI (05/2011 — 05/2015)
- 7' F03 (04/2008 — 05/2012)
- 7' F03 LCI (01/2012 — 03/2015)
- 7' F04 Hybrid (10/2008 — 06/2012)
- 7' G11 (10/2014 — 02/2019)
- 7' G11 LCI (01/2018 — 06/2022)
- 7' G12 (10/2014 — 02/2019)
- 7' G12 LCI (01/2018 — 06/2022)
- 7' G70 (07/2021 — 03/2025)
- 7' G73 (11/2021 — 02/2025)
- i3L G28 BEV Sedan (03/2021 — 03/2025)
- X1 E84 (09/2008 — 06/2015)
- X1 F48 (11/2014 — 07/2019)
- X1 F48 LCI (05/2018 — 06/2022)
- X2 F39 (10/2016 — 10/2023)
- X3 E83 (01/2003 — 07/2006)
- X3 E83 LCI (02/2006 — 08/2010)
- X3 F25 (06/2009 — 08/2017)
- X4 F26 (05/2013 — 03/2018)
- X5 E53 (10/1998 — 09/2006)
- X5 M F85 (04/2013 — 06/2018)
- X6 E71 (01/2007 — 06/2014)
- X6 E72 Hybrid (10/2008 — 10/2011)
- X6 F16 (09/2013 — 05/2019)
- X6 M F86 (10/2013 — 05/2019)
- XM G09 (09/2021 — 03/2025)
- Z4 E85 (01/2002 — 08/2008)
- Z4 E86 (10/2005 — 08/2008)
- MINI R50 (09/2000 — 11/2006)
- MINI R53 (09/2000 — 11/2006)
- MINI R56 (10/2005 — 08/2010)
- MINI R56 LCI (03/2009 — 11/2013)
- MINI F56 (04/2013 — 03/2021)
- MINI F56 BEV (11/2018 — 03/2021)
- MINI F56 LCI (03/2020 — 02/2024)
- MINI F56 BEV LCI (03/2020 — 01/2024)
- MINI F66 (10/2022 — 03/2025)
- MINI F55 (09/2013 — 03/2021)
- MINI F55 LCI (03/2020 — 02/2024)
- MINI F65 (02/2023 — 03/2025)
- MINI Clubman R55 (10/2006 — 07/2010)
- MINI Clubman R55 LCI (03/2009 — 06/2014)
- MINI Clubman F54 (11/2014 — 07/2019)
- MINI Clubman F54 LCI (05/2018 — 02/2024)
- MINI Cabrio R52 (11/2002 — 07/2008)
- MINI Cabrio F57 BEV (12/2022 — 09/2023)
- MINI Cabrio F67 (07/2023 — 03/2025)
- MINI Coupé R58 (12/2010 — 05/2015)
- MINI Roadster R59 (01/2011 — 04/2015)
- MINI Cabrio F57 (11/2014 — 02/2021)
- MINI Countryman R60 (01/2010 — 10/2016)
- MINI Cabrio F57 LCI (03/2020 — 02/2024)
- MINI Countryman F60 (11/2015 — 07/2020)
- MINI Countryman F60 LCI (05/2019 — 02/2024)
- MINI Paceman R61 (03/2012 — 09/2016)
- Ghost RR4 (08/2008 — 12/2019)
