Tablet holder for 19-inch rack drawers

Tablet holder for 19-inch rack drawers – modular, store and charge at the same time

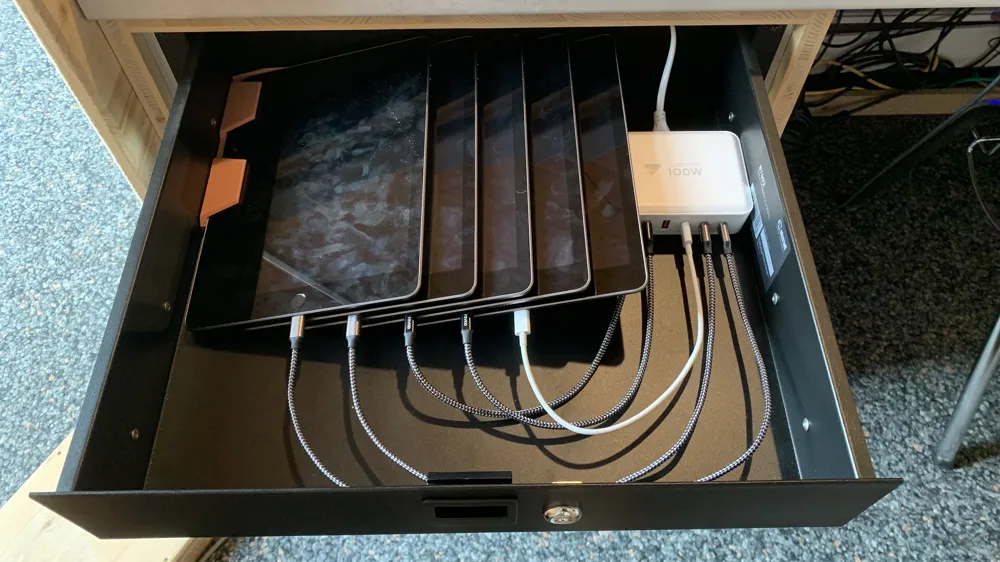

This 3D Printed tablet holder was specially developed for use in event technology. It fits into standard 19-inch rack drawers and offers space for up to 7 tablets, which can be stored securely and charged at the same time.

Additional safety measures are necessary for safe transport, such as padding and anti-slip devices!

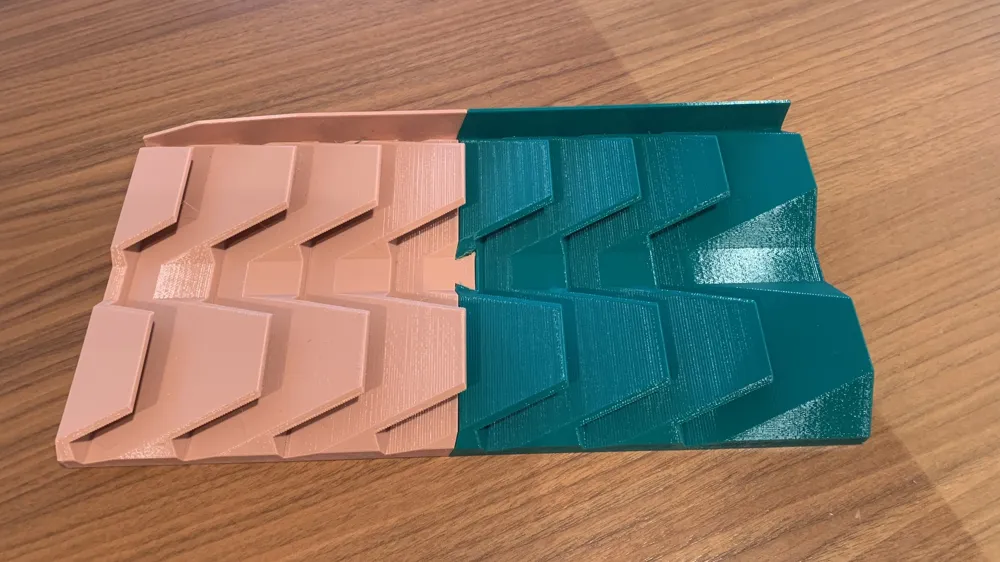

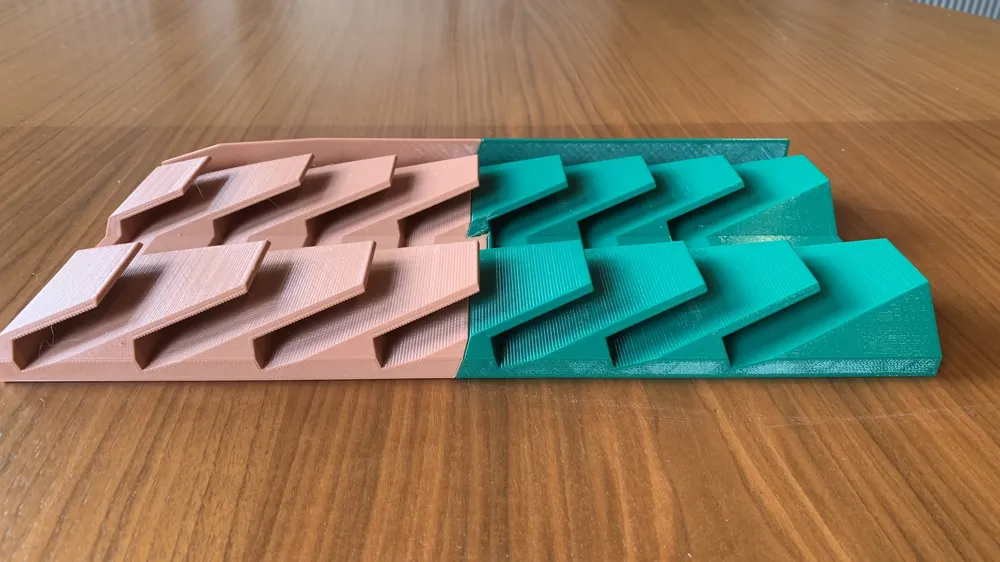

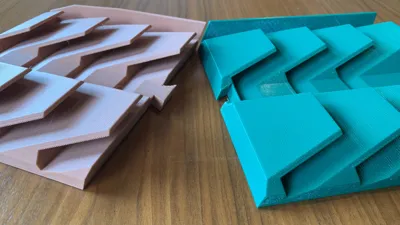

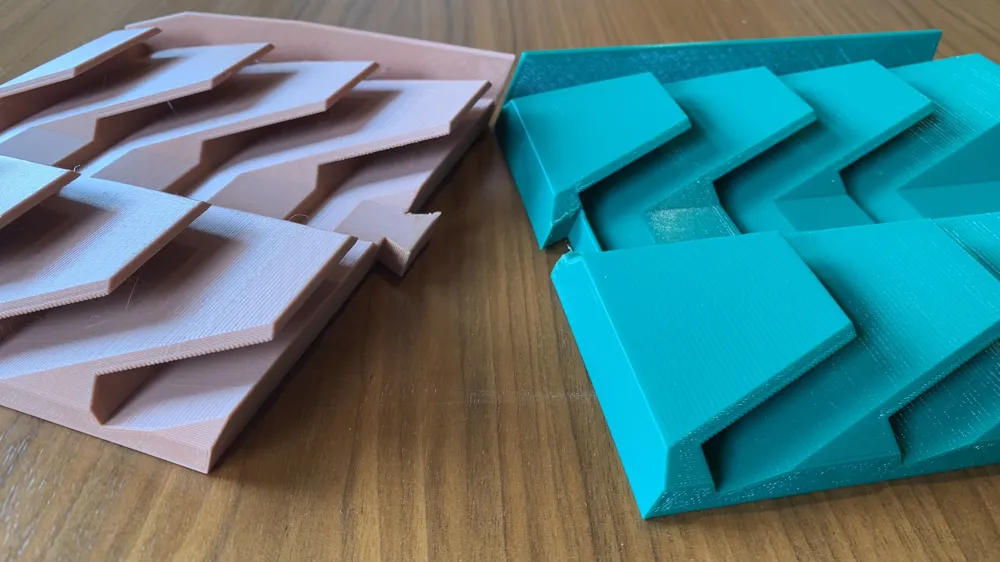

The holder consists of two modules that can be inserted into each other, which means it can also be easily manufactured on smaller 3D printers. The design ensures stable and clear organization of the devices – ideal for permanent installations in event venues.

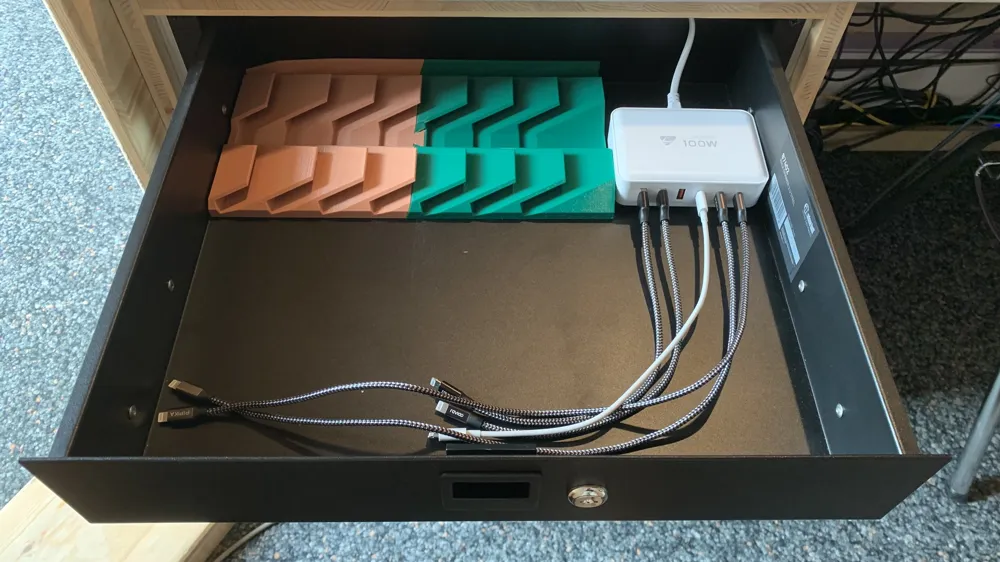

The two parts can be secured against slipping with double-sided adhesive tape in the drawer.

Details:

For up to 7 tablets (tested with 9" iPad)

Suitable for 19" rack drawers (standard size)

Two plug-in parts for easy printing

Recommended material: PETG for robustness

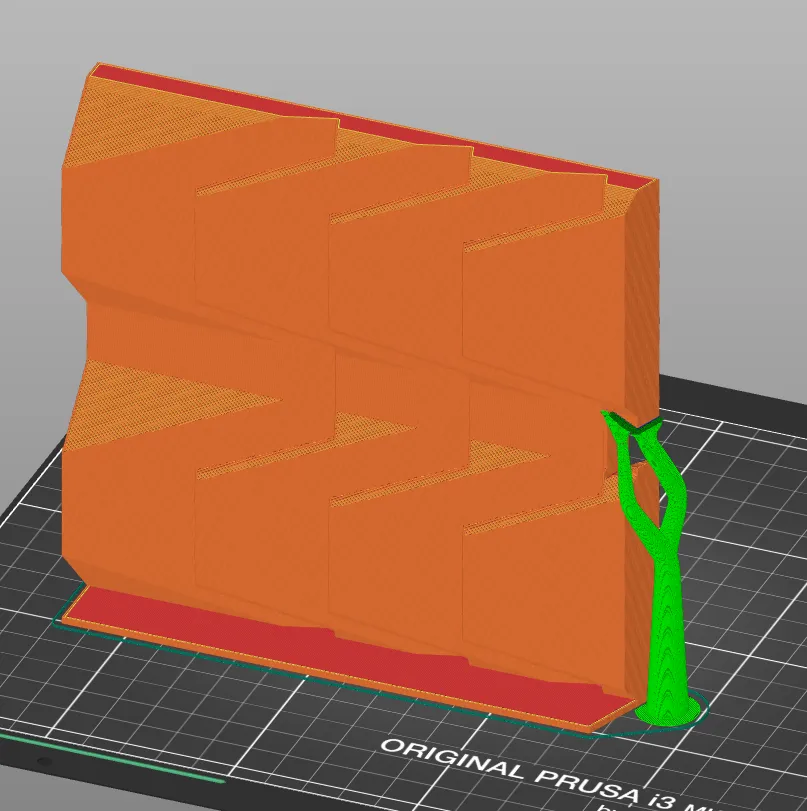

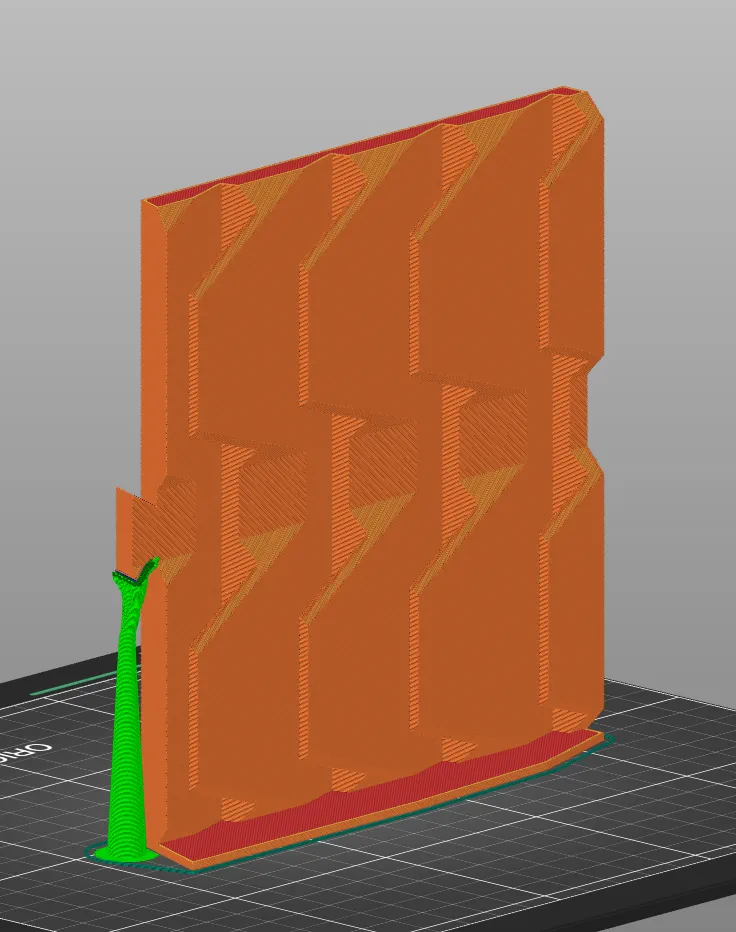

Just very few support necessary if printed vertical/upright! (see pictures)

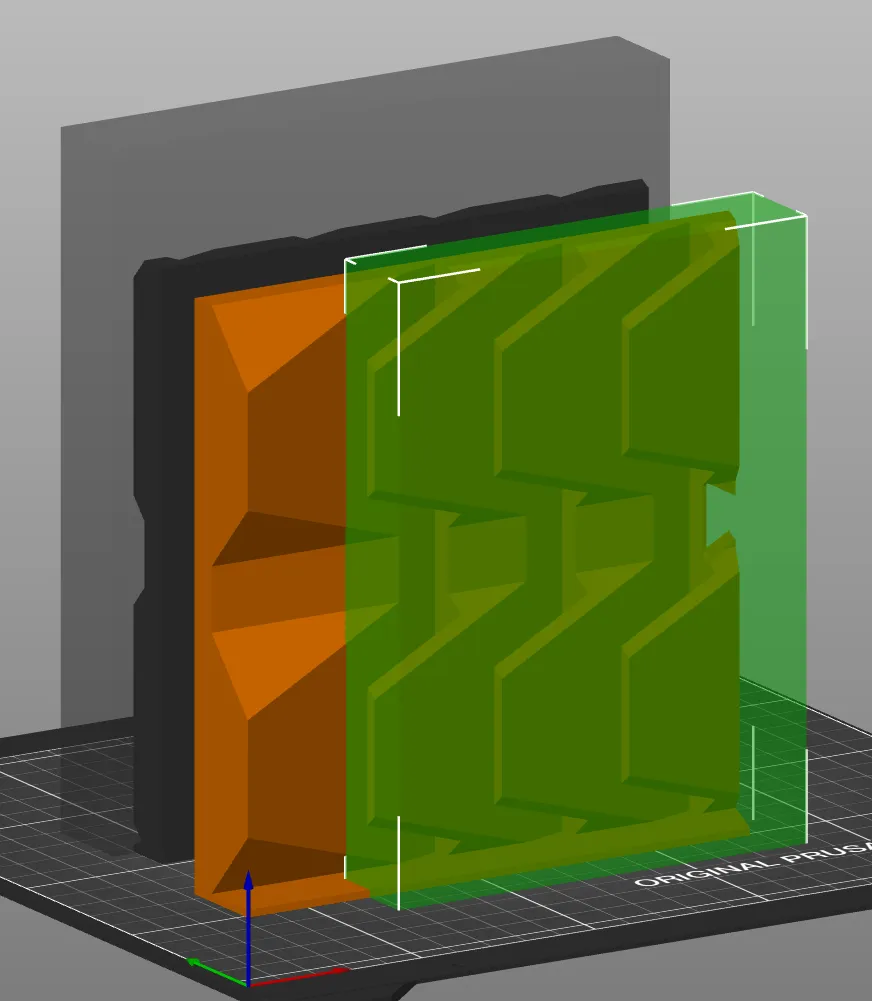

To save material, the fill density is set to 5%, but the “wings” are reinforced with a cube with an infill of 30%. This can be seen in the project file.

Ideal for: Event technology, permanent installation, school, church, stage equipment
