Storage Box Latch
IP Report
Print Profile(2)
Long tail version, card extension length 41mm, 0.2mm layer, 2 walls, 15% infill
Designer
20 min
1 plate
Buckle short tail length 36mm, 0.2mm layer, 2 walls, 15% infill
Designer
19 min
1 plate
Open in Bambu Studio
Boost
47
132
9
2
122
69
Released
Description
Content has been automatically translated.
While designing the T80 soldering iron storage box, I discovered this unique latch. I felt someone might need it, so I drew it and shared it with those who need it. The entire active connection part is directly connected using φ1.75 filament, which is easy to find.

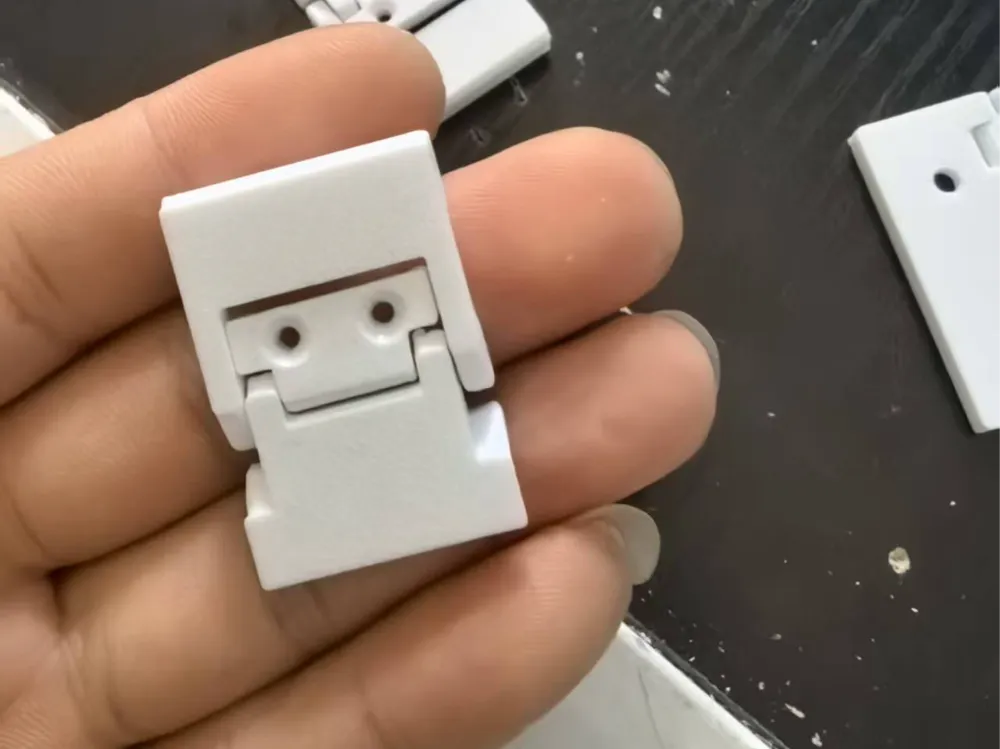

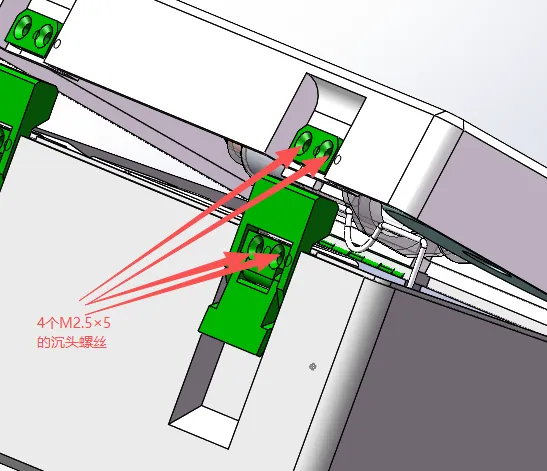

A set of latches requires 4 M2.5×5 flat head screws,

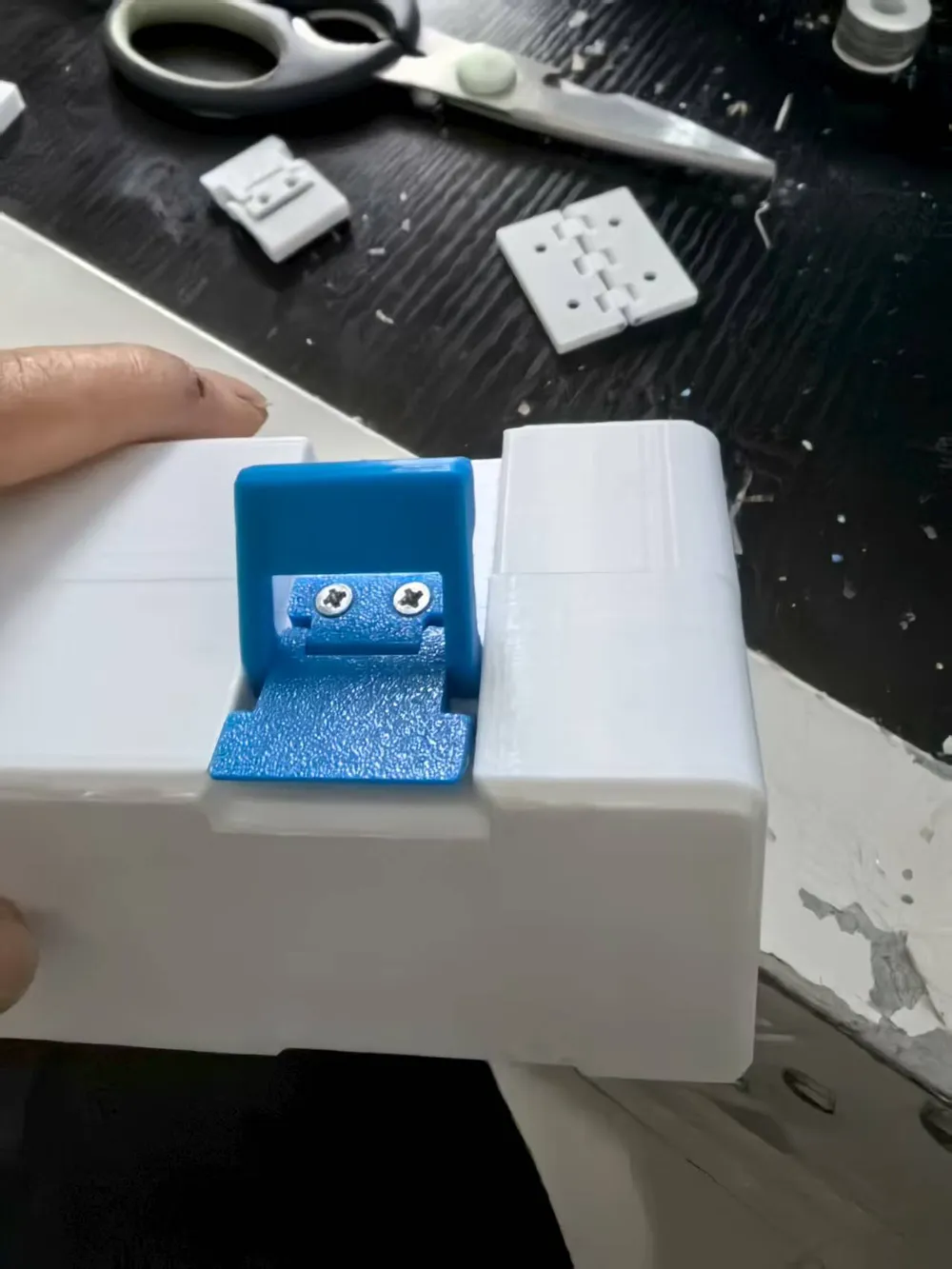

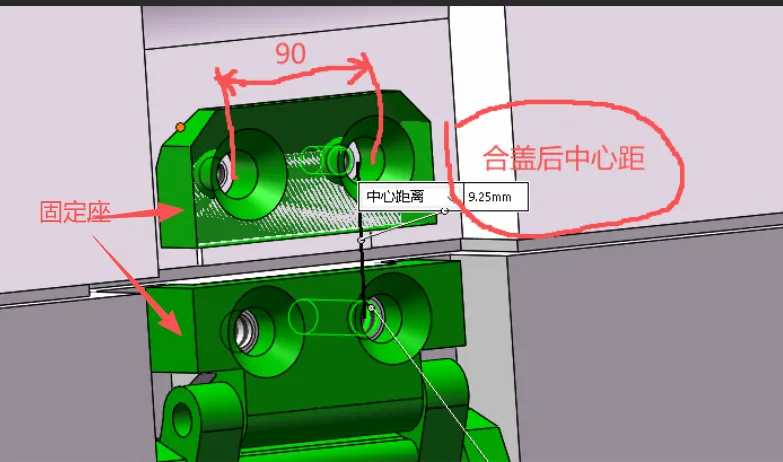

After the top cover is closed, the center distance between the threaded holes of the upper and lower fixing bases should be 9.3mm. I tried this distance, and the tightness was just right. The center distance for both upper and lower fixing bases is 90mm.

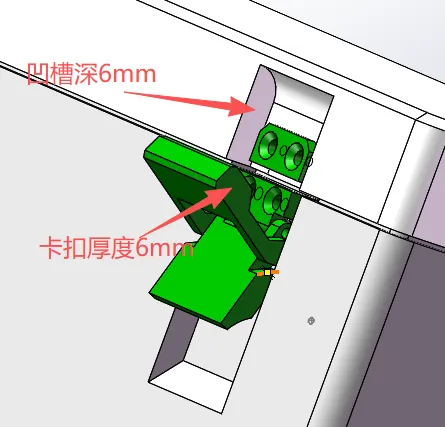

If you want the cover surface to be flat when closed, I recommend recessing it like I did. The latch thickness is 6mm.
