Soldering Fume Extraction System
Print Profile(1)
Bill of Materials
- 3010 Cooling Fan x 1: Cheap Option: https://www.temu.com/au/3pcs-3d-printer-parts-3010-cooling-fan-30x30x10mm-5v-12v-24v-2---cooler-small-cooling-fan-g-601099513539227.html?_oak_name_id=5206394741978037893&_oak_mp_inf
Description
Authentic Prototype v1.1 Design

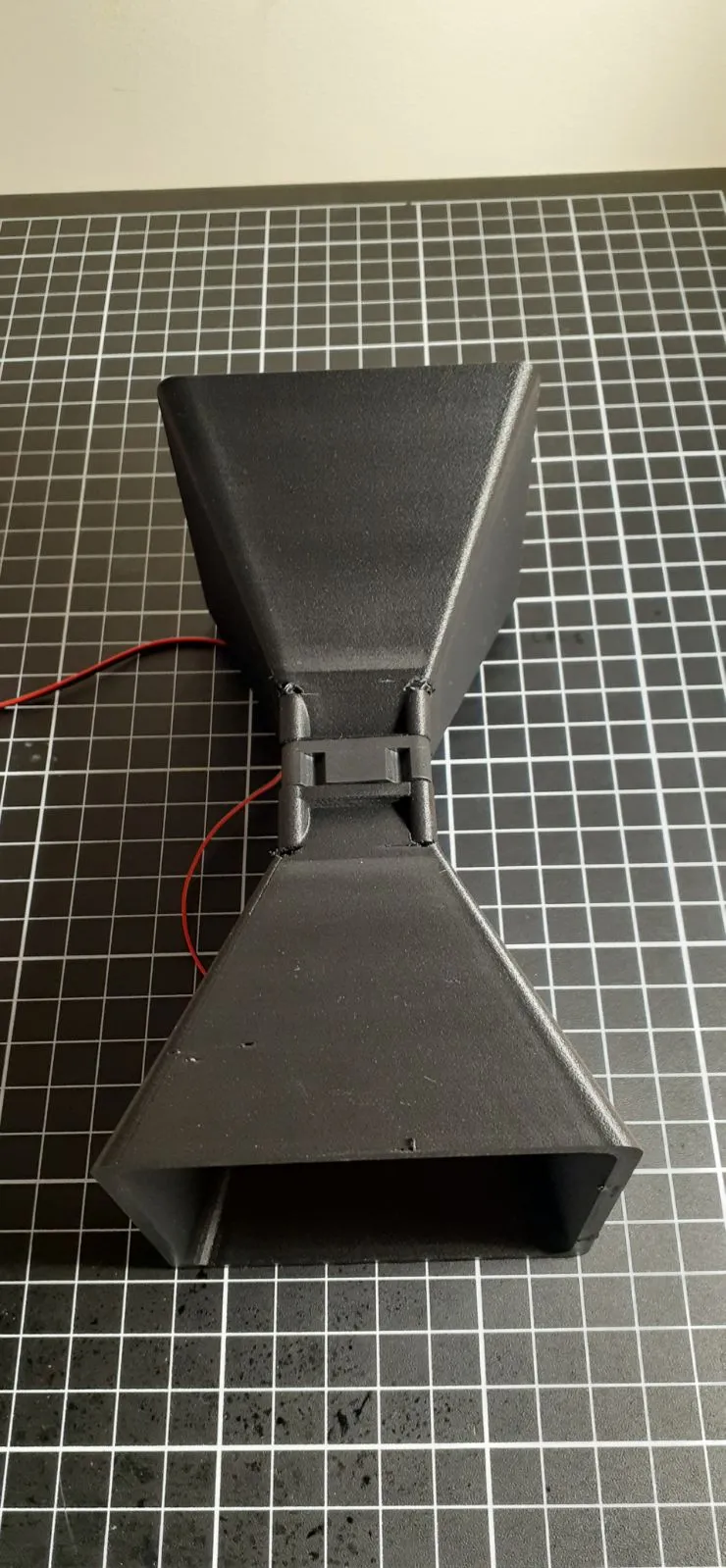

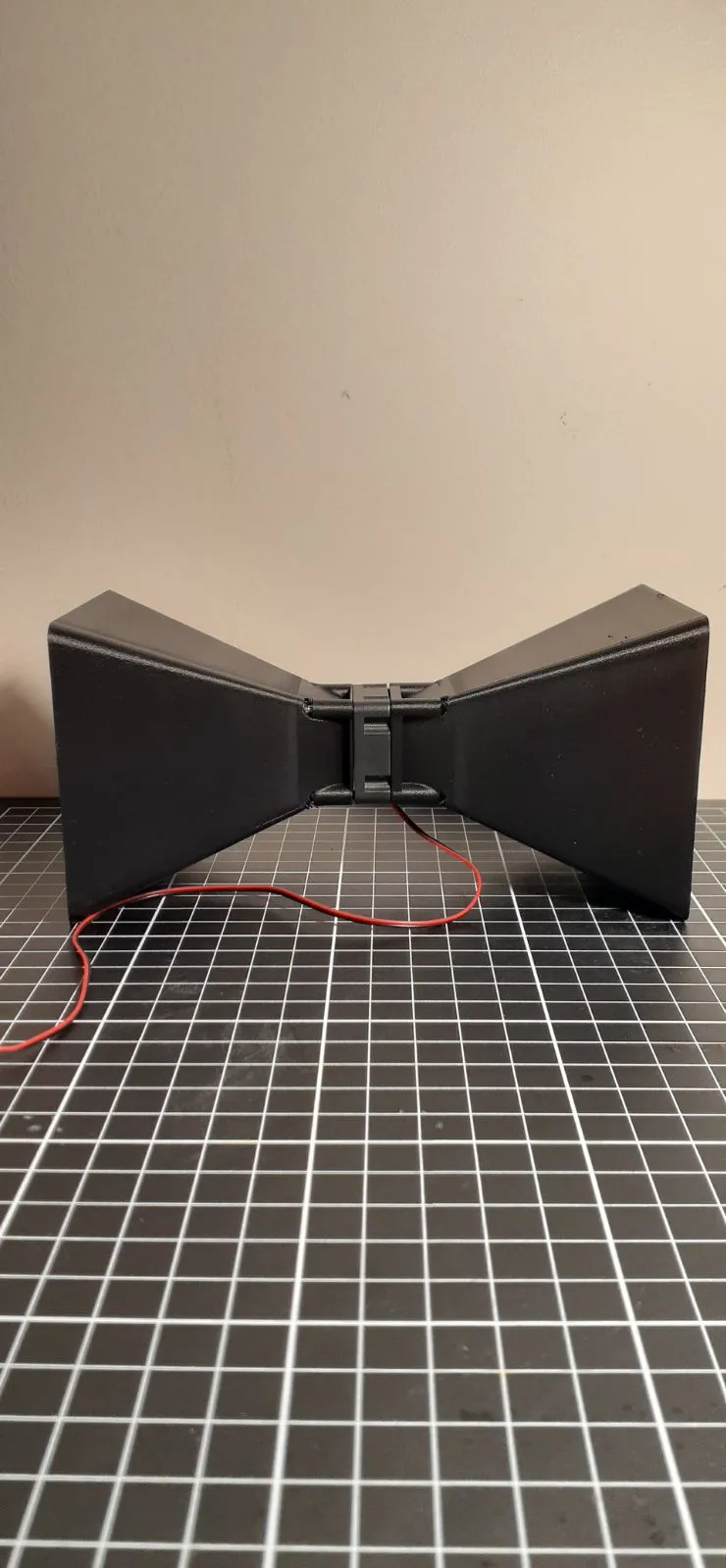

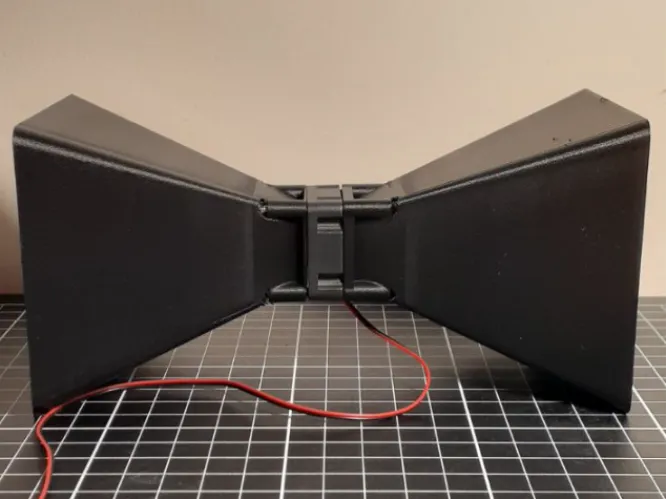

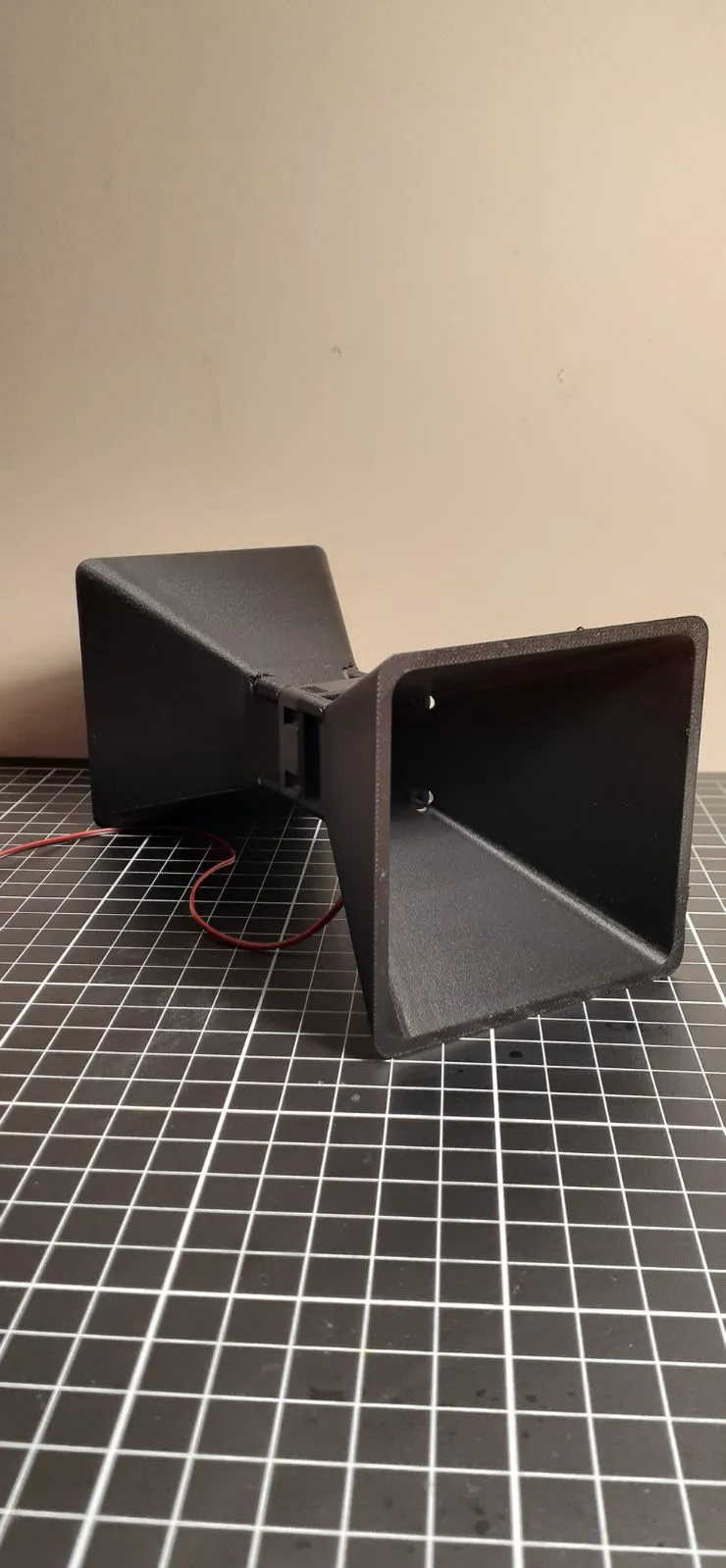

This is a compact soldering fume extraction system I designed to improve workspace safety and comfort. The unit features an intake and an outlet for quick positioning and is equipped with a 3010 Cooling Fan. The streamlined geometry maximizes airflow efficiency while keeping the device lightweight and unobtrusive on the workbench. The system is optimized for use during soldering tasks, ensuring harmful fumes are quickly removed from the breathing zone, creating a safer and more professional electronics workspace.
Boost Me (for free)
Trying to do more practical designs, a boost will contribute to parts to make them possible.
