CyberBrick Scissor Lift
Print Profile(2)
Bill of Materials
Description

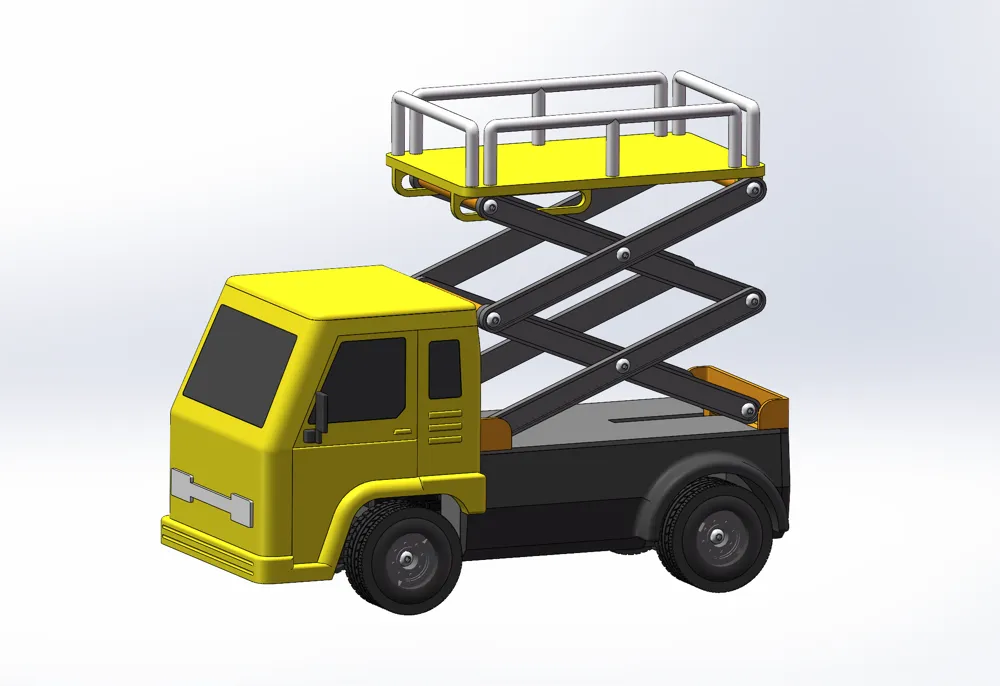

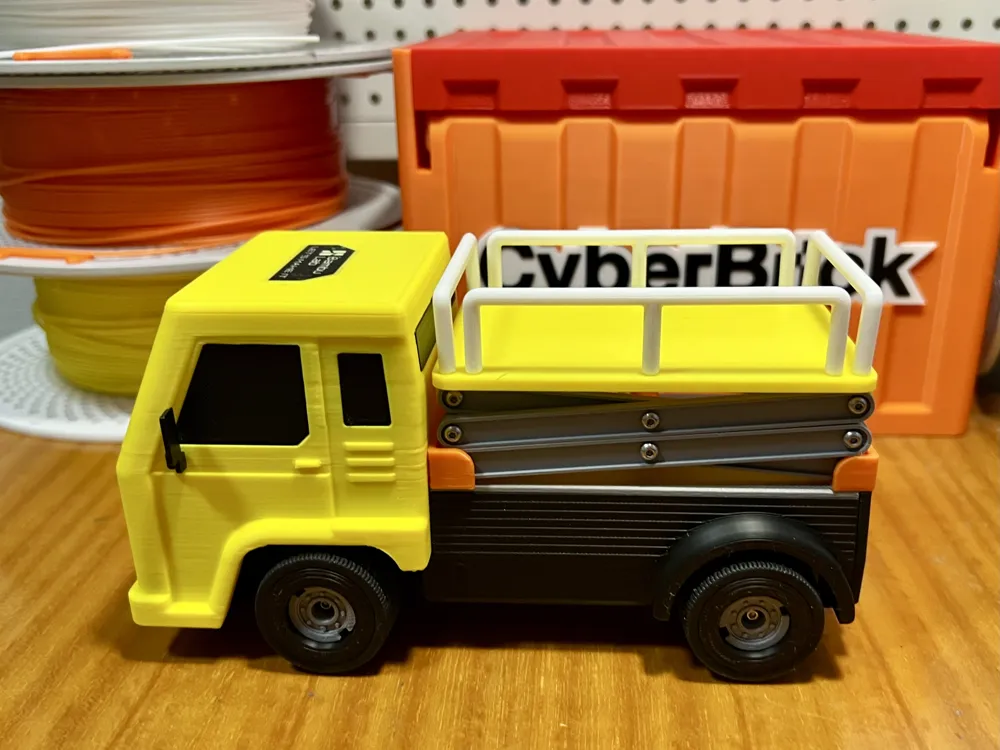

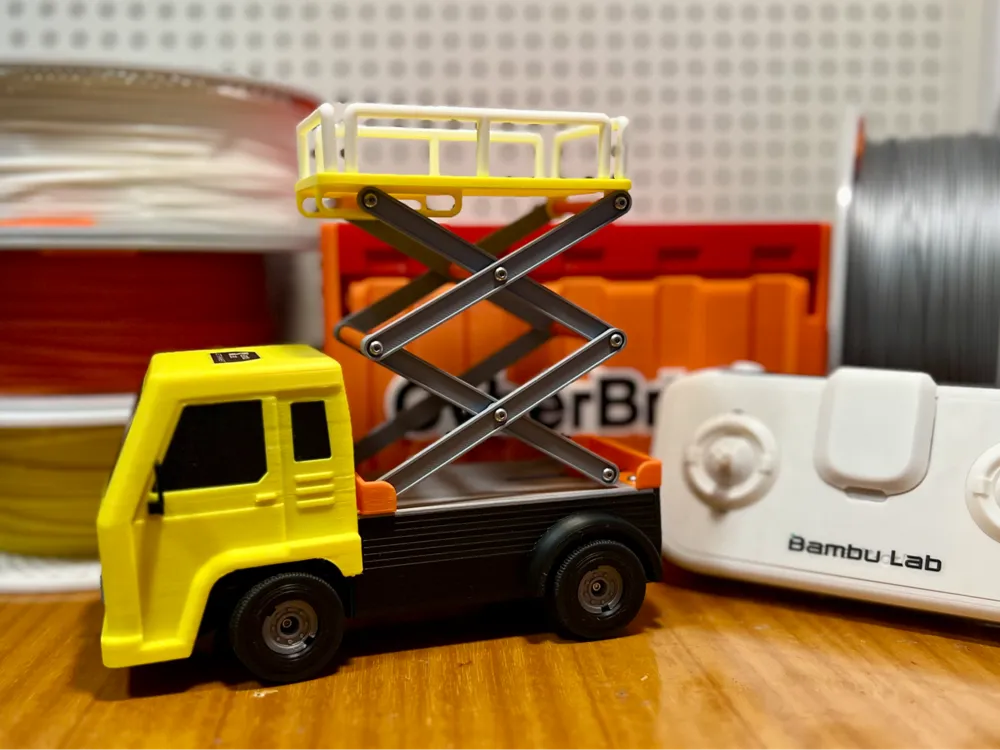

CyberBrick Lift Vehicle
This is a lift vehicle designed based on the CyberBrick kit
Its design inspiration comes from special equipment in modern life; lift vehicles are widely used in industries such as power, communication, and transportation, as well as in emergency rescue projects
- The lift vehicle's design uses a classic scissor lift mechanism and is driven by a lead screw and nut. Initially, a rack and pinion drive was used, but the motor's torque was insufficient to drive the lift...
- Only the official CyberBrick kit is needed (the starter kit is sufficient), no additional accessories need to be purchased

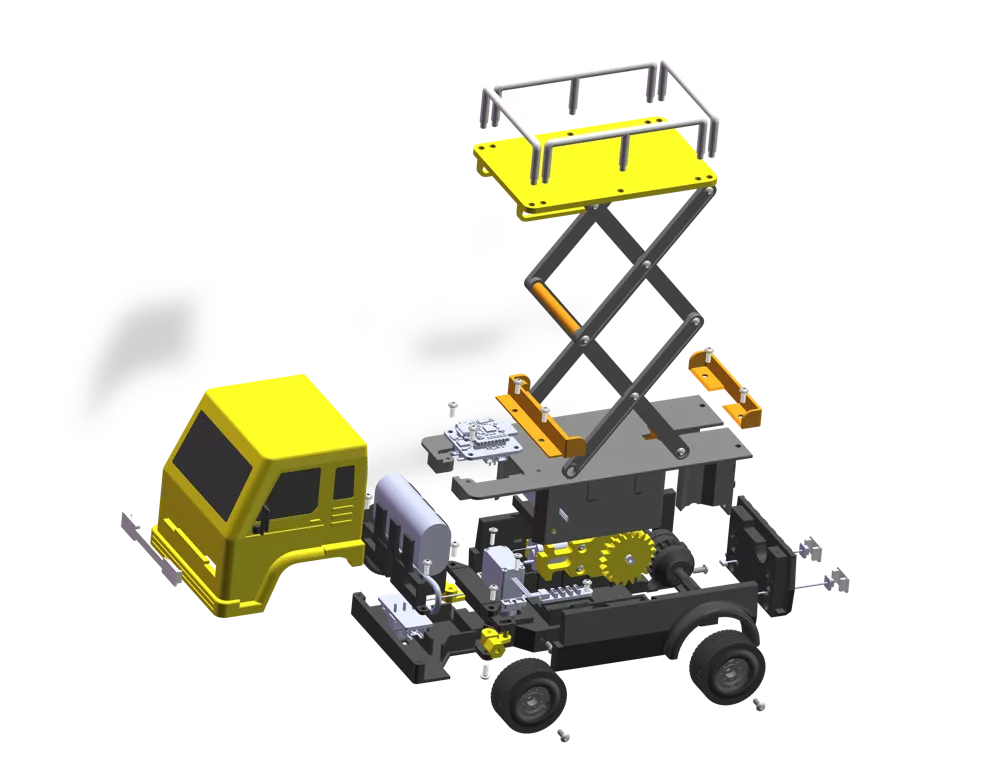

- To reduce volume while maintaining a clean appearance, the internal structure is compactly laid out. This also means that the assembly process requires your care and patience
- This model shares some printed parts with the official CyberBrick truck and these have been marked in the print profile. If you have already printed the official truck, you can skip these parts
Boost Me (for free)
If you like this model, please boost me, thank you very much!
Please read the assembly instructions carefully; it is recommended that you start assembling after preparing the CyberBrick kit and all printed parts
In addition, you also need to prepare a controller; here is the link to the official controller:CyberBrick Official Standard Remote by CyberBrick MakerWorld: Download Free 3D Models

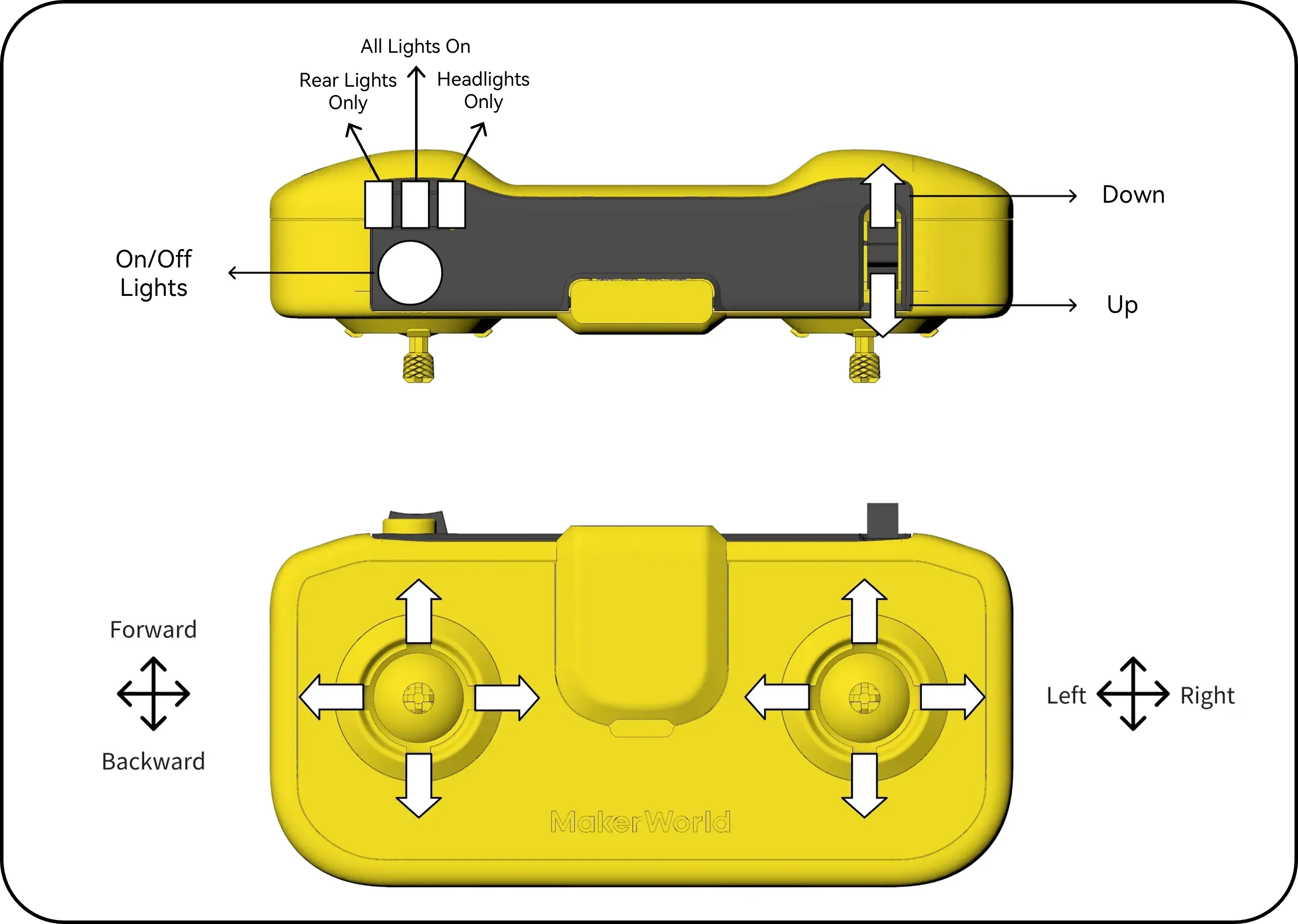

Controller Buttons:
