Ultimate Bee CNC M12 Round Sensor mount
Print Profile(1)
Description

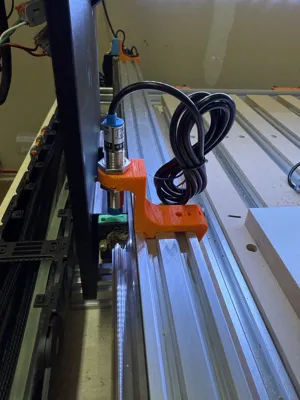

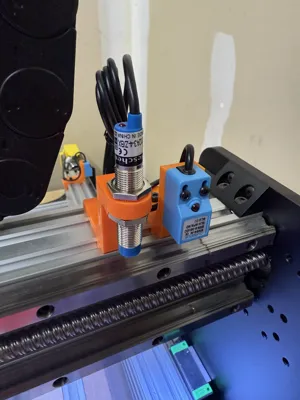

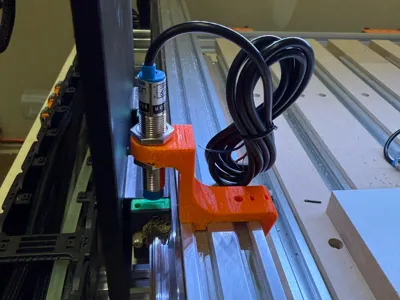

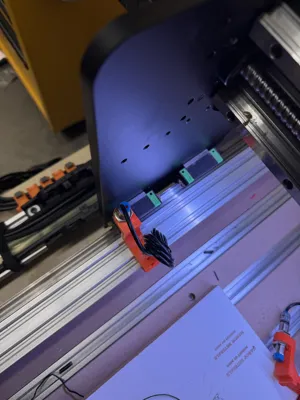

I created a mount for the square 18mm proximity sensors, I had a viewer ask if I had a mount for the round proximity sensors so I figured I would create one.
The mount works on the Ultimate Bee CNC and should also work on the Queen Bee CNC.
If you are a swapping to the Sienci Labs Super Long Board you can add their MK2 Proximity Sensor kit if you want to use the round style sensors on the X and Y axis.
I will work on one for the Z axis as well but dont have it done yet.
I used a m4x8mm Bolt and m4 hammer screw to secure the mount to the frame.
I have included the Fusion file if you need to adjust the hole for the sensor you have.
Sienci Labs MK2 Sensor kit:
https://sienci.com/product/inductive-sensor-kit-for-the-longmill-mk2/
Amazon Sensors I tested with:
https://a.co/d/eLN7kTM
