Cyberdeck for Raspberry Pi 5 and 3.5" display
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 5% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
33
93
2
5
52
19
Released
Description
Boost Me (for free)
Please boost for more cool models like this!
Please Print the updated version!

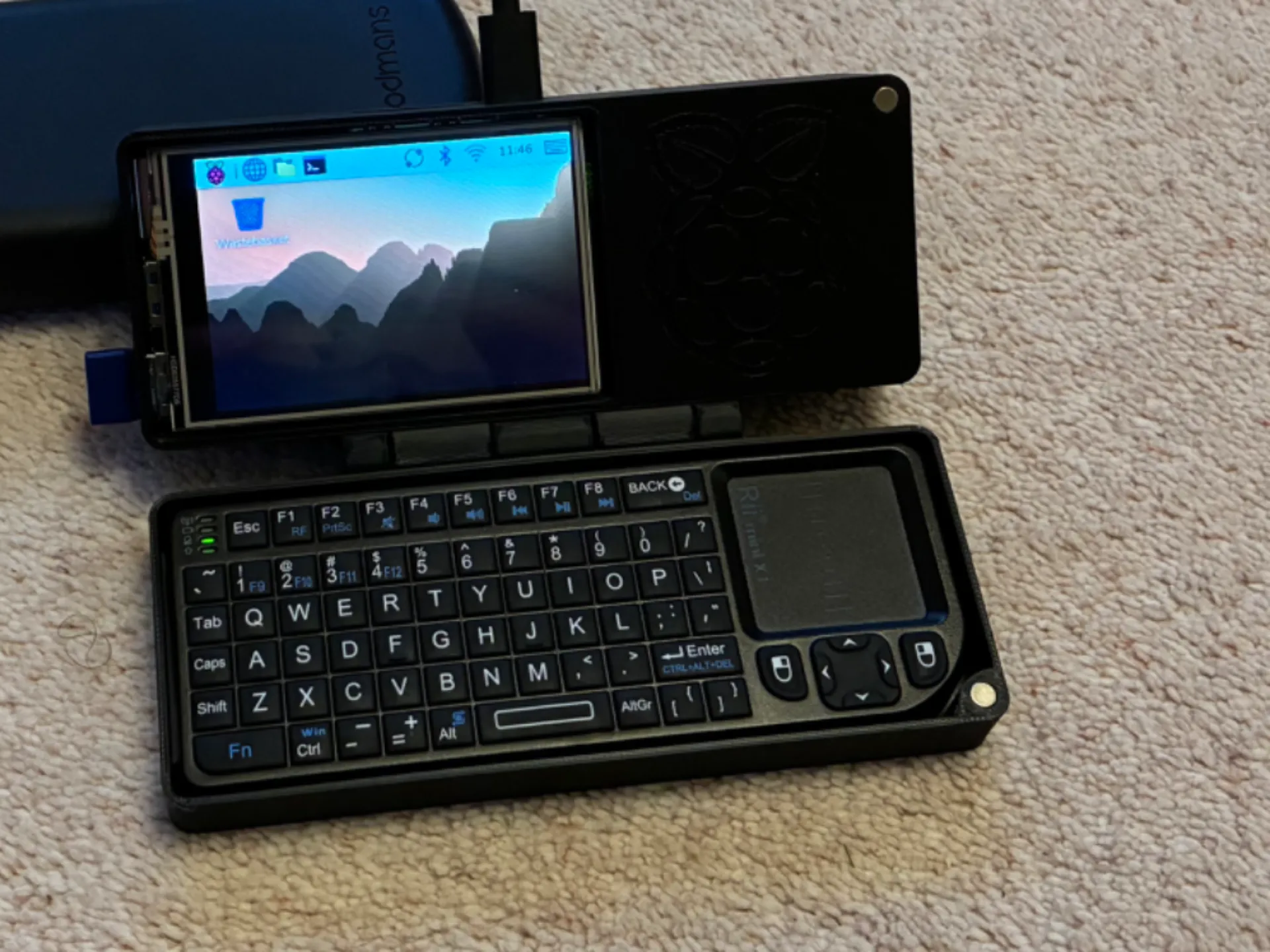

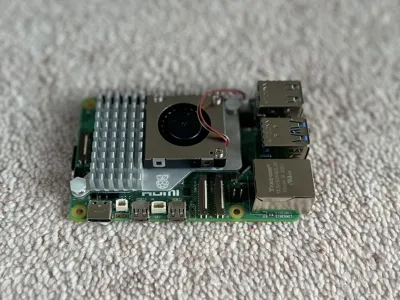

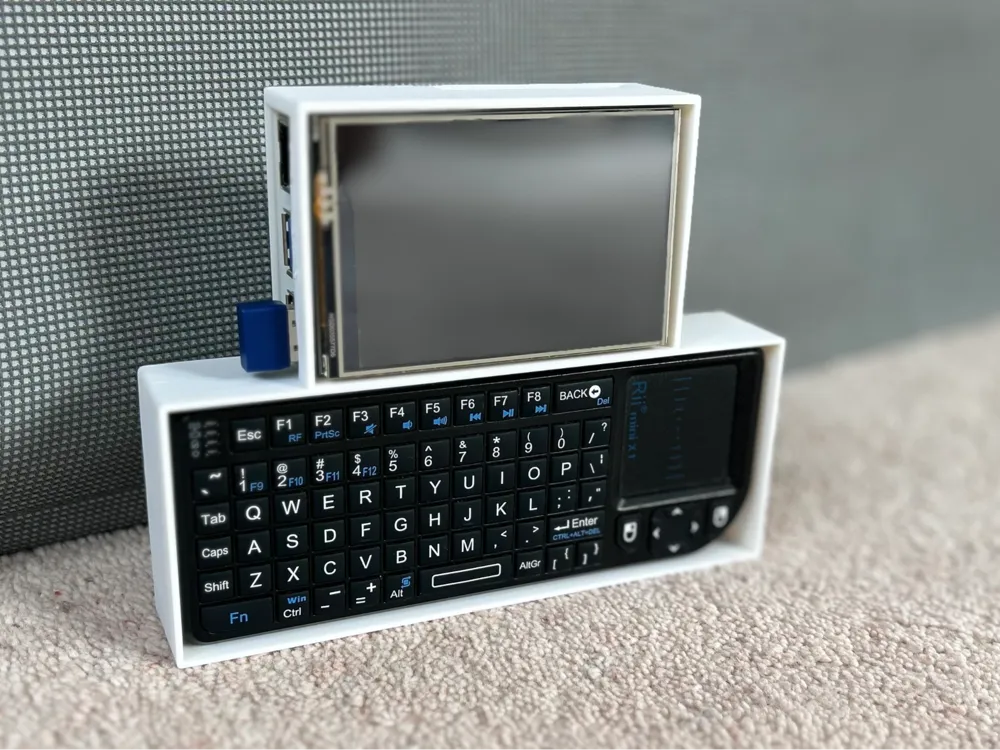

This is a small cyberdeck for the raspberry pi 5, a 3.5 inch gpio connected display and a Rii miniature keyboard.
Raspberry pi zero version: click here
Setup
- Using the Raspberry PI imager, flash Raspberry Pi OS Bookworm to a micro SD card. (NB: Bookworm and earlier should work. Trixie not yet tested)

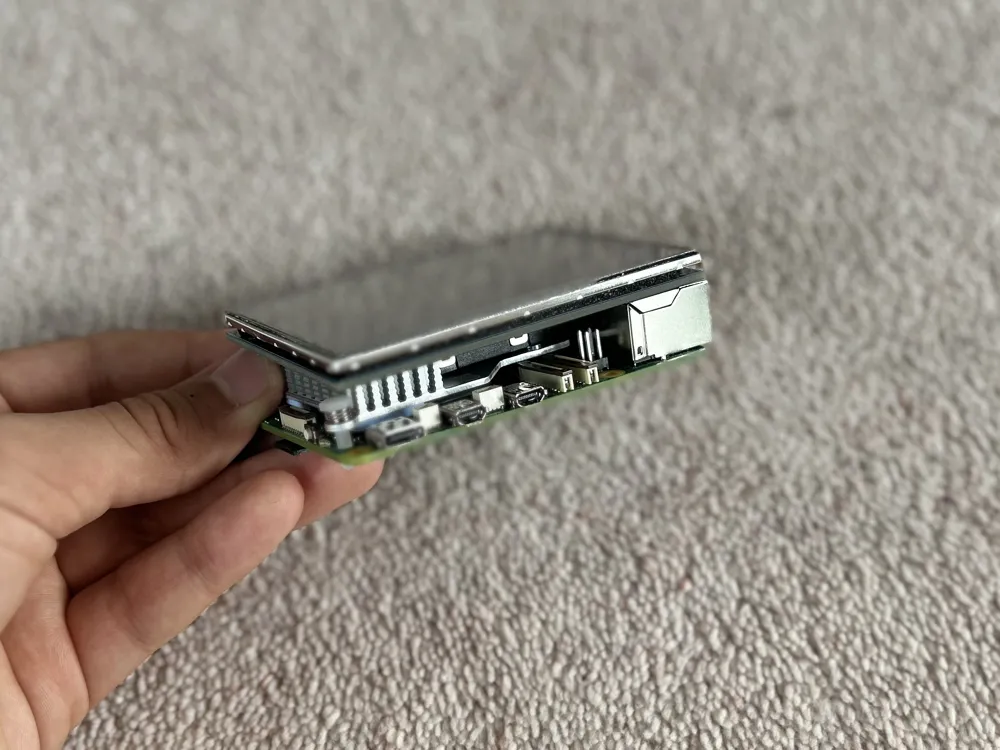

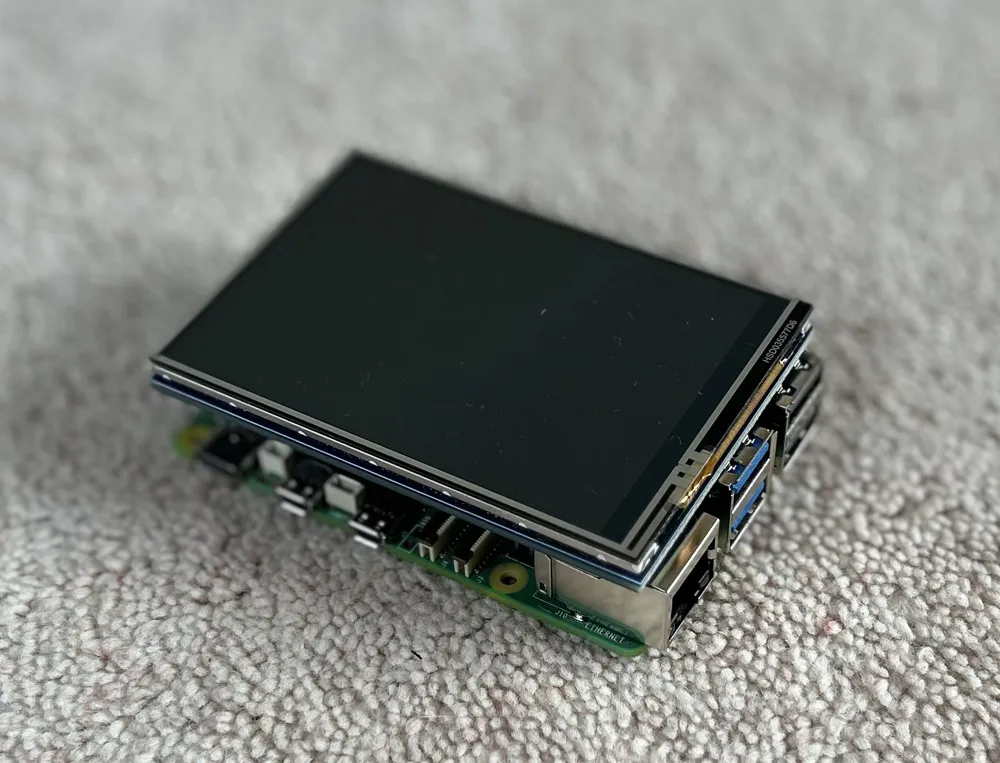

- Connect your screen, keyboard, SD card and an HDMI monitor to the pi and power on. (NB: You might need to use a micro USB to full size USB adapter for the mini keyboard's wireless dongle)
- Using the instructions http://www.lcdwiki.com/3.5inch_RPi_Display to install the touchscreen drivers and rotate the display 180 degrees for use in the case

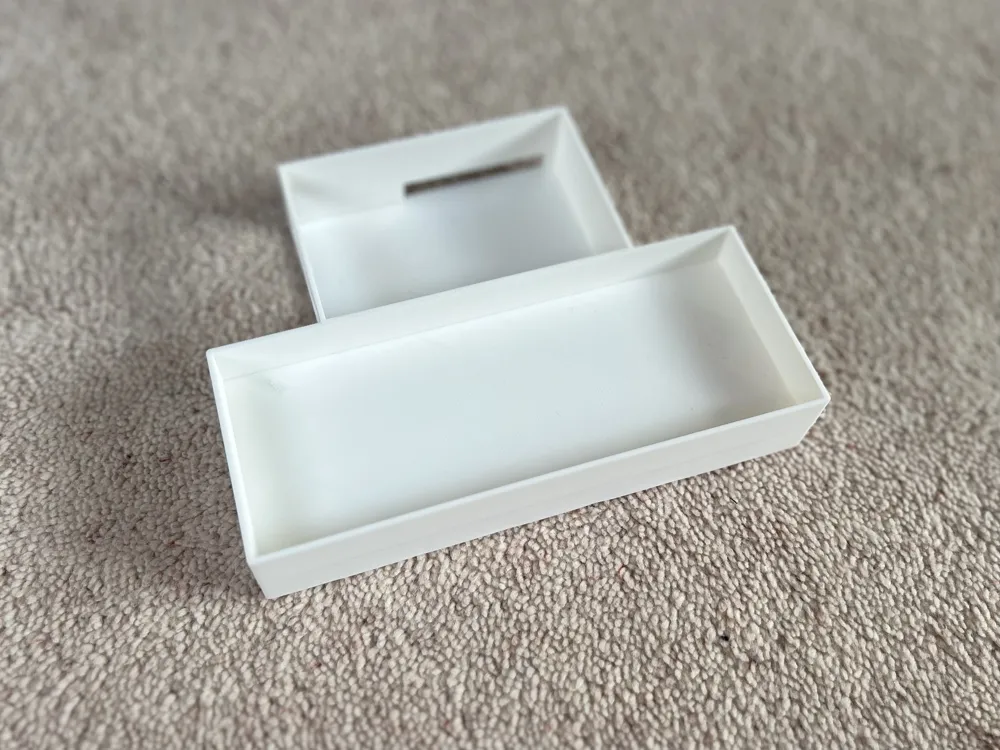

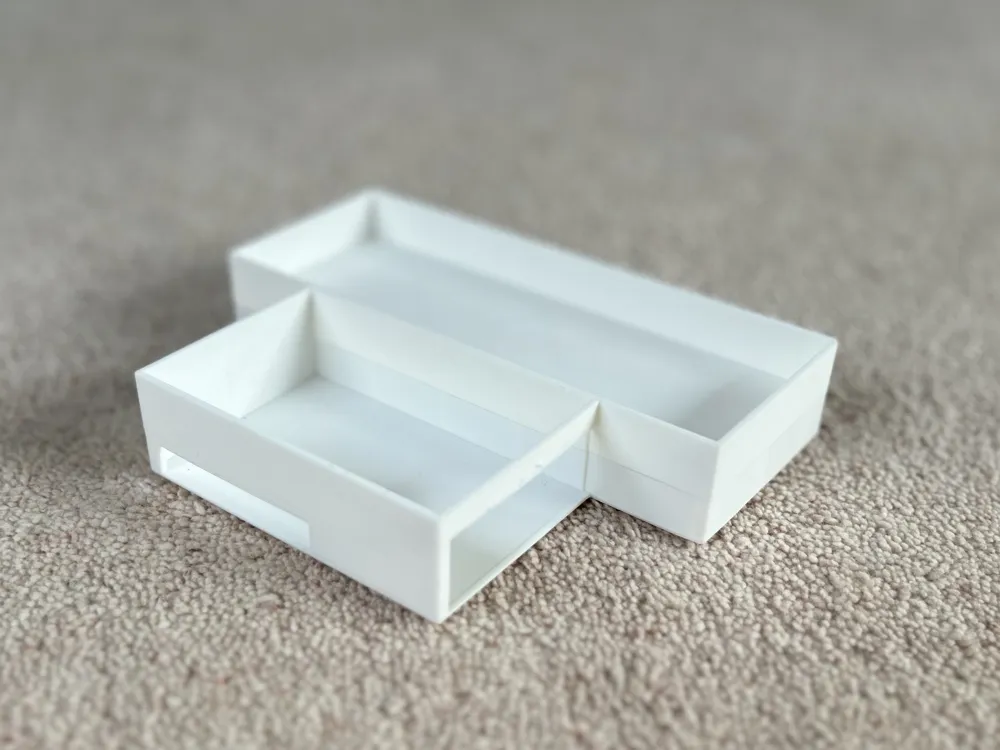

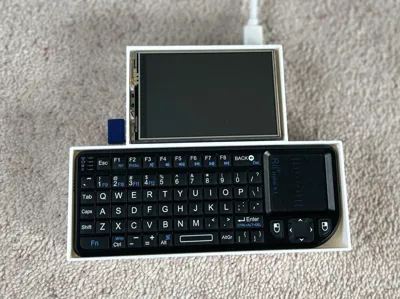

- When completed, disconnect the HDMI monitor and put the device in the 3d printed case and connect power and keyboard connecter!
Parts

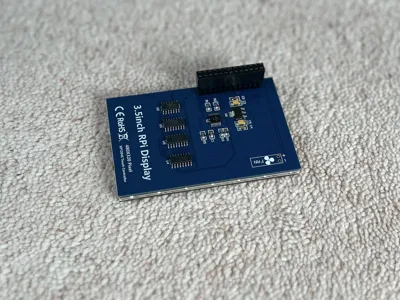

Touchscreen: amazon
Keyboard: pi hut
