Parallel Line Marking Tool
Print Profile(1)
Description
For making parallel lines to edges. Use compass lead size 2 mm. A bit tight at first but loosens up after a few times. Inspired by DSPIAE scribing tool.

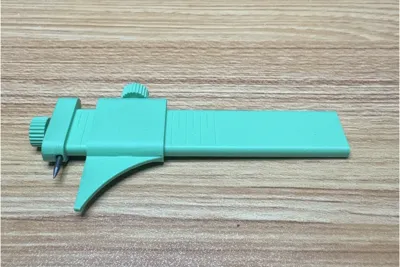

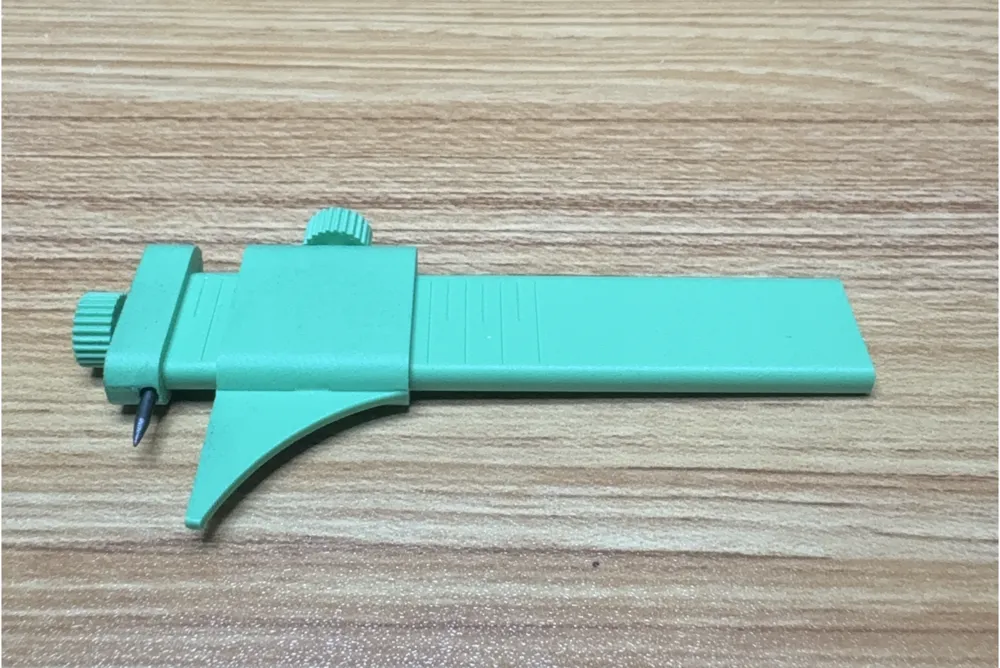

✏️ 3D Printed Parallel Line Edge Tracer – Adjustable with 2mm Lead
Precision marking just got smarter. This 3D printed parallel line tracer is designed to effortlessly draw straight, consistent lines at a set distance from any edge—perfect for scale model scribing, GunPLA, woodworking, leathercraft, model making, or technical drawing. With adjustable thumbscrews and a snug-fit lead holder, it’s the ultimate tool for clean, repeatable layout work.
🔩 Key Features:

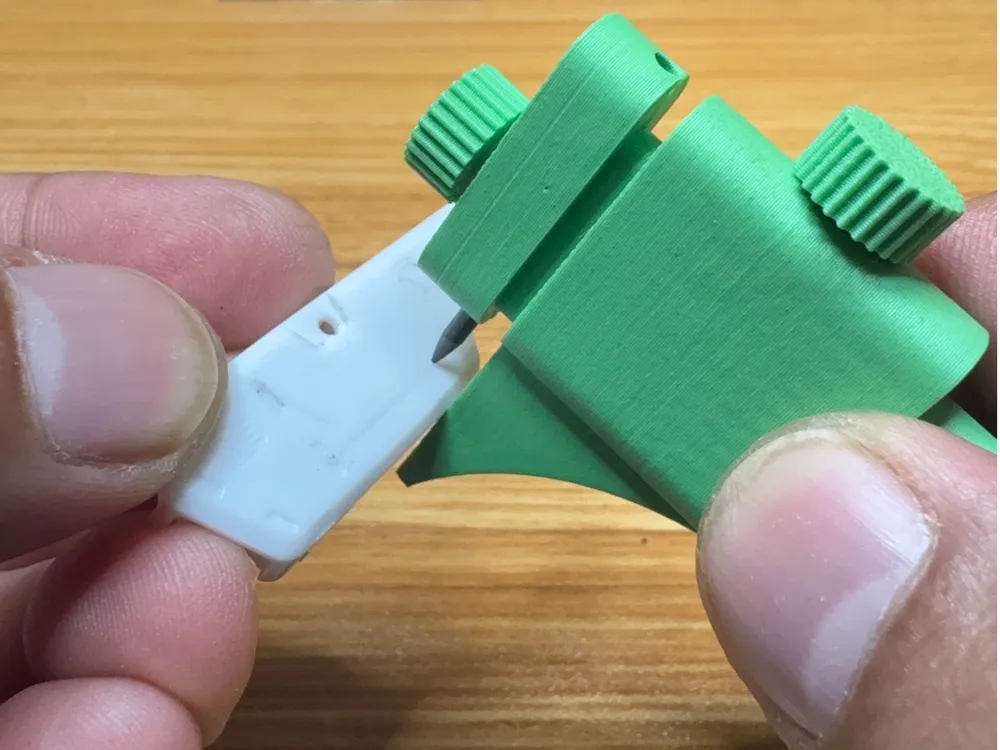

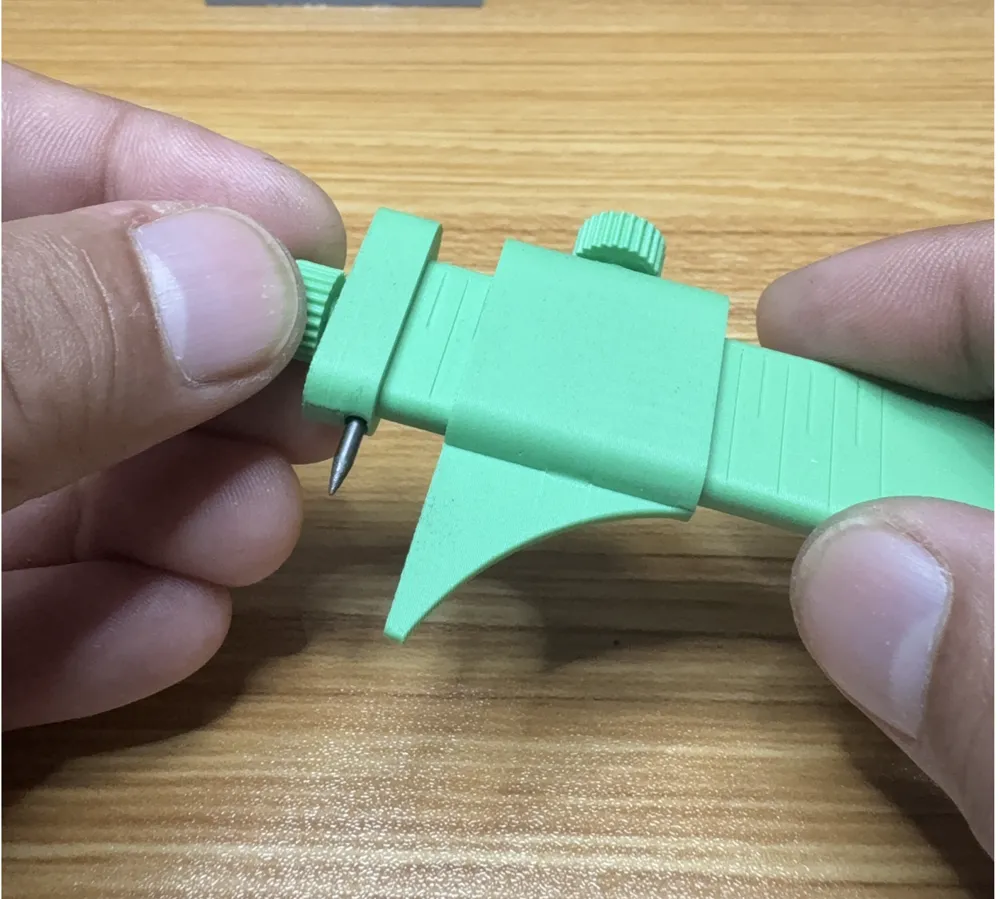

- Edge-Guided Design: The tool hugs the edge of your workpiece, guiding the lead in a perfectly parallel path.

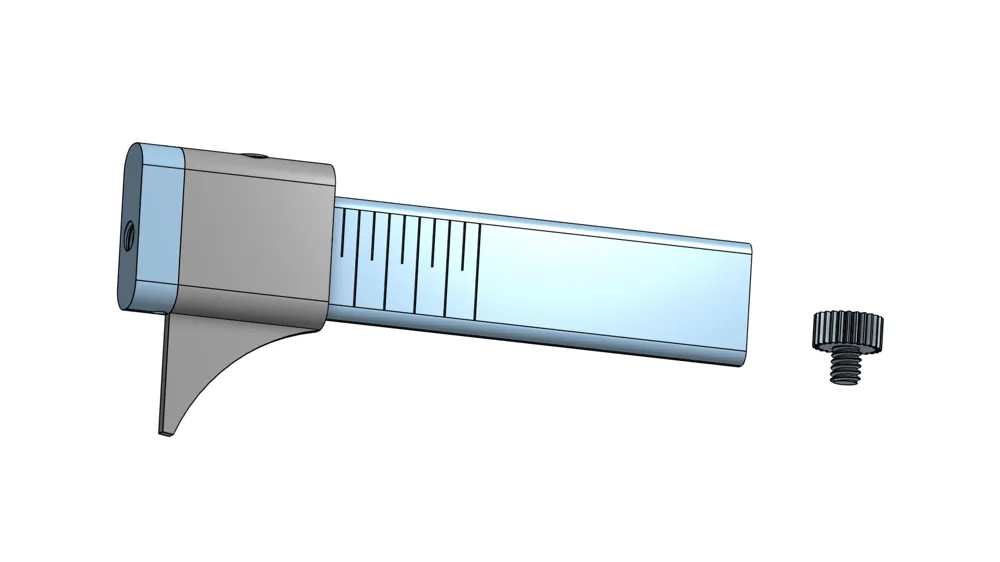

- Adjustable Offset: Dual thumbscrews allow you to fine-tune the marking distance from 5mm to 50mm (or more depending on your model), giving you full control over spacing.
- 2mm Lead Compatibility: Accepts standard 2mm drafting or compass lead, held securely in a friction-fit channel or collet-style clamp.
- Ergonomic Grip: Contoured body for comfortable handling and smooth tracing across surfaces.
- Non-Marring Base: Printed in smooth PLA or PETG with optional felt or TPU pads to protect delicate surfaces.
🛠️ Ideal For:
- Scale models and GunPLA builders
- Cabinet makers marking consistent insets
- Leatherworkers tracing stitch lines
- Artists and designers creating parallel guides
- DIYers and makers who love precision
