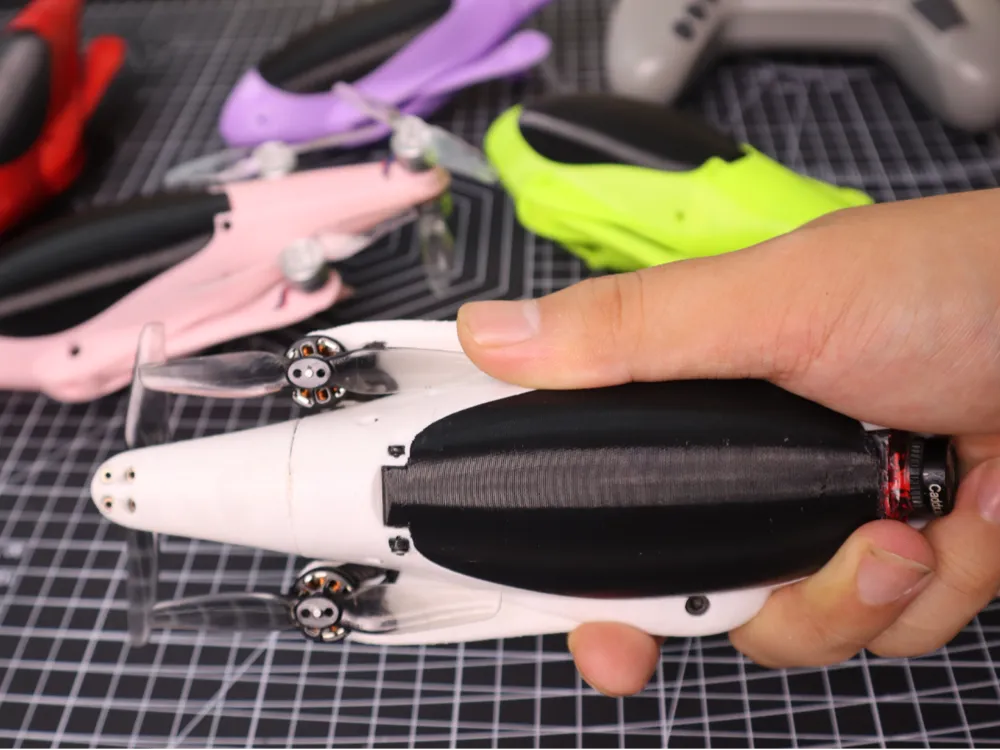

[Drone] Foldable Mini Three-Axis FPV Drone
Print Profile(2)
Description
Boost Me (for free)
[Recommended Setup]
1.Brushless motor (1104, 1202, 1203, 1303 all acceptable)
2.Propeller (2-3 inch) configure according to motor parameters used

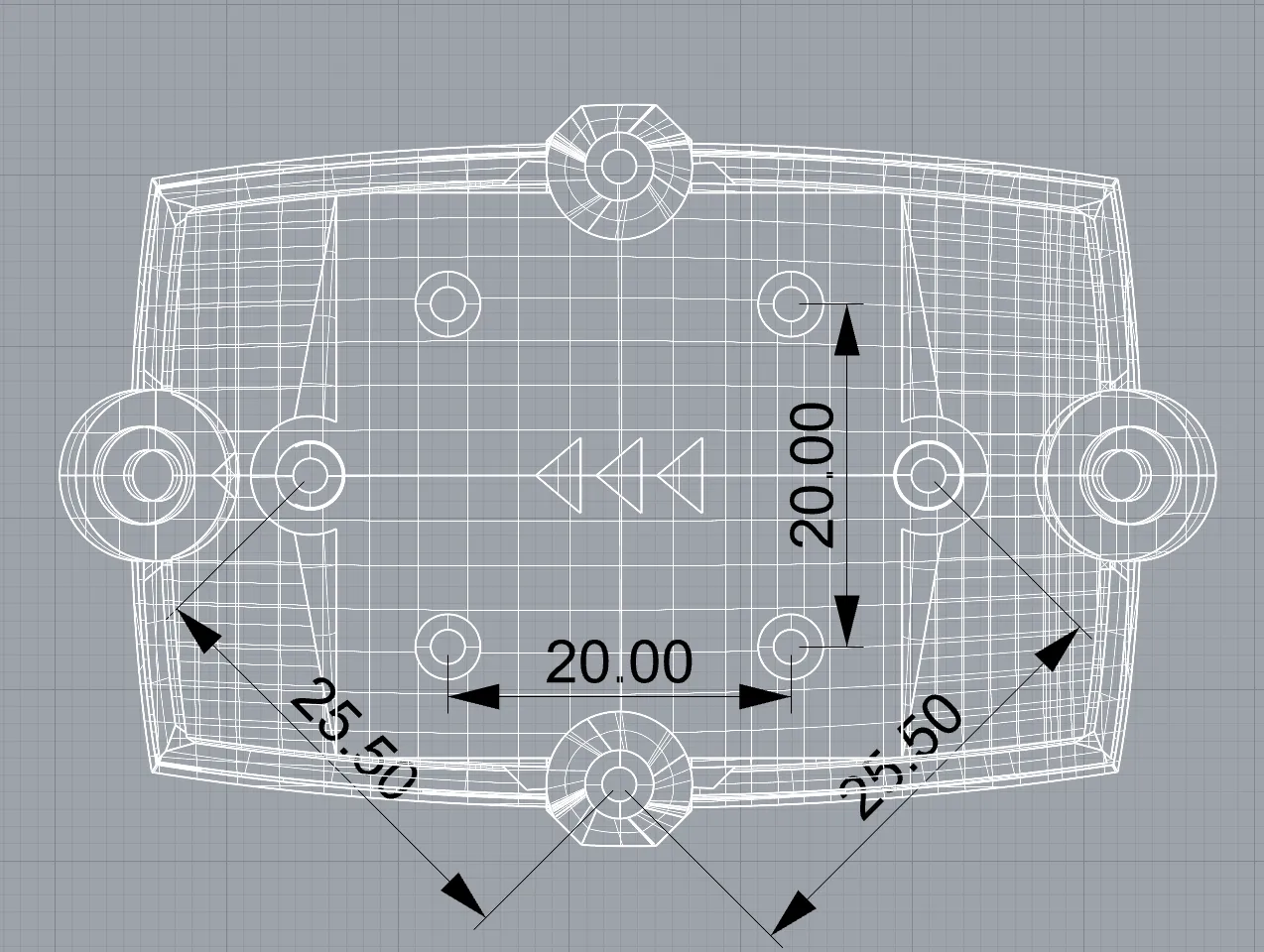

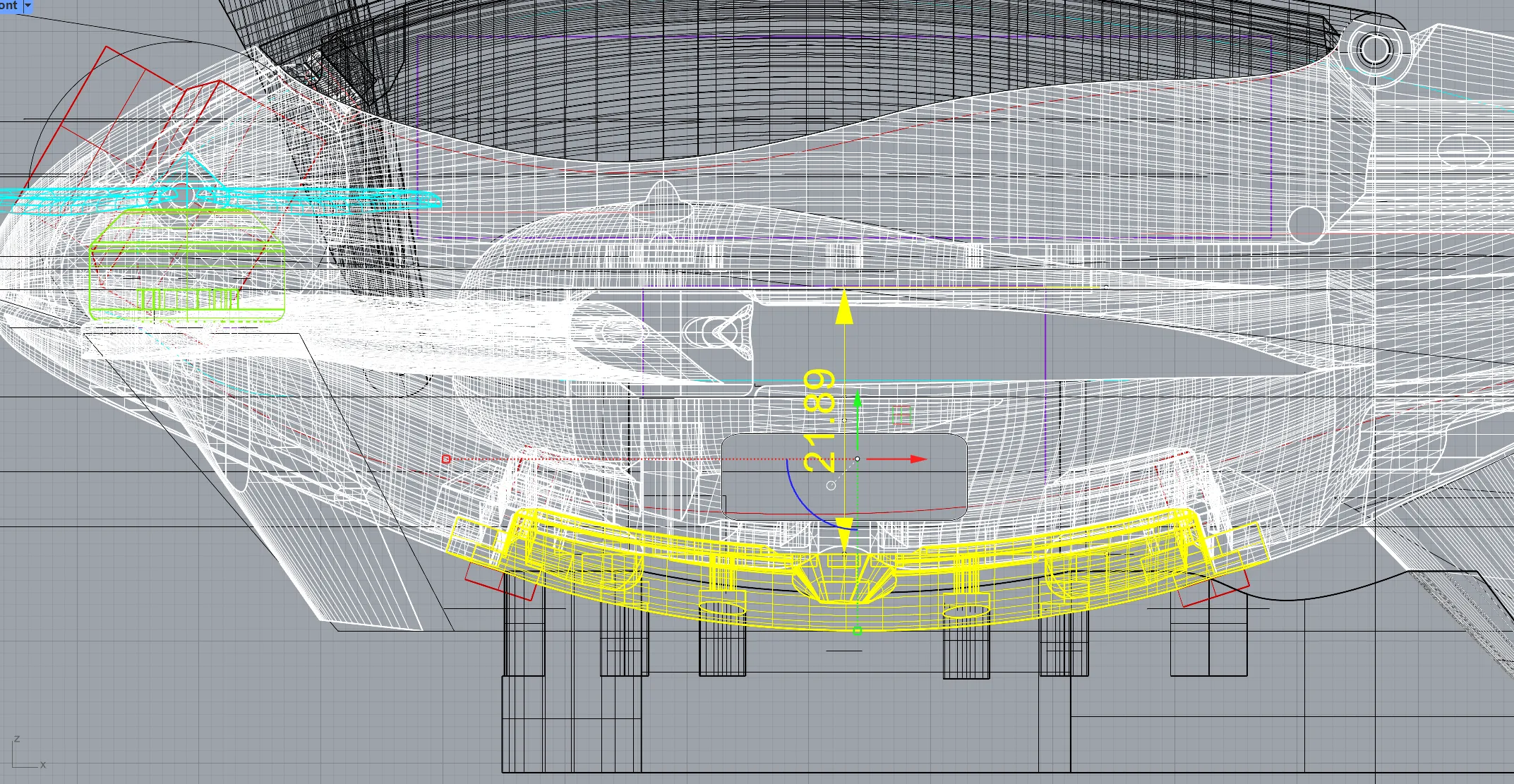

3.Flight controller, low-end f411, high-end no upper limit. Recommend AIO (20A+ ESC), choose according to your budget, compatible with mini flight stacks, but be aware that height limitations are quite restrictive. The figures below show the flight controller's hole size and height limit
4.6 channels or more remote control and receiver equipment
5.Lithium battery: 2s-3s, 180-450MAH 30C or higher
6.Y3 model requires one 9g metal servo (flight controller servo addition tutorial recommendation: https://www.bilibili.com/video/BV1tP4y1m76A/), the servo is best powered separately with BEC
7.Screw parts
Top canopy screw (m2*22, screw + nut) x1
Folding arm screw (m3*20, screw + nut) x2
Bottom canopy screw (m3*8, screw + nut) x2
Front camera canopy (m2*8, screw) x2
8.The motor wire pass-through holes on the arm are small, please note. I used 0.3 enameled wire, double strands wound as one pole, and the three poles were connected by soldering the motor wires separately (the connections need to be insulated with heat shrink tubing)
9.Video transmitter and camera are optional according to needs, camera size is standard
