Magnetic Small Parts Tray
Print Profile(2)
Bill of Materials
Description

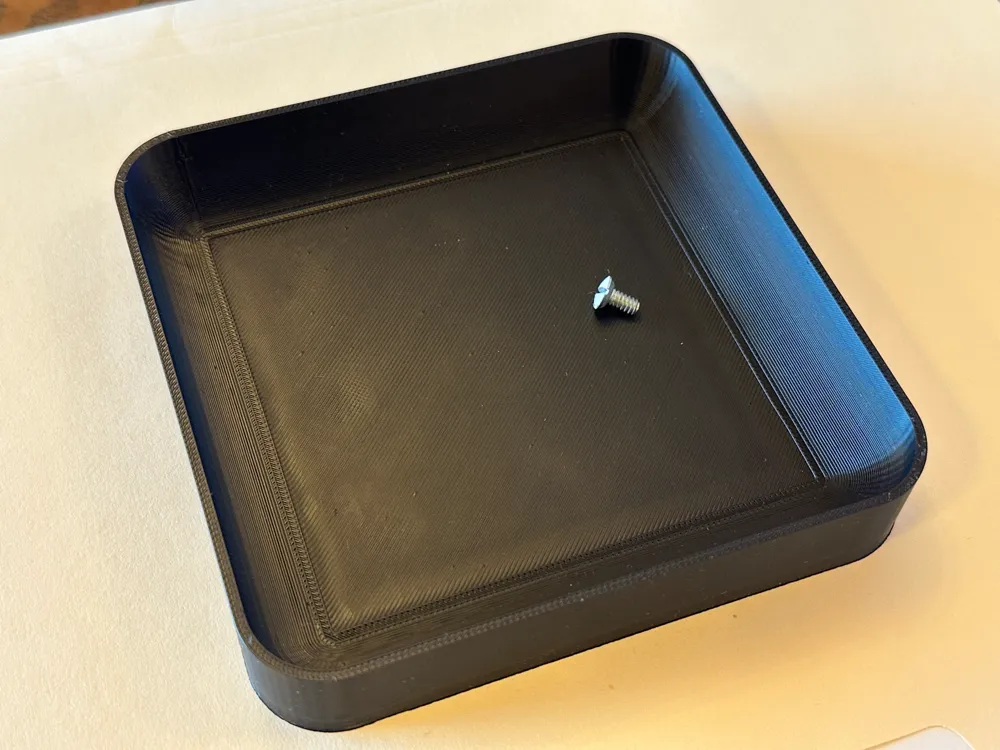

120mm Magnetic Small Parts Tray with Non-Skid TPU Base
There are dozens of small parts trays here in MakerWorld, and I didn't like any of them. This one has the following features:
- It is just the right size (120cm/4-inches)
- It is squarish with rounded corners (so you can sit a couple of them side by side if you want)
- Corners can be used for pouring parts into containers

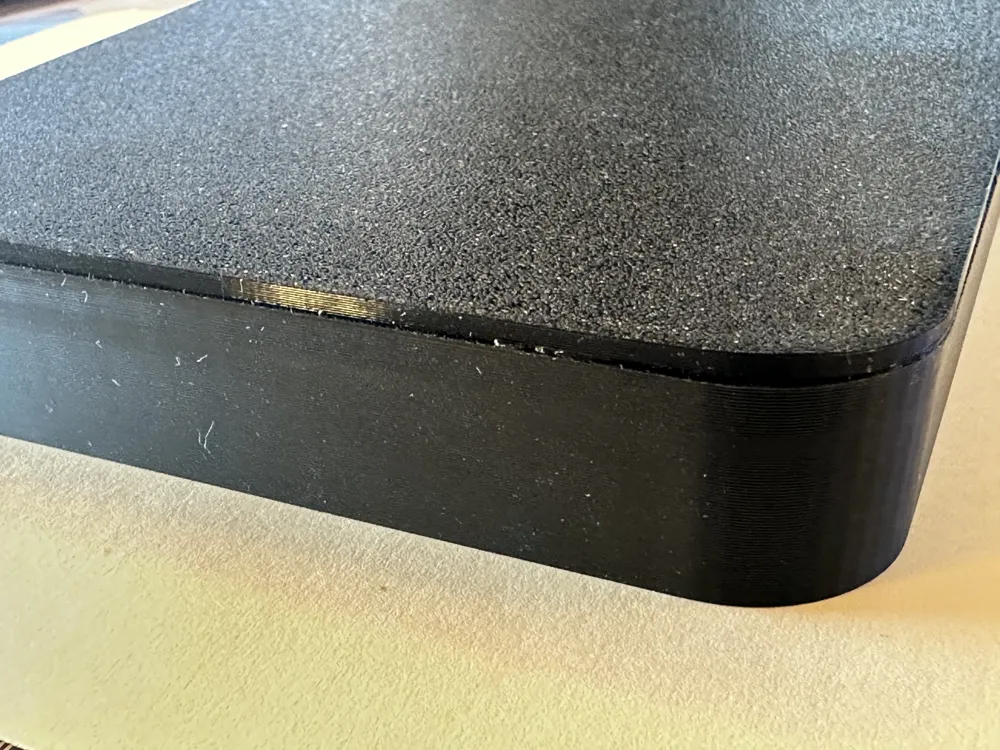

- It has a flat, stable, skid-resistant (TPU) base

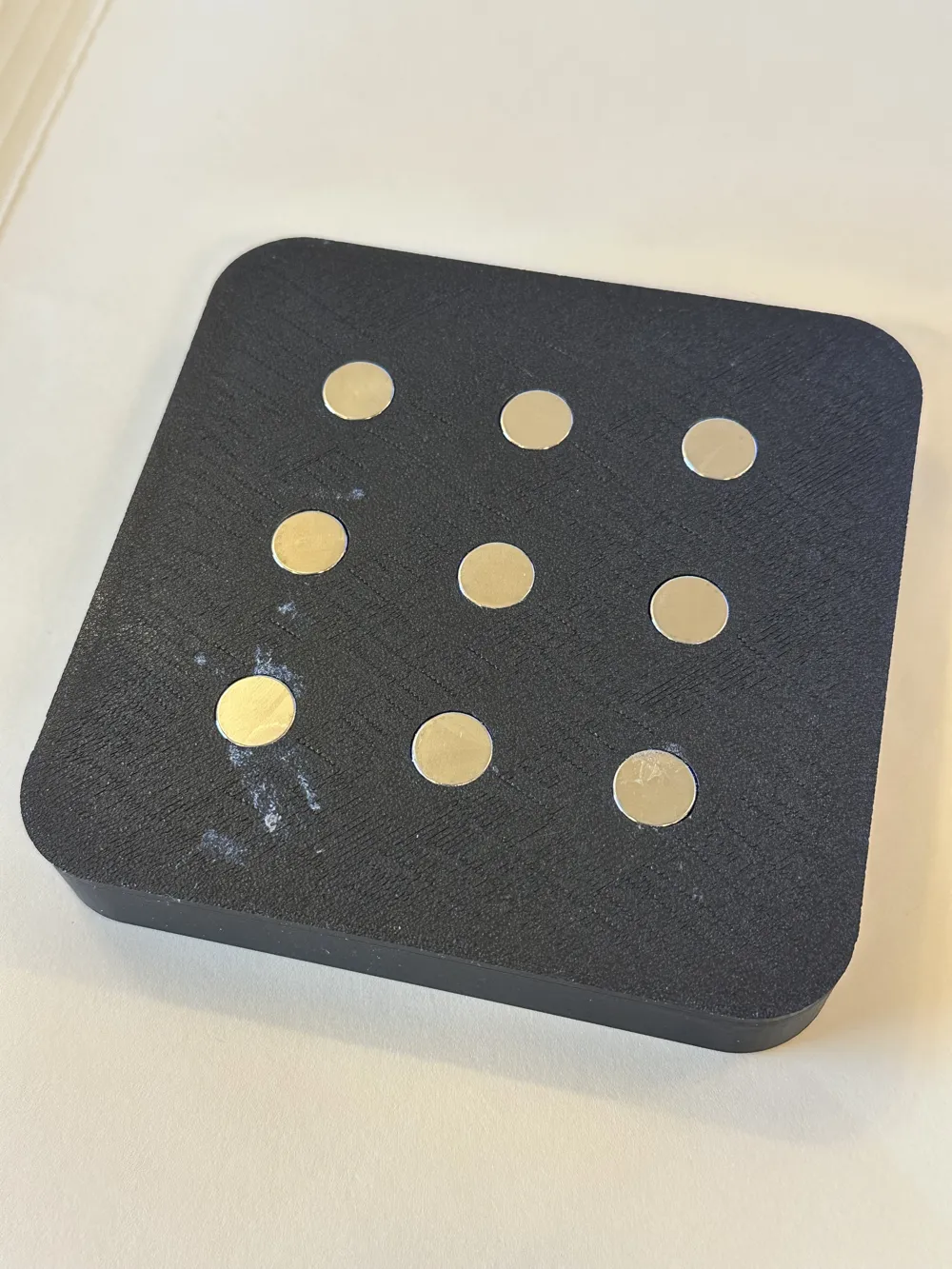

- It has magnets evenly distributed about the full bottom

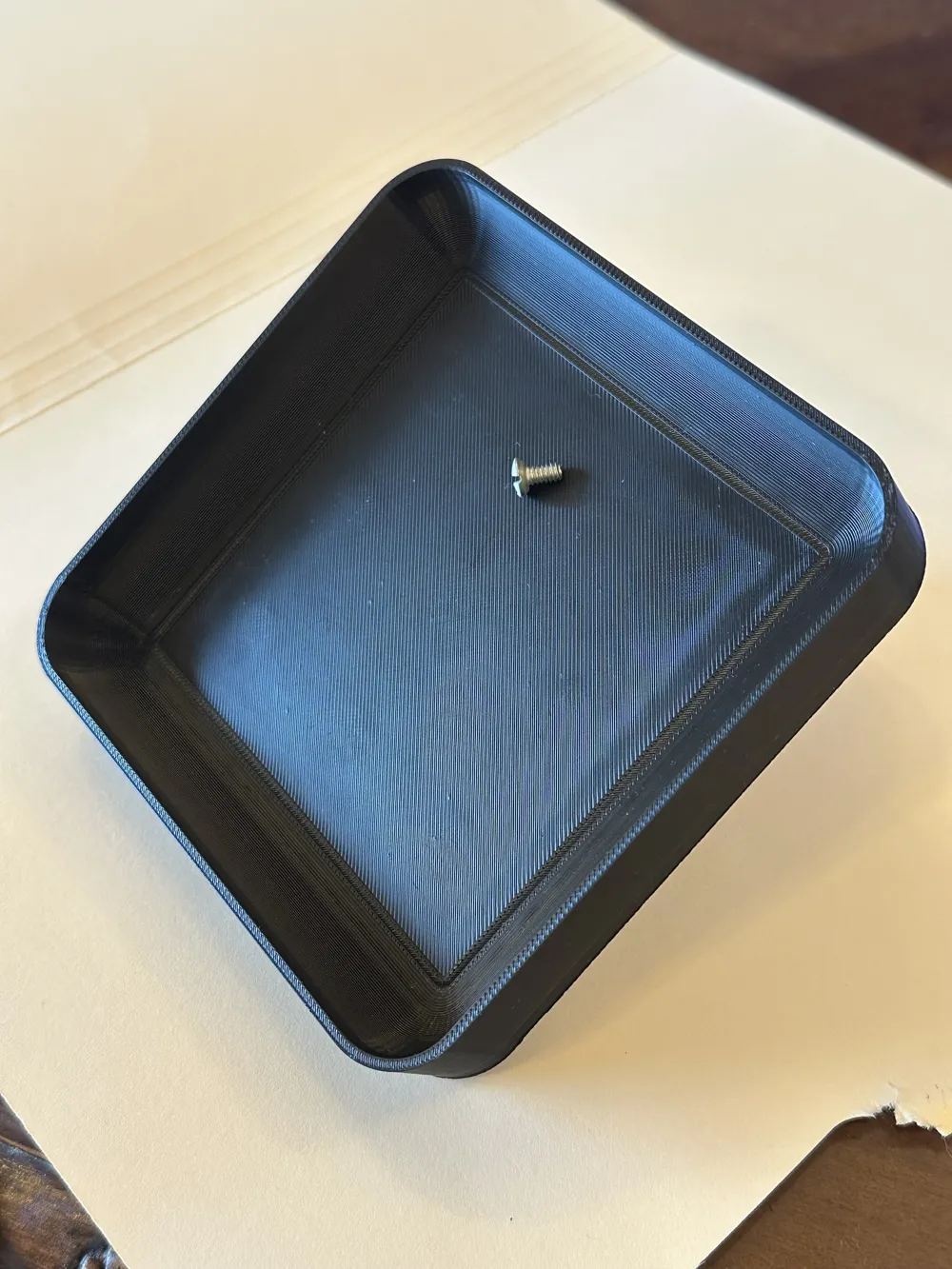

- It has curved sides for easy removal of small parts/screws by dragging them with your fingers
Versions
American Version - This magnetic small parts tray uses nine ½" x 1/8" (12.7mm x 3.175mm) magnets.
Metric Version - This version uses nine 12mm x 3mm magnets.
Parts

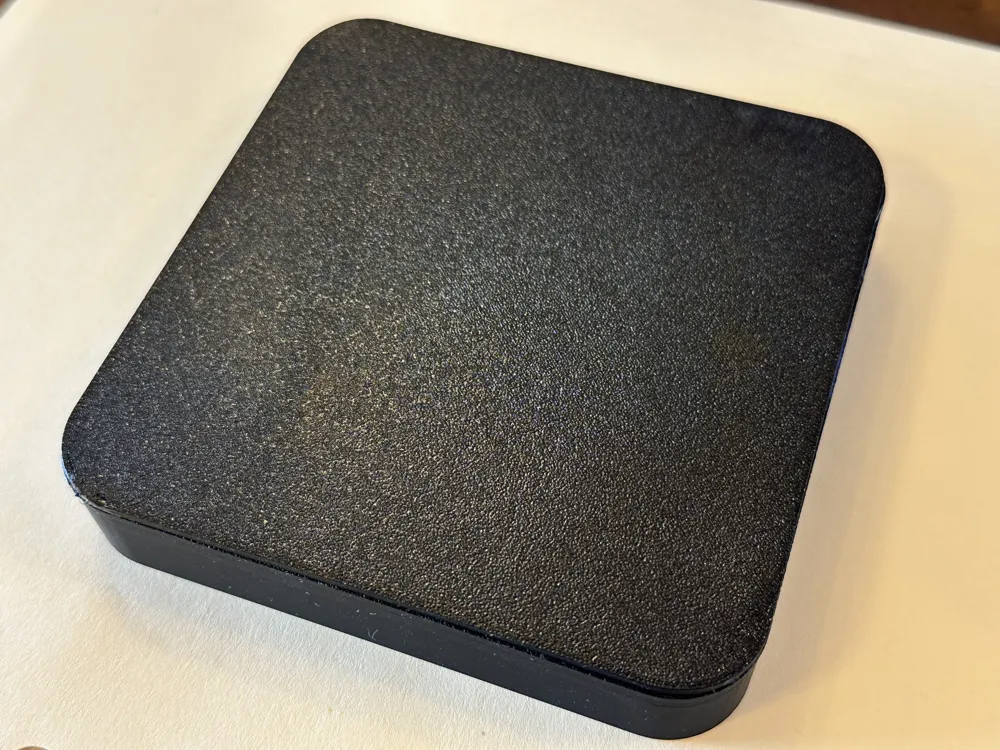

The magnetic small parts tray comprises a tray printed from PLA Basic, and a non-skid base printed from TPU. The TPU base is set to print at 100% infill.
Assembly
Glue the each of the magnets in place with a small drop of superglue.
Glue the TPU base to the tray using superglue. Be especially careful with the edges and corners. It's difficult to get the amount of superglue just right. Too much glue will run over onto the tray and make it look ugly with white superglue marks that are very difficult to remove. Too little glue will cause the edges and/or corners to separate from the tray.
