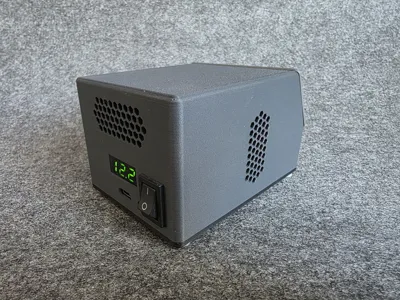

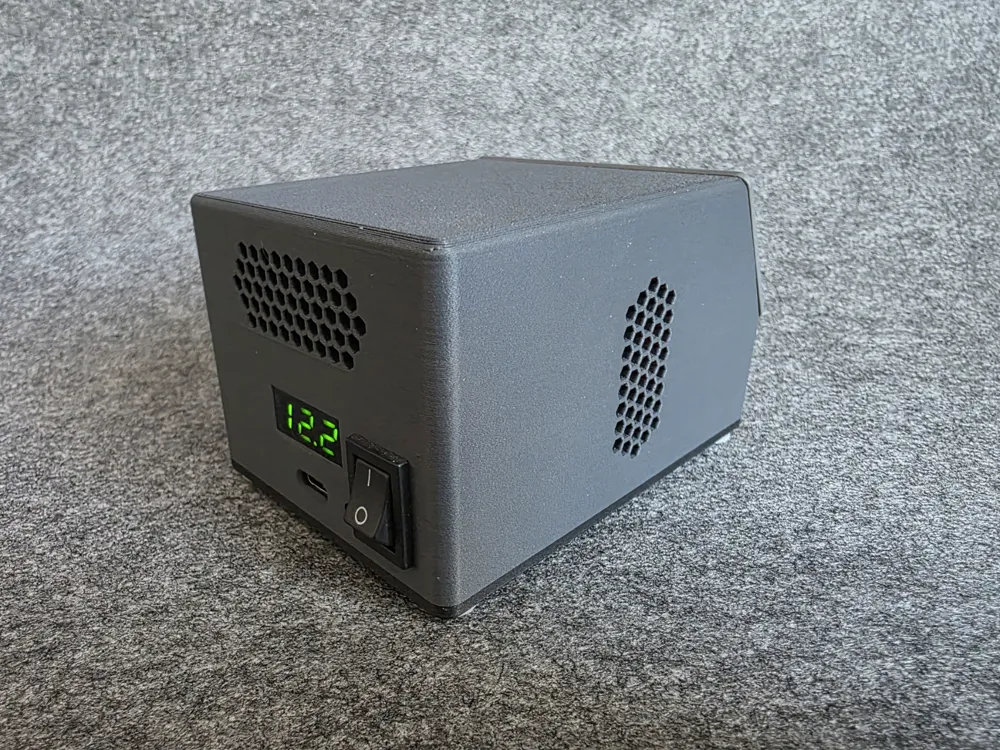

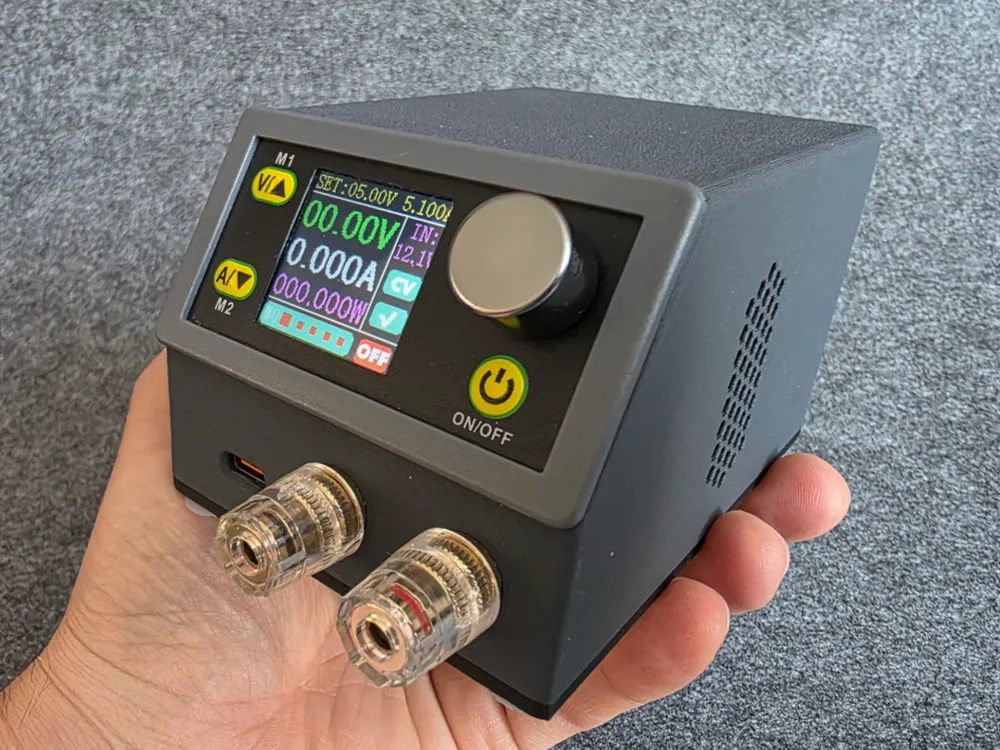

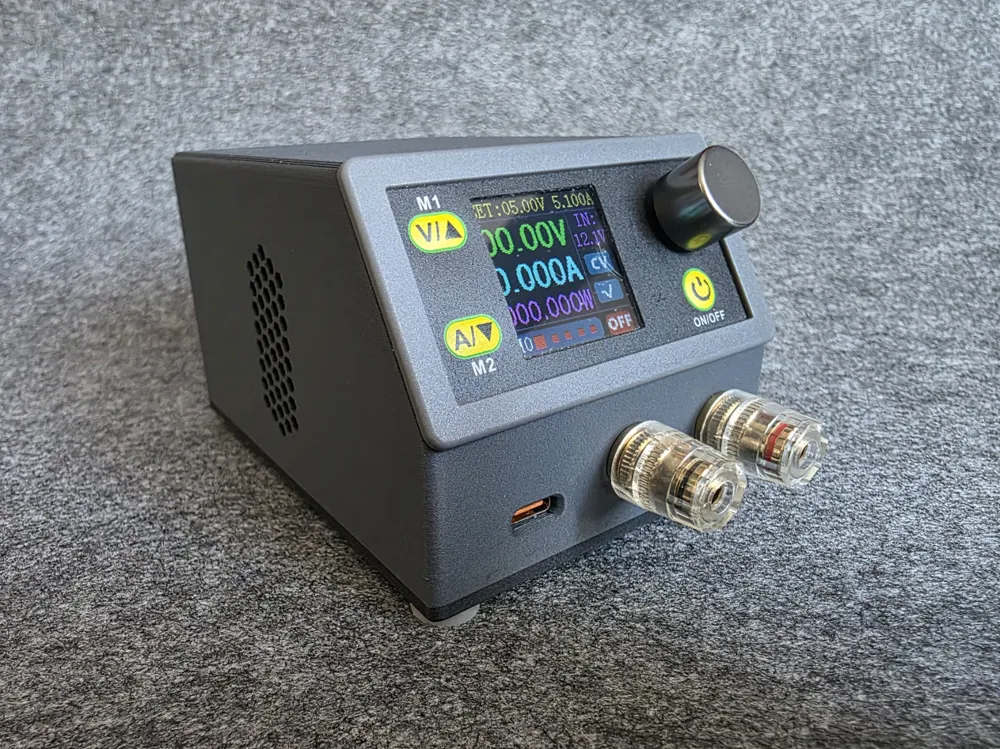

Portable Lab Power Supply

This is the portable lab power supply I built to meet my own needs. Since it's been incredibly useful for me as a maker, I decided to share it with you!

To build this device, you'll need to purchase a few electronic modules and have some basic soldering skills.


I do have a stationary bench power supply on my worktable, but I often work in other places—like at my PC desk, on the floor, in the car, or even outdoors. Very often, just to check something, I had to grab a device and bring it to my worktable. That was often annoying due to the weight, time, or space constraints.

So I came up with the idea of creating a portable power supply that covers 99% of my power needs, is compact, and can even power my USB-C soldering iron. Since I built this one, I honestly can't remember the last time I used the stationary one (of course, that depends on everyone's individual needs).

Specs:

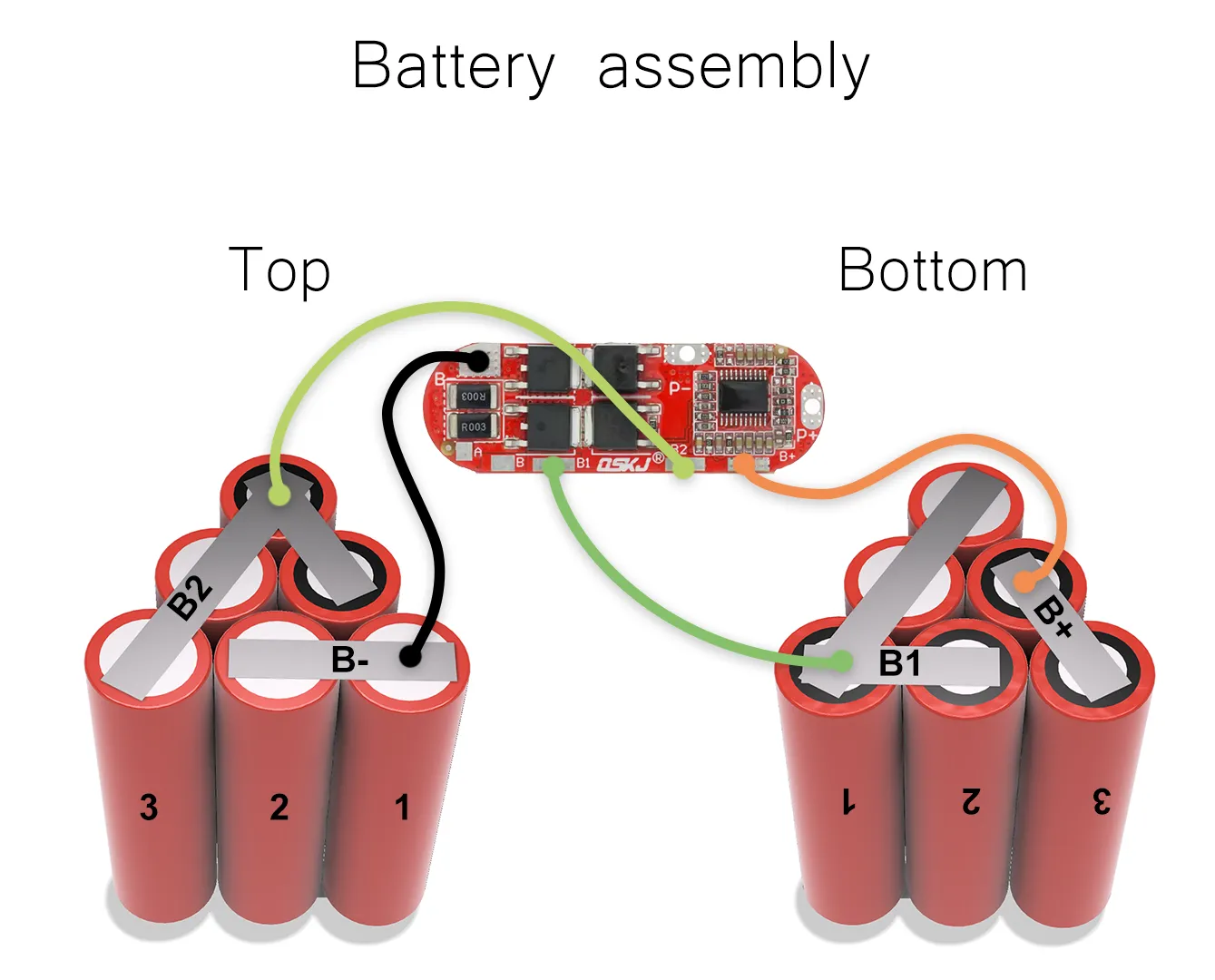

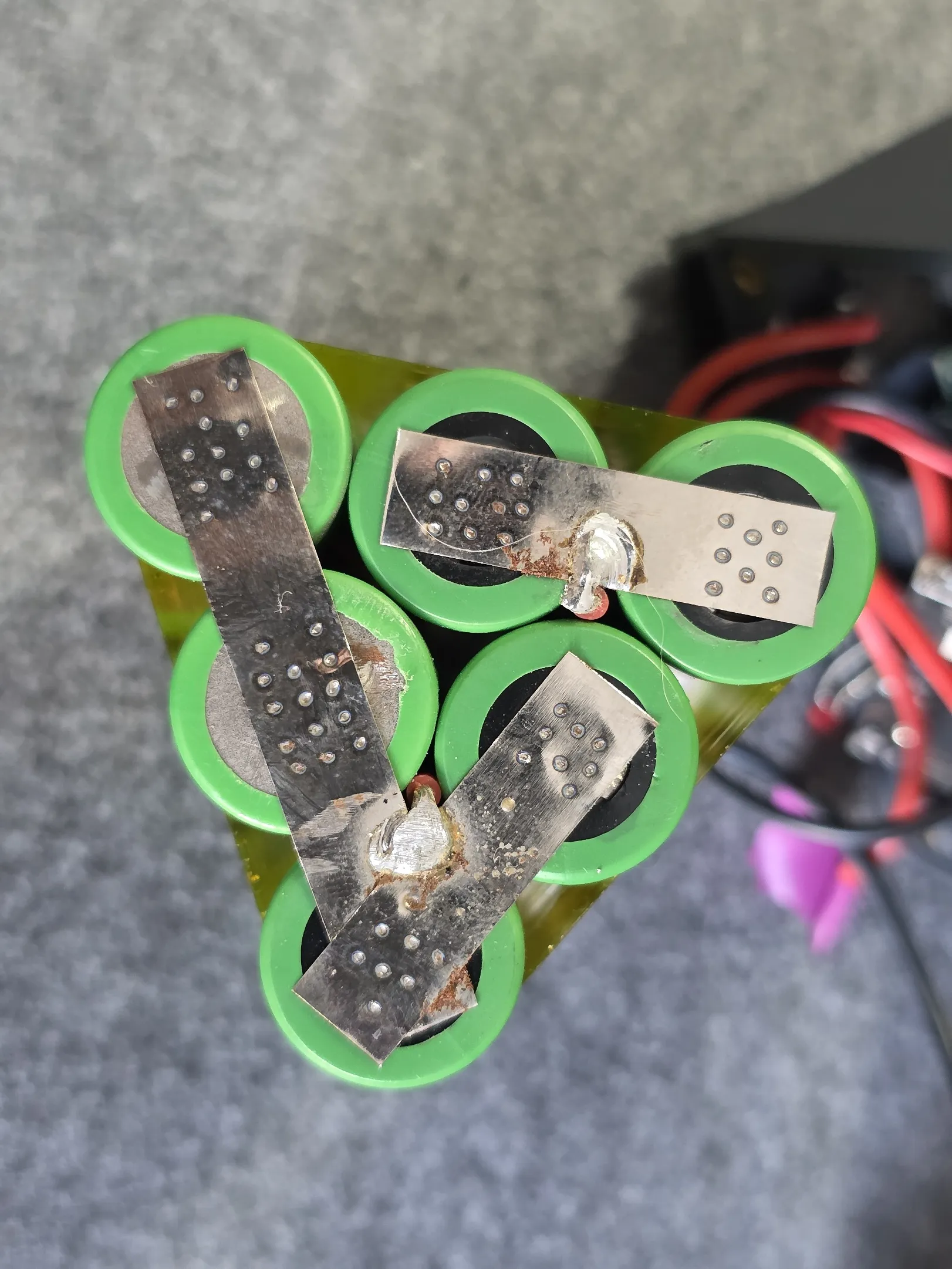

• Battery - 3S2P from  6x 18650 Li-Ion cells (~69.2Wh energy)
• Voltage max.: 36.0V
• Current max.: 5.0A
• Output power max.: 80W
• USB-C output: 65W PD 3.1 (PPS), 20V / 3.25A max.

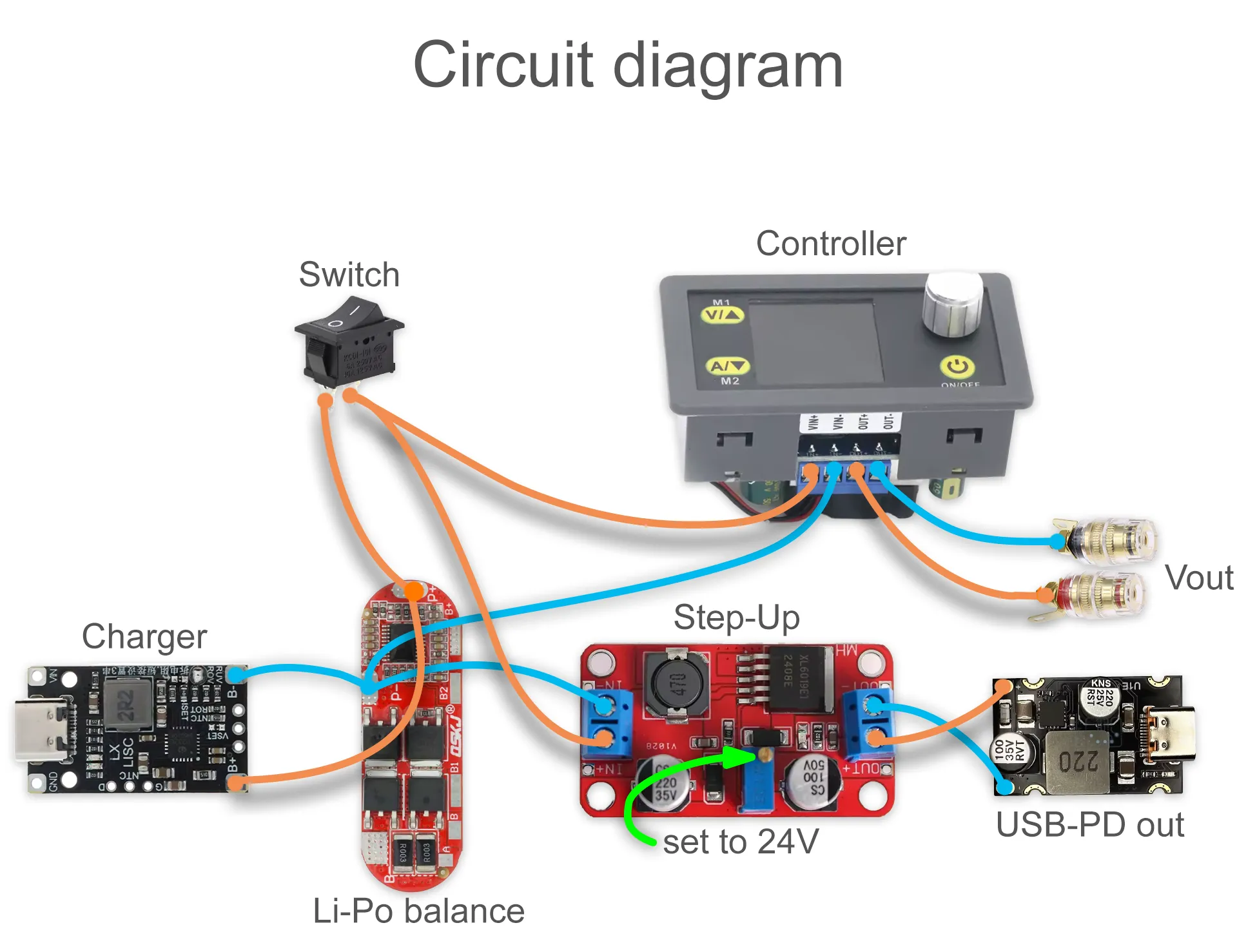

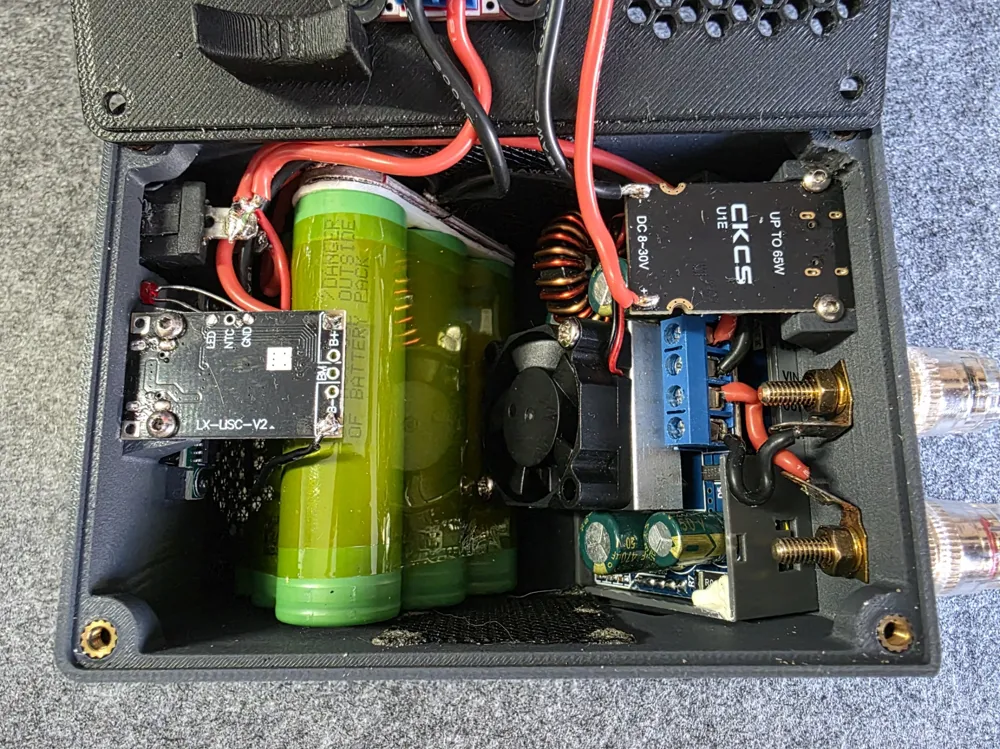

Used hardware:

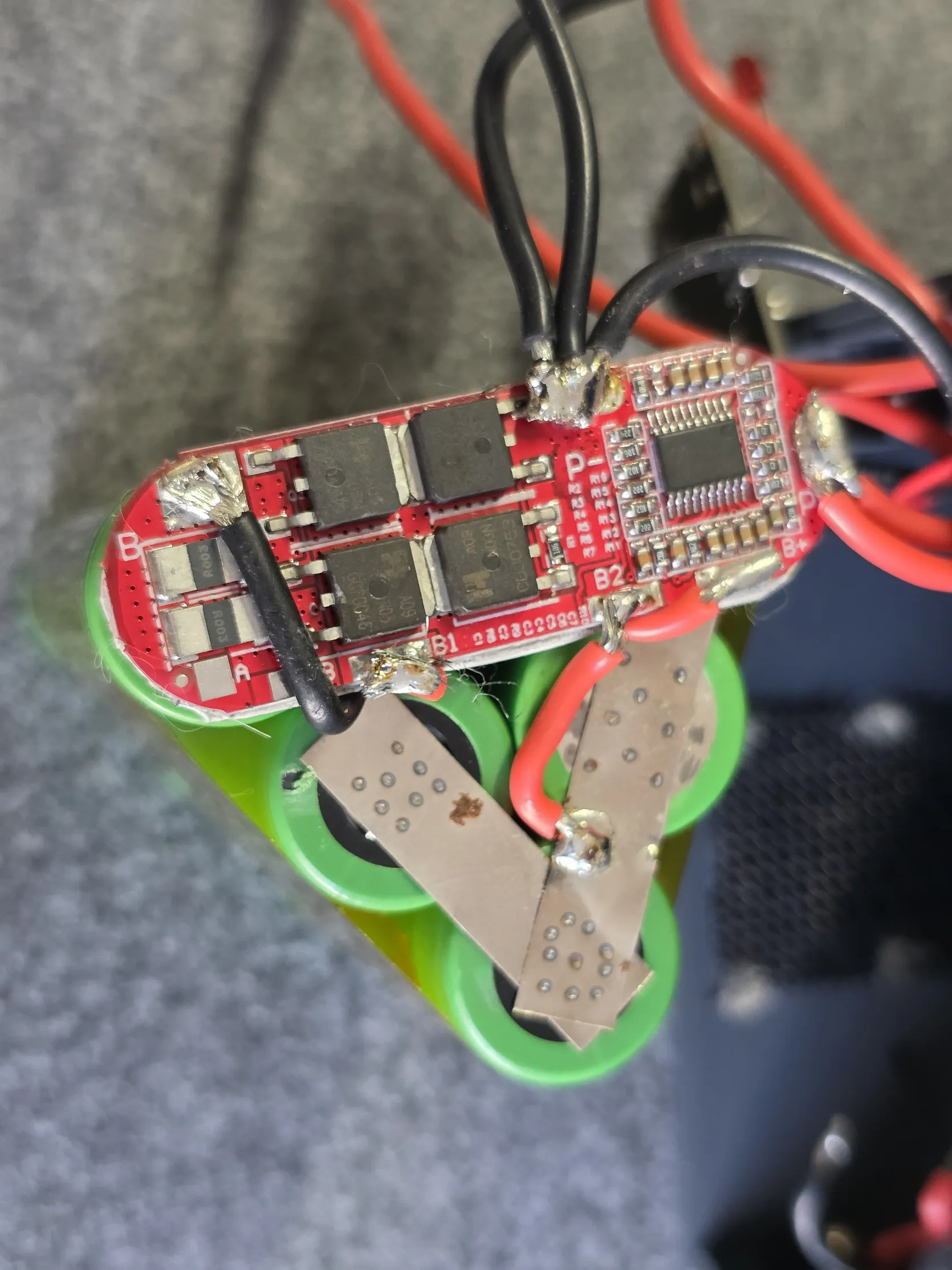

• 3S Li-Po BMS
• 3S Li-Po USB-C Charger
• 5A Step-Up converter (set the output voltage to 24V)
• 65W DC-PD3.1 converter
• DC power supply module WZ3605E
• KCD1 Switch
• Terminal sockets
• 4x M3 threaded heat inserts
• 4x M3x6mm screws
• 8x 2.2x6mm self tapered screws
• 6x 18650 Li-Ion cells (I used us18650vtc6 c6 with 3120mAh)
