Sifli AI Box Enclosure v1.0
Sifli AI Box is a Xiaozhi AI robot project using the "LCEDA Open Source SF32LB52 Module", improved from JLCPCB's "Plug-in Version Xiaozhi AI Project" (hereinafter referred to as the original project)
Project Composition
The open-source content of this project includes three parts:
- Hardware: Please refer to the project on the LCEDA Open Source Hardware platform.
- Software: Please refer to the GitHub project.
- 3D Printing: Please refer to this project.
Features
Compared to the original project's enclosure, this project has the following features:

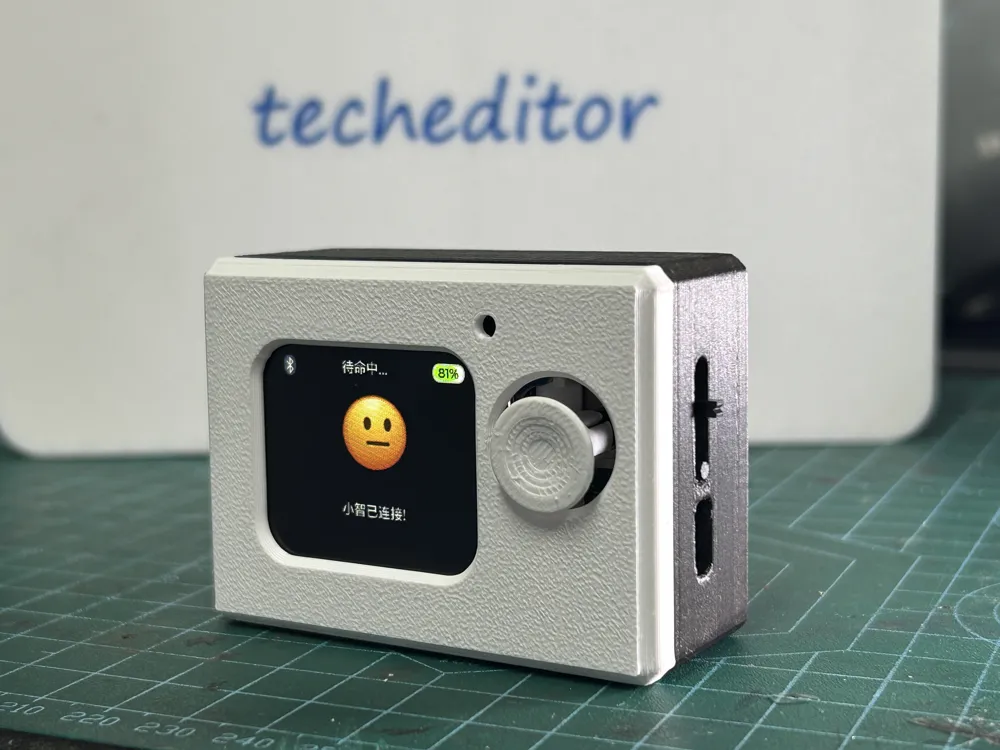

- Designed a brand new appearance, adapting to the improved PCB design, but still compatible with the original project's PCB size.

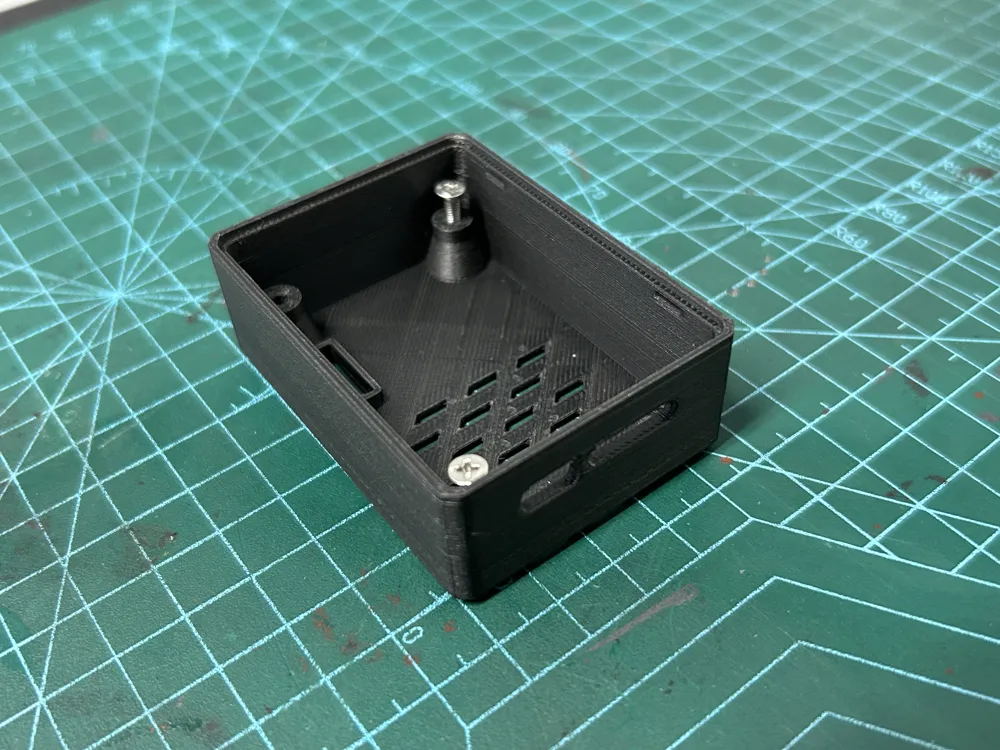

- Simplified structure, including a front cover, rear enclosure, LCD screen bracket, and 5-way button, totaling 4 components.
- The enclosure assembly uses a snap-fit design, requiring no screws.
Printing and Assembly Recommendations

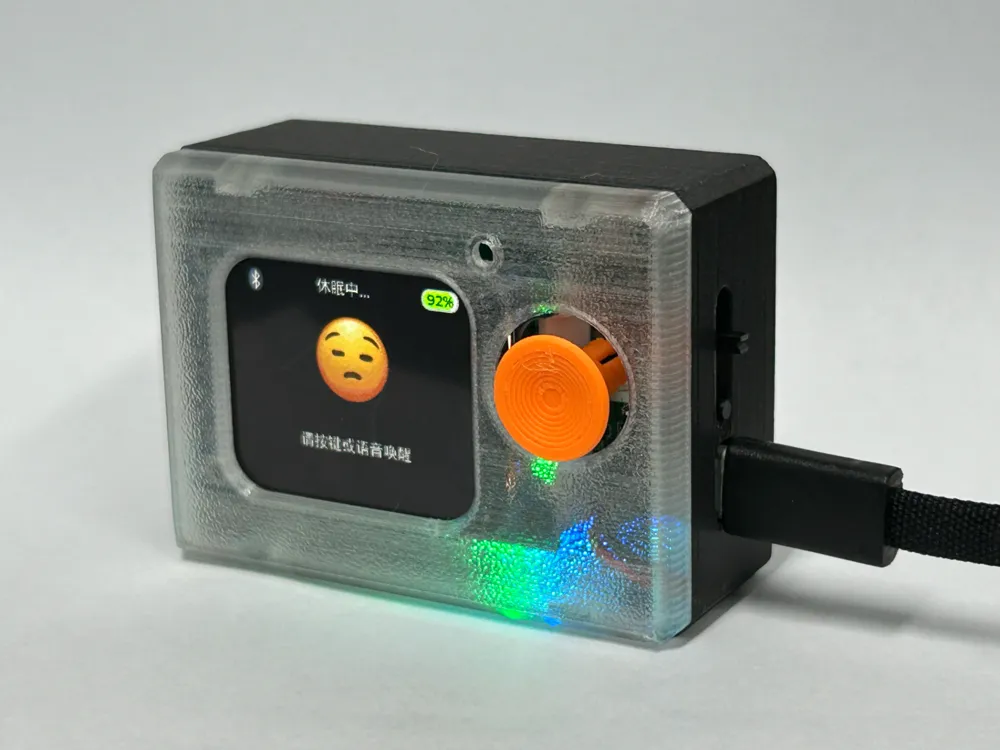

- Both PLA and PETG can be used for printing. It is recommended to print the front cover using transparent PETG at low speed and high temperature to allow light from the LED indicators on the PCB to pass through; otherwise, separate holes will need to be made.
- Use M3 screws to secure the PCB.

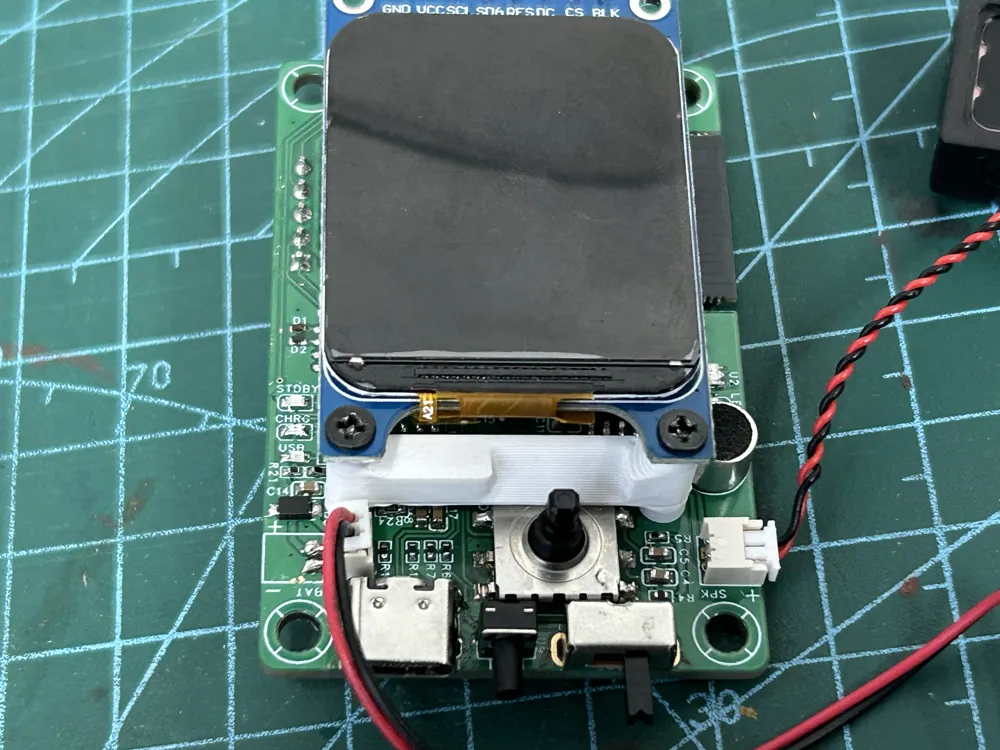

- Use M2 screws to secure the LCD screen bracket.
- Use double-sided tape to fix the battery and cavity speaker to the rear enclosure.
If this design has helped you, please consider boosting or liking it. Suggestions for improvement are also welcome in the comments.
Happy printing!
