Cocktail machine! *completely mechanical*
Print Profile(1)
Description

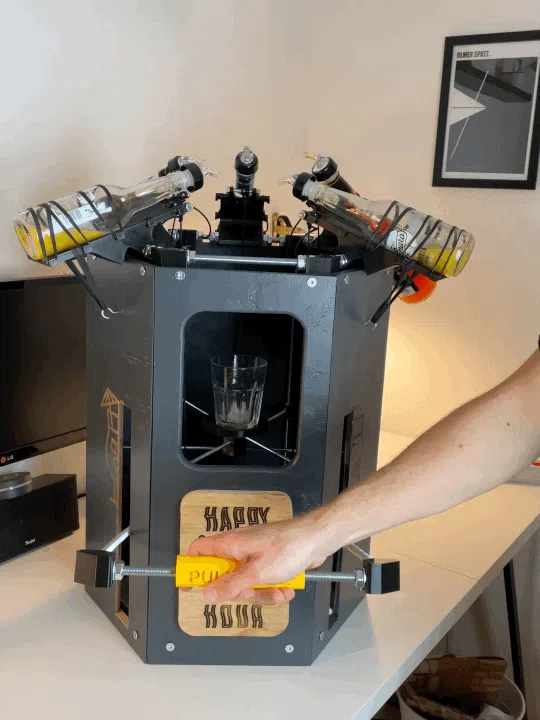

I have designed and built an automatic cocktail mixer It mixes the perfect cocktail in under 5 seconds
To recreate the recipe for individual cocktails, up to 5 different bottles can be mounted, which then require a dispenser The dispensers are available in various flow rates: 2, 3, 4 cl!
Boost Me (for free)
Thanks for Your Support! :)
YouTube Video:
Required Parts:
Alcohol Dispenser:

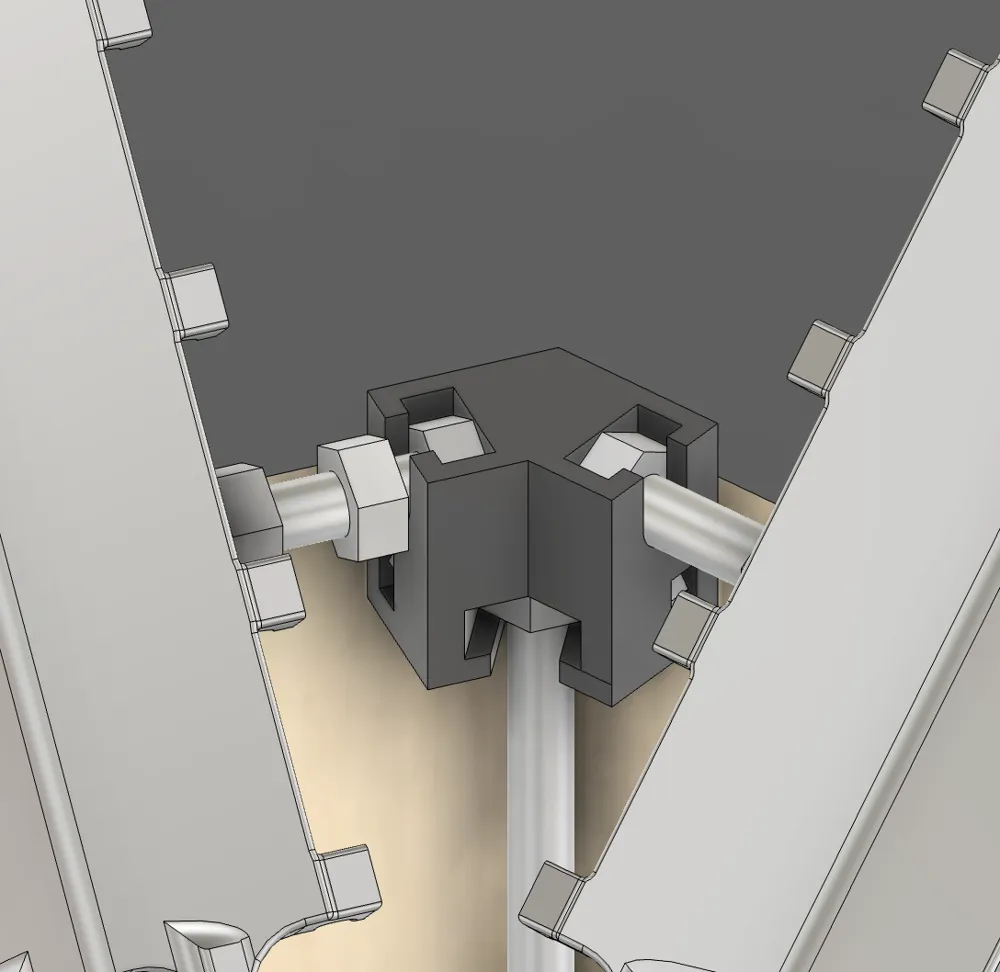

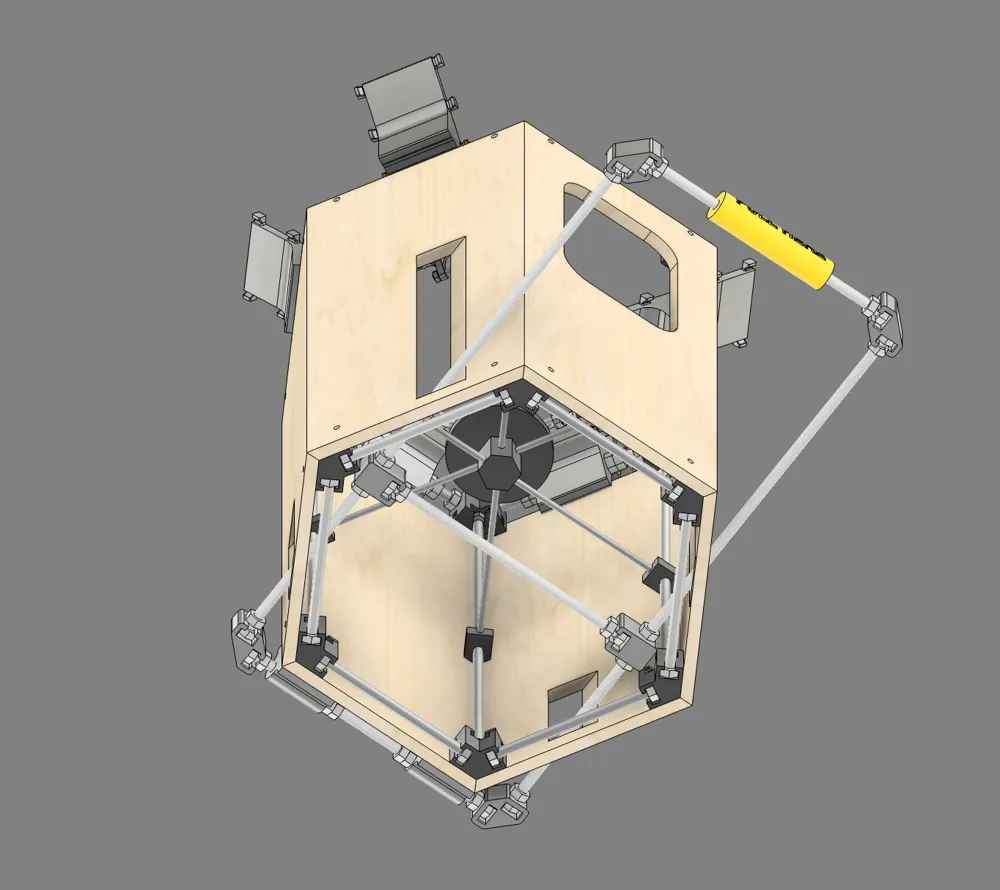

Rods for Hexagon Top and Bottom:
- 12x 170mm M10 threaded rod
Vertical Rods:
- 6x 500mm M10 threaded rod

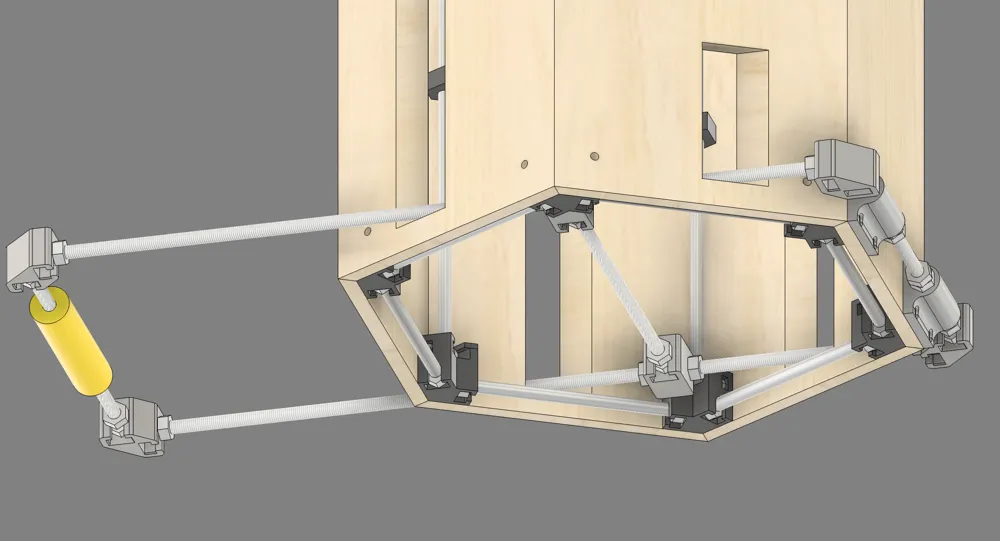

For the Lever:
- 3x 275mm M10 threaded rod
- 2x 600mm M10 threaded rod
- 126x M10 nut

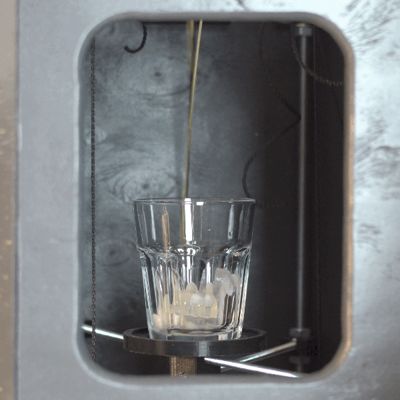

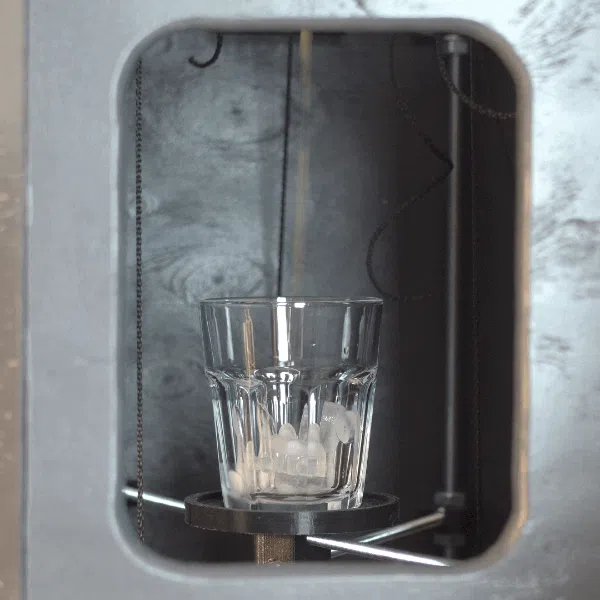

For the Glass Plate:
- 5x 50mm M6 threaded rod
- 3x 360mm M6 threaded rod
- 32x M6 nut

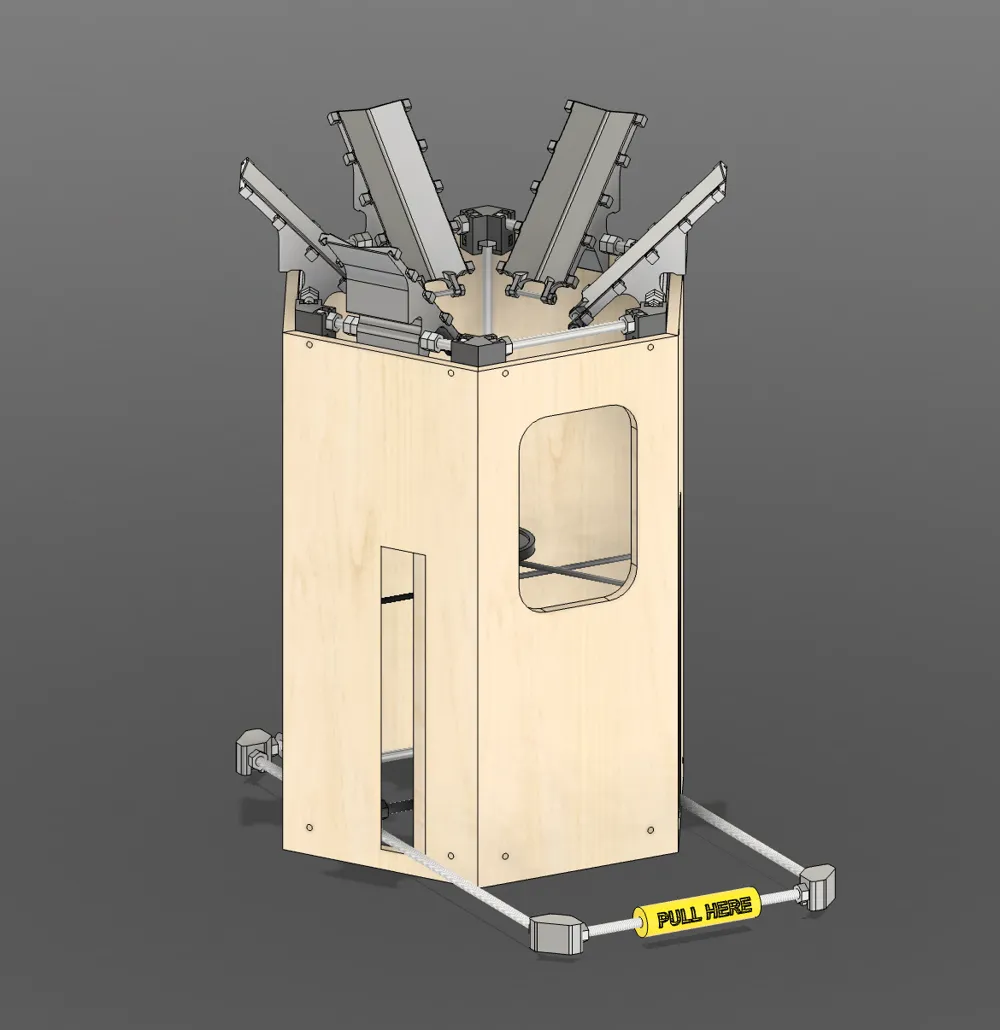

Outer Casing (also important for stability):
- 6x Board 206 mm x 500 mm (12mm thick in my case)
Have fun rebuilding and enjoying cocktails!!!
