Portable cooling Fan (Beta)
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
12
20
0
0
9
0
Released
Description
⚠ This is still a beta project: many aspects require refinement and optimization before it can be considered final.
⚠ This build requires maker skills such as soldering, and dc wiring.

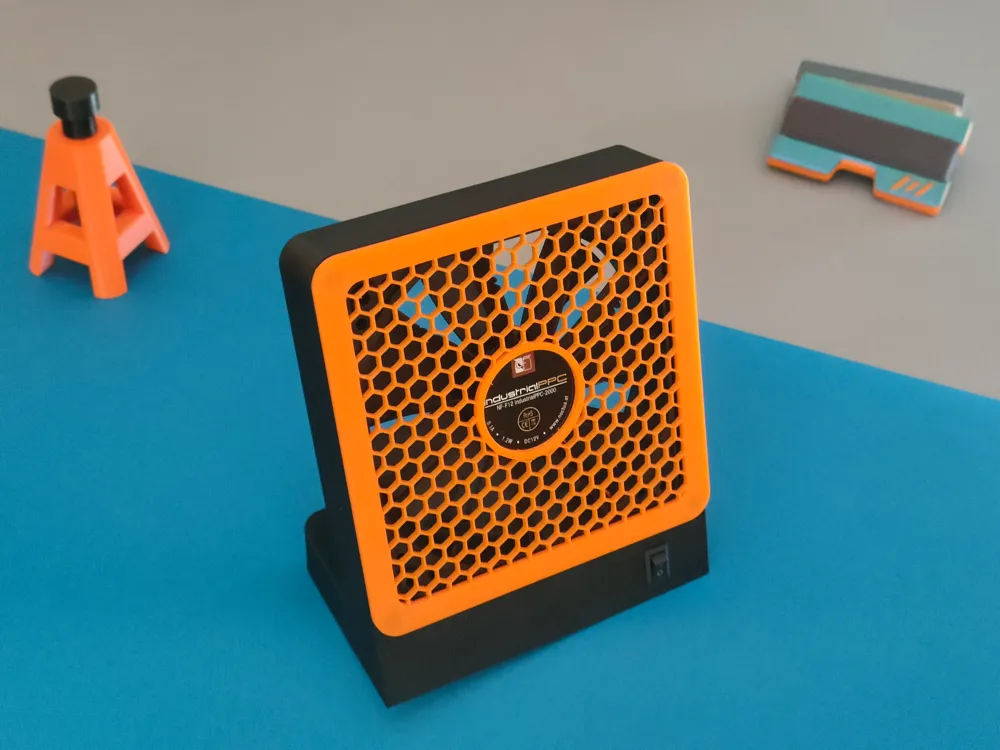

A compact DIY portable fan powered by a single 18650 cell, featuring an XL6009 step-up converter that allows the use of 120mm fans of any voltage. Power management is handled by an IP5328P module.
--- What you need ---
- 1x 18650 battery
- 1x XL6009 step-up converter
- 1x IP5328P power management module
- 1x 120mm fan (any voltage, thanks to the converter)
- 1x zip tie
- 1x SPST switch 15x10mm
- 8x Neodymium magnet 6mm x 2mm
--- Print suggestions ---
- PETG is recommended for durability.
- PLA can be used only in colder environments
