Description
Made for “The Ultimate Prusa Mini Enclosure v3.0” but adaptable to any enclosure

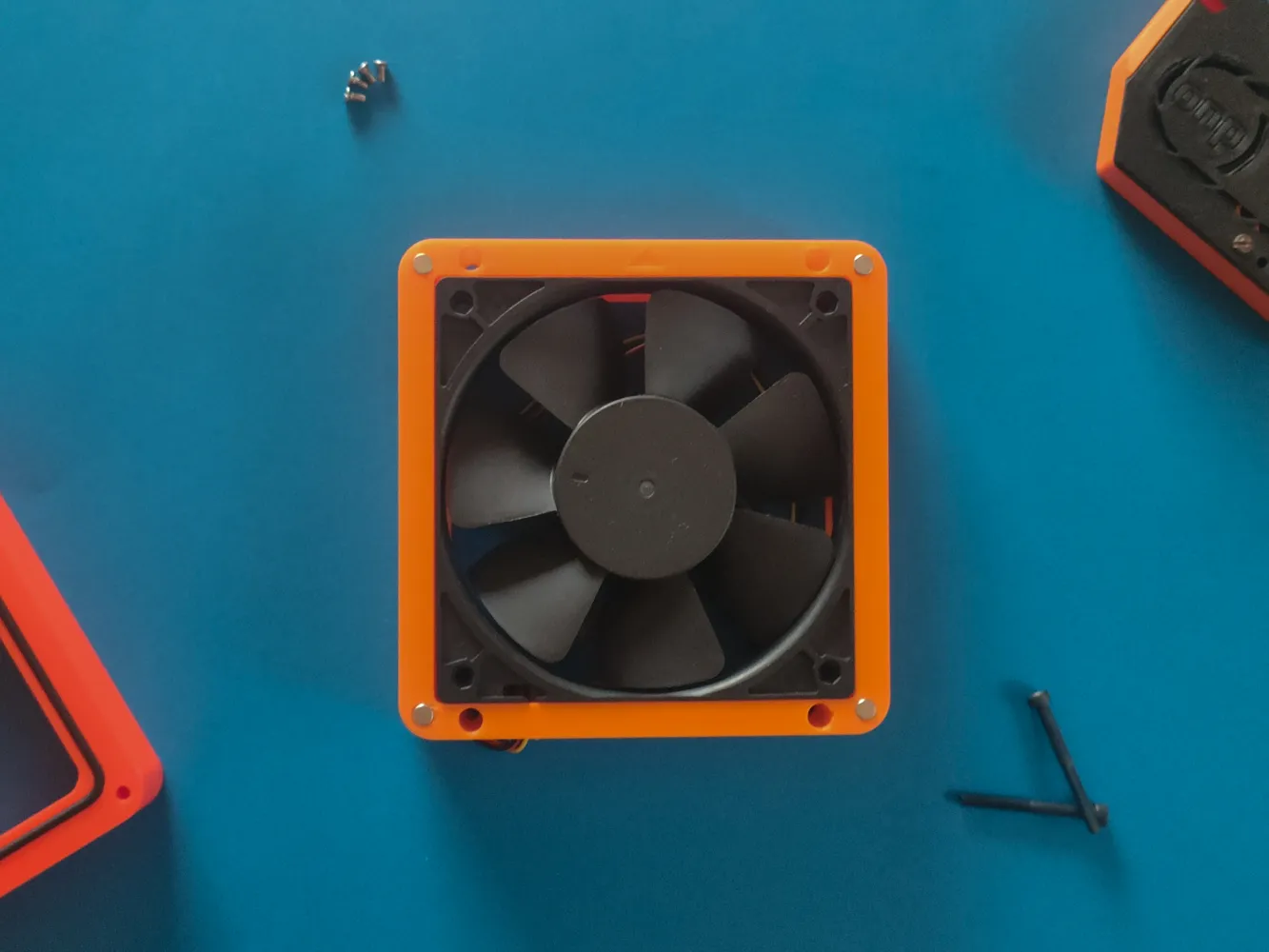

Features a 120mm fan!
--- What’s New in v3! ---
The 3.0 Update is all about usability and efficiency.

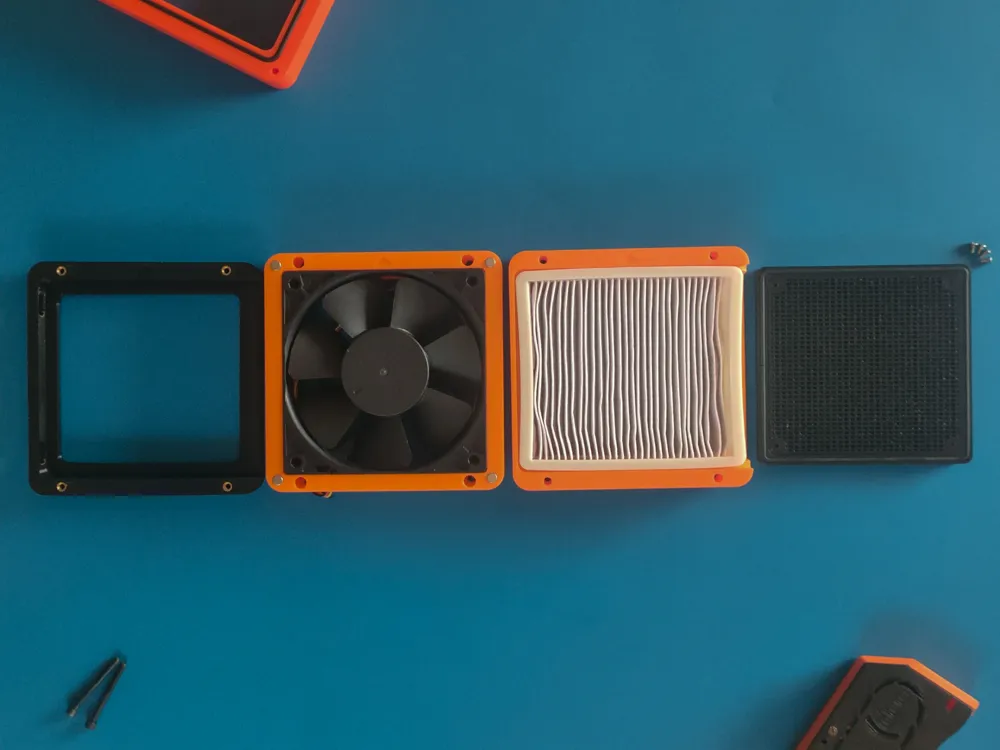

This new filtration system has been completely redesigned to:
- Allow easy assembly and disassembly
- Replace the filters without taking the whole system apart

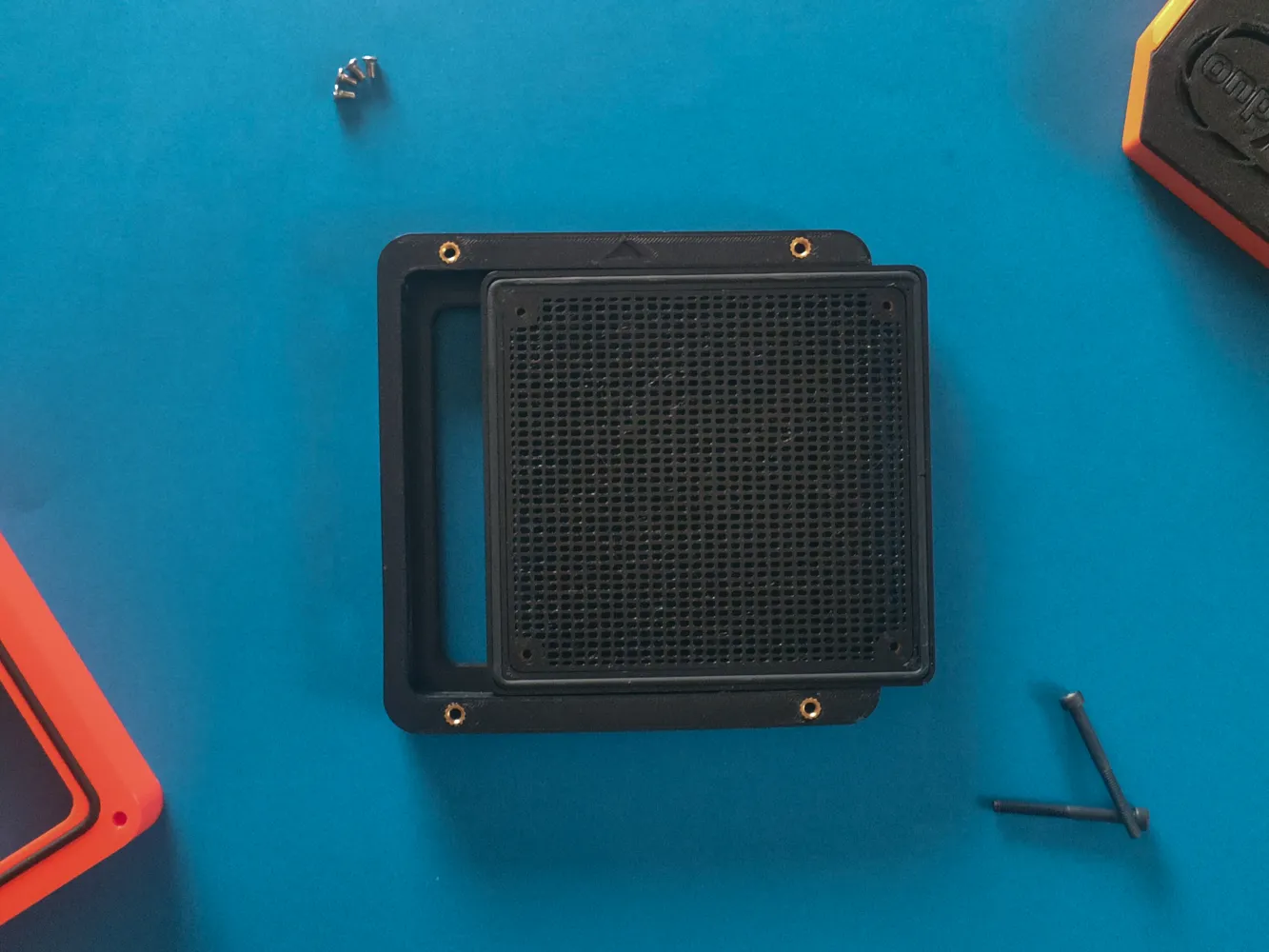

- Include a dedicated cartridge for activated carbon pellets
- Plenum version available – a longer fan chamber that increases static pressure and overall airflow performance
--- What you need to buy ---
- Fan (use a very strong one, at least 10W or even better an AC fan)

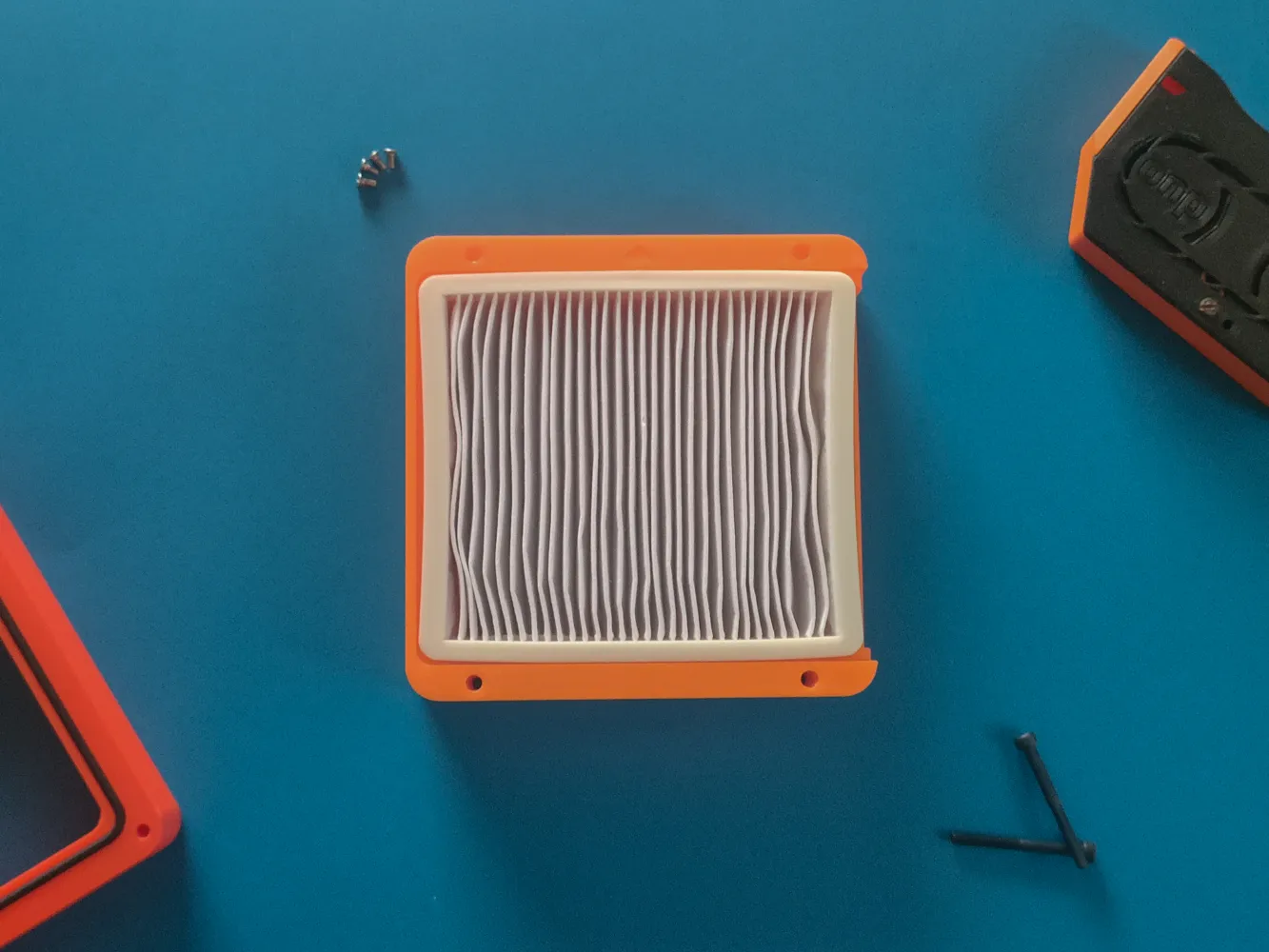

- SC4300 HEPA filter (110 x 125 x 20mm) - x1
- Actived carbon (Be aware of the acid-washed pellet issue, google it)
- Neodymium magnet 6mm x 2mm - x8
- M4 threaded inserts (4mm long, 6mm outer diameter) - x8
- Rubber gasket (3mm diameter) - 1 meter
- M3 threaded inserts - x4
- M3 x 5mm countersunk screws - x4
- M4 threaded inserts - x8
- M4 x 10mm screws - x4
- M4 x 40mm screws - x4
