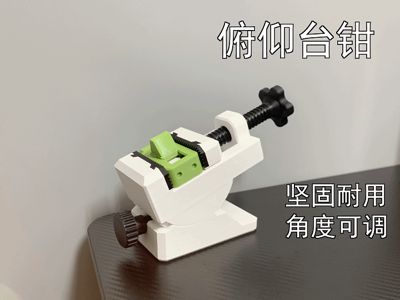

Tilting Mini Vise (Sturdy, Practical, No Hardware Required)

A compact and convenient tilting mini vise, adding a practical tool to your workshop

It has an opening range of 50mm, a clamping width of 60mm, and is tilt adjustable within a certain angle

It features high practicality, sturdiness, durability, and requires no hardware

Features:

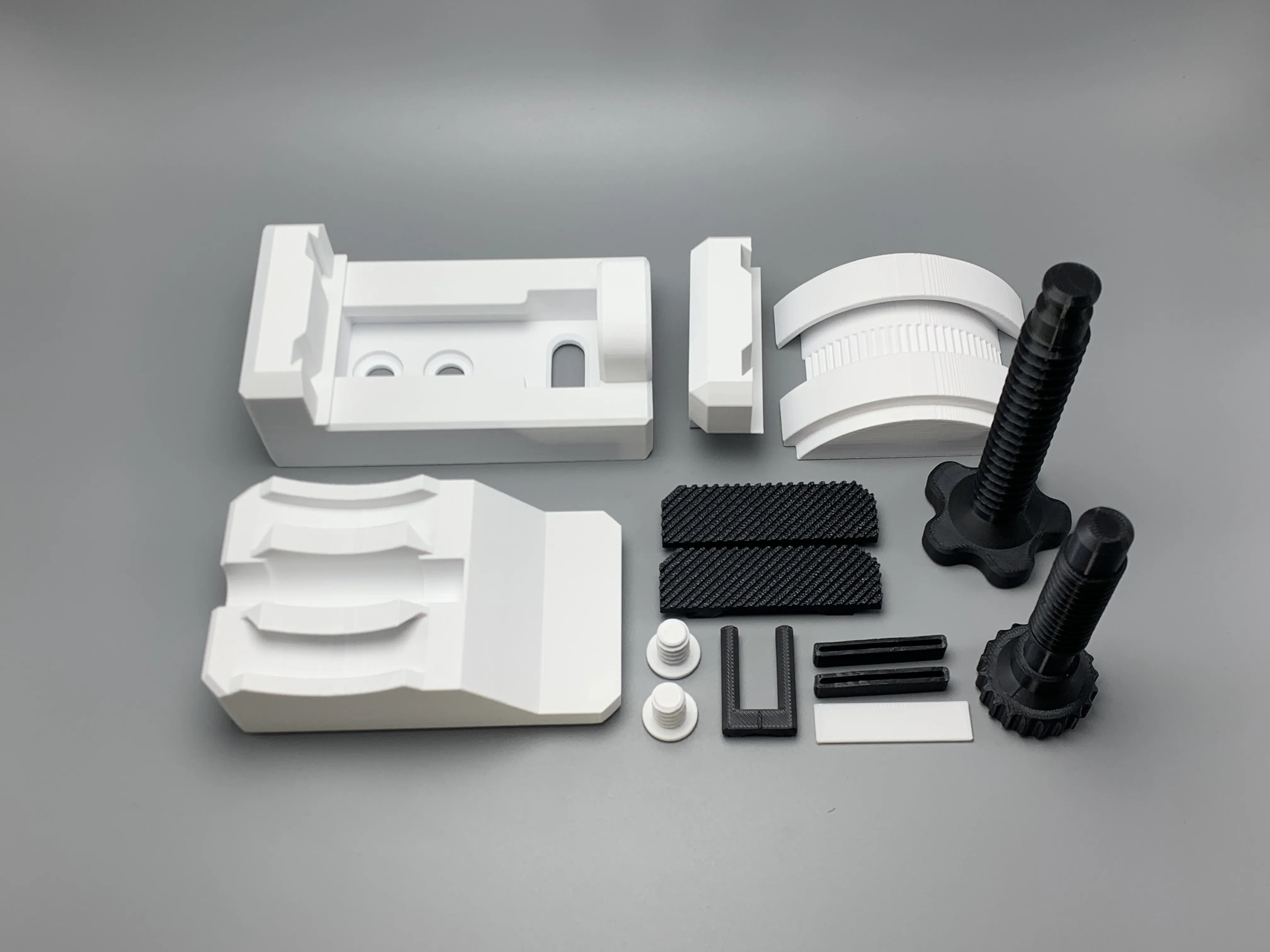

• Entirely 3D printed assembly, fully assembled fit, intuitive and easy-to-assemble components
• no supports needed, high strength
• Clamping range of 50mm, width of 60mm, pitch adjustable within a certain angle

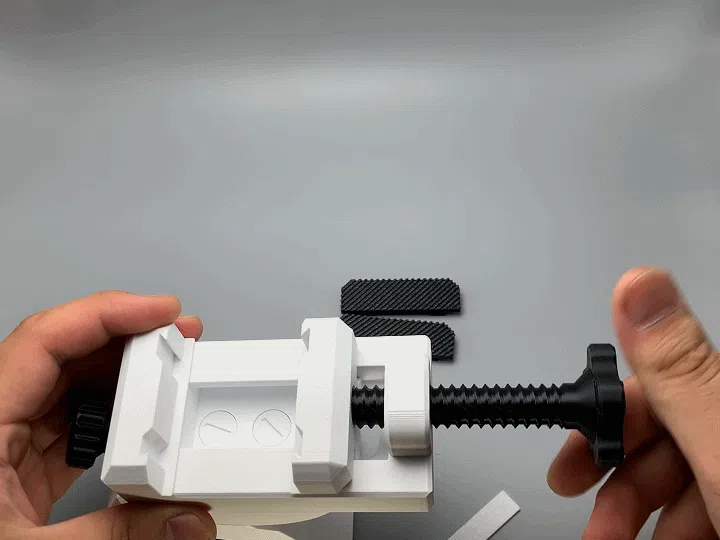

• Replaceable clamping jaws, can be printed separately using TPU
• Overall extremely smooth, if you want it even smoother, apply a small amount of lubricant on friction surfaces and bolts

Assembly Notes:

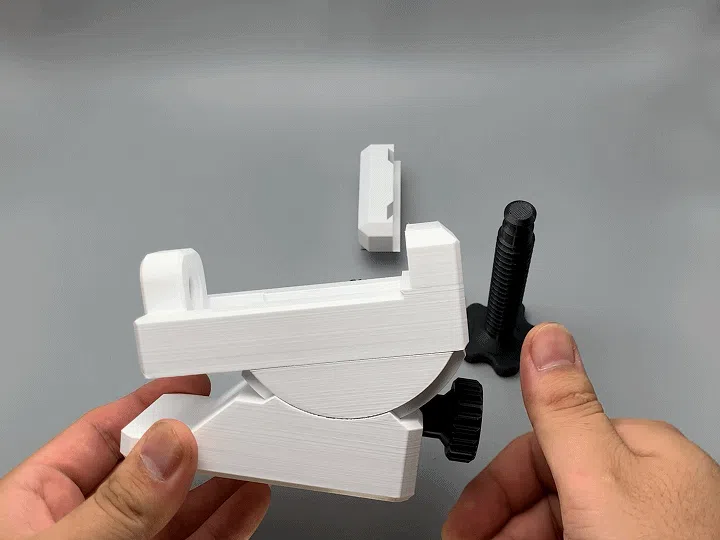

1、If the circular slide is difficult to insert, try changing the insertion direction; it should generally be fine

2、When inserting the main bolt, press it slightly into the slider, then install the clasp at the bottom (if the clasp needs to be removed, a flat-head screwdriver can be used)

3、The replaceable clamping jaws are not left or right specific, just insert them as shown in the diagram 4、To test the various functions, you can use a small amount of lubricant or WD-40 to make it smoother

Some parts of the model are made using privately sourced general-purpose designs, and their usage effect and functionality are quite good. After multiple tests, it has proven to be excellent in both functionality and adaptability to various materials

I have previously printed various other similar tools, but most were made merely to achieve functionality, without considering the actual use environment or durability. When creating all my models, my primary consideration is always whether it is worth printing for others, because I know that filament prices can be high in some regions, and I firmly refuse to let others waste money due to my issues. Therefore, truly practical and highly functional works are always my goal
