Survival kit badges morale patches no AMS required molle webbing compatible

Introduction:

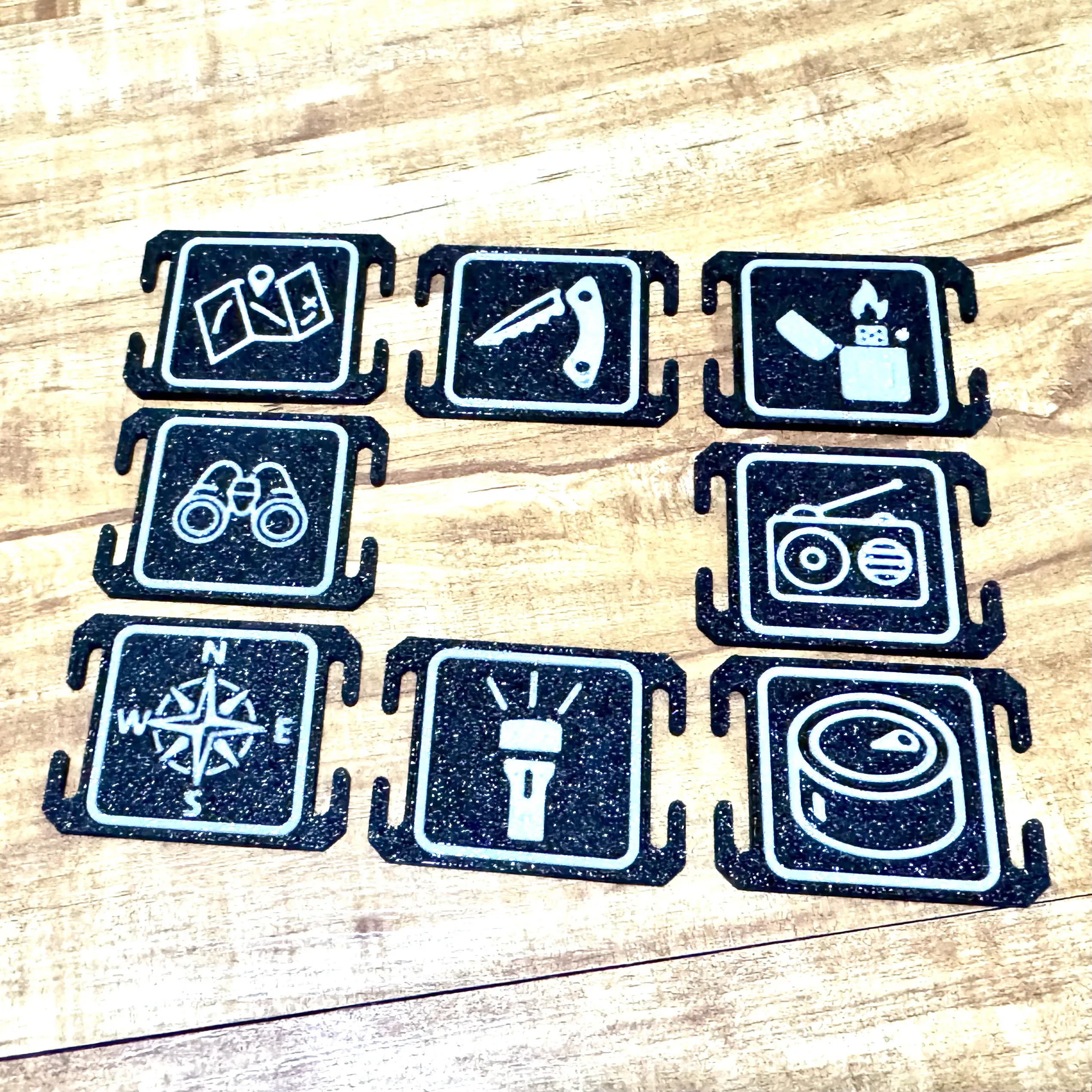

• 8 designs, which can be for decoration or to differentiate contents in a Bug Out Bag (BOB)



• Multi-color printing without AMS is possible

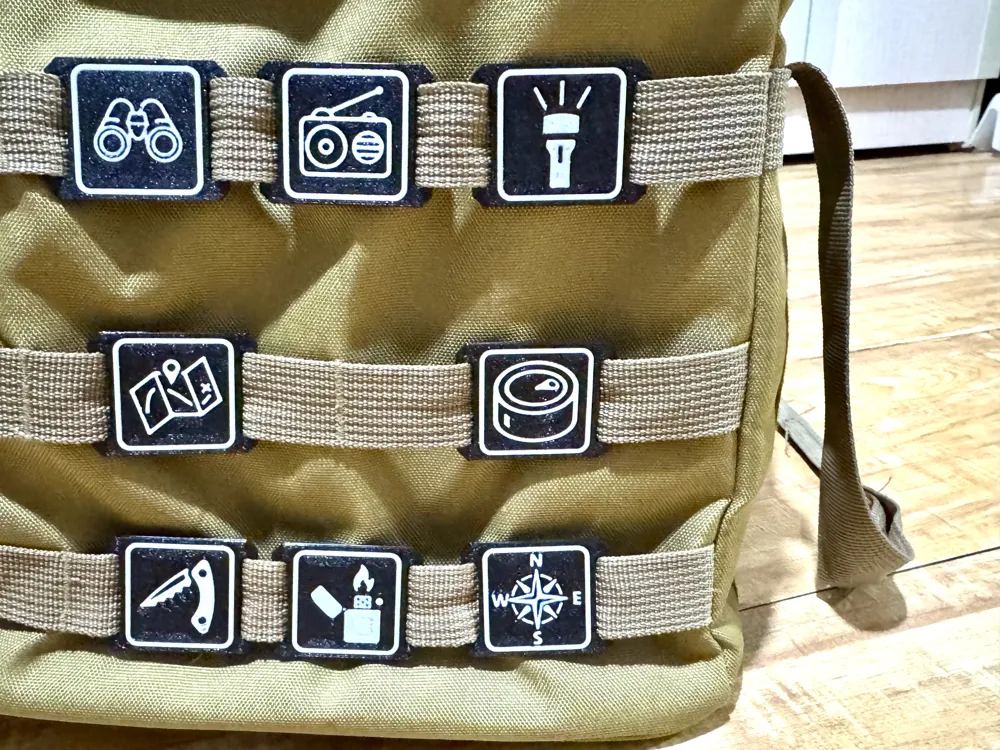

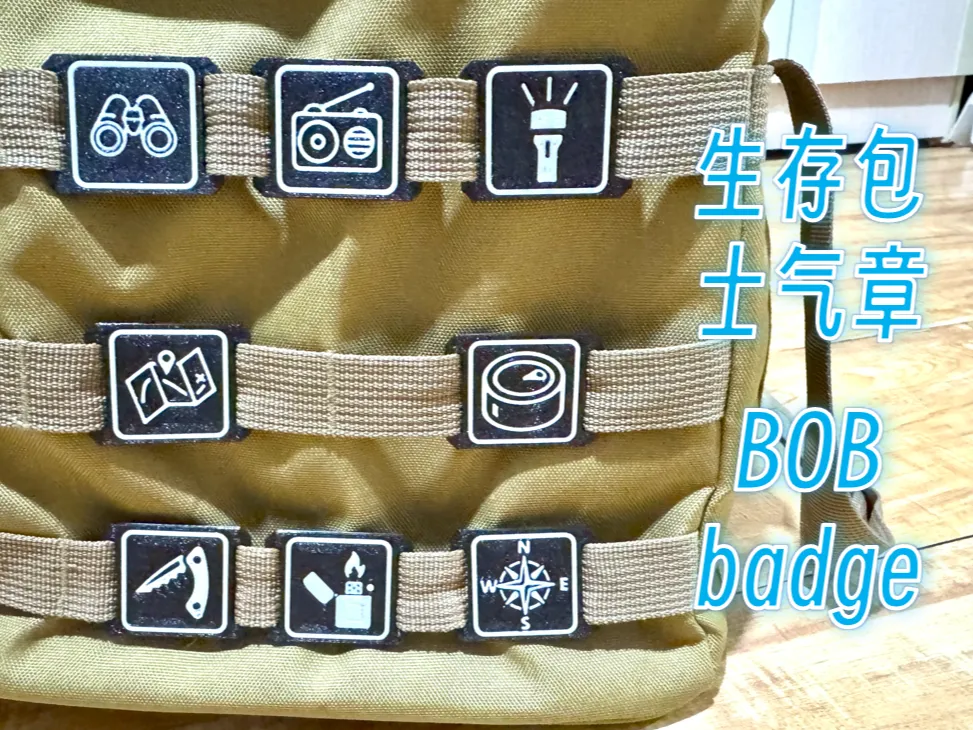

• Badge outer dimensions 45mm x 35mm, compatible with MOLLE webbing, webbing width 25mm

Other badges:

• Camping Badge Set Morale Patches MOLLE Compatible

Printing instructions:

• If you have AMS, print directly
• If you don't have AMS, follow these steps

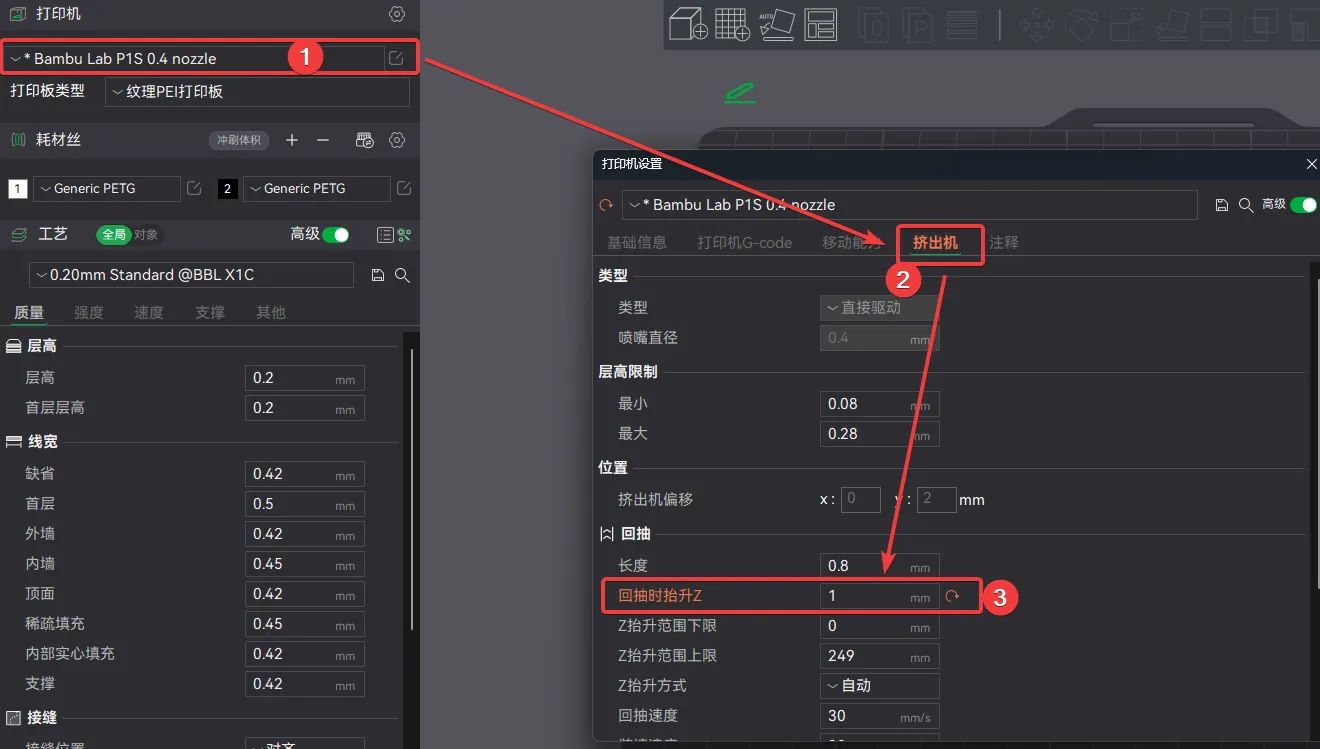

  1. Set printer parameter "Z hop when retracting" to 1mm

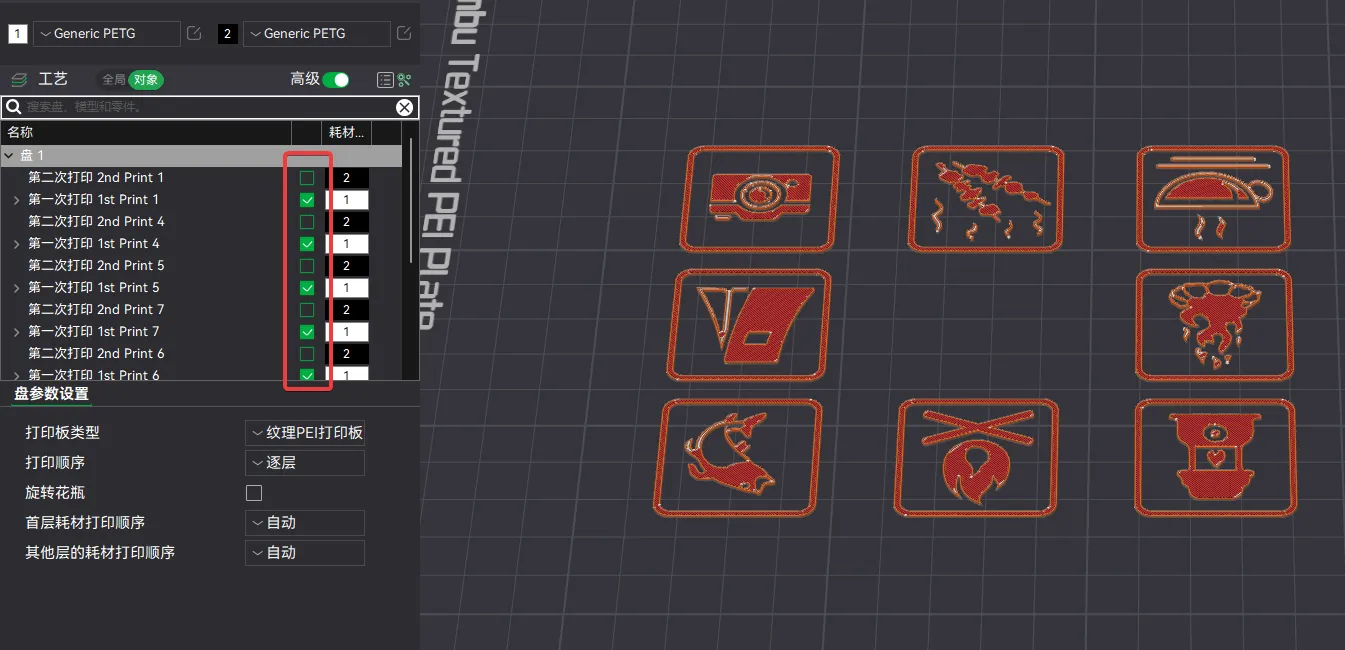

  2. Check all targets for "First Print" and uncheck all targets for "Second Print"



  3. Slice and print
  4. Manually change filament to the second color
  5. Check all targets for "Second Print" and uncheck all targets for "First Print"

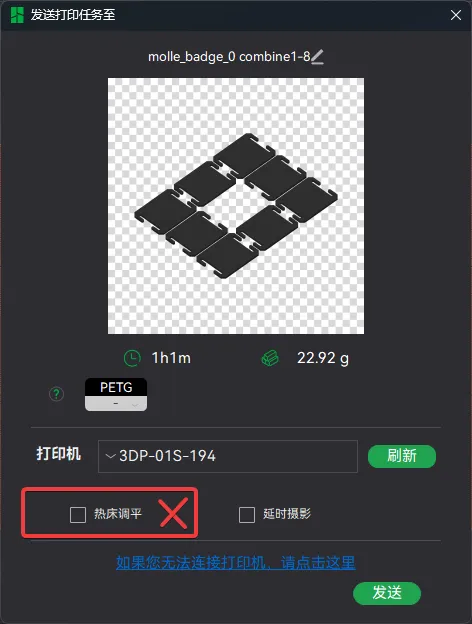

  6. Slice and print, Note: Do not check bed leveling



  7. Printing complete

Notes:

• If you arrange the layout yourself, please move both parts of each badge simultaneously, otherwise they will be misaligned

• If you arrange the layout yourself, please avoid the center position of the bed, as this position needs to be clear for the print head to home during the second print, otherwise a Z-axis homing error will occur



• During the second print, do not level the bed, otherwise a Z-axis homing error will occur
• There are some small parts in the design, please ensure your bed adhesion is sufficient, otherwise they may fall off during printing
• Do not leave too much time between the two prints, do not wait for the print bed to cool down, a decrease in print bed temperature may cause parts of the design to detach, leading to print failure
