Universal BikeWatch Mount2.jpg

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<p>Fixer solidement une montre connectée ou classique sur le <strong>guidon d’un vélo</strong>, tout en permettant une lecture facile pendant l’effort (GPS, cardio, notifications).</p><h3>📐 <strong>Dimensions recommandées</strong></h3><ul><li><strong>Base de fixation guidon</strong> :<ul><li>Diamètre intérieur : 22–32 mm (guidon standard)</li><li>Système de serrage : boucle flexible ou clip ajustable</li></ul></li><li><strong>Plateforme montre</strong> :<ul><li>Surface plate ou légèrement incurvée</li><li>Dimensions : ~30 × 45 mm (adaptable selon modèle)</li><li>Élastiques ou crochets latéraux pour maintenir le boîtier</li></ul></li></ul><h3>🧵 <strong>Matériaux et paramètres d’impression (recomandée)</strong></h3><ul><li><strong>TPU 95A</strong> (Bambu Lab ou marque équivalente =&gt; Diamètre du guidon compatible : 22–32 mm</li><li>Bonne flexibilité pour s’adapter au guidon sans être trop mou</li><li><strong>PLA ou PTEG</strong> plus rigide =&gt; Diamètre du guidon compatible : 22–26 mm</li></ul><h3>🔧 <strong>Caractéristiques techniques</strong></h3><ul><li><strong>Fixation universelle</strong> : système de tension ou clip adaptable à différents diamètres de guidon</li><li><strong>Compatibilité montre</strong> :<ul><li>Système à élastique, scratch ou glissière</li><li>Peut accueillir des boîtiers de 38 à 49 mm</li></ul></li><li><strong>Inclinaison réglable</strong> : option de pivot (à vis ou flexible) pour ajuster l’angle de lecture</li><li><strong>Résistance aux vibrations</strong> : design amorti grâce au TPU, idéal pour routes irrégulières</li></ul>

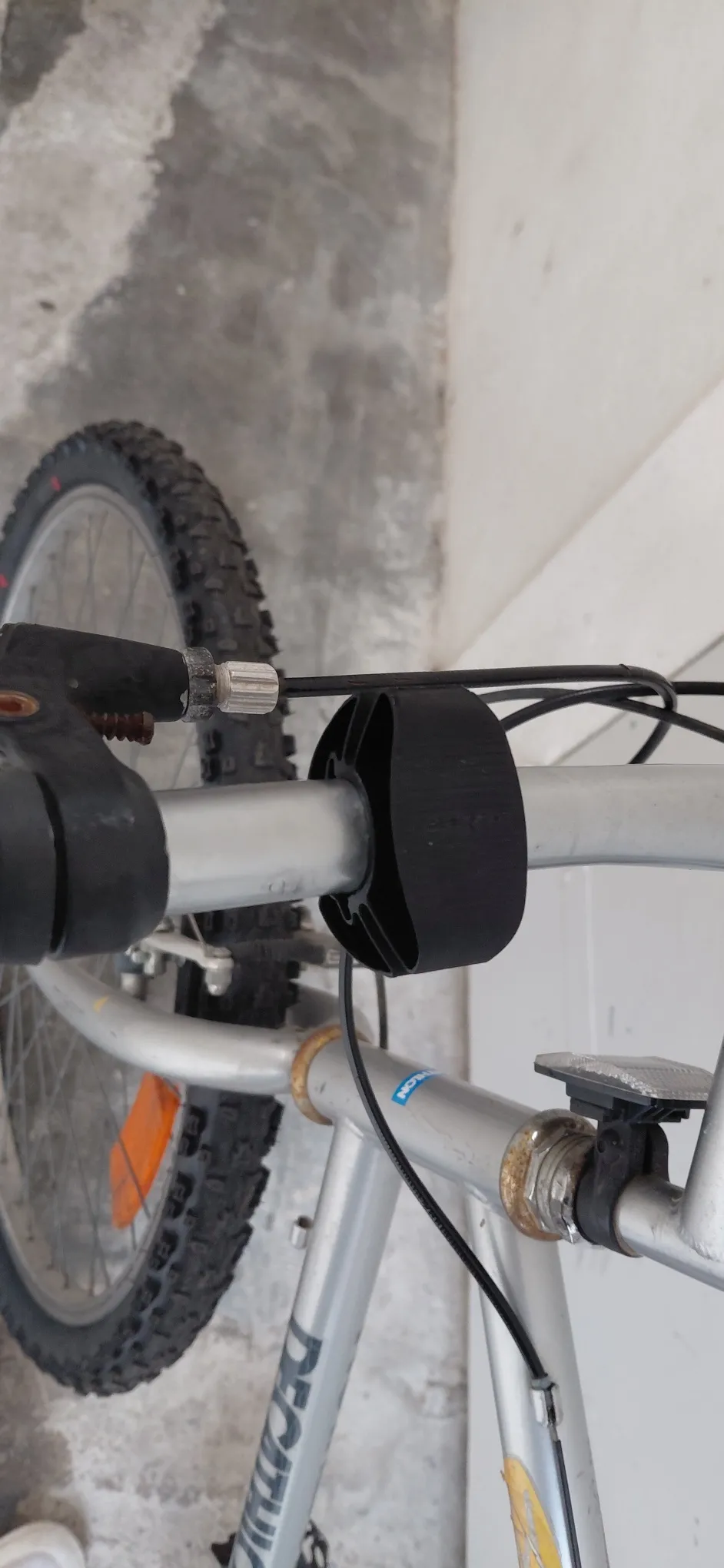

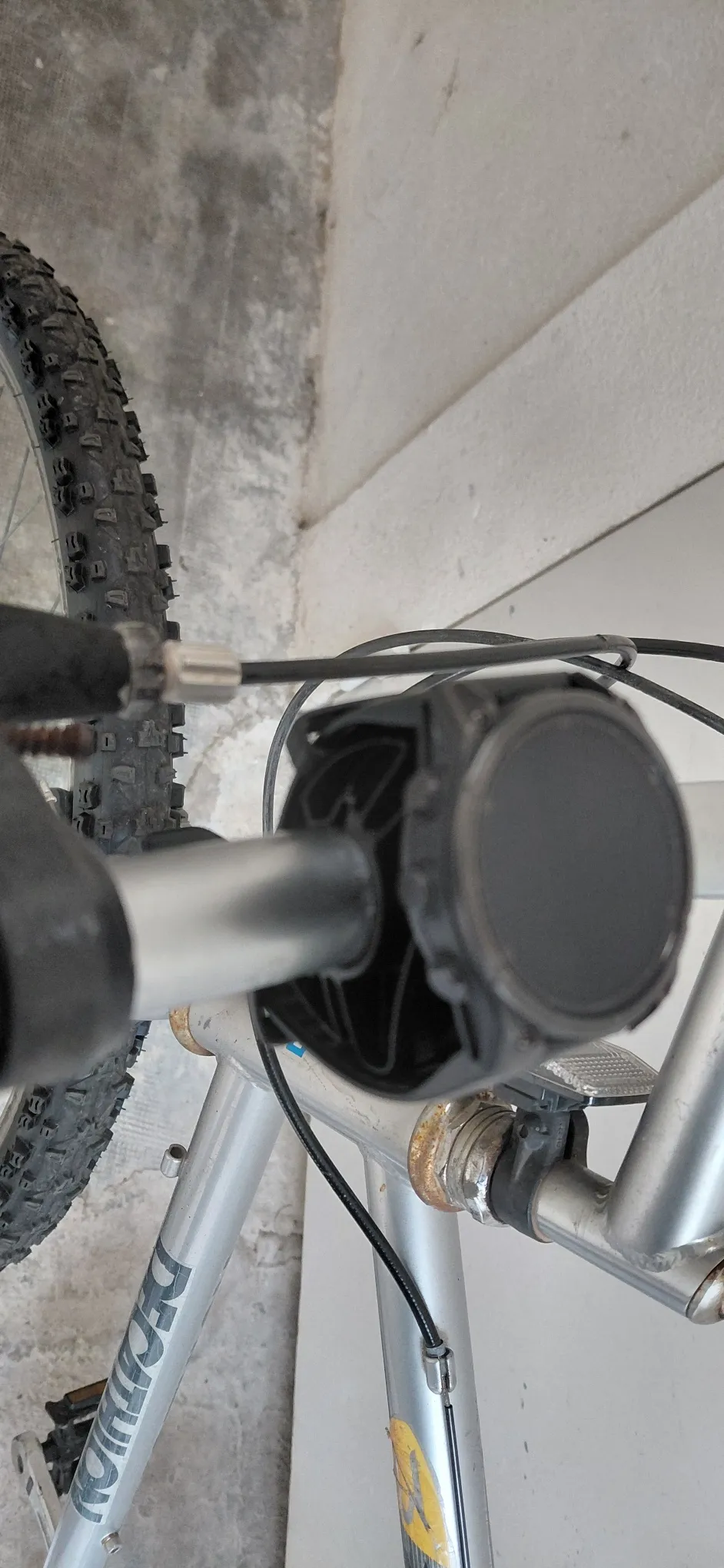

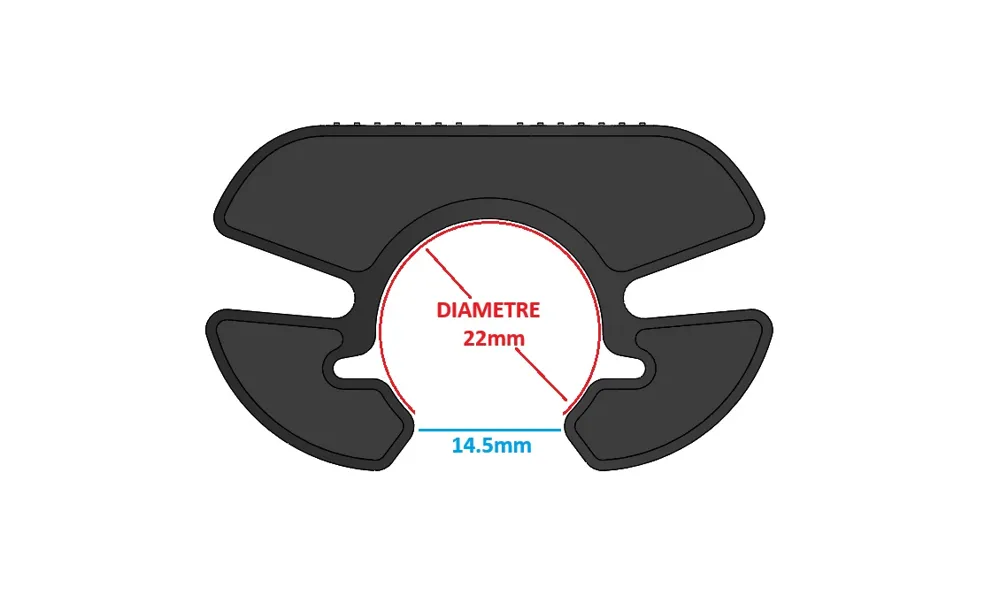

<p>Securely attach a smartwatch or classic watch to the <strong>bicycle handlebar</strong>, while allowing easy reading during exercise (GPS, heart rate, notifications).</p><h3>📐 <strong>Recommended Dimensions</strong></h3><ul><li><strong>Handlebar mounting base</strong> :<ul><li>Inner diameter: 22–32 mm (standard handlebar)</li><li>Clamping system: flexible loop or adjustable clip</li></ul></li><li><strong>Watch platform</strong> :<ul><li>Flat or slightly curved surface</li><li>Dimensions: ~30 × 45 mm (adaptable by model)</li><li>Elastics or side hooks to hold the case</li></ul></li></ul><h3>🧵 <strong>Materials and print settings (recommended)</strong></h3><ul><li><strong>TPU 95A</strong> (Bambu Lab or equivalent brand =&gt; Compatible handlebar diameter: 22–32 mm</li><li>Good flexibility to adapt to the handlebar without being too soft</li><li><strong>PLA or PETG</strong> more rigid =&gt; Compatible handlebar diameter: 22–26 mm</li></ul><h3>🔧 <strong>Technical Characteristics</strong></h3><ul><li><strong>Universal mounting</strong>: tension system or clip adaptable to different handlebar diameters</li><li><strong>Watch compatibility</strong> :<ul><li>Elastic, hook-and-loop, or slide system</li><li>Can accommodate cases from 38 to 49 mm</li></ul></li><li><strong>Adjustable tilt</strong>: pivot option (screw or flexible) to adjust the reading angle</li><li><strong>Vibration resistance</strong>: dampened design thanks to TPU, ideal for uneven roads</li></ul>

Print Profile(0)

Description

📐 Recommended Dimensions

🧵 Materials and print settings (recommended)

🔧 Technical Characteristics
