DIY 2020 aluminum extrusion tripod
Print Profile(1)
Description
Having no money for a tripod, and with some aluminum profiles left over from a previous DIY project, I decided to build a low-cost aluminum profile tripod, especially since the blood moon was out Its strength is decent as long as rubber pads are added to the bottom, as the hinges typically bear upward force

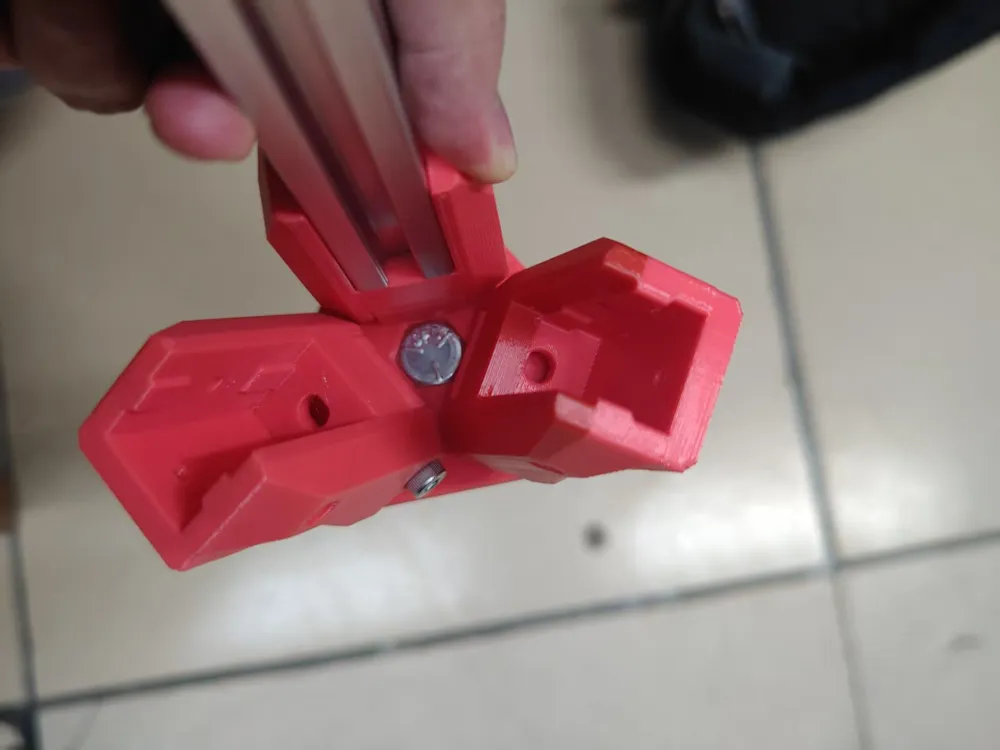

The middle is secured with an M3 screw (16mm long) an M3 screw can be used next to the nut to hold it in place and prevent it from falling out

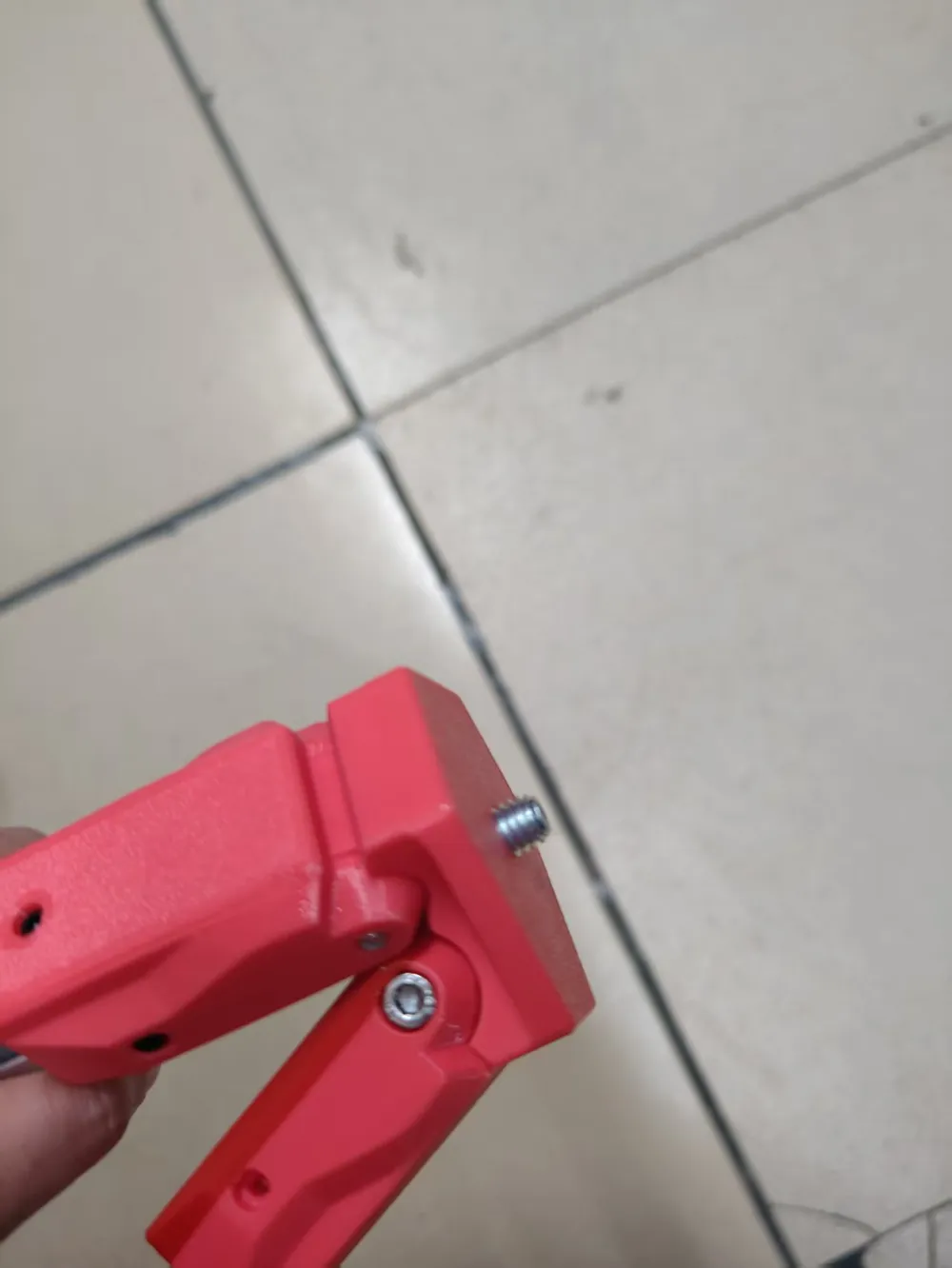

The joint hinges are directly fastened by screwing in M5x35 cap head screws
For securing the aluminum profiles use M3x12 cap head screws on both sides and M3x8 cap head screws in the middle remember to purchase profile T-slot nuts
For the top surface an M6x8 round head screw will suffice
Purchase European standard aluminum profiles with M6 internal threading as for the length you will have to determine that yourself
