Hapoel Tel Aviv Flexi Keys Holder

Hapoel Tel Aviv Flexi Keys Holder

Overview

Round keychain with the Hapoel Tel Aviv emblem and a small side loop for a split ring or carabiner. Clean single-faced model that lies flat on the build plate for a crisp finish.

Important
The emblem is printed as the very first layer against the build plate. Place the logo side down on the bed. The finished front you see after printing is the smooth bottom surface.

Technical details

• Diameter approx 50 mm
• Thickness 5 mm
• Single-sided body
• Small hanging loop on the right side
• Edge bevel distance 0.4 mm
• Outline stroke width 0.4 mm
• File format 3mf

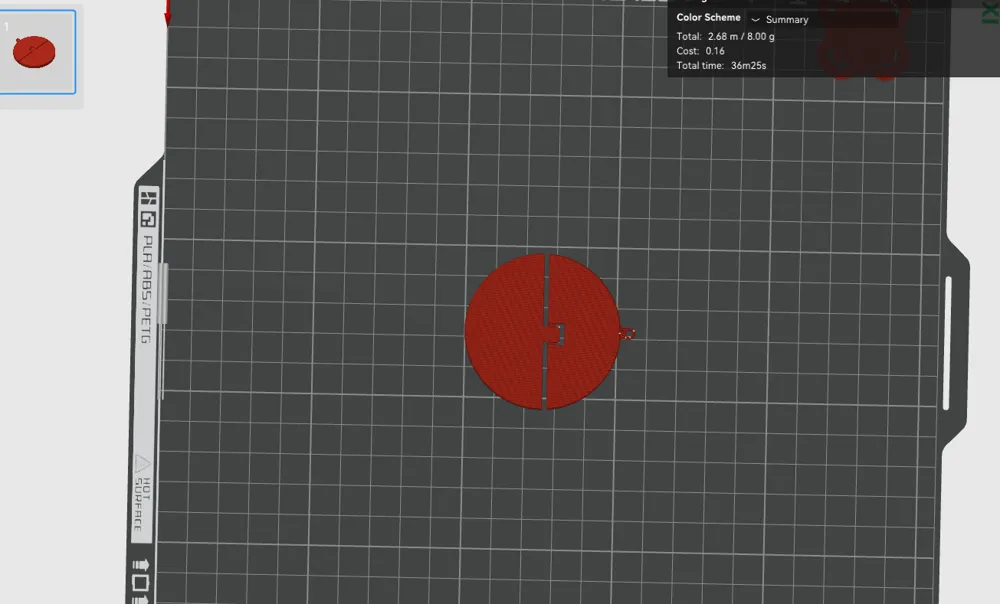

• From the slicer screenshot
  • Filament about 2.68 m around 8 g
  • Estimated print time is about 36 minutes
  • Cost indicator 0.16

Printing

• Printed on Bambu A1 Combo with AMS Lite in two colors
• Intended for the AMS workflow
• Orientation logo face on the plate
• Material: PLA for everyday use or PETG for extra durability
• Layer height 0.2 mm
• Nozzle 0.4 mm
• Walls 3
• Infill 30 to 100 percent as you prefer
• An adhesion : None
• No support needed
• No assembly needed
•

Scaling

• The model can be scaled up or down directly in the slicer
• When scaling, check that the loop opening still fits your split ring and adjust if needed
• If you downscale a lot, consider adding wall lines to keep the loop sturdy

Use

Keychain for fans, bag charm, small gift before a match.
Logotype provided for personal fan use.
