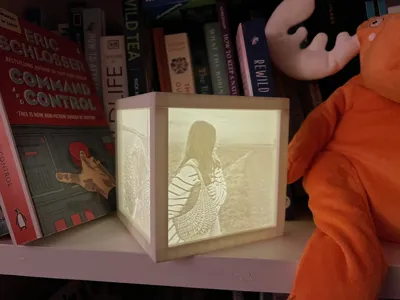

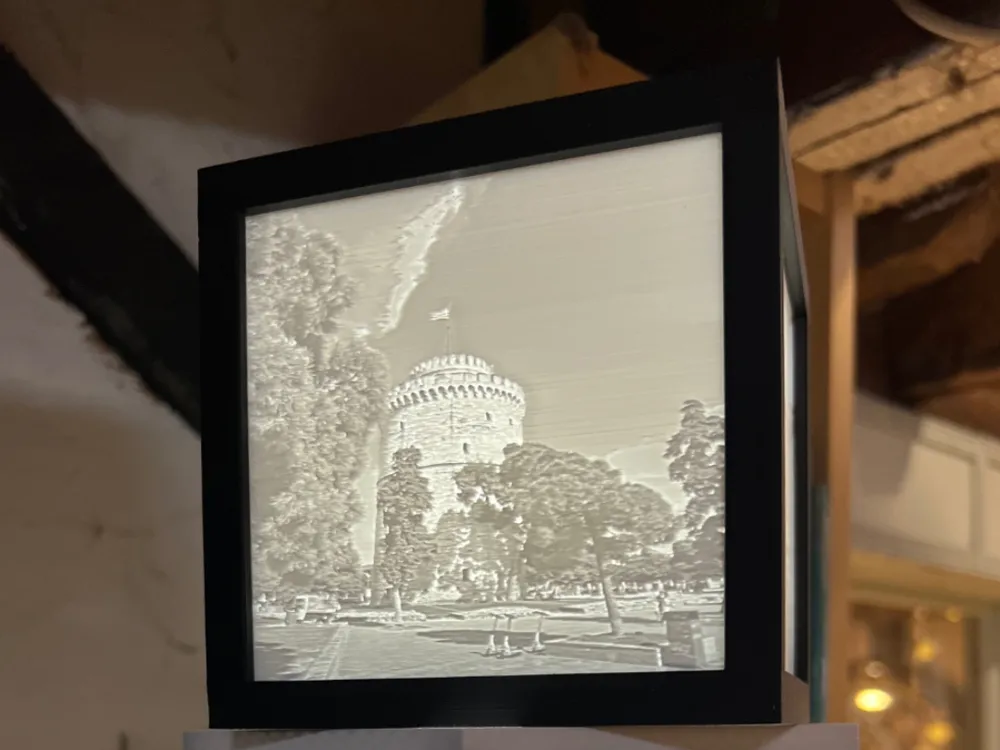

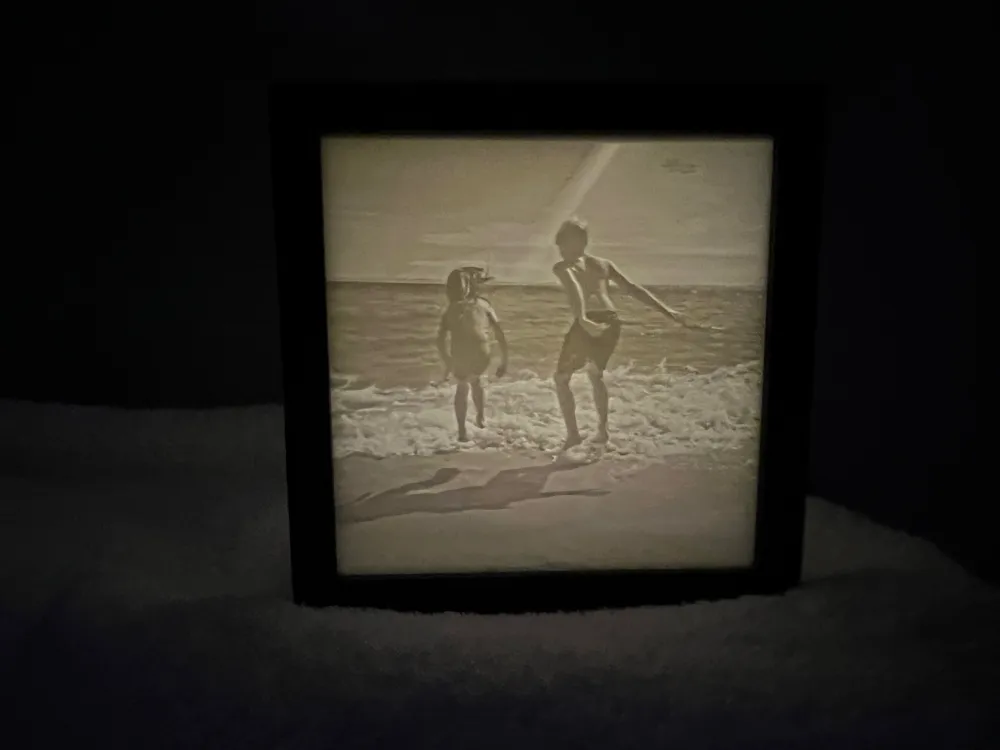

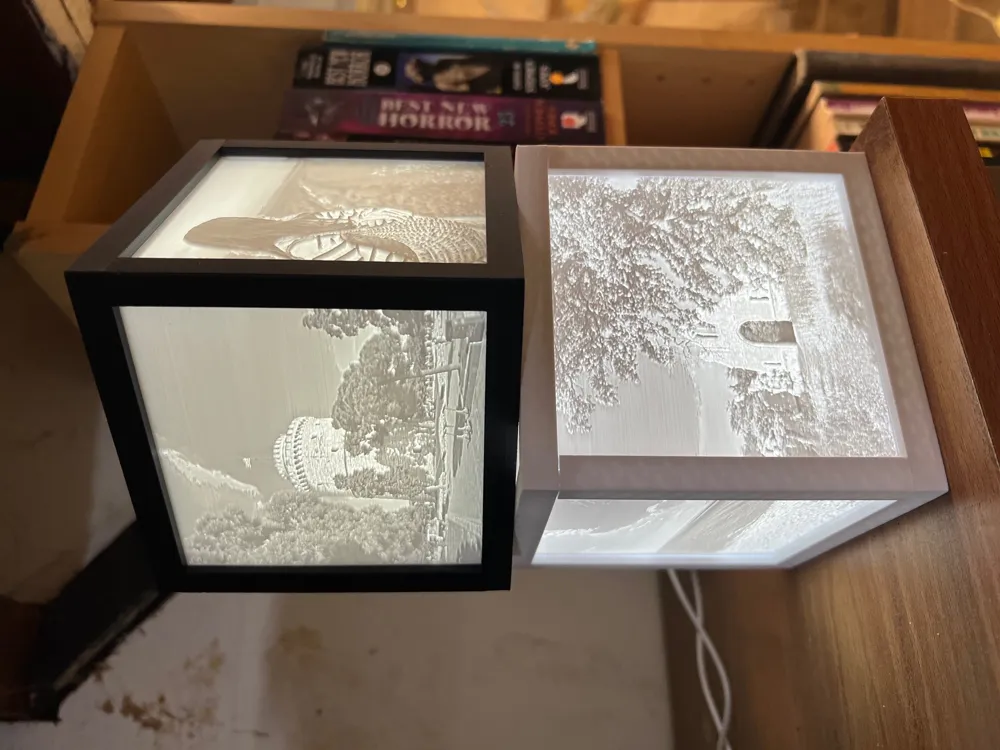

This is a customizable lamp to display lithophane panels created from your photos. I wanted to make a lamp that could display our family memories as lithophanes, but that could also be updated as the years go by without the need to print an entirely new lamp. I came up with this design that allows the lithophane panels to be slid into and out of the frame as you see fit.
The lid can be solid, or contain a panel as well. I have two bases that will accept either a LED tea lamp or the 001 LED light kit.
I made the panels on lithophanemaker.com using their flat lithophane tool. The dimensions for the panels are:
Frame Options: No Border
Lithophane Resolution: 0.2
Base Length: 99
Base Width: 7.5
Base Height: 7.5
Overhang Angle: 60
Maximum Thickness: 2.8
Minimum Thickness: 0.6
Height: 99
Support Thickness: 2
Support Angle: 75
X Shift: 0
Y Shift: 0
Rectangle Scale: 1.0
Crop?: Yes
