Description

Gusset plates for openGrid plates. This allows for a secure connection between plates using snaps which is especially helpful if you're hanging an openGrid without anchors on all of the plates. Suggest using this in addition to the normal openGrid connectors rather than in place of them.

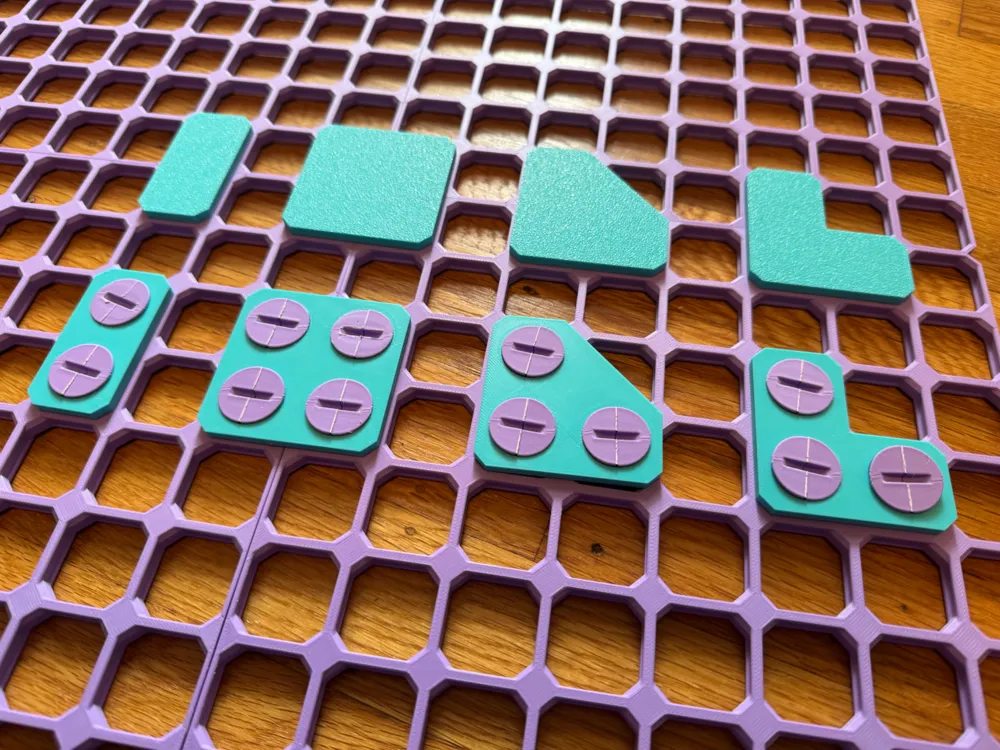

This contains:

  1. 1x2 gusset plate
  2. 2x2 gusset plate
  3. Strong L gusset plate
    1. This bridges the gap between the two sides of the L for additional strength
  4. Weak L gusset plate (with cutout)
    1. This is a weaker plate and shouldn't be used if there is any tension diagonally
