8020 Panel Jig 10 Series
IP Report
Print Profile(1)
0.16mm layer, 3 walls, 15% infill
Designer
28 min
1 plate
Open in Bambu Studio
Boost
3
13
1
0
12
5
Released
Description

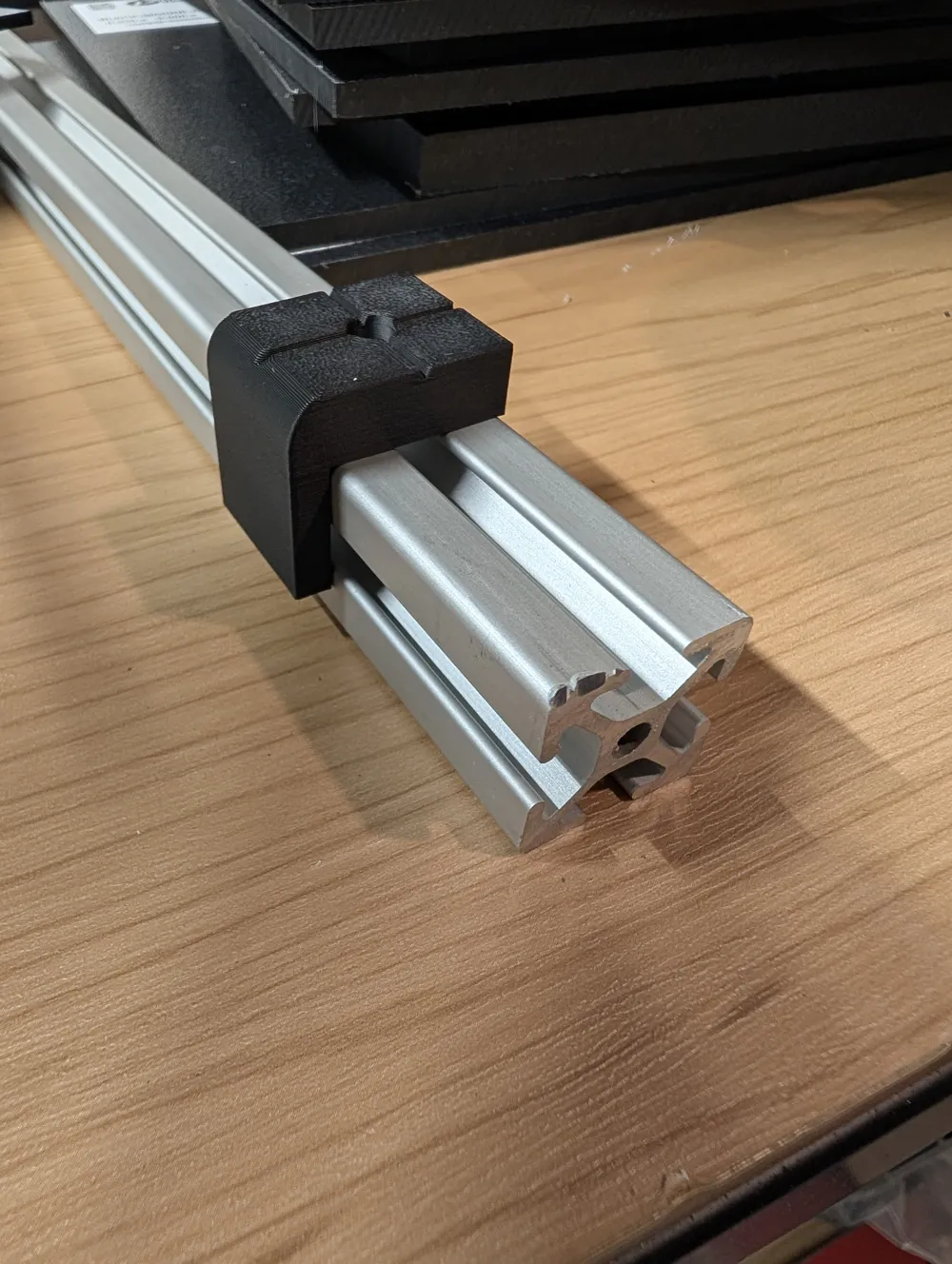

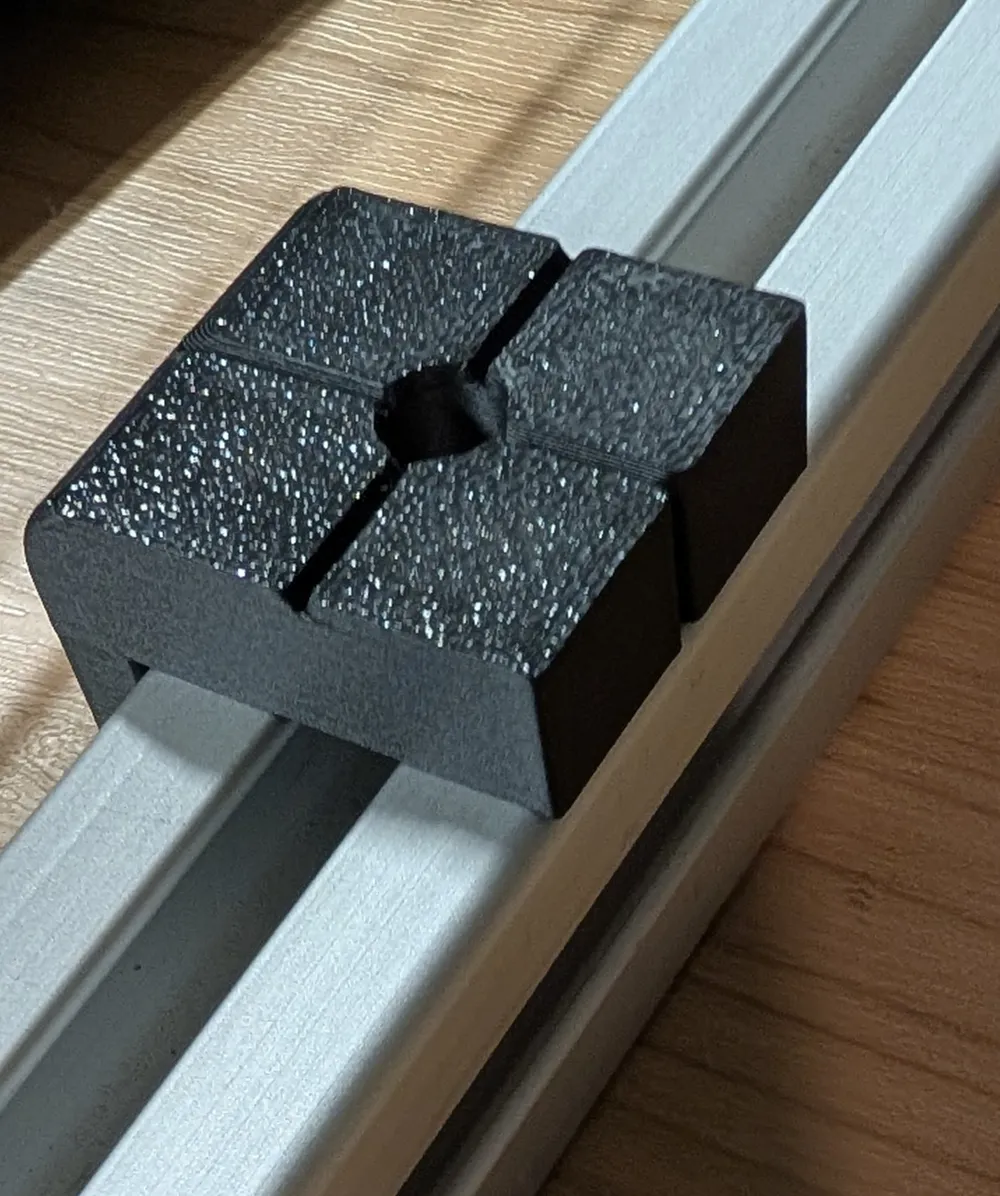

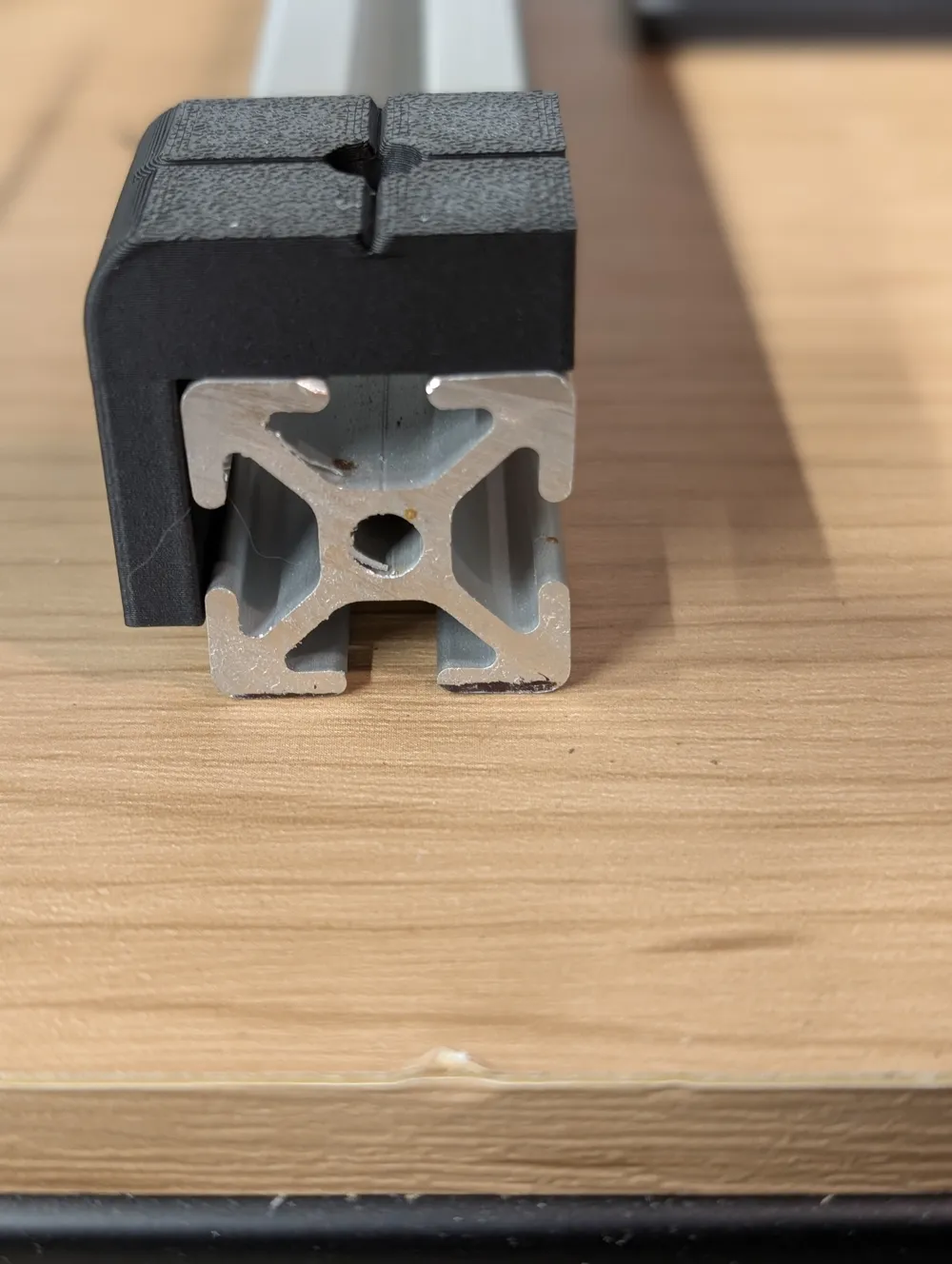

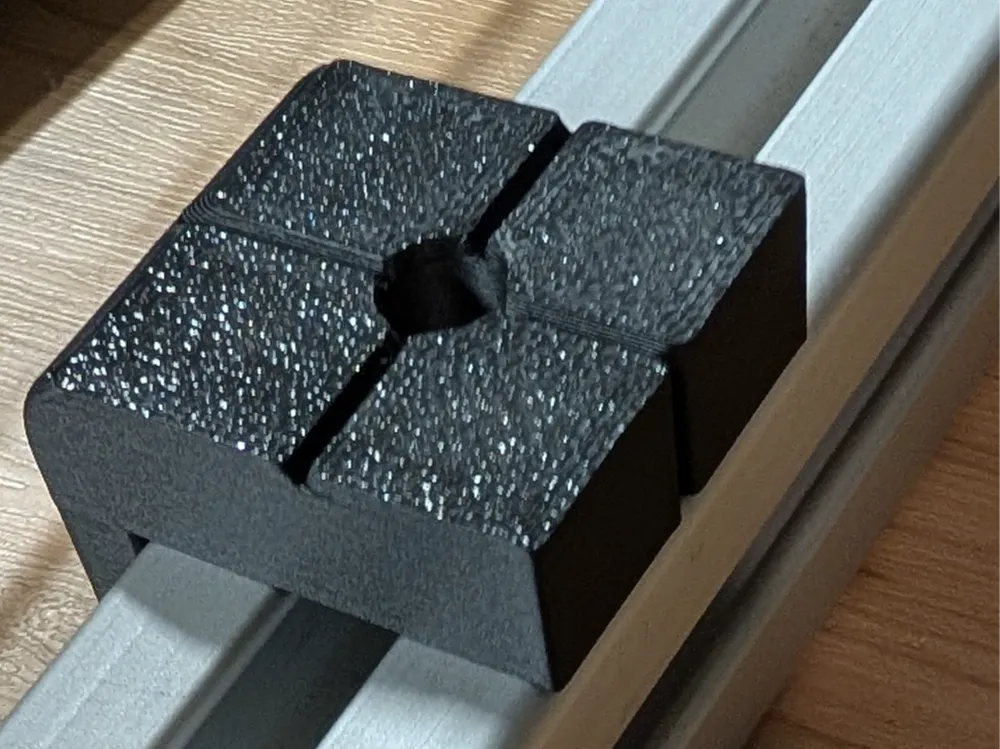

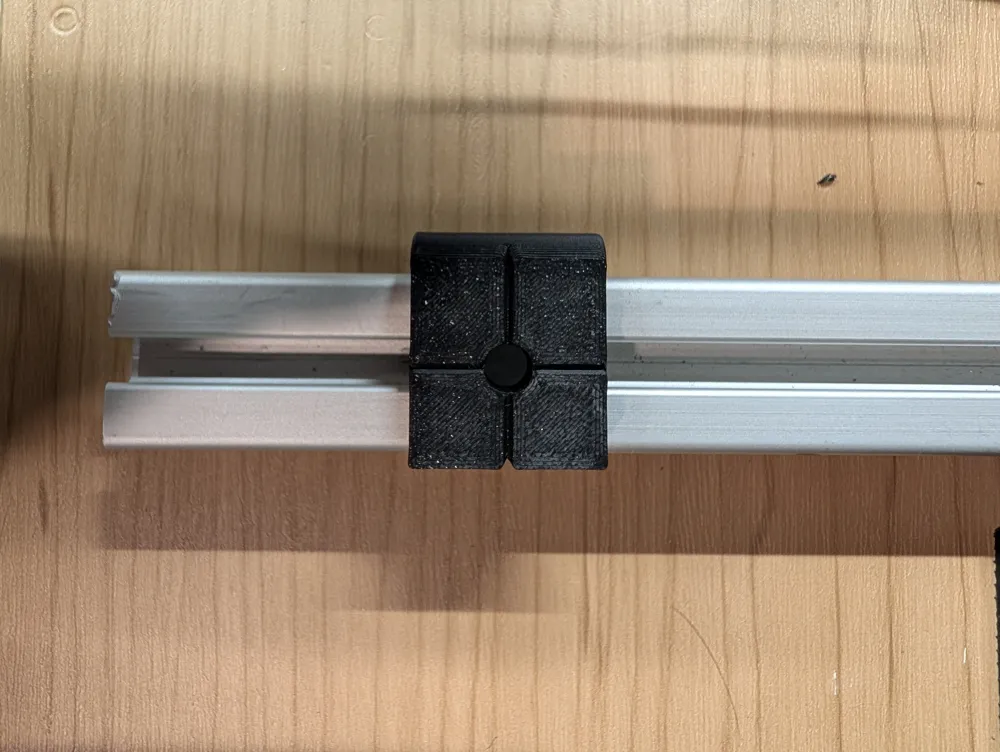

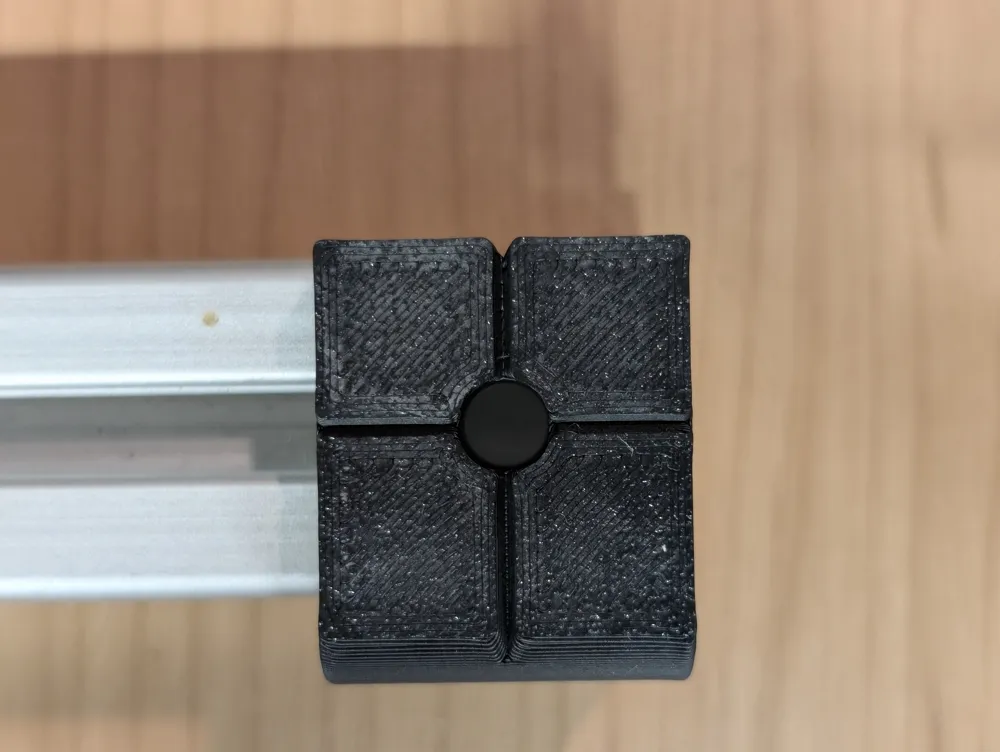

This is a panel mounting jig for 8020 1010 series extruded aluminum. It has a ¼" hole that will be snug on the first drill but afterwards its fine. The model is a 1" x 1" square with a center ¼" hole. Its a 1" x 1" square to ensure that the corner holes are in the proper location
