Description

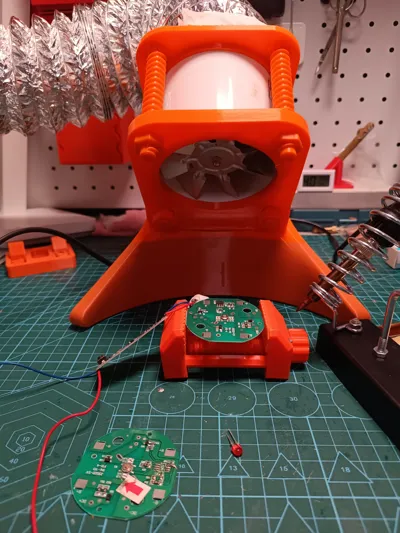

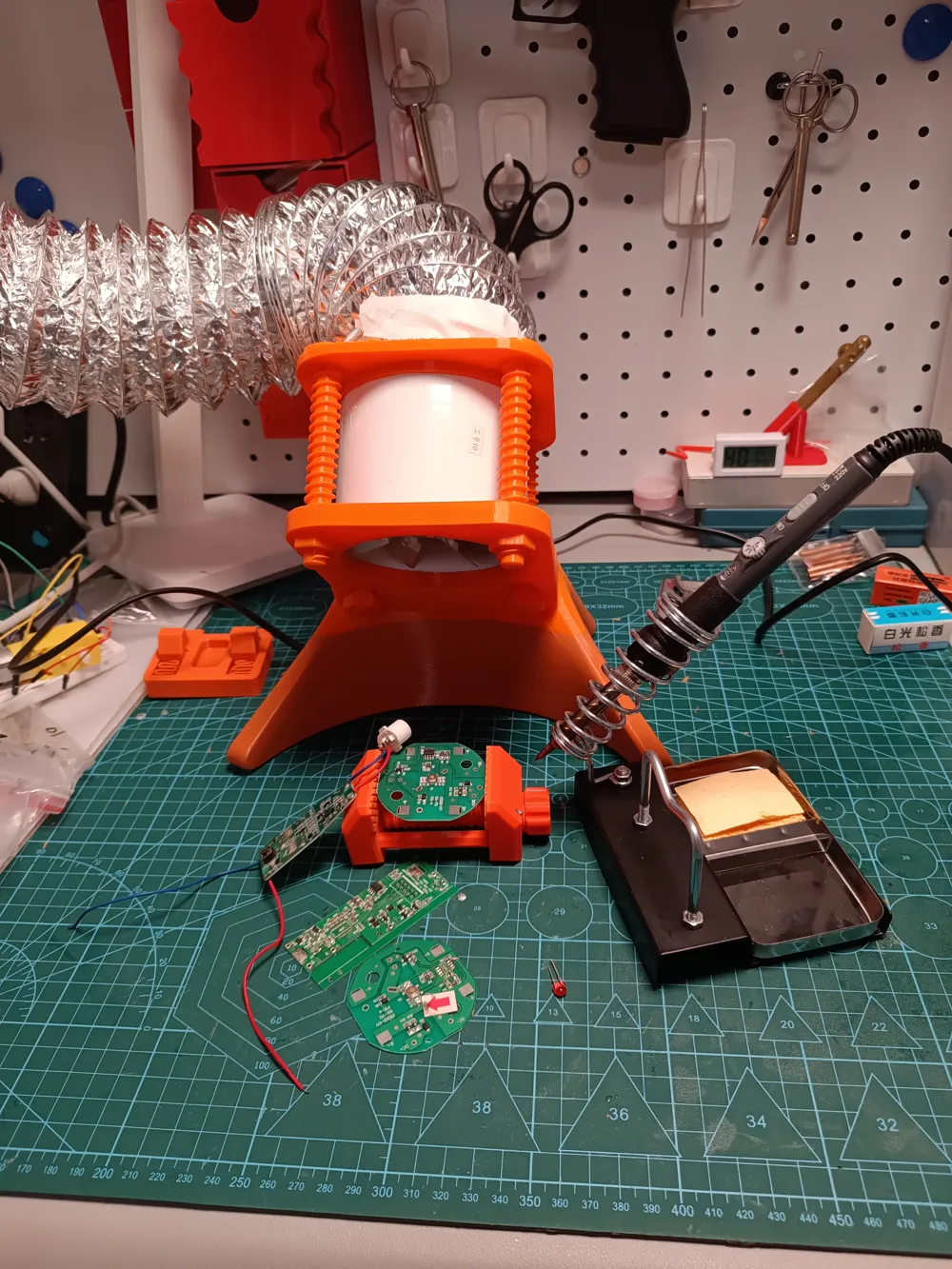

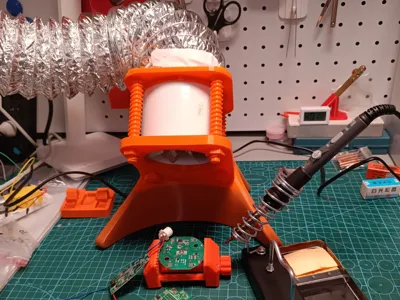

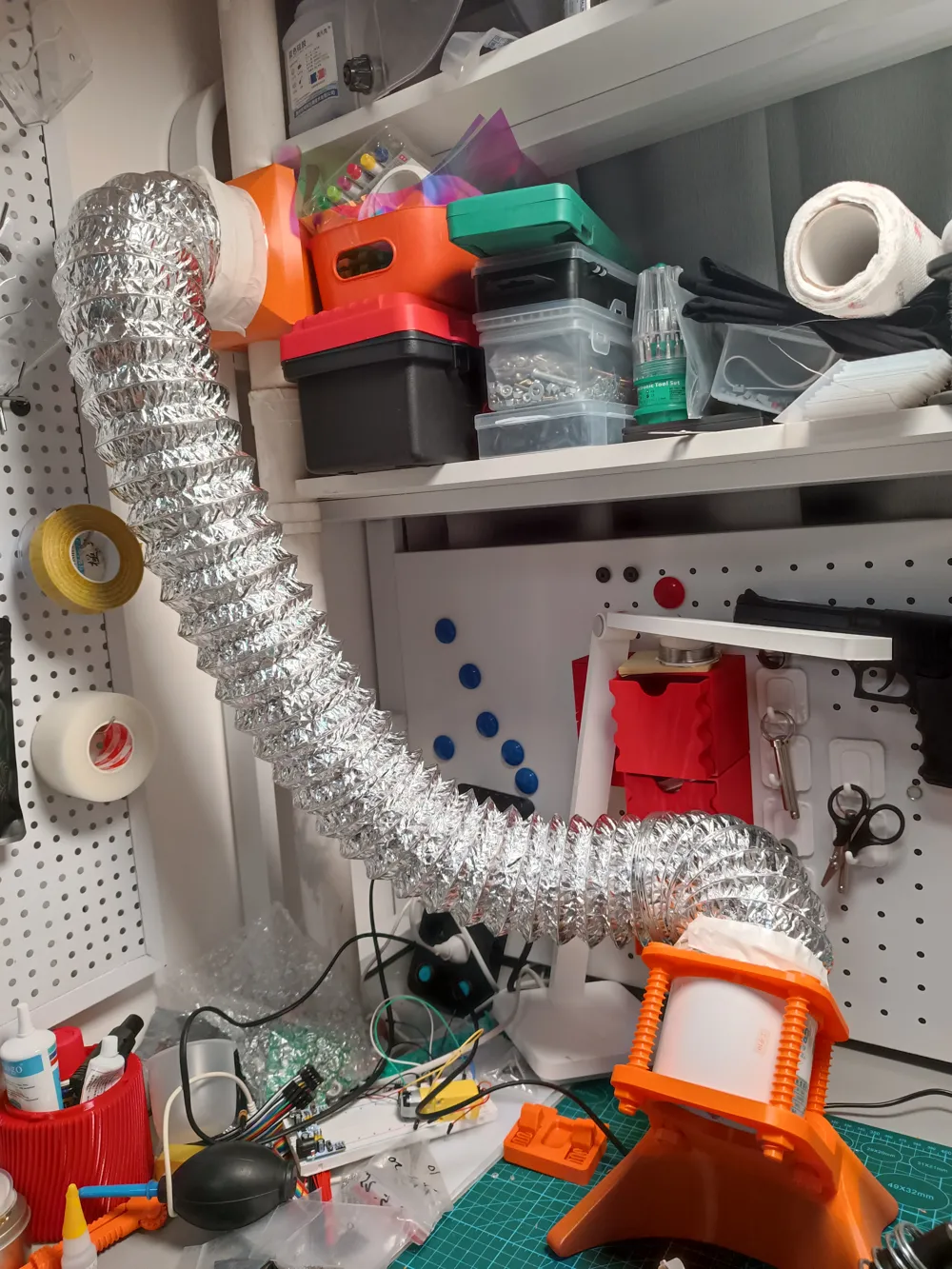

- Used to extract fumes generated by soldering.

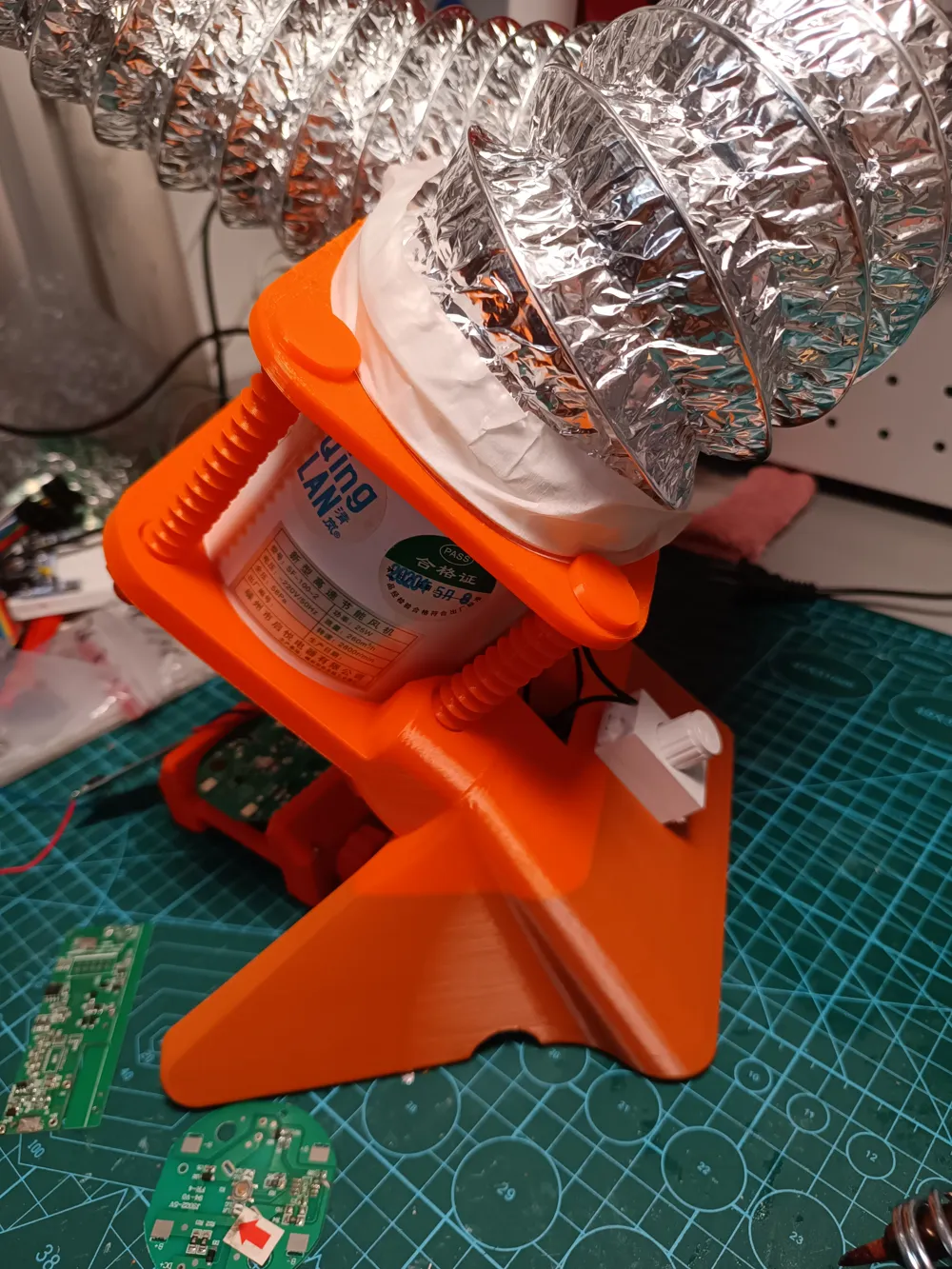

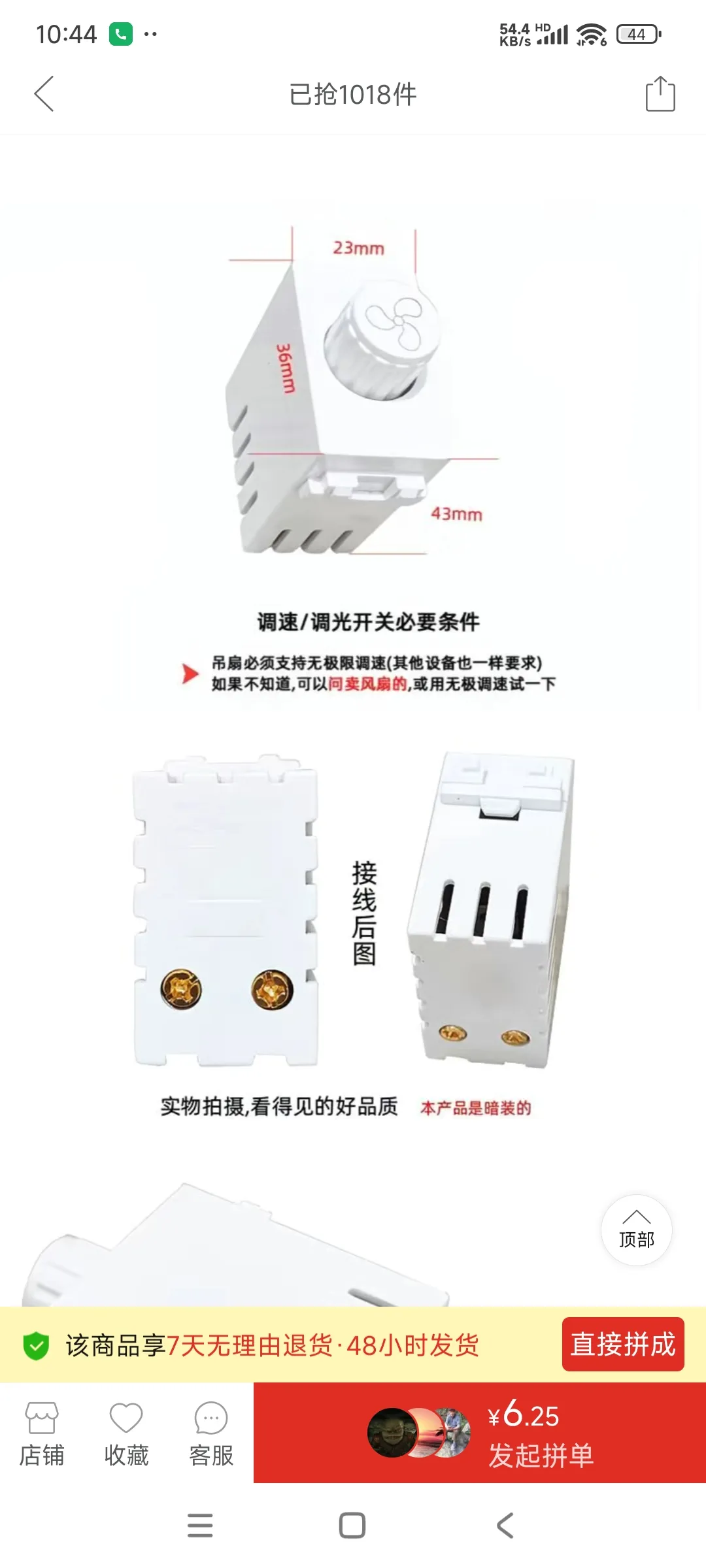

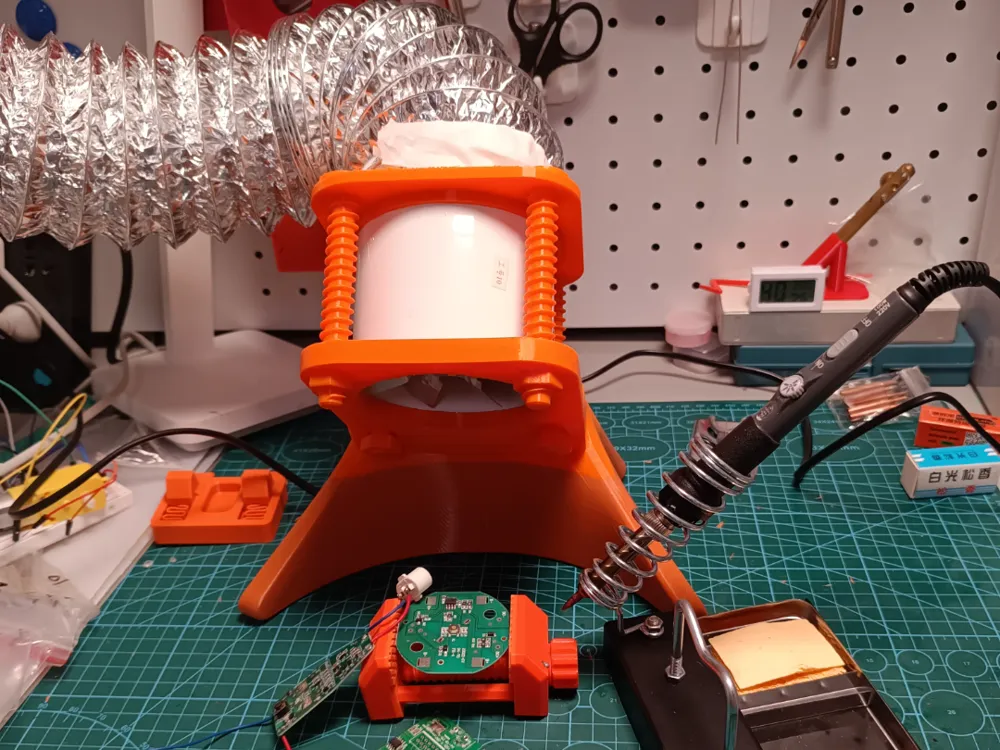

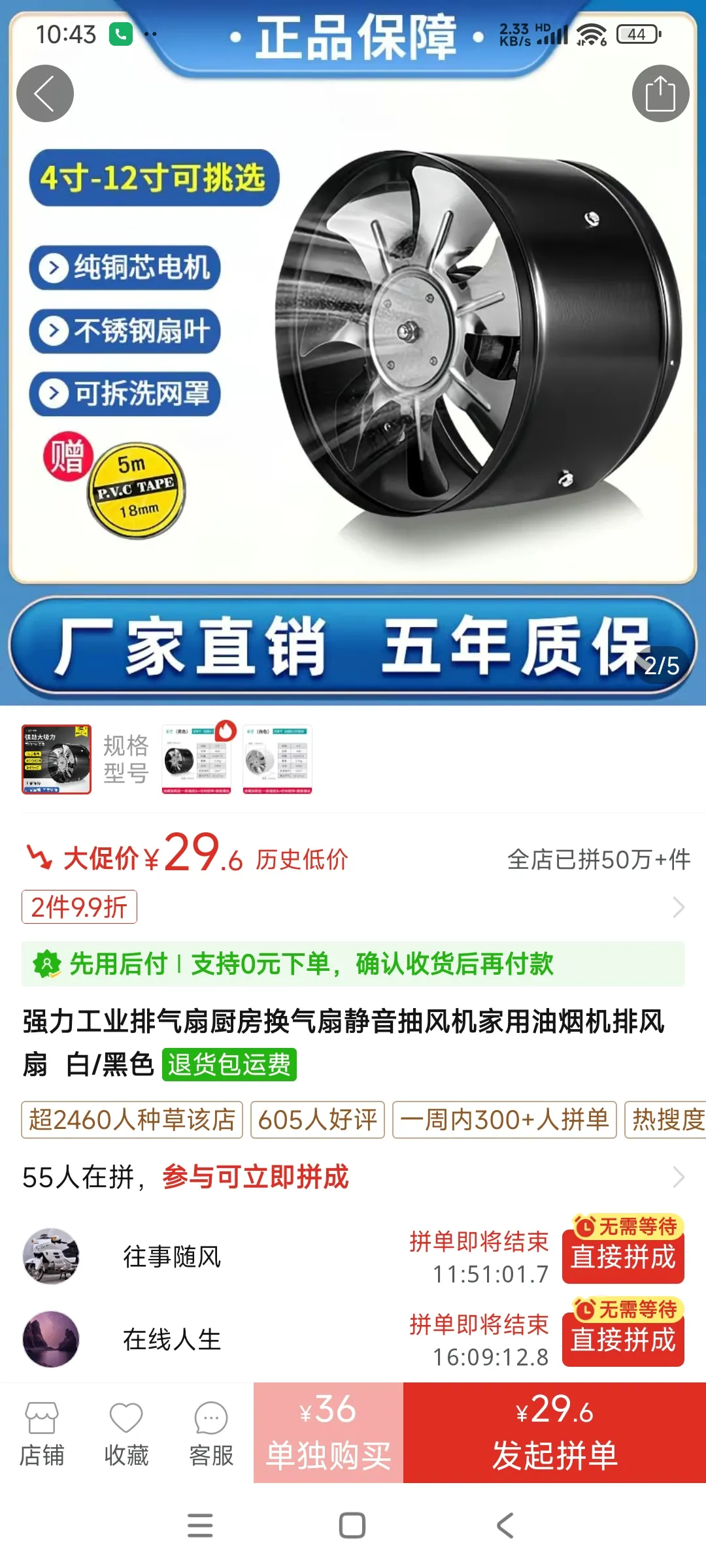

Requires a duct exhaust fan and a stepless speed switch.
- The model is usable but has flaws. Since I only printed one, no modifications were made.
Known issues:
- The marked size of the duct fan is 100mm in diameter, but there are errors in the front and back, and they are also different. So, if you use this model, please measure the front and back differences carefully.

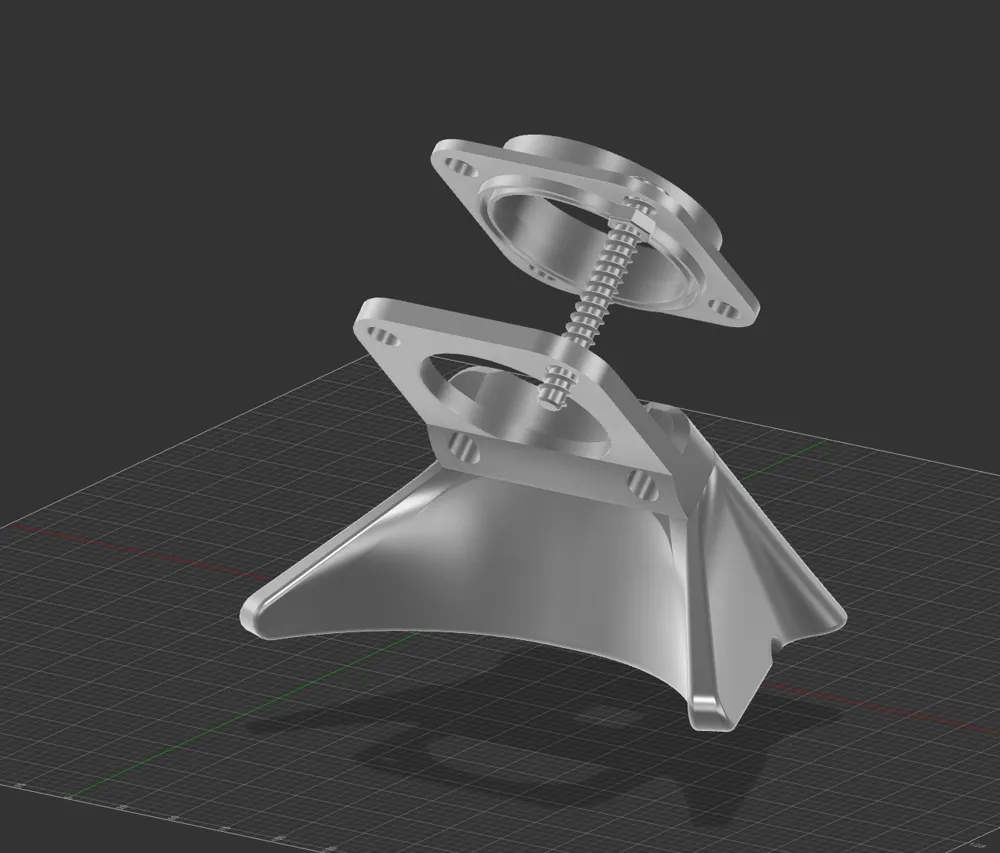

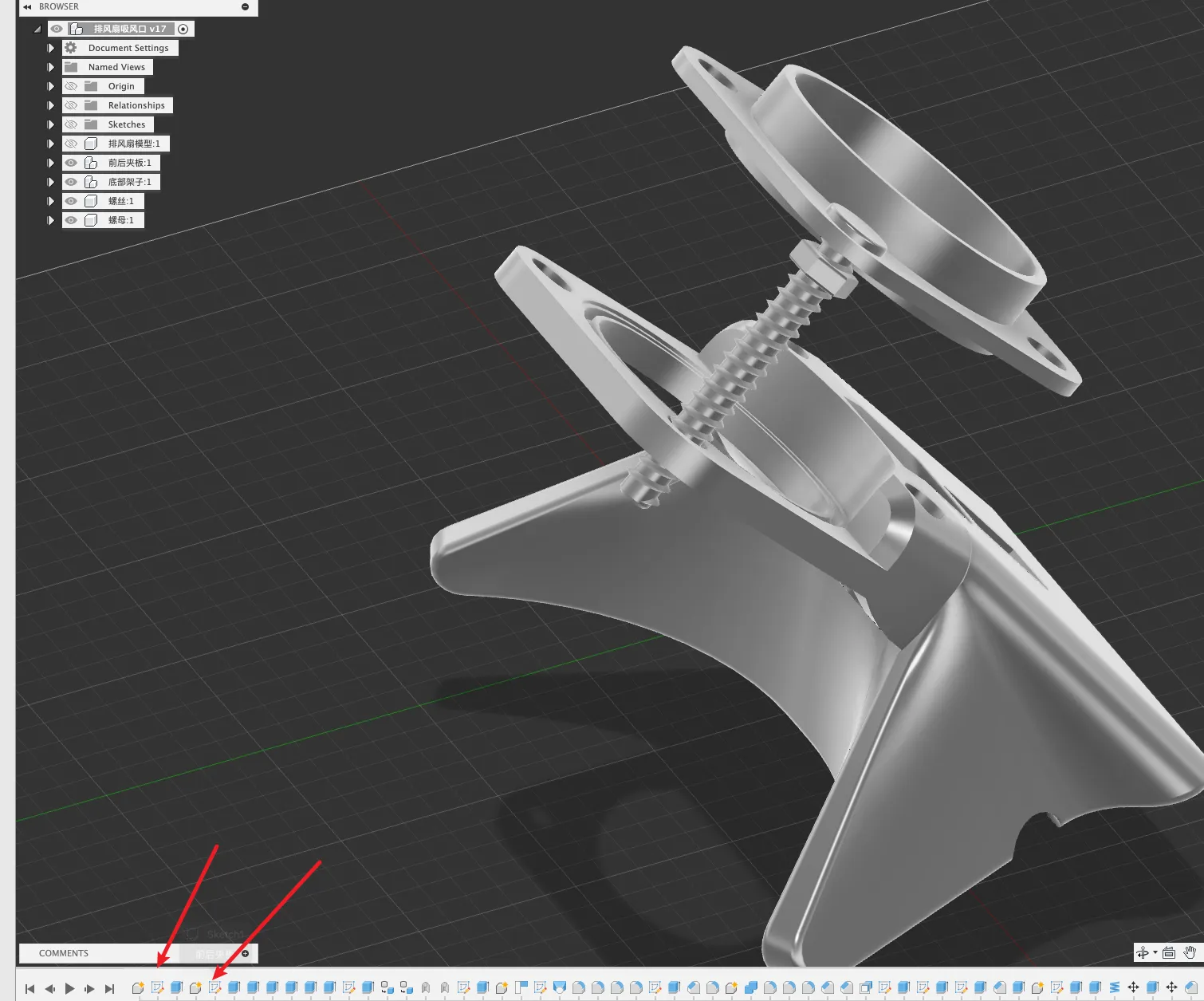

- The source files include Fusion360 source files.
The first two sketch positions are the diameter positions. It is recommended to modify them. Do not use mine directly.
- The screws have a 15mm space. I made one separately. But it was printed vertically, so it's quite brittle. I broke several of them while printing myself.
It is recommended to print horizontally (place the model horizontally on the plate and sink a part of it). Refer to the details:
https://makerworld.com/zh/models/1152749-miniature-precision-vise-only-30g#profileId-1157201
The screw printing method here.
- I only printed a draft of the model, it's barely usable, and no optimization has been done. If you don't know Fusion360 or can't understand my sketch, you can leave me a message. I'll see if I can help you modify it.
