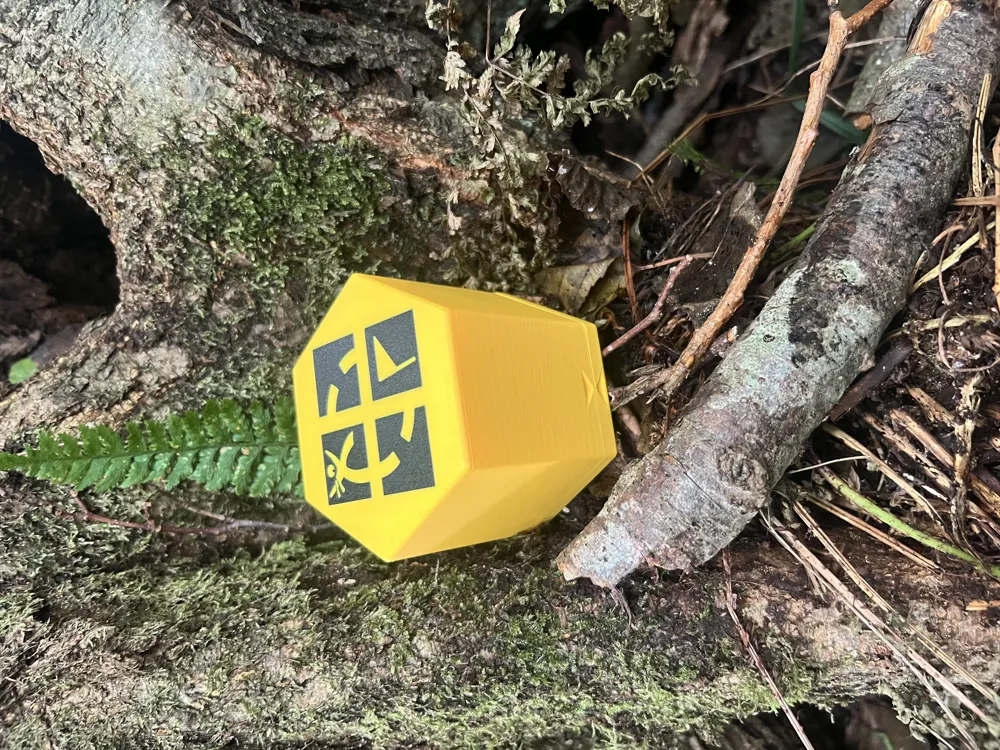

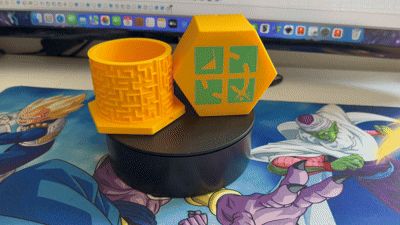

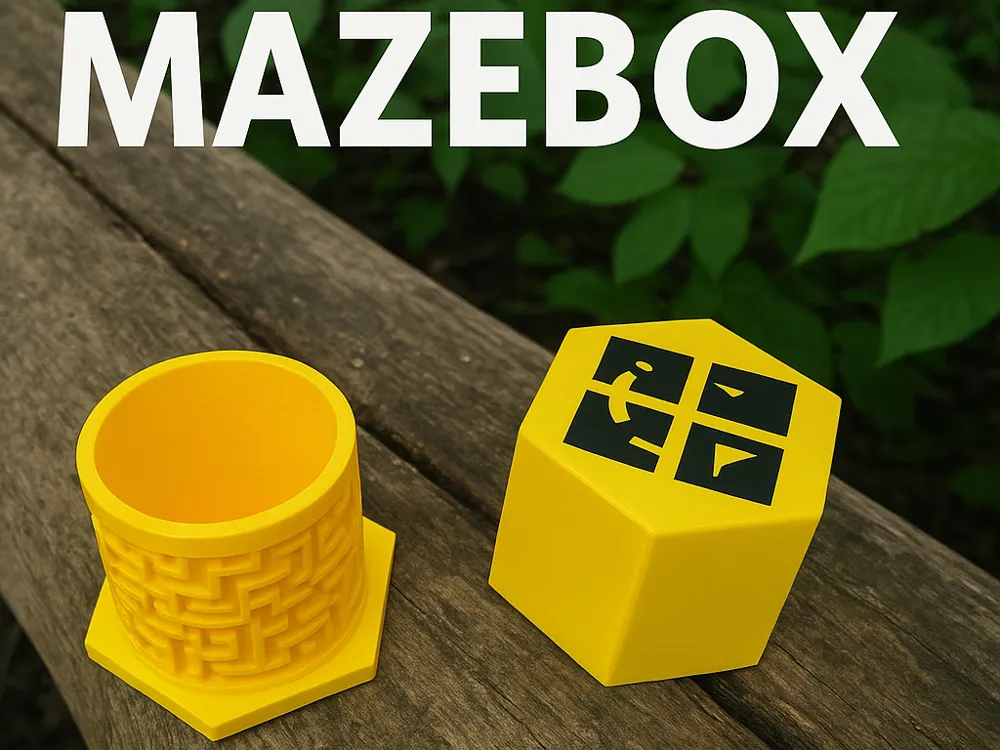

Geocaching Labyrinthbox Puzzlebox

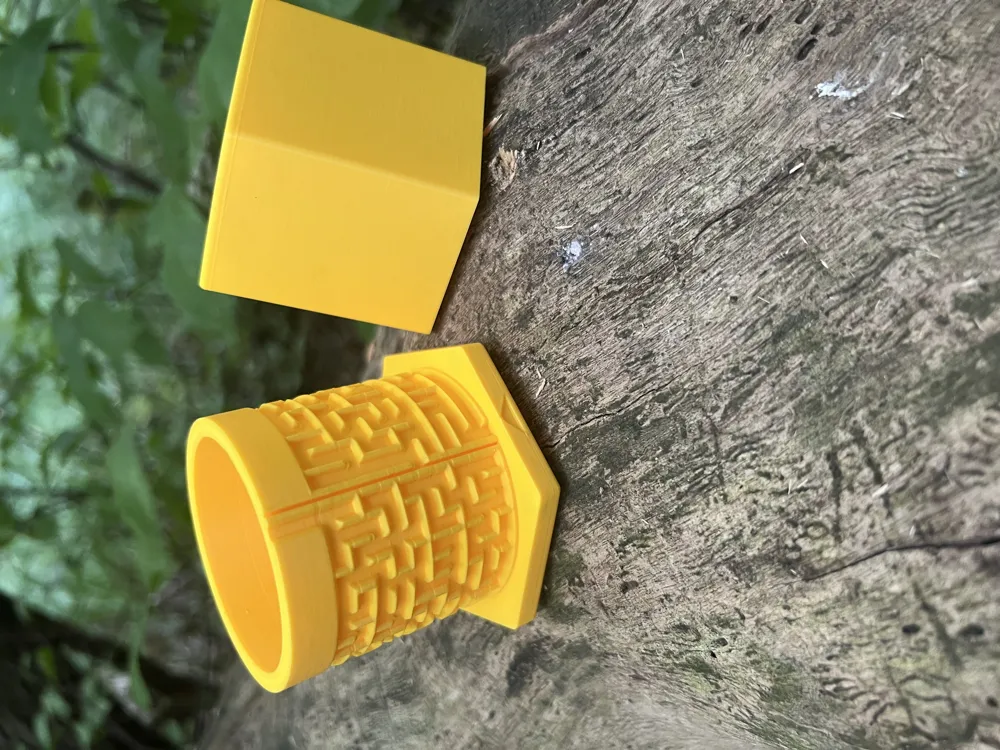

This labyrinth box was designed by me to be a bit wider than others so that there is enough space for a logbook, trackables, or other items.

I equipped the box with a total of 4 magnets (5x2mm) so that it properly locks into place when it is in the starting position.

• Inner diameter: 55 mm

• Outer diameter: 84 mm

• Total height: 68 mm

Procedure for print plate 1:

• Slice print plate 1
• move the right slider to layer 35 (7.00mm)
• right-click with the mouse and then insert a pause
• slice the print plate again and then start the print
• when the printer pauses by itself, insert the magnets and continue the print.

Procedure for print plate 2:

• Slice print plate 2
• move the right slider to layer 298 (59.60mm)
• right-click with the mouse and then insert a pause
• slice the print plate again and then start the print
• when the printer pauses by itself, insert the magnets and continue the print.

When inserting the magnets, please pay close attention to the correct polarity of the magnets (they must be inserted the right way around, otherwise they will repel each other later).

Please note that PLA is not the optimal filament for outdoor prints. I recommend filament like PETG-GF or even ASA for optimal durability outdoors under weathering conditions.
