Universal DC Motor Mounting Bracket
Print Profile(1)
Description

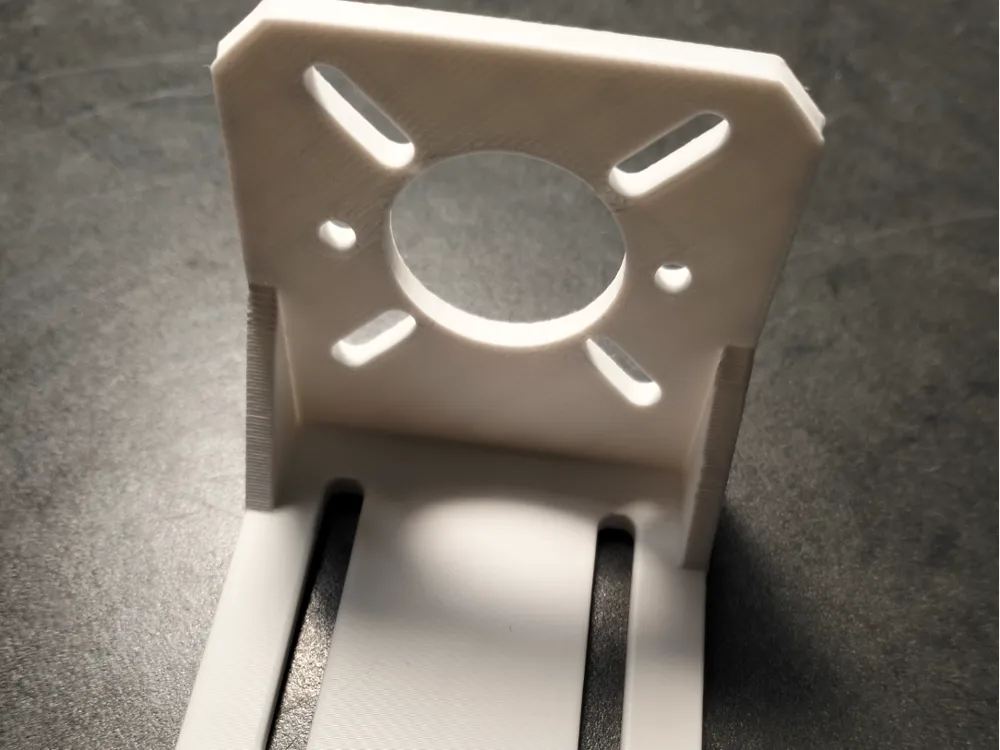

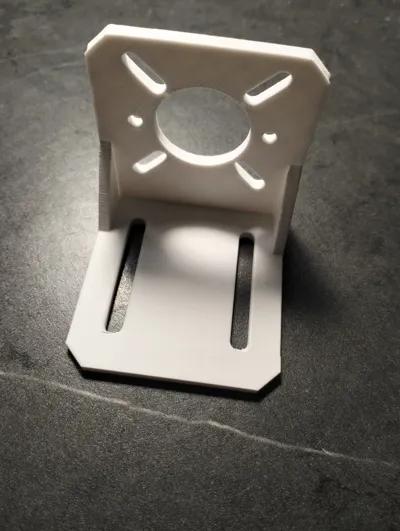

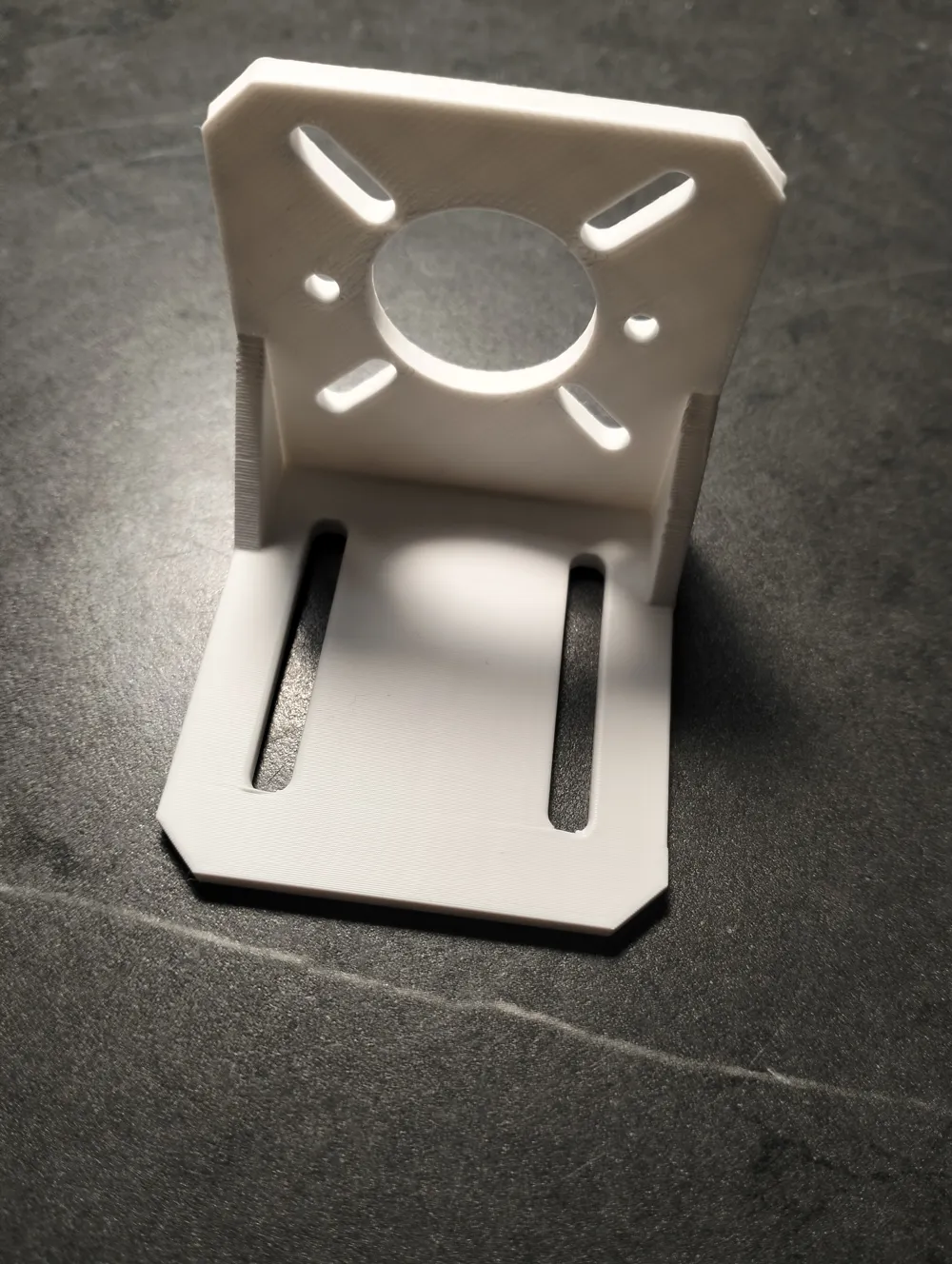

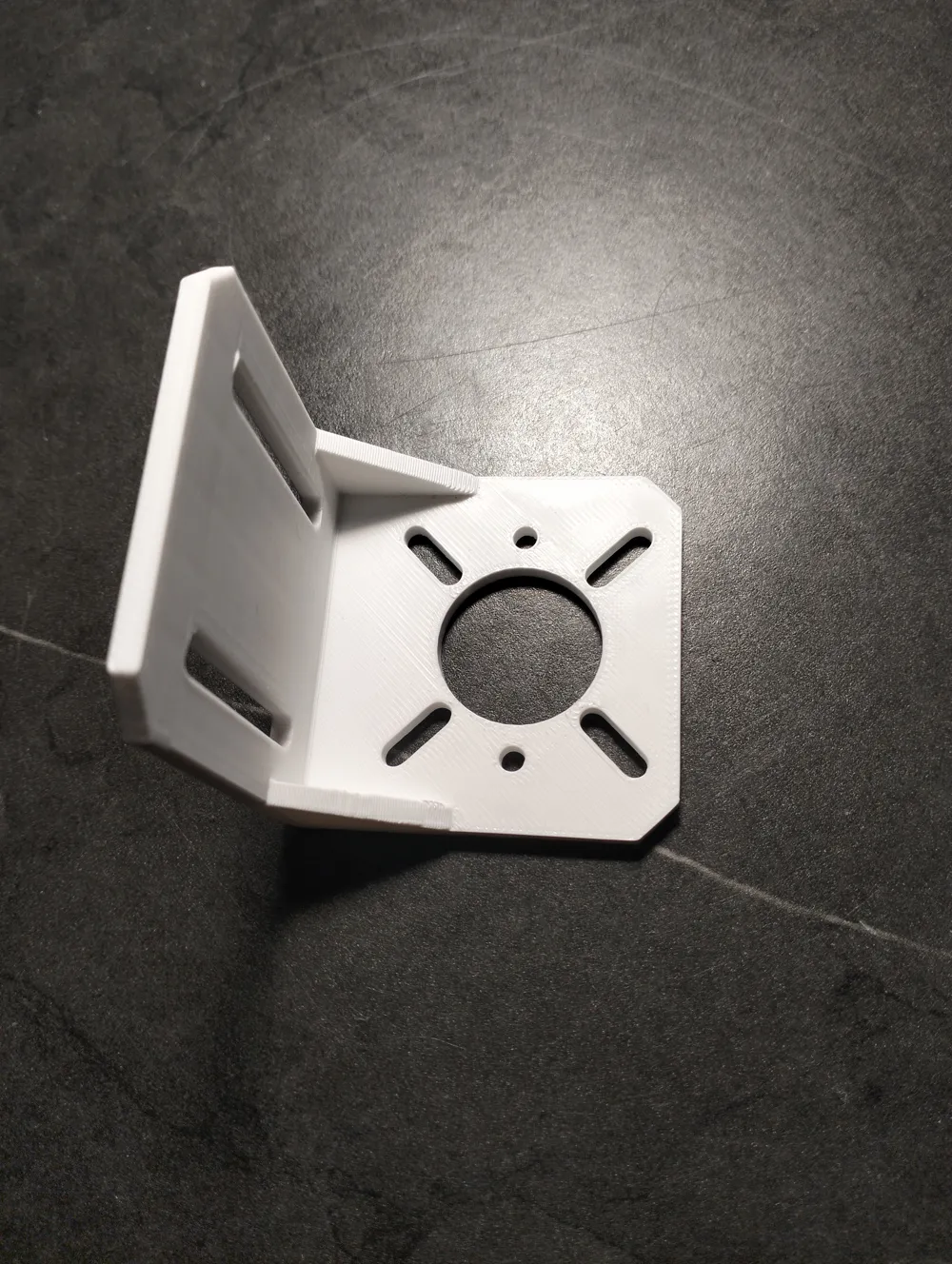

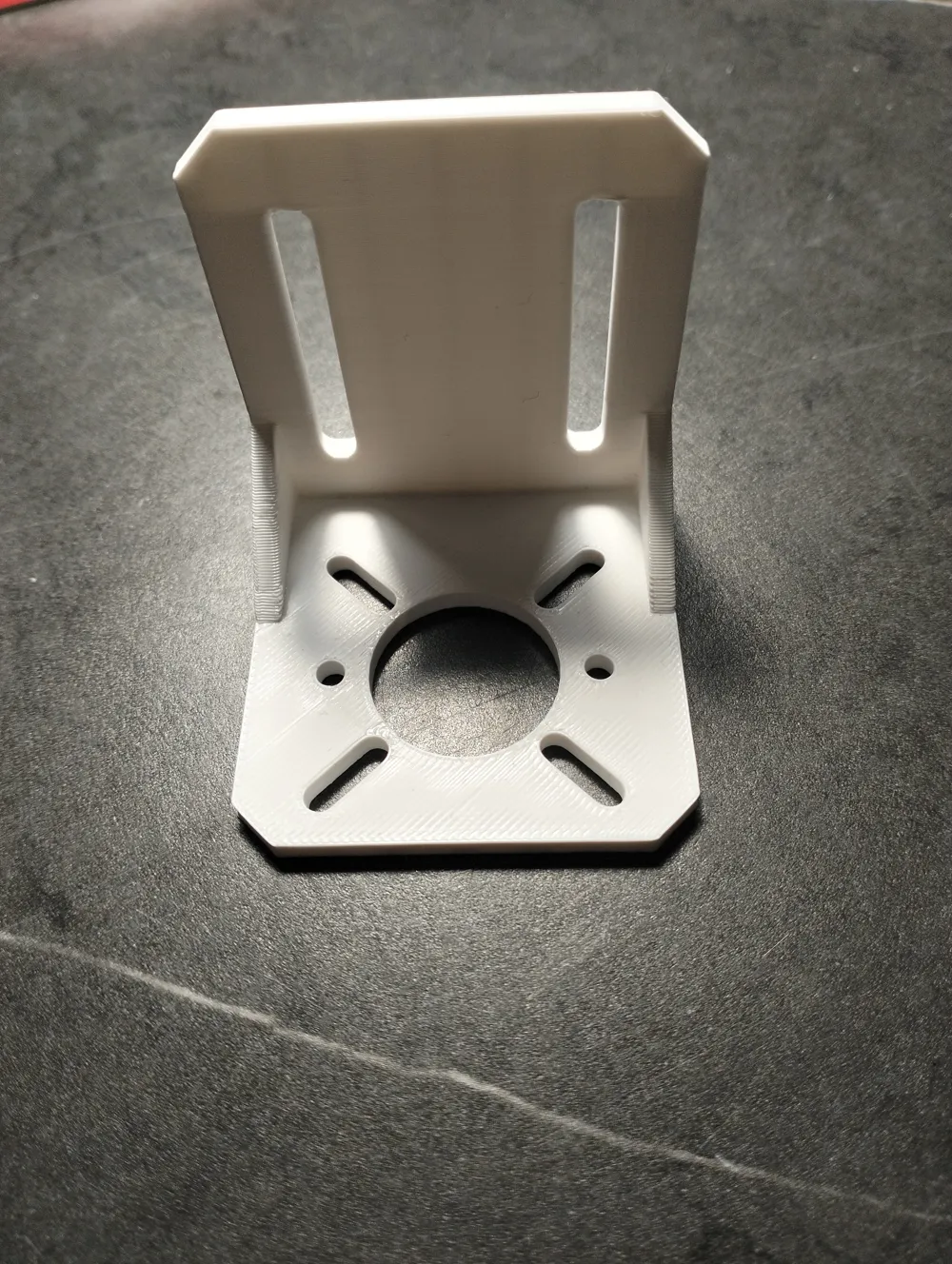

This is a universal motor mounting bracket designed for DC motors, stepper motors, and other round-flange motors with a φ22 mm shaft hole and 31 ±0.1 mm mounting hole spacing.
- Compatible with multiple DC motor sizes

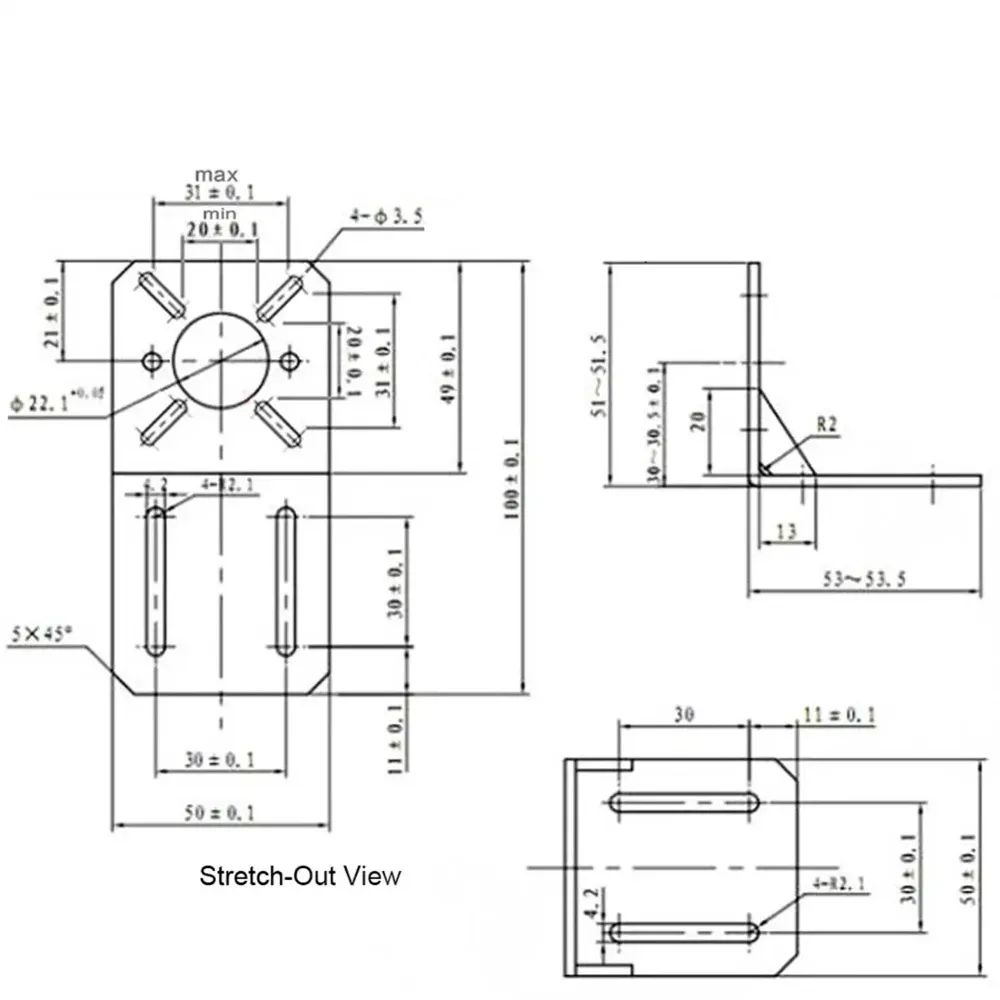

- Mounting hole diameter: 4 × φ3.5 mm
- Motor shaft hole: φ22 mm
- Bracket thickness: 2 mm
- Overall size: 100 × 50 mm
- Provides stable mounting for robotics, CNC, and automation projects
- Made from durable steel/aluminum (depending on version)
The bracket includes multiple slots and mounting options for flexible installation on aluminum extrusion frames (2020/2040), plates, or custom assemblies.
