Perfil de impresión sencillo, altura de capa 0,2, velocidades de la primera capa algo reducidas y anchos de linea de primera capa reducidos.

Simple print profile, 0.2 layer height, slightly reduced first layer speeds and reduced first layer line widths.

0.2mm layer, 2 walls, 10% infill

Modelo un 45% más grande (escala 145%)

Large Model 145%

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Ayúdame con un boost a seguir aportando mis diseños!</boostcontent></boostme>&nbsp;Ya existen distintas Light Box en MakerWorld, pero quería aportar la mía propia.&nbsp;Está hecha con la ultima versión de MakerLab, por lo que tiene una capa de difusión debajo del dibujo, que mejora la difusión de la luz y los posibles agujeros del diseño a la hora de imprimirse.&nbsp;Tamaño de aproximadamente 160 mm, imprimible en una A1 MINI.&nbsp;Altura de espacio interno de 20 mm aprox, suficiente para poner dos tiras led muy juntas entre sí.&nbsp;Agujero posterior mínimo para que no quede espacio, pero suficiente para pasar la tira de led un poco doblado si no quieres soldar.

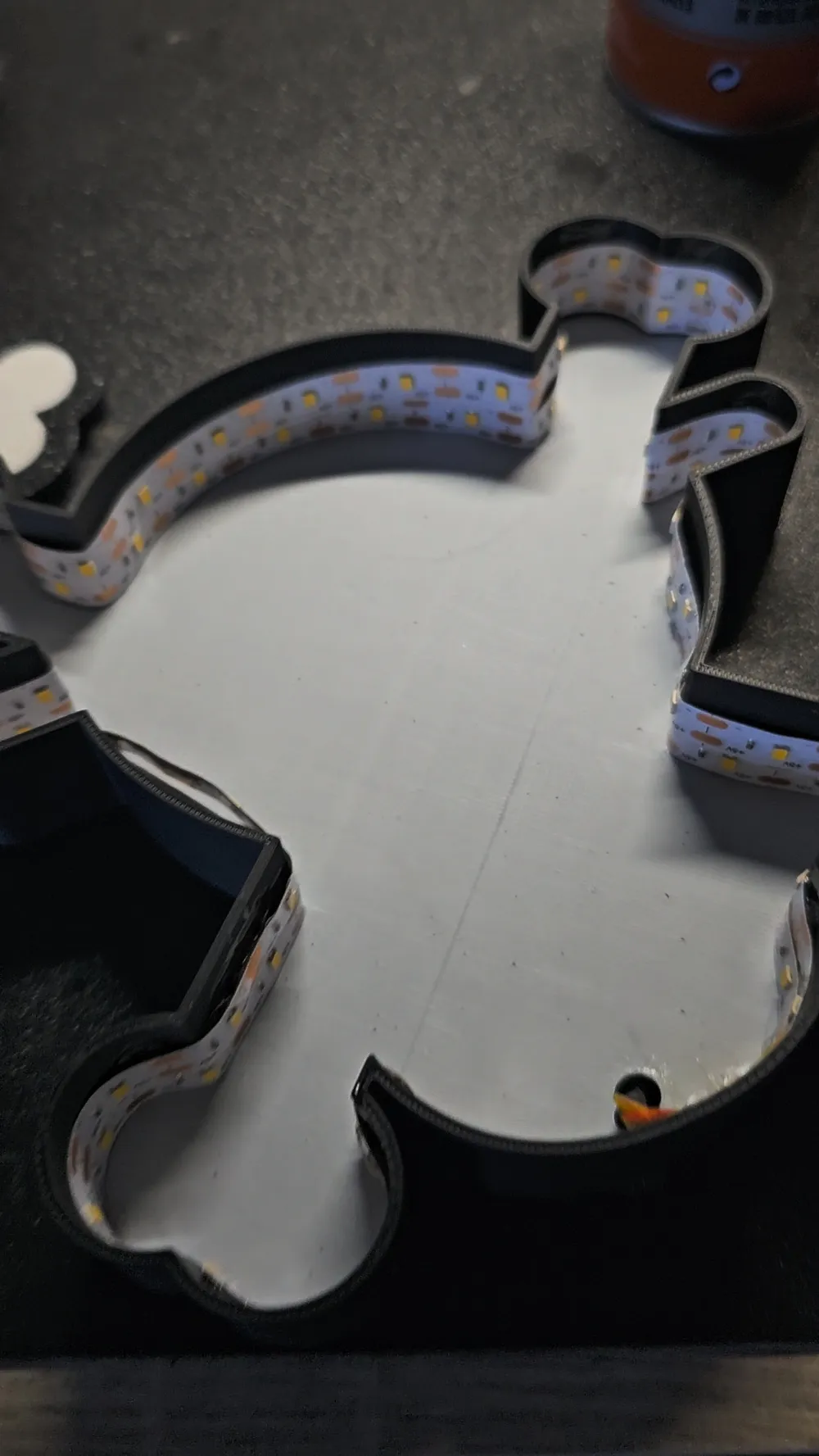

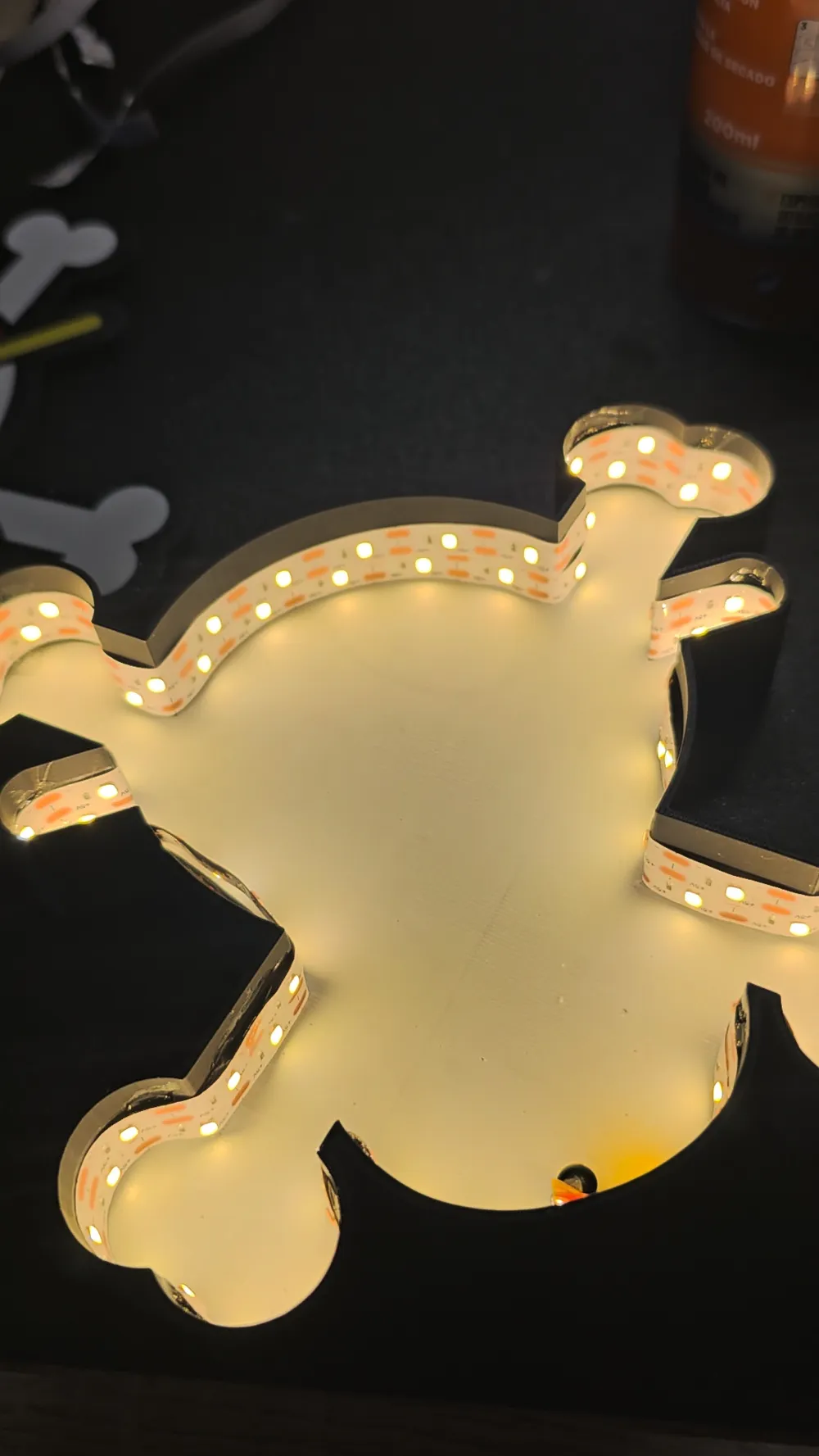

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Help me with a boost to continue contributing my designs!</boostcontent></boostme>&nbsp;There are already different Light Boxes on MakerWorld, but I wanted to contribute my own.&nbsp;It is made with the latest version of MakerLab, so it has a diffusion layer under the drawing, which improves light diffusion and possible design holes when printing.&nbsp;Size of approximately 160 mm, printable on an A1 mini.&nbsp;Internal space height of approximately 20 mm, enough to place two LED strips very close together.&nbsp;Minimum rear hole so that there is no space, but enough to pass the LED strip slightly bent if you don't want to solder.
