Small part Boxes 11 pieces
Print Profile(1)
Description

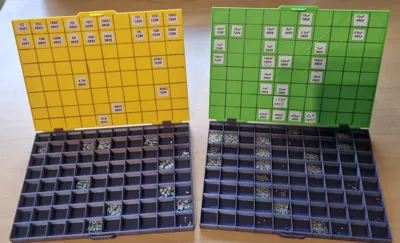

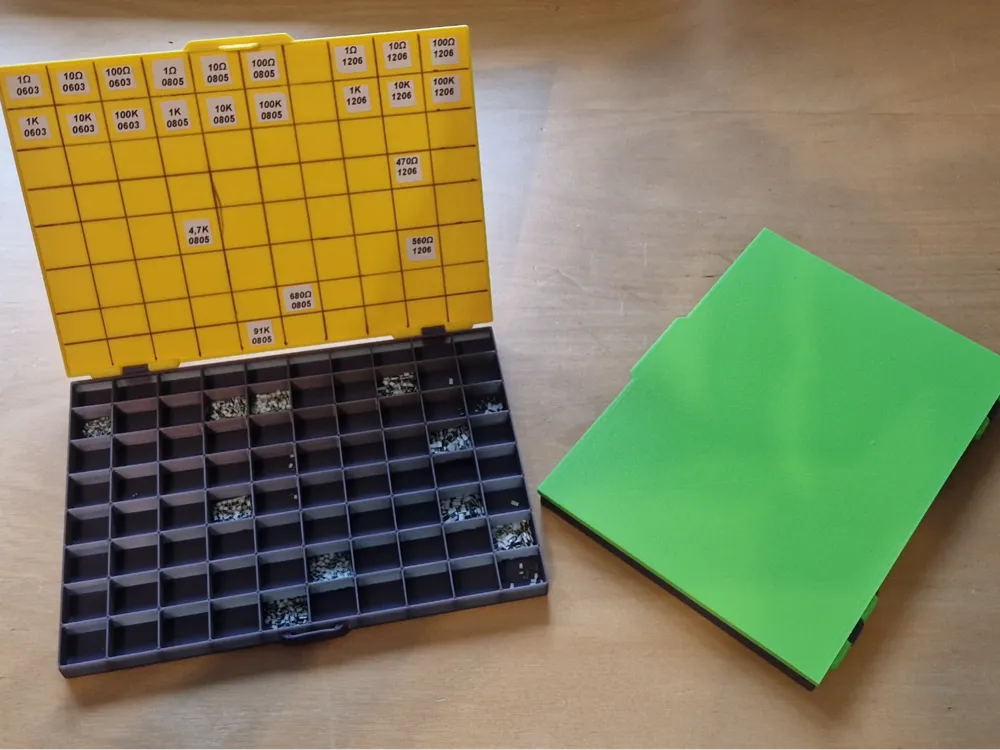

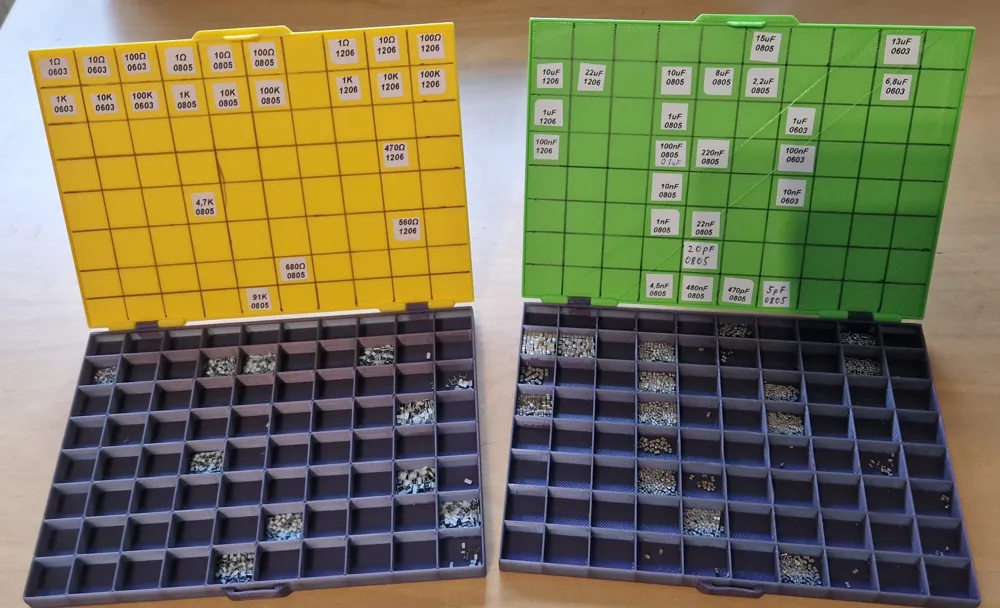

I have created some SMD boxes here, which I use myself for my resistors and capacitors.
For greater functionality, I have now created some more with slightly smaller and larger compartments.
The boxes measure approx. 17 x 13 x 1.4 cm.

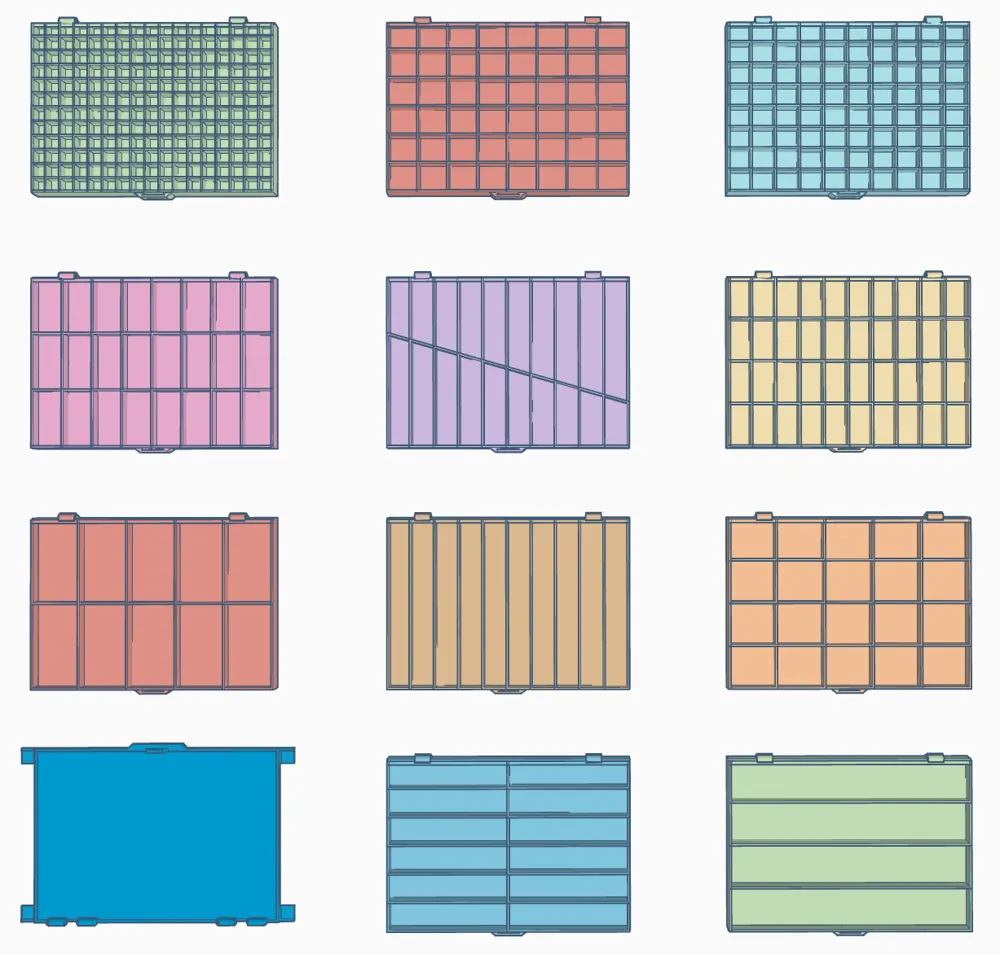

The boxes have 204/80/48/40/24/12/10/4 compartments,
the lid is always the same.
for example:
The compartments in the 204 box are approx. 10 x 10 mm in size.
The compartments in the 80 box are approx. 14 x 16 mm in size.
The compartments in the 48 box are approx. 20 x 20 mm in size.

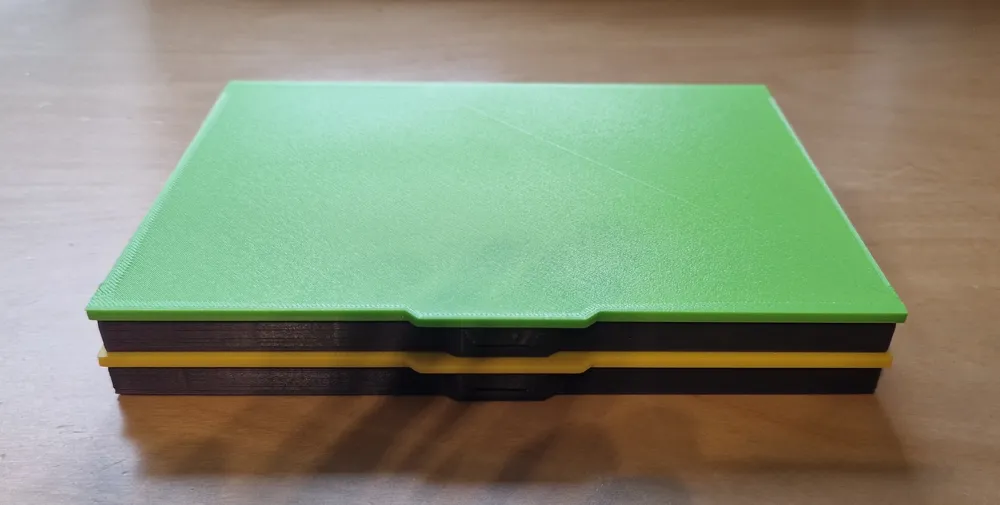

There are tabs on the lid that can be folded down and glued so that the boxes can be stacked. However, these can also be simply cut off if not needed.
