Slim Faketec Solar Case - Meshcore / Meshtastic
Print Profile(1)
Description

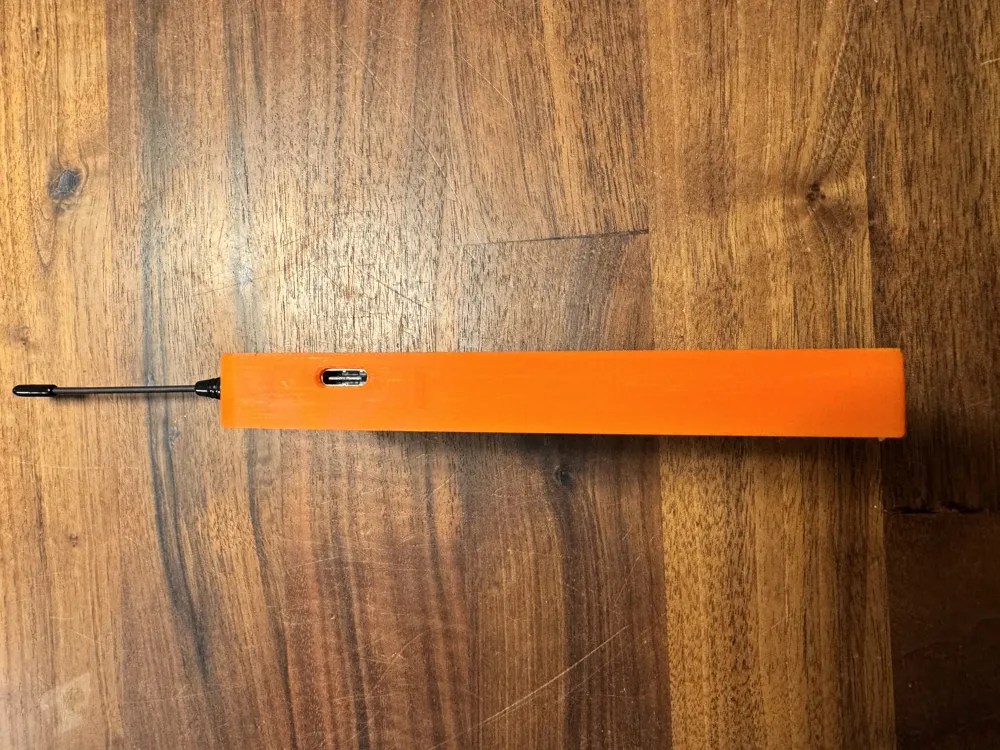

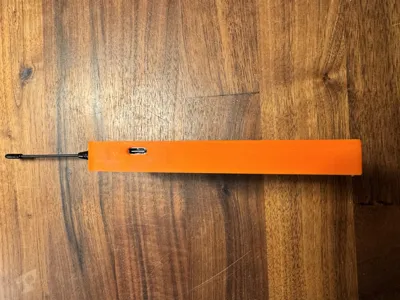

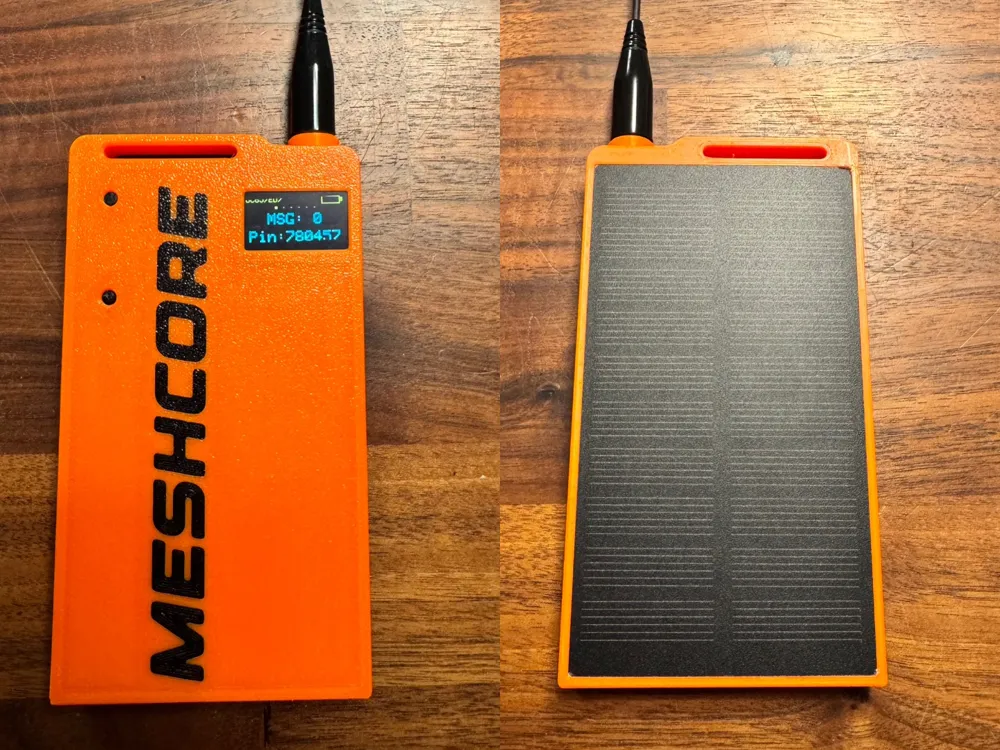

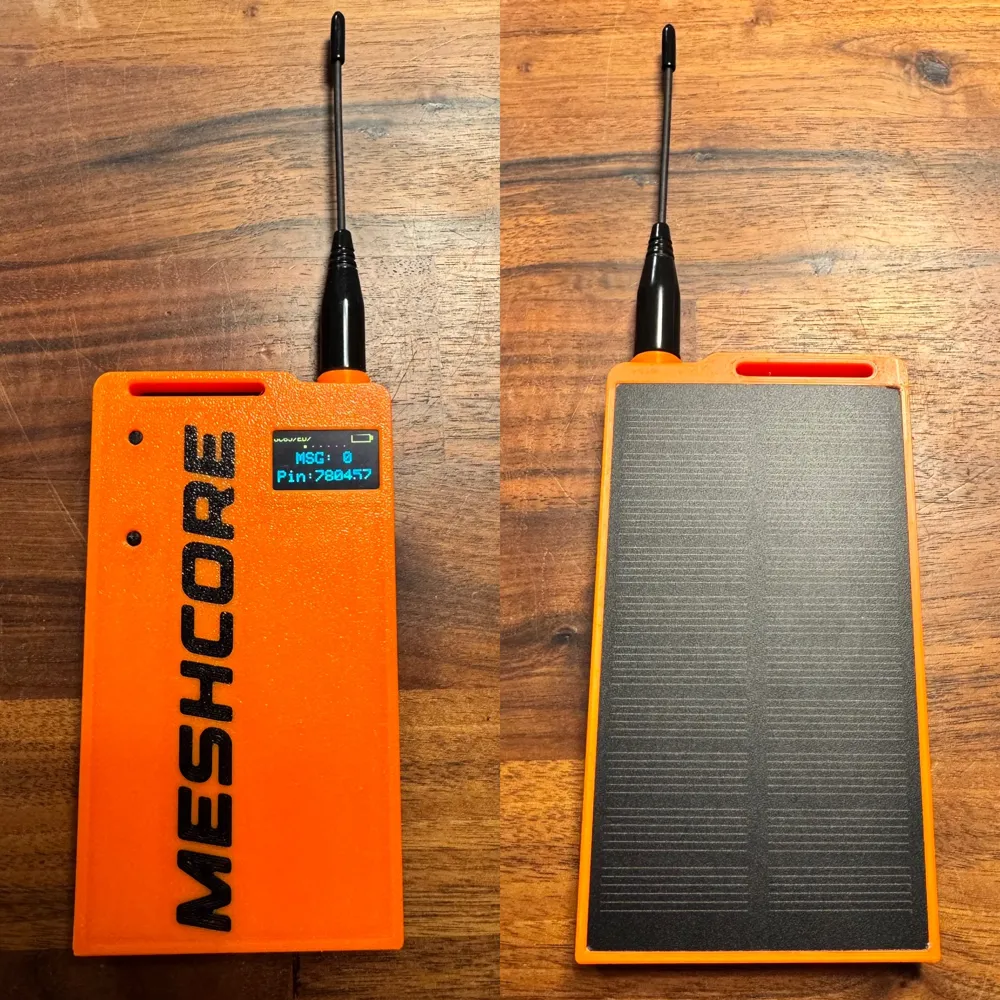

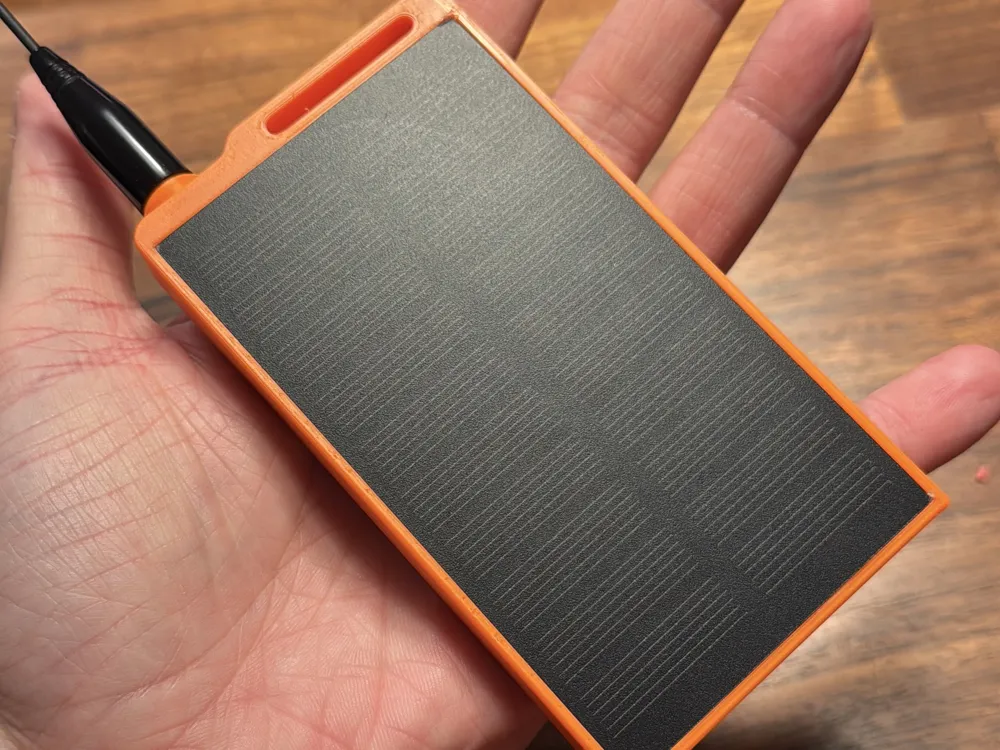

14mm Slim Solar Case for Meshcore / Meshtastic
no support needed
version with internal antenna → https://makerworld.com/en/models/1801828-slim-faketec-solar-case-meshcore-meshtastic#profileId-1921490
i suggest to print the user button and the antenna ring in different color and leave the reset button in the same color as the case

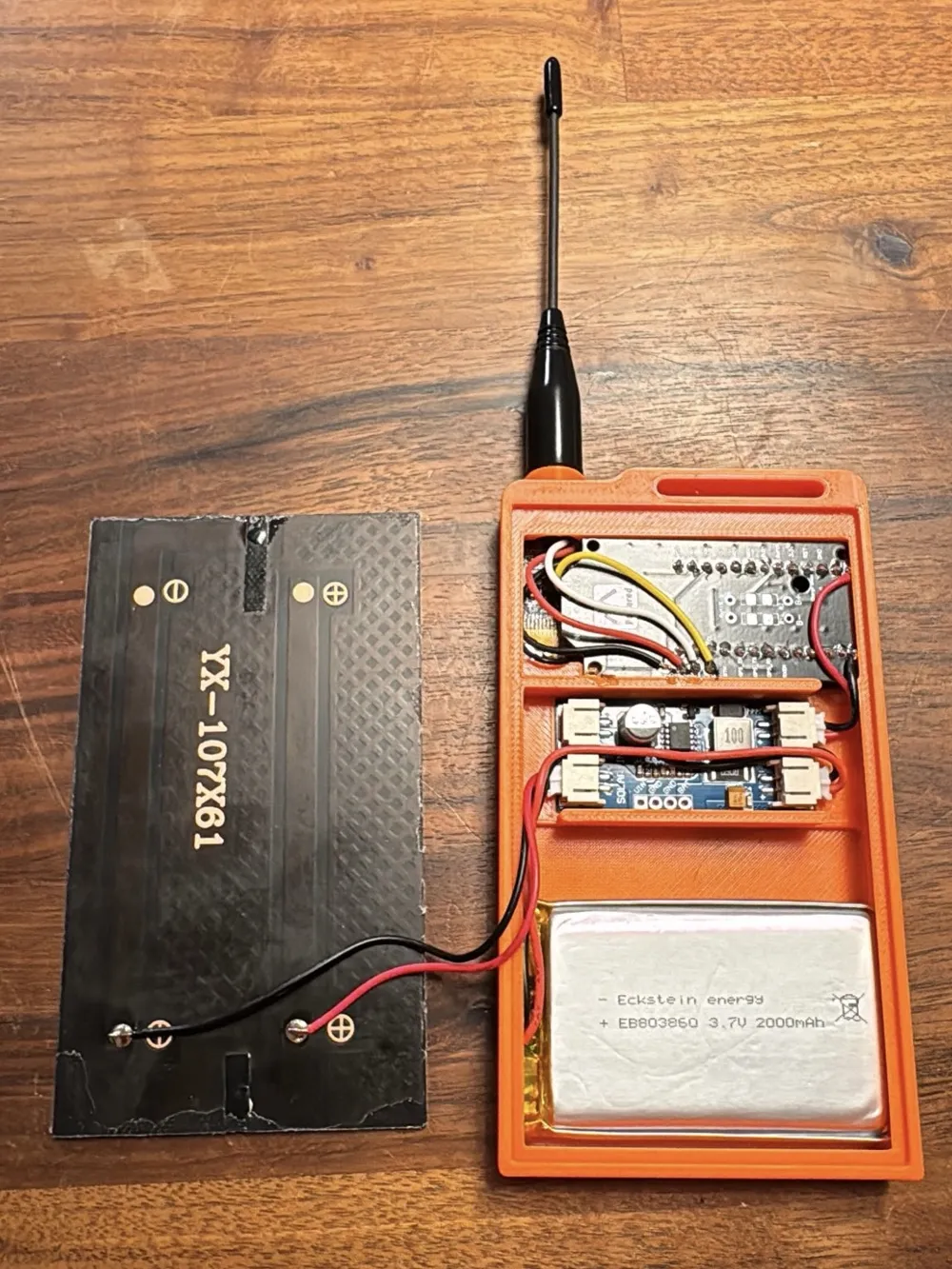

Faketec NRF52 + SX1262 ( https://github.com/gargomoma/fakeTec_pcb )

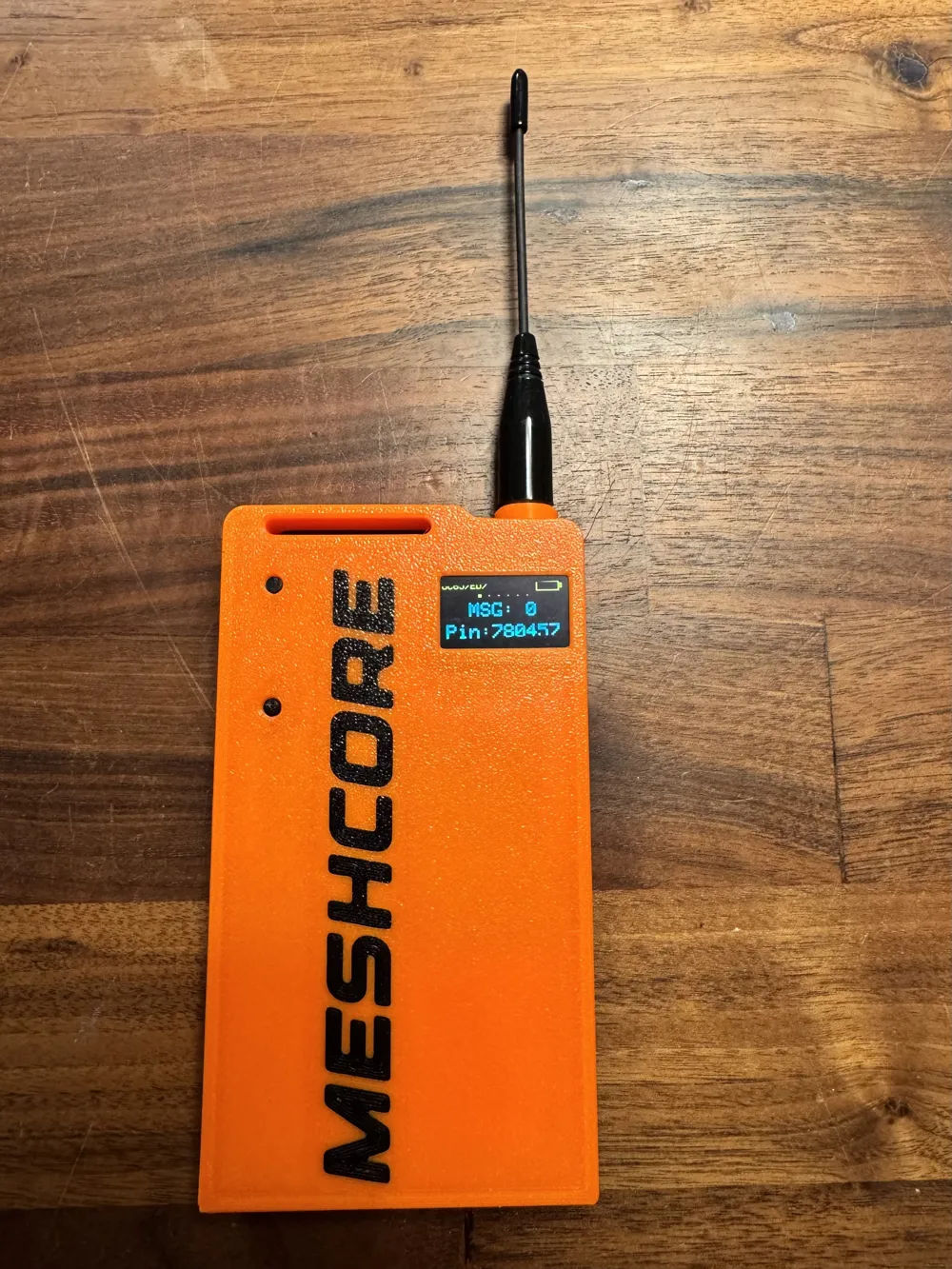

0.96" i2c OLED Display ( https://de.aliexpress.com/item/1005006141235306.html )
5cm SMA to IPX pigtail ( https://de.aliexpress.com/item/4000086100103.html )
2000mAh Battery ( 803860 for example https://de.aliexpress.com/item/1005003098945773.html don't buy the cheapest one … i bought these https://eckstein-shop.de/LiPo-Akku-Lithium-Ion-Polymer-Batterie-37V-2000mAh-mit-JST-PHR-2-Stecker-LP803860 )
MPPT solar charge controller ( https://de.aliexpress.com/item/1005008744020414.html make shure to get the 5/6V version!)

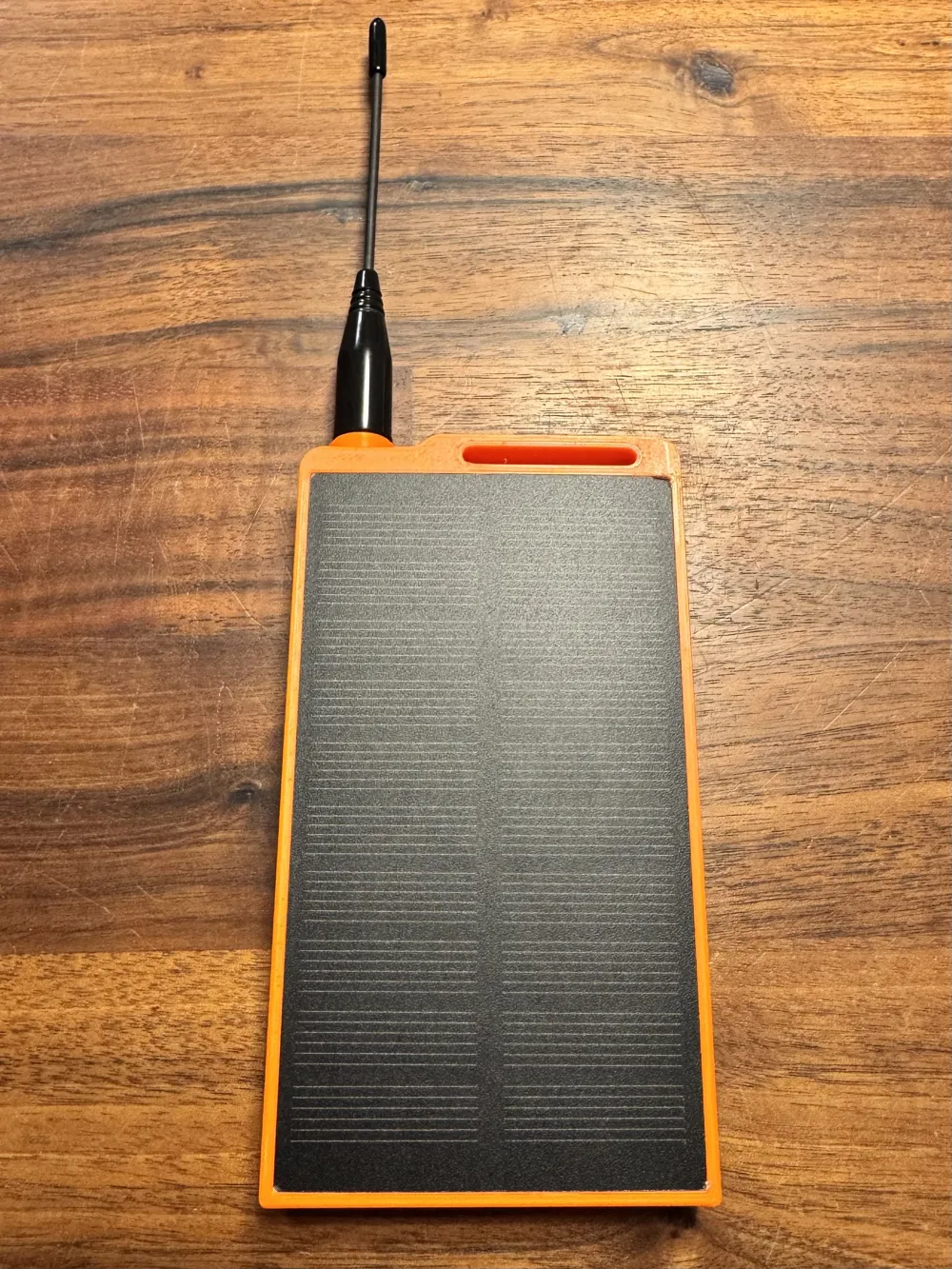

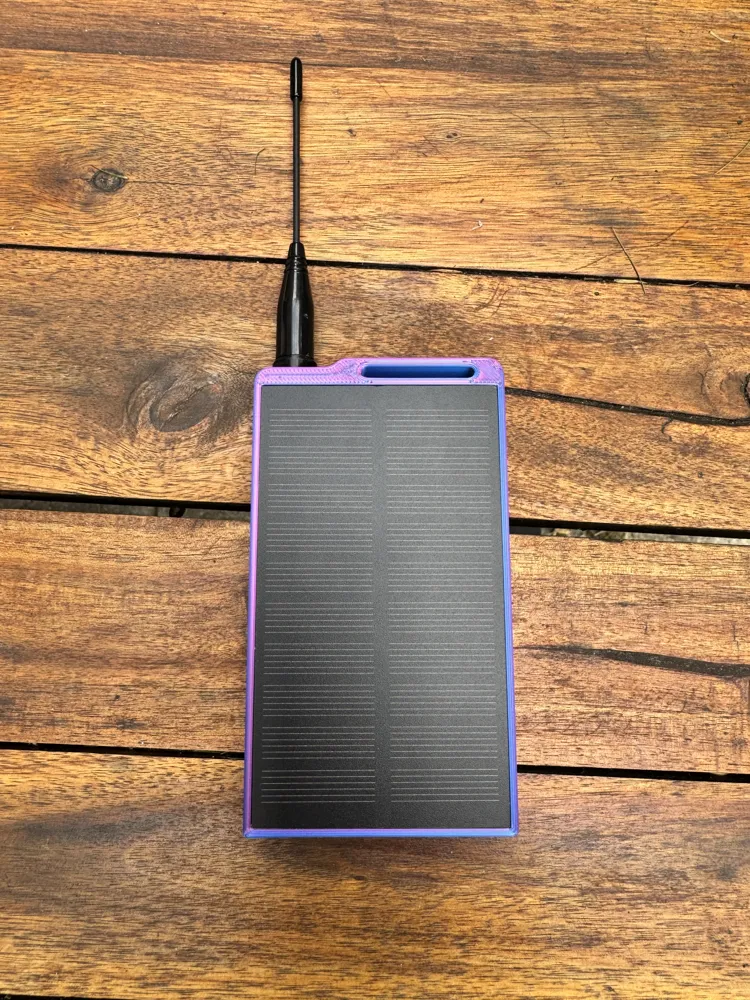

1W (?) Solar panel ( https://de.aliexpress.com/item/1005008628246215.html )
Just make shure to cut the pins of the faketec really (!) short. Use max 1mm diameter silicone cables!
If you'd like some changes ( like different logo ) just let me know and if you print one please share pictures :)

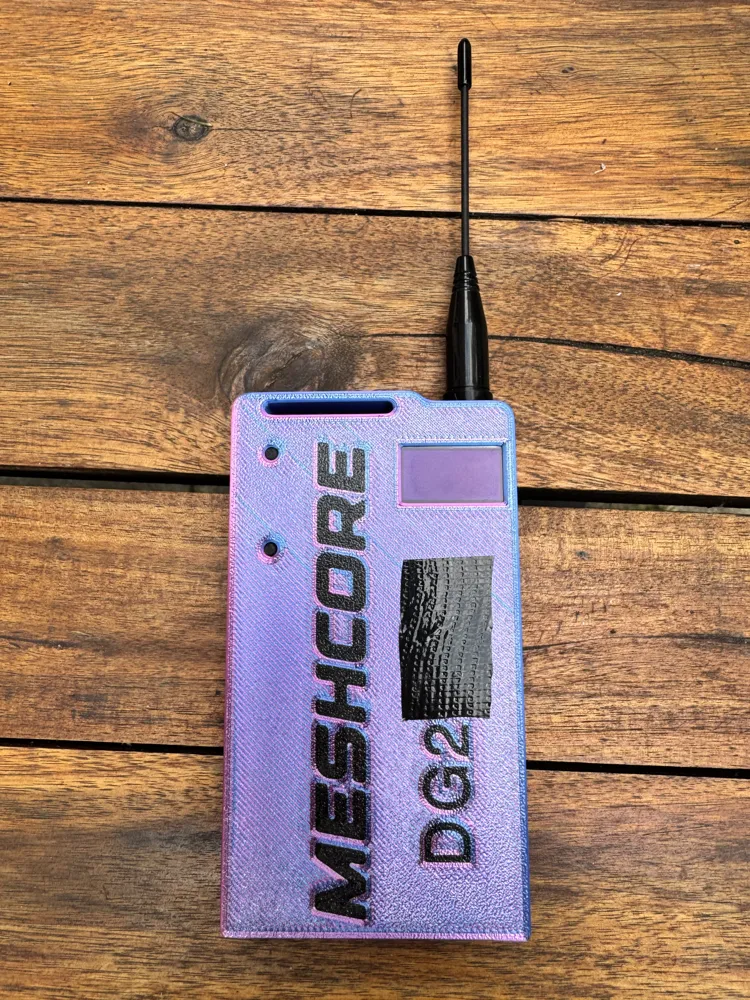

added a meshcore logo version and one without any logo
if you'd like to support my work → https://paypal.me/marcelverdult
