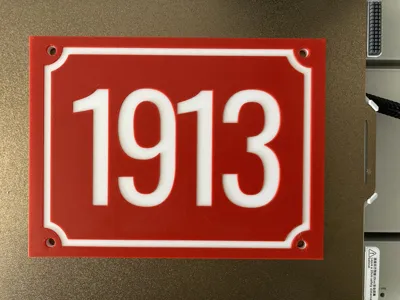

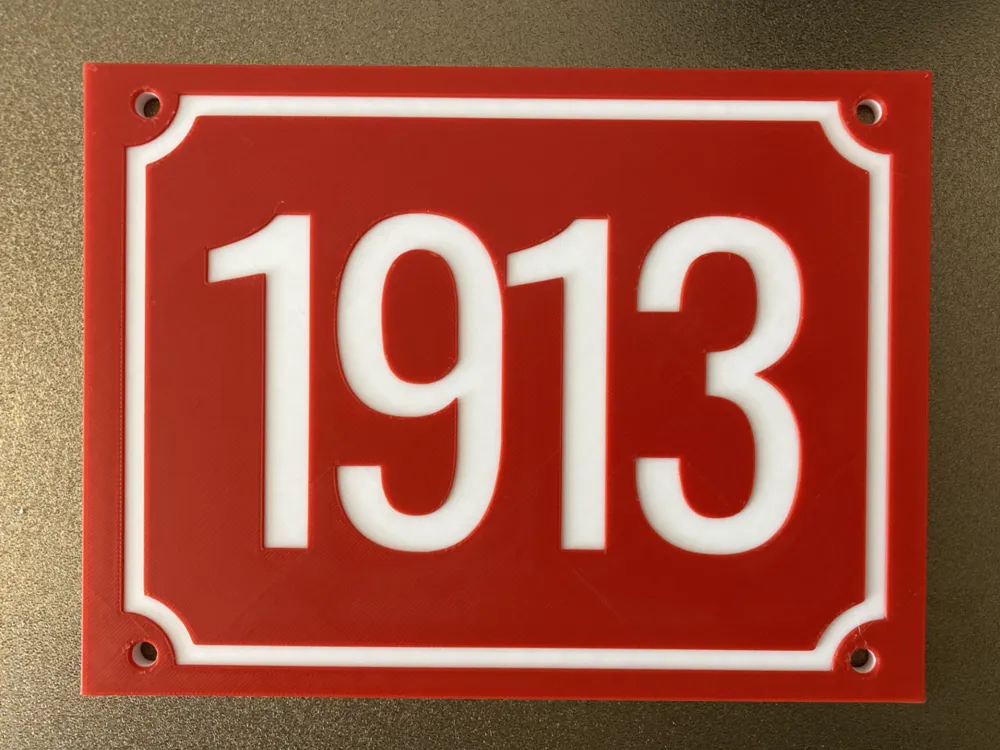

📐 Customizable Engraved Plate with Chamfered Edges
This model generates a rectangular plate with:
- ✅ Adjustable width, height, and thickness
- ✅ Top chamfer (beveled edge) with customizable size
- ✅ Corner mounting holes with countersink
- ✅ Optional engraved decorative ring
- ✅ Engraved text with customizable font, style, size, and spacing
The plate is color-split in the preview to simulate a two-layer material (e.g., laser engraving laminate):
- Top layer (PLATE_COLOR) → surface color
- Lower layer (TEXT_COLOR) → revealed after engraving
This makes it easy to preview how engraving will look before manufacturing.
⚙️ Parameters
- Plate Dimensions: width, height, thickness
- Chamfer: adjustable bevel on the top side
- Holes: radius, offsets, countersink depth
- Inner Decoration: offset rectangle with rounded notches, engraved to a defined depth
- Text: custom text, font family, weight/style, size, spacing
- Colors: configurable for plate body, chamfer top, holes, and text
