Renlab Ultrasonic Cutting Knife A35_Portable Motherboard Box
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description
Content has been automatically translated.
Renlab Ultrasonic Cutting Knife A35_Portable Motherboard Box Printing Guide:
Applicable Machines: P Series, X Series, A Series, H2D
nozzle Specifications: 0.4mm
Applicable Material: PLA (other materials to be tested)
Bill of Materials (excluding printed parts): Motherboard x1 (needs to be removed from original host box)

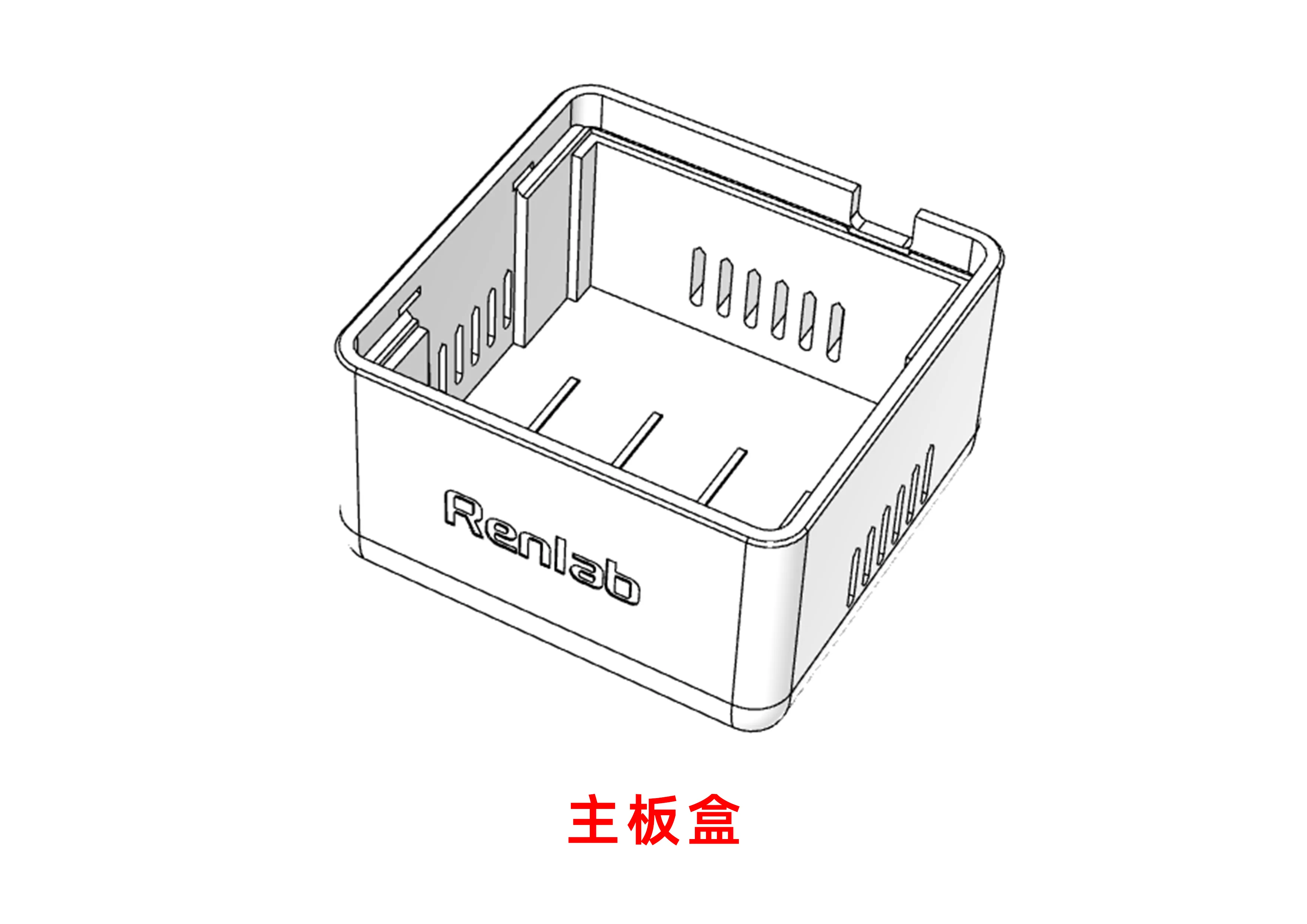

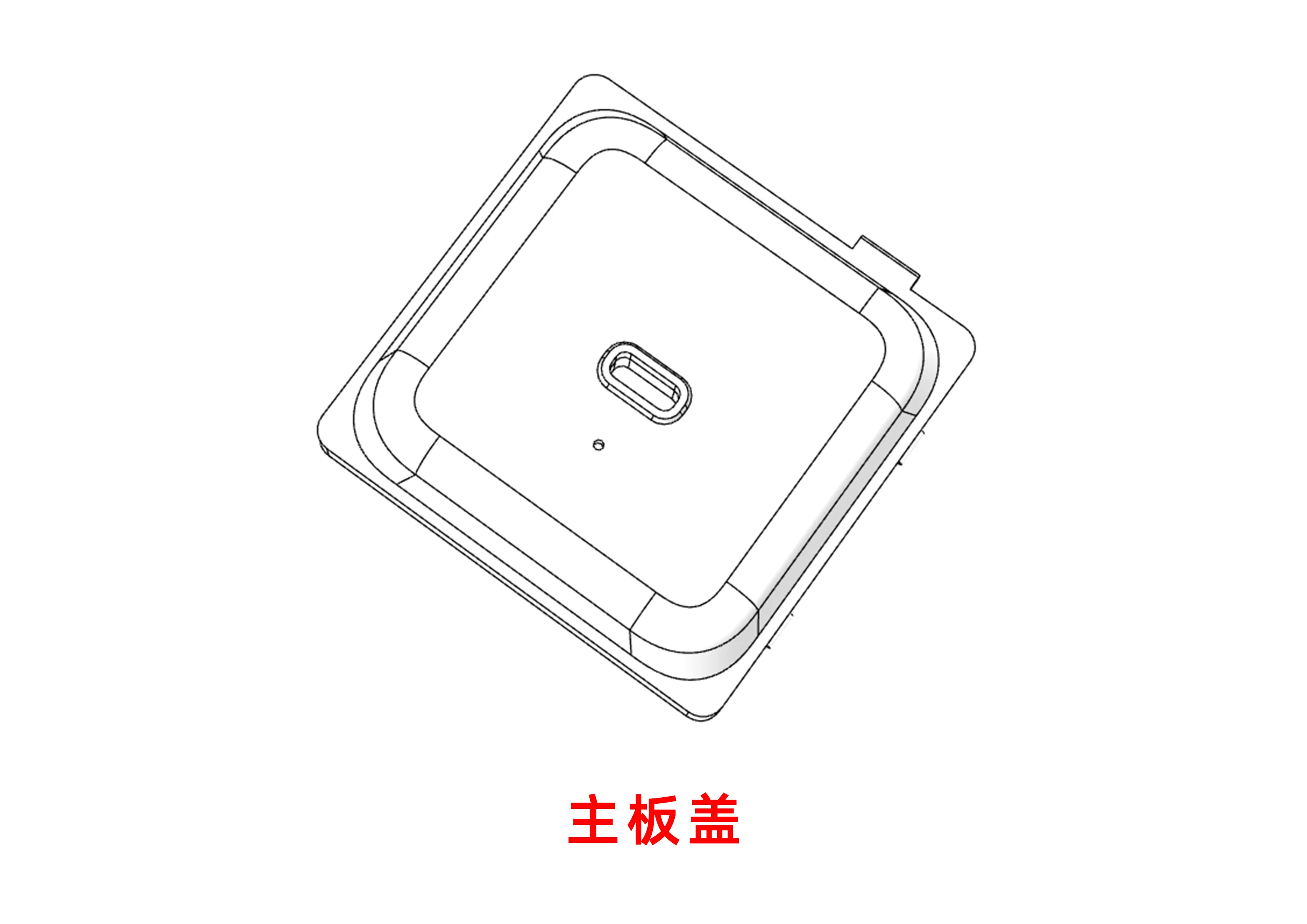

Printed Parts List: Motherboard Cover x1, Motherboard Box x1
Printing Settings: Motherboard Cover_Normal Support 30°, Motherboard Box_no supports
Disassembly Instructions:
1. Remove internal components from the box (handle & straight data cable & angled data cable & hex wrench & blade tubes x4 & adapter)

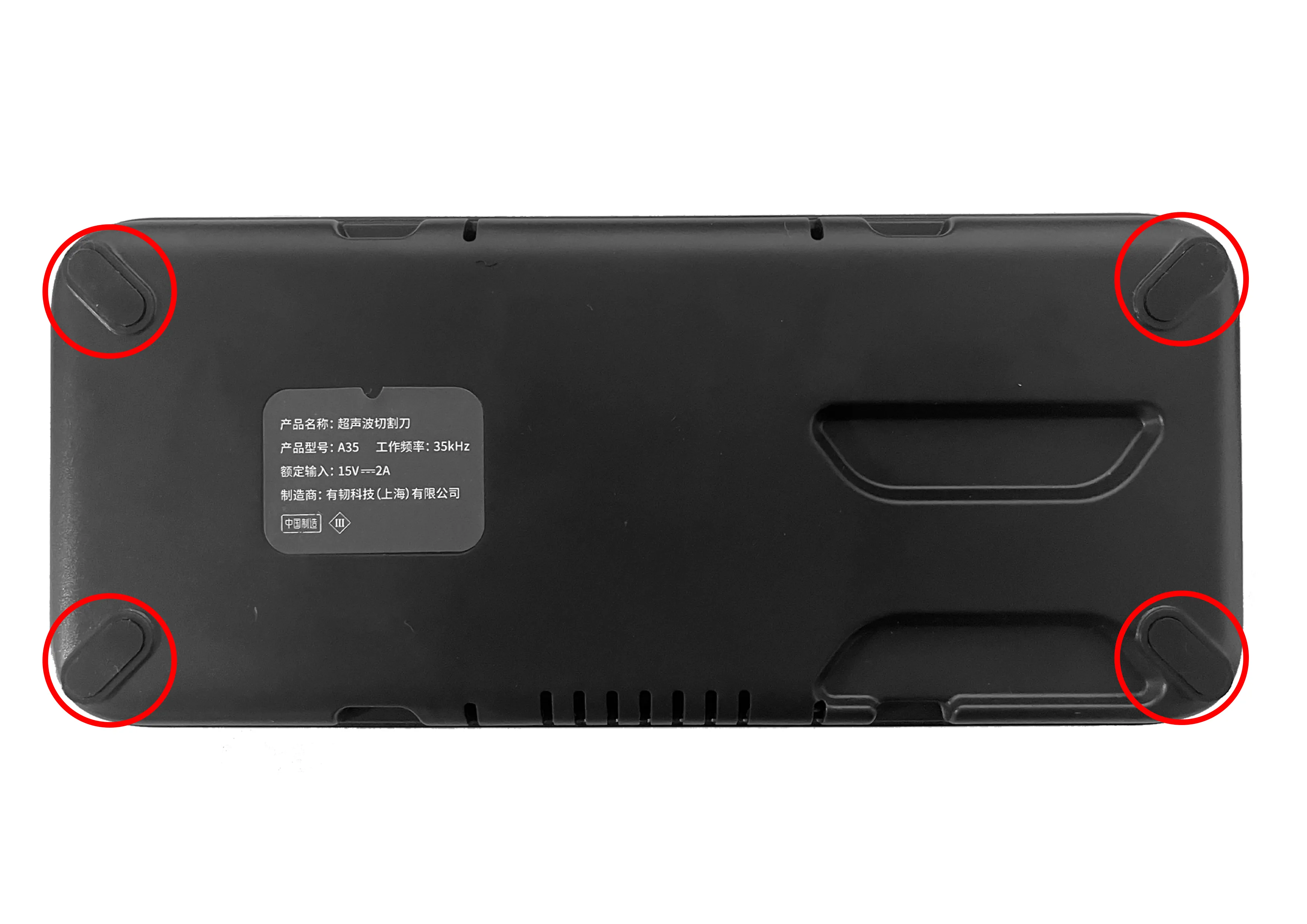

2. Turn the bottom of the box upwards and remove the footpads.2. Turn the bottom of the box upwards and remove the footpads

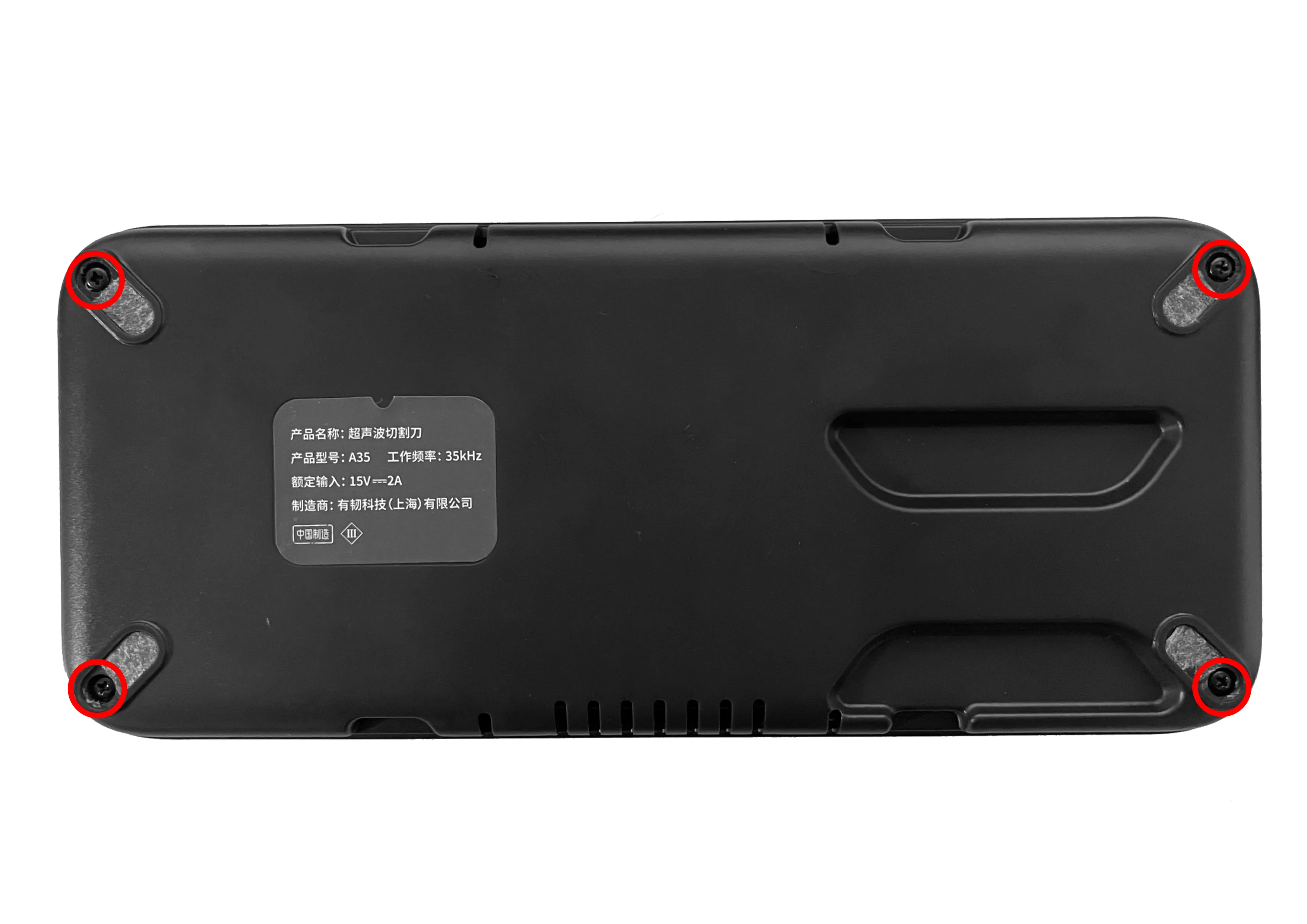

3. Remove 4 screws

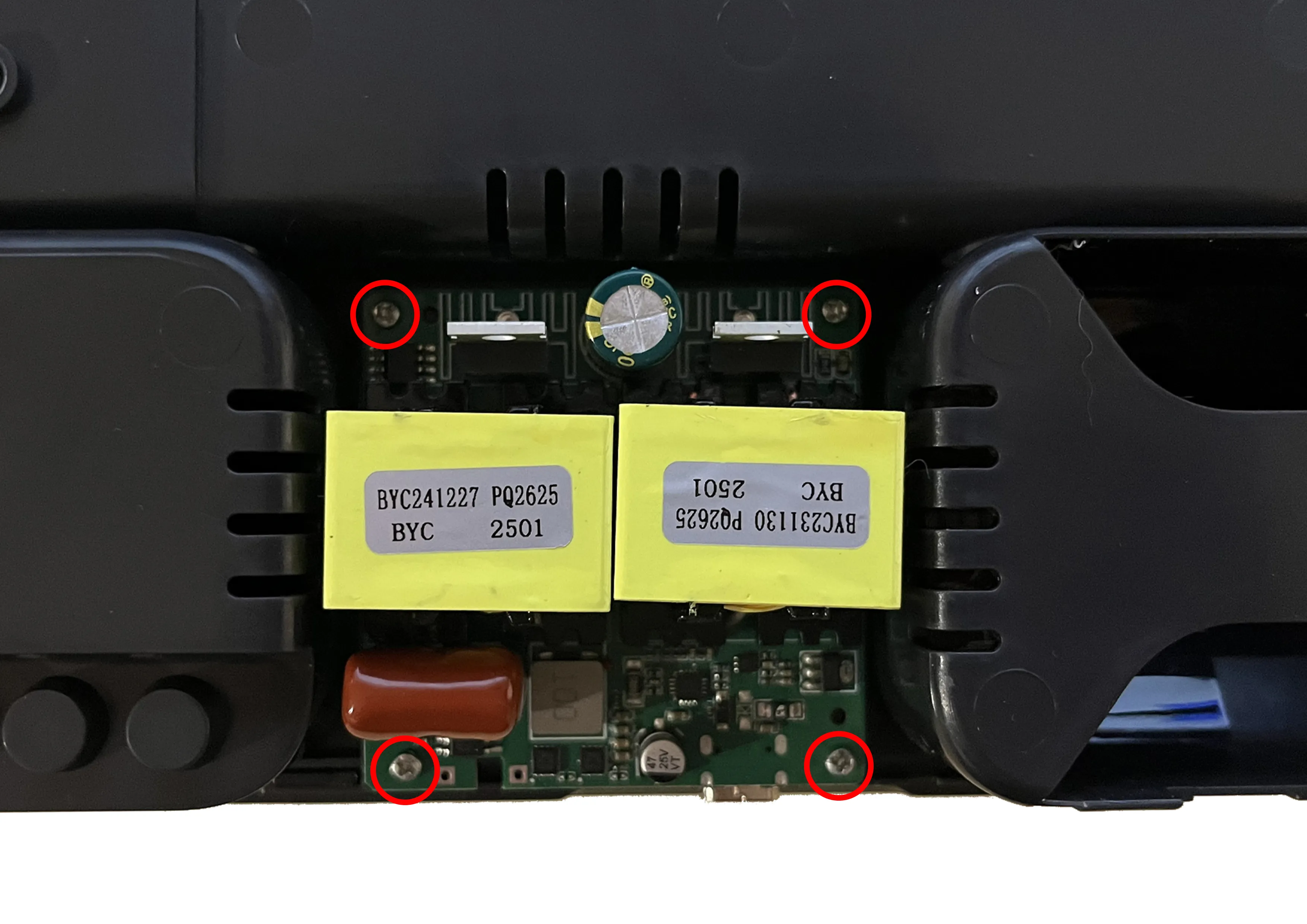

4. Separate the top and bottom shells of the box, remove the 4 screws securing the motherboard, and take out the motherboard
Assembly Instructions:
1. Remove the printed parts and remove supports

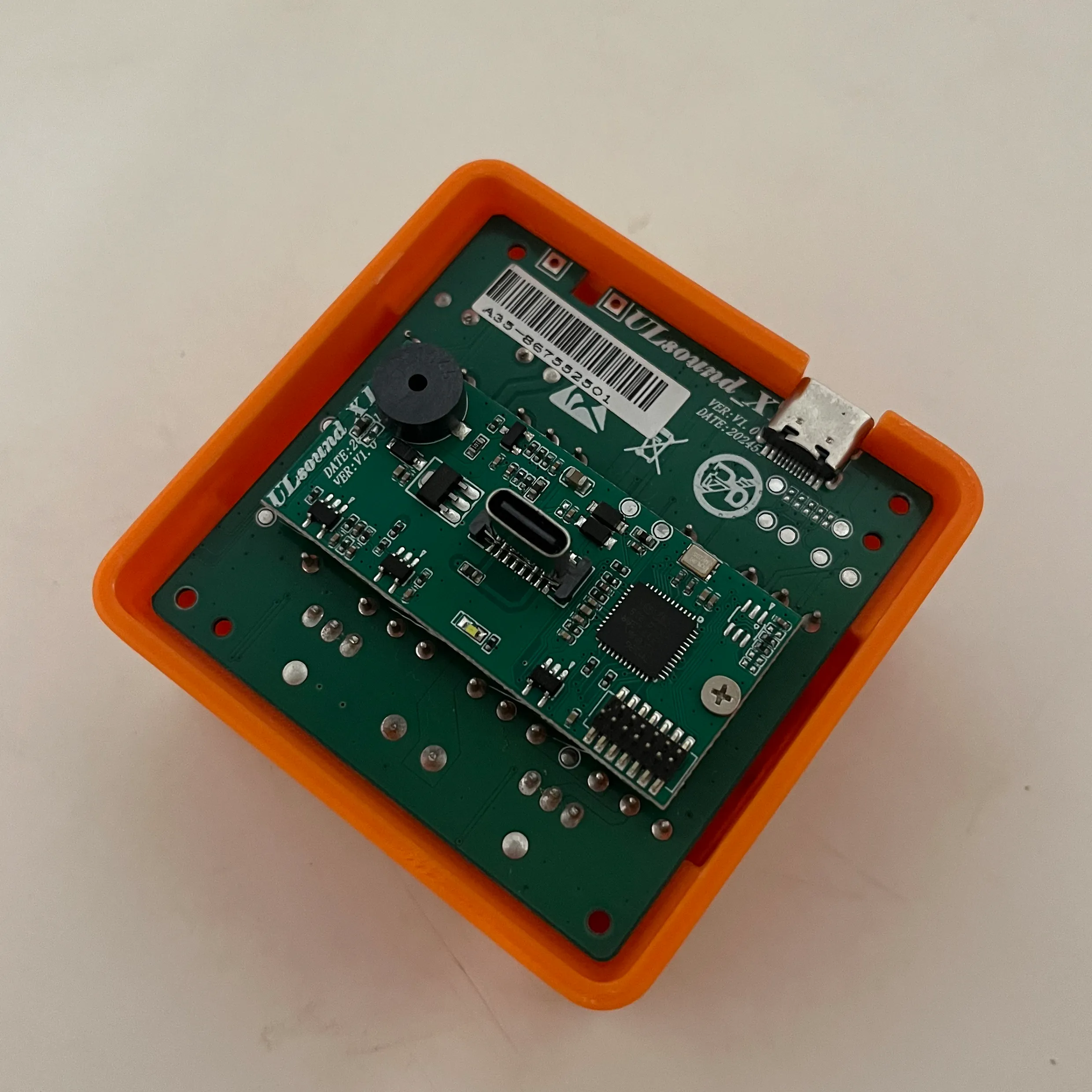

2. Place the motherboard into the motherboard compartment

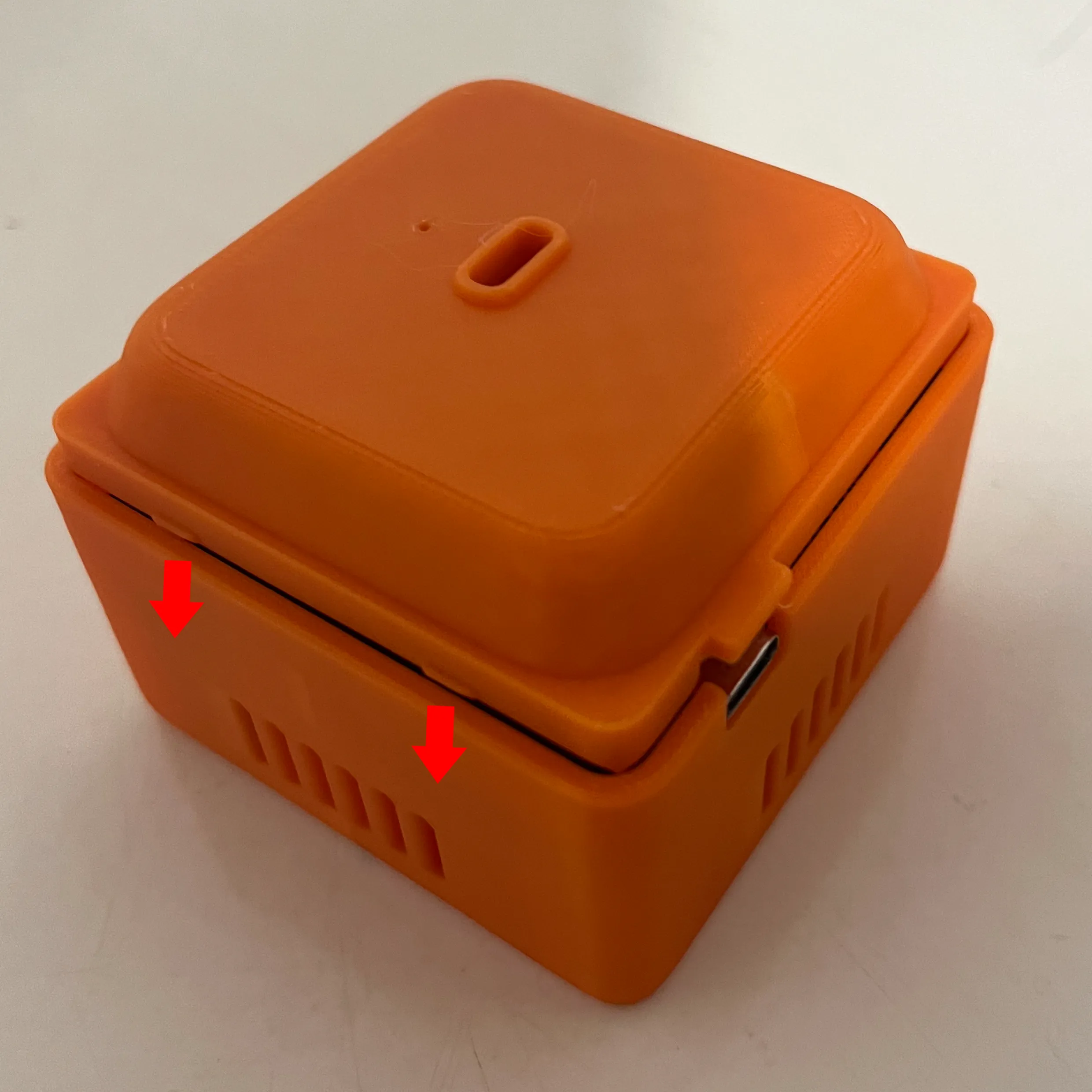

3. Snap together the motherboard cover assembly

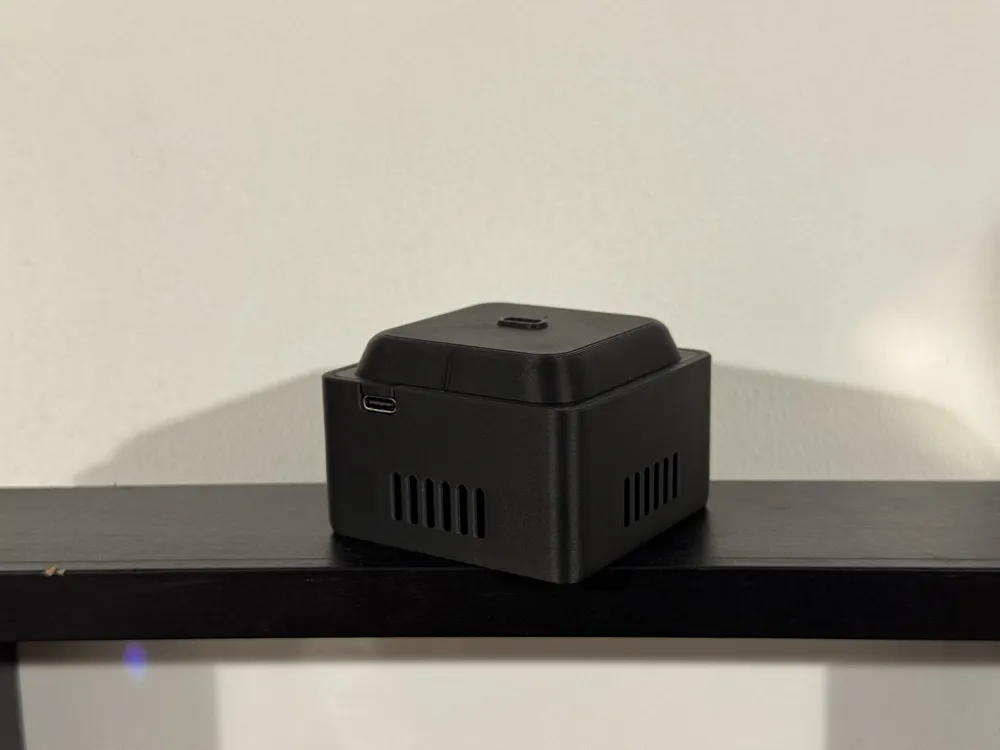

4. Assembly completed
