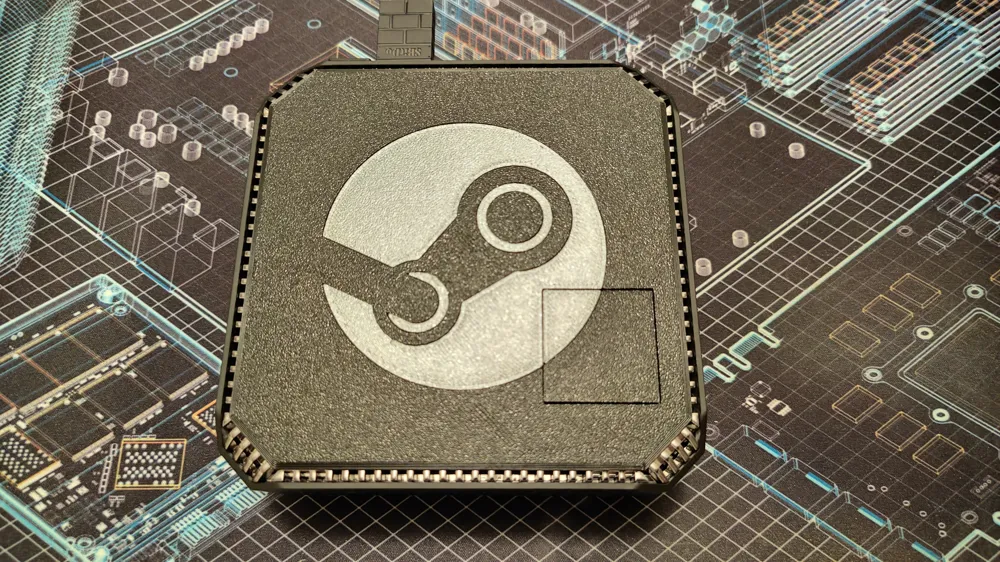

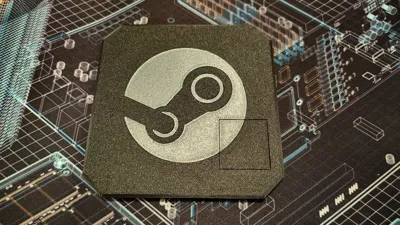

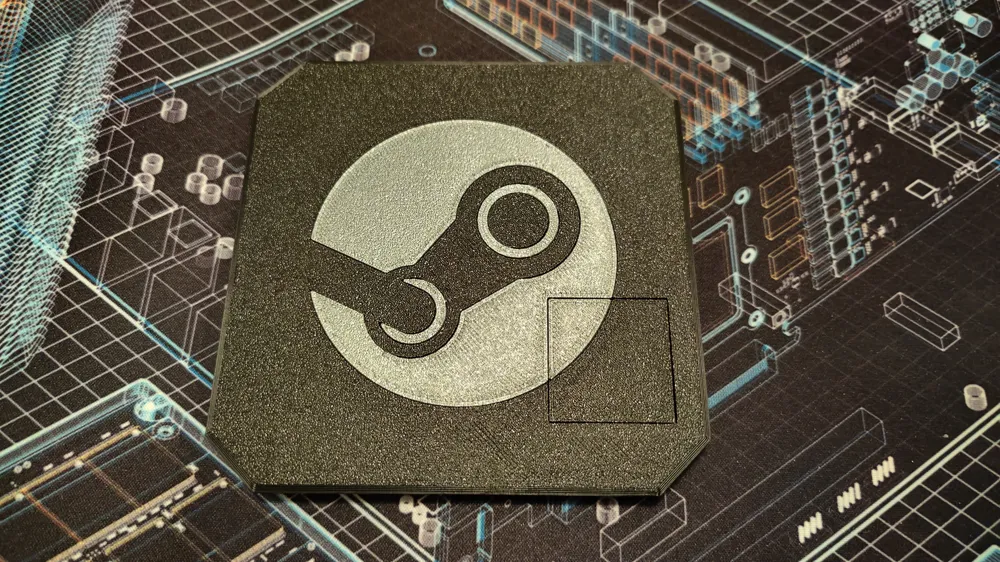

This is a variation of the Firebat A6 Replacement Lid with a swivel door for an OCuLink port.

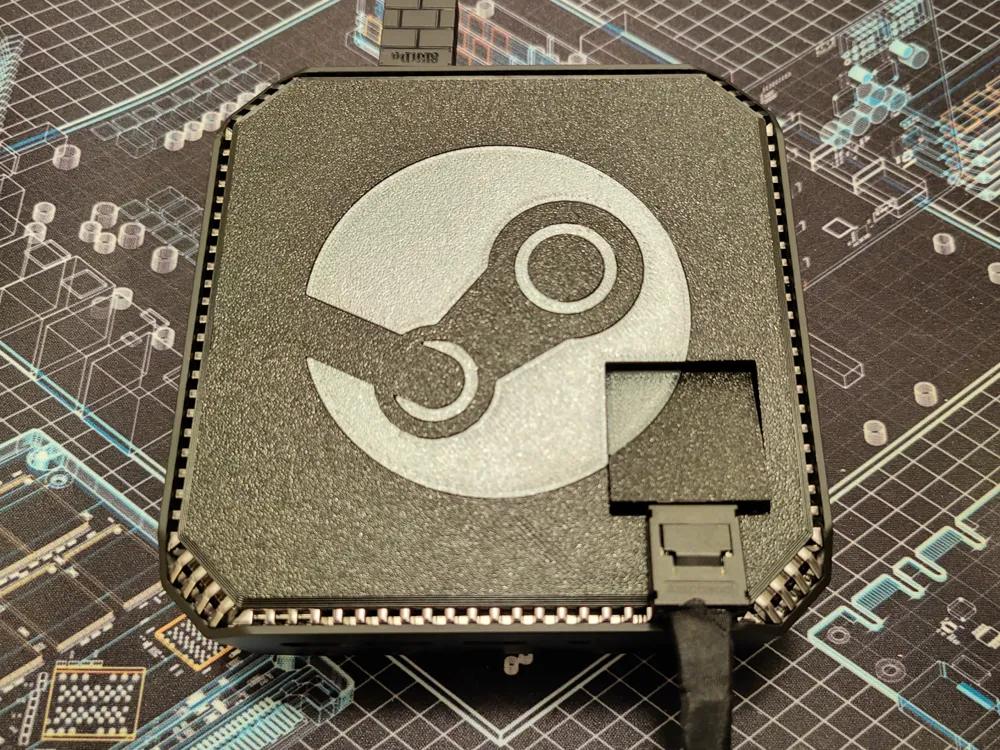

The door swivels in the middle when you press on the far side, presenting the port in the front.

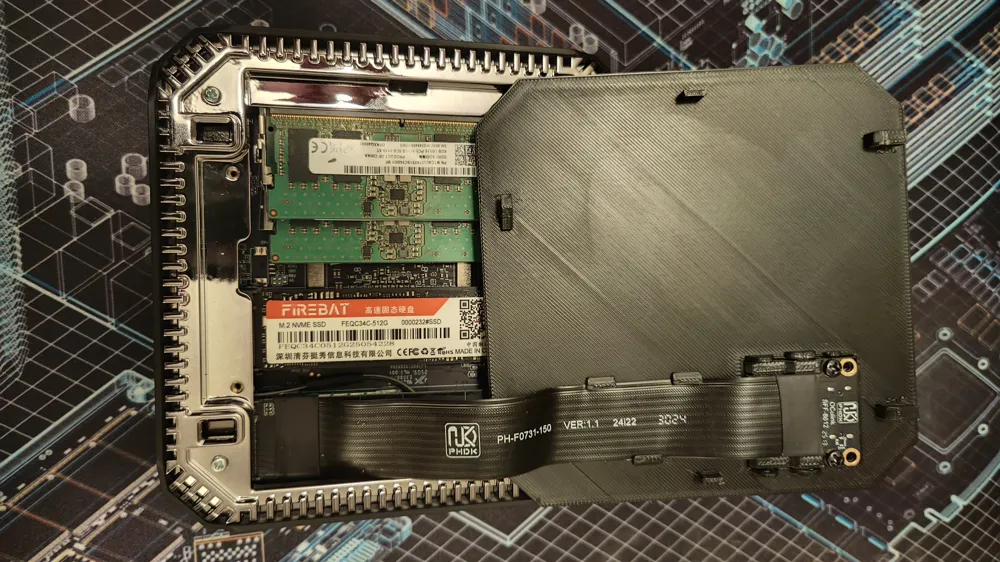

Note that to make room for the cable, this will require the removal of (or modification to) the metal grill under the lid which covers the RAM and M.2 slots (which is held down by 4 screws and easily removed).

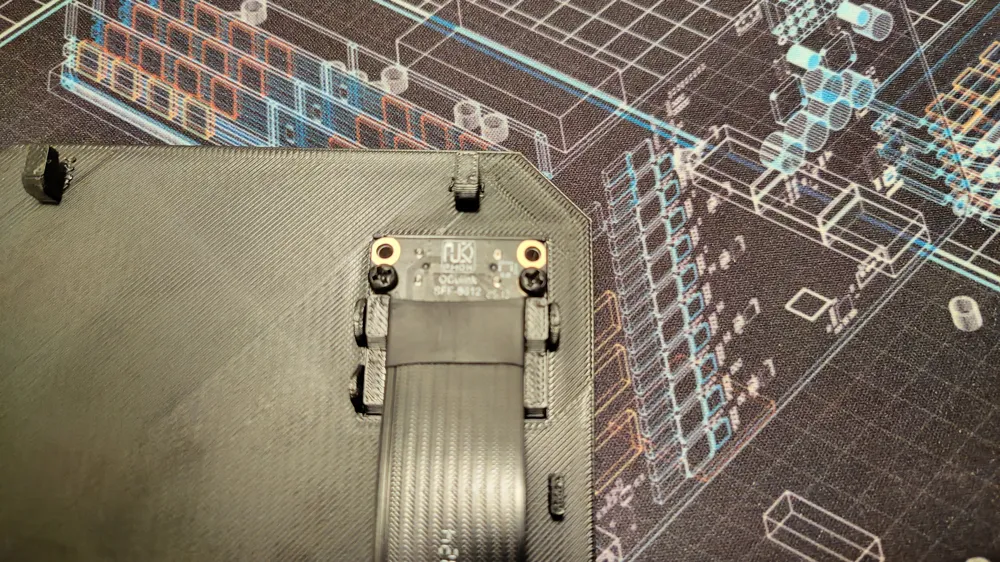

Additionally, you'll probably want a pair of M3x6mm screws to secure the adapter port to the door.  (careful not to tighten them too much - 4 or 5mm will also work)
