Automatic Rebound Egg Storage Rack

Self-rebounding Egg Storage Box - Storage Rack

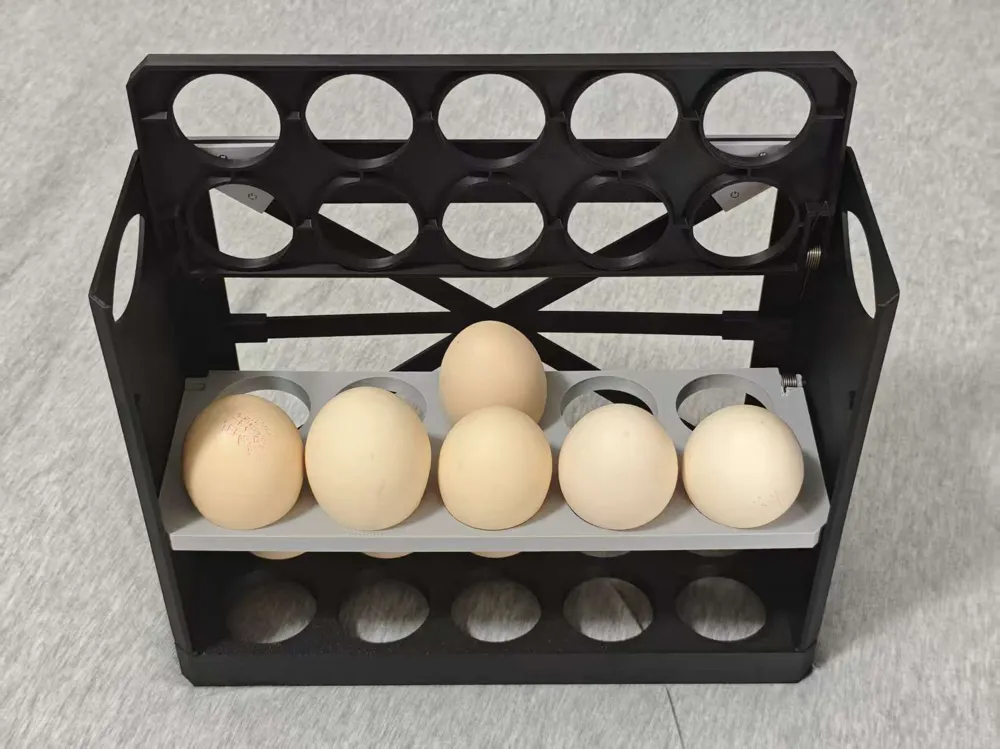

Does your rolling egg dispenser not roll smoothly? Is it troublesome to get eggs from the bottom layer of an ordinary storage box? You can try this egg storage box!

It has three layers in total, each layer can hold 10 eggs. Compatible with most refrigerator side door sizes!

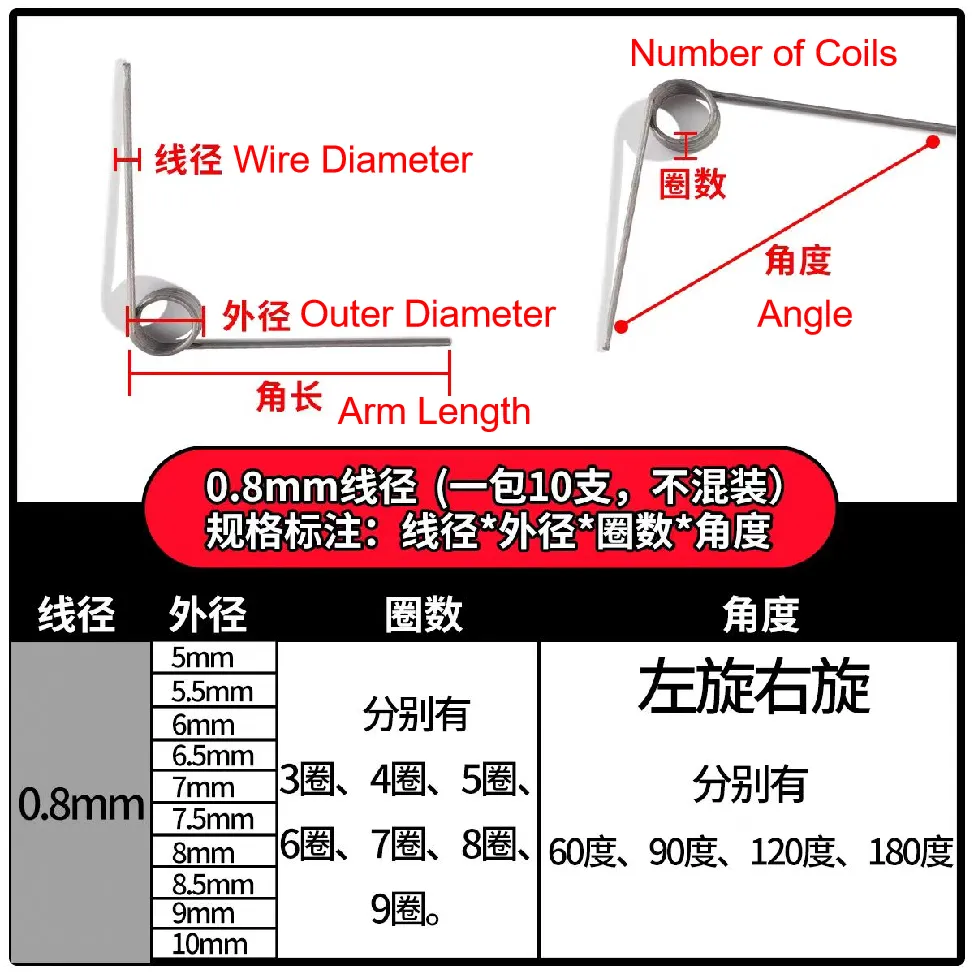

The top two layers additionally require torsion springs to achieve automatic rebound functionality. Torsion spring dimensions:

0.7-0.8mm wire diameter is fine, 10mm outer diameter, 4-6 turns are fine, 180 degree angle, left-hand or right-hand coil is fine (left-hand coil installed on the right side, right-hand coil installed on the left side), any leg length is fine. The schematic diagram is as follows:

Installation Steps (so easy)

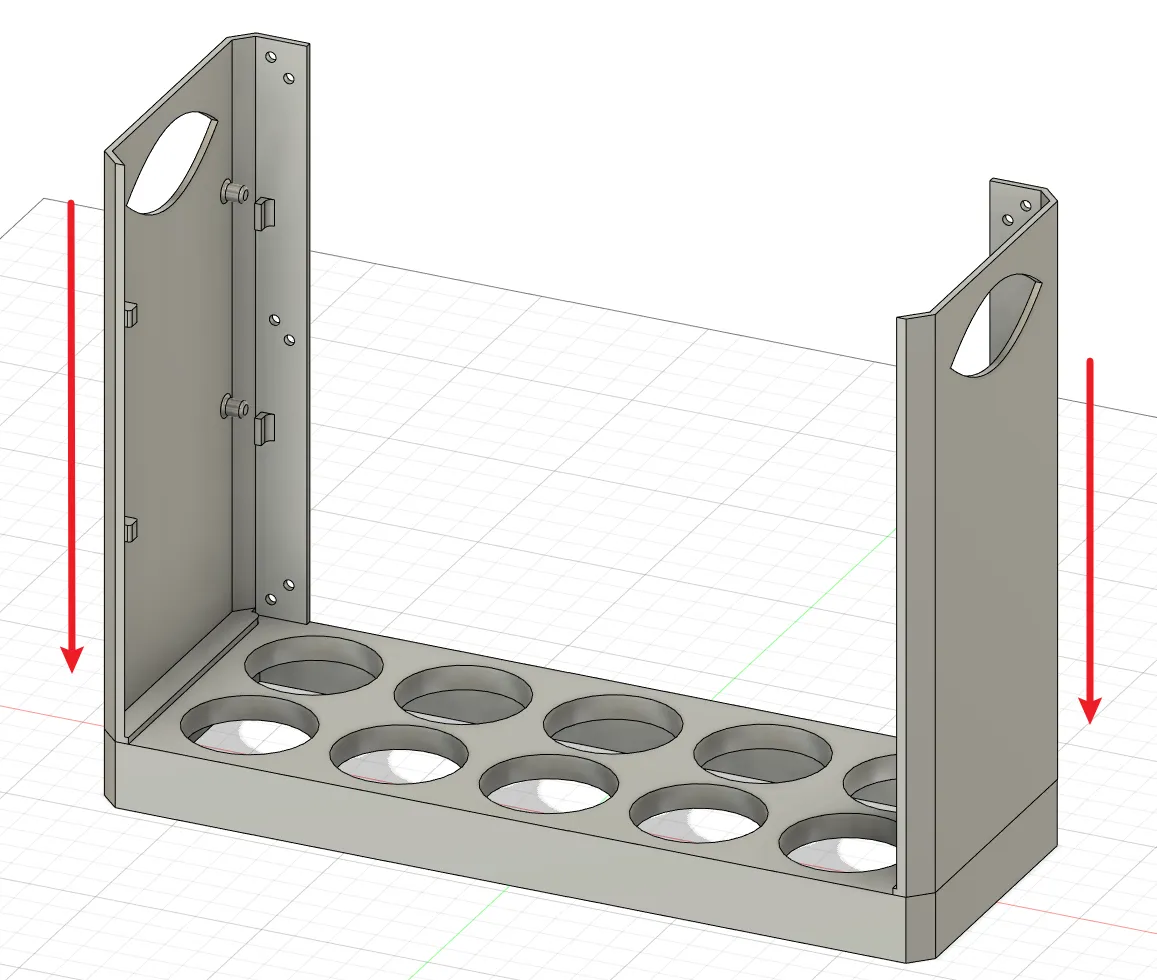

Step 1 Install the base and side walls

The walls may require a slight tap to insert into the base.

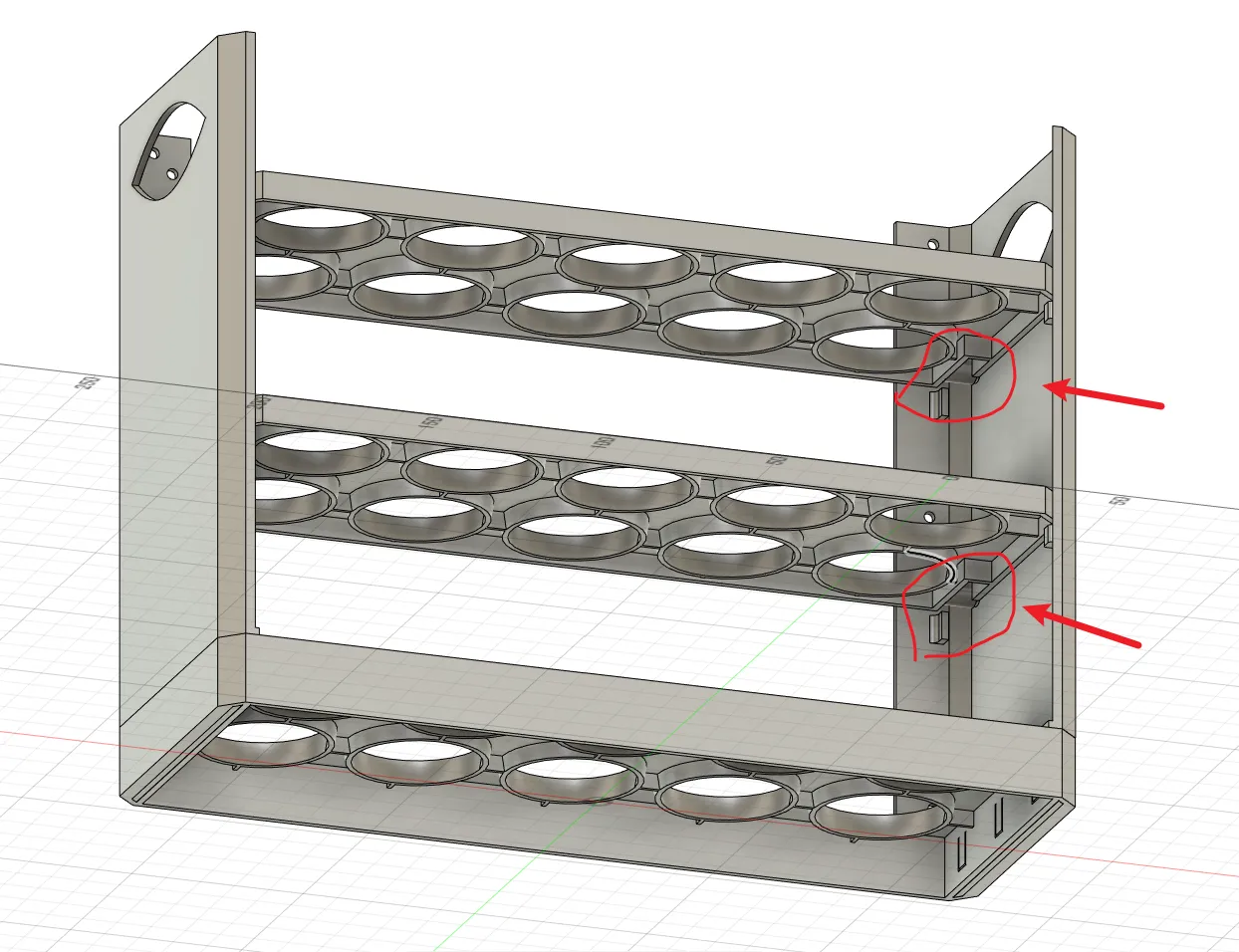

Step 2 Install the second and third layers

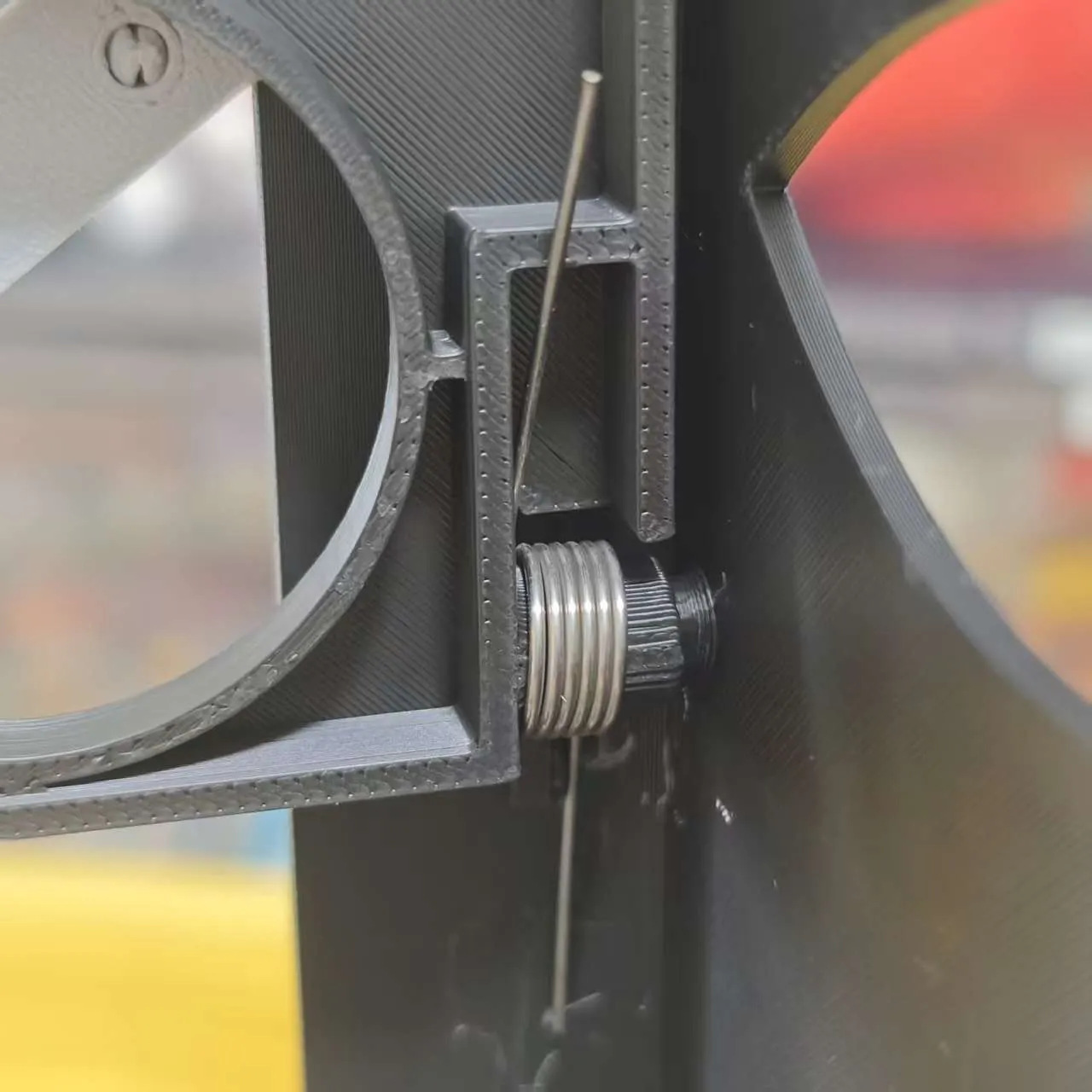

Note, the torsion spring is installed here (left-hand coil). If you purchased a right-hand coil spring, it can be installed on the other side. The torsion spring installation diagram is as follows:

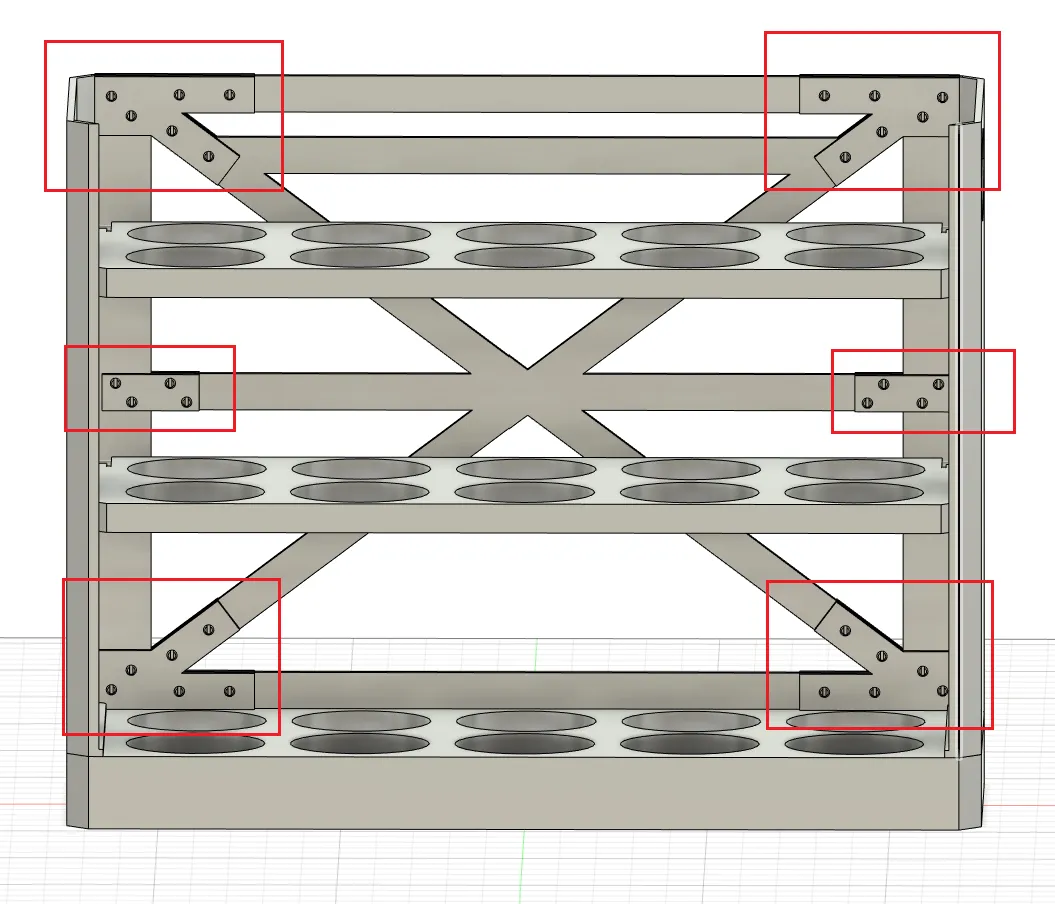

Step 3 Install the rear side walls

Install the six clips, and the entire assembly process is complete.

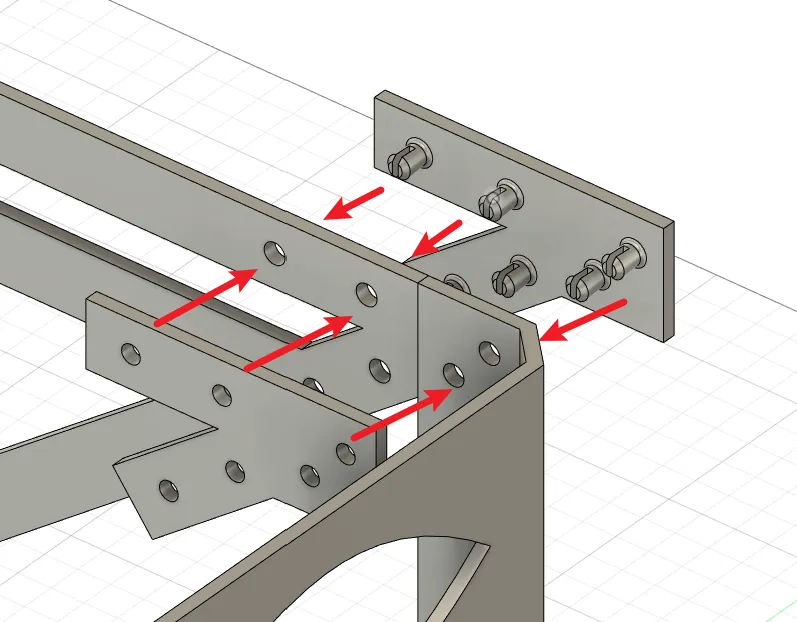

The clip installation details are as follows:

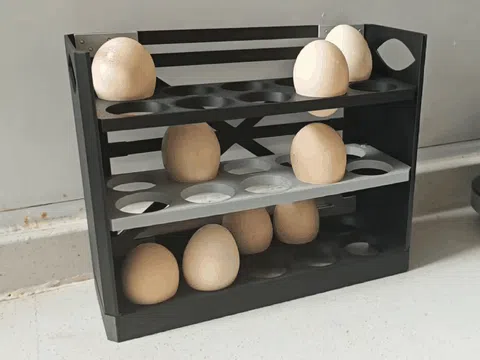

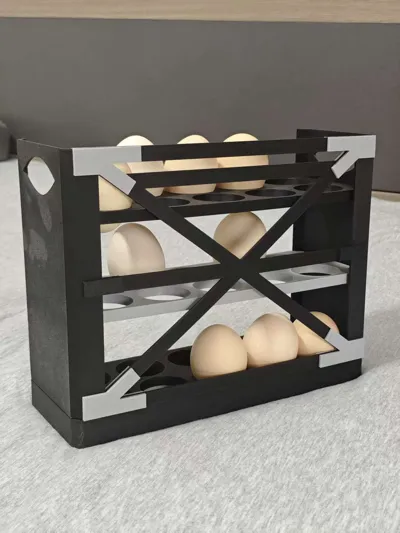

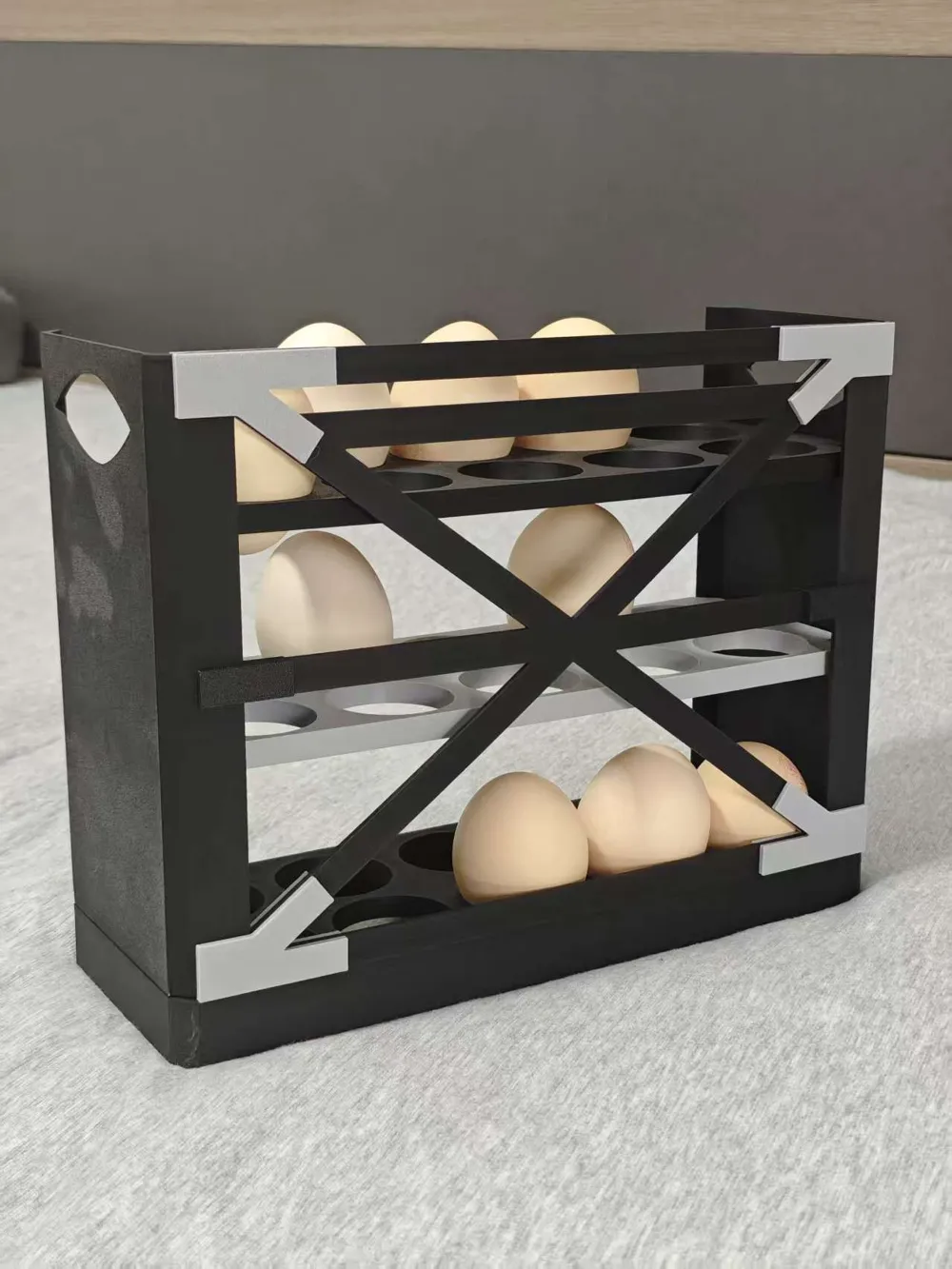

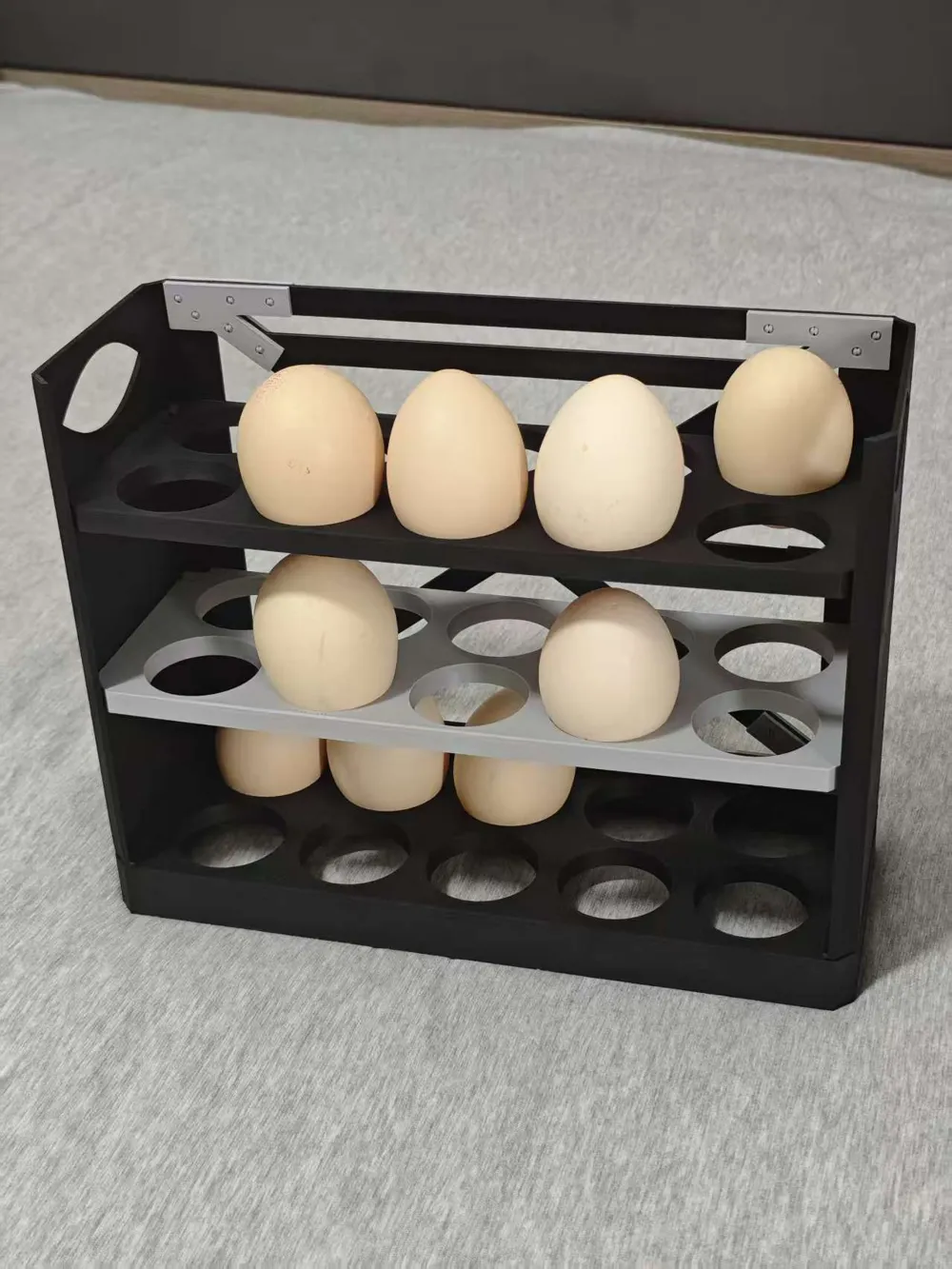

Now, you have a beautiful egg storage rack! The printed storage rack is indeed much sturdier and more textured than those bought online, haha
