Paintball Modular Suppressor Silencer

This is a custom design for Paintball guns adapted from my popular Softair Modular Suppressor. I uploaded this model with two cages, and you can find all the available cages HERE.

It does not silence the shot in any way; it is purely aesthetic. Since it is based on my previous design, it is perfectly compatible with all the CAGES I made before. Unfortunately, it breaks the compatibility with my Muzzle Breaks since the paintball markers are larger.

It is designed to accept up to .68 caliber (17.3mm).

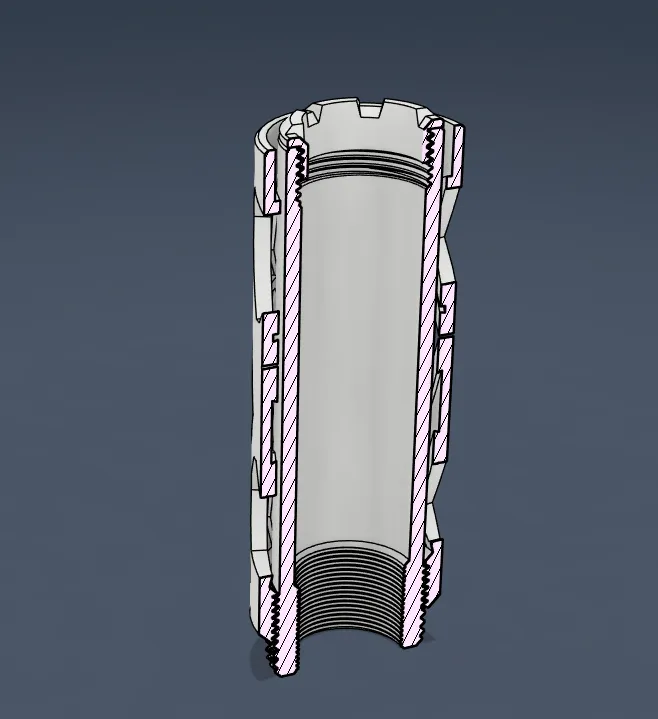

The base thread of the barrel is available in 3 versions:

• Metric M22x1 Dx
• Metric M22x1.5 Sx (added in November 2025)
• Imperial 7/8-20

If you need any other standard threads, just let me know.

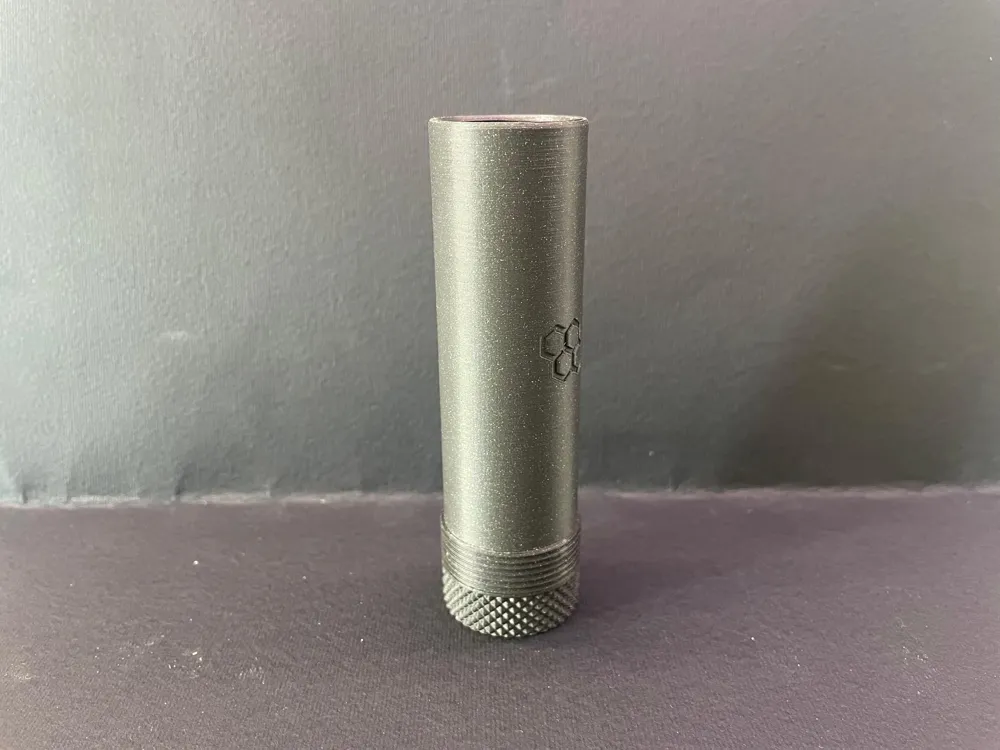

The Main Barrel is available in the 115mm and 145mm long versions. The length name is inherited from the Softair version, so the total length of the barrel will be about 7.5mm shorter than the nominal (added in April 2026).

You can find all the compatible Cages in the Softair Version:

• 115mm
• 145mm

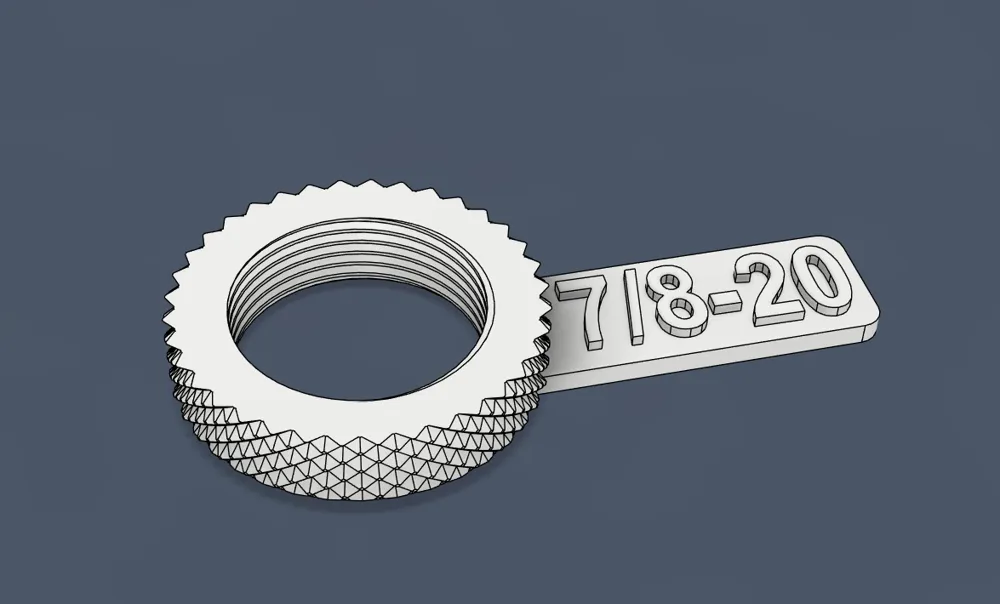

I suggest printing the TEST model if you don't know your thread size, or just the first part of the barrel with the thread.

Currently, there is only one version of the Cap, and it is optional.

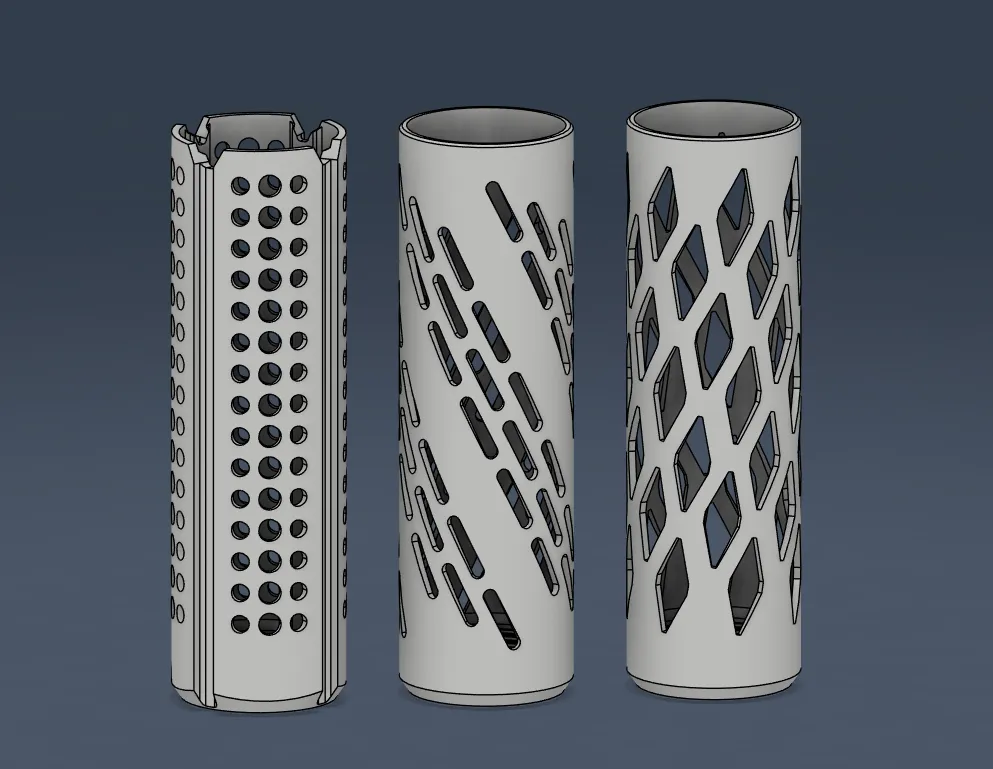

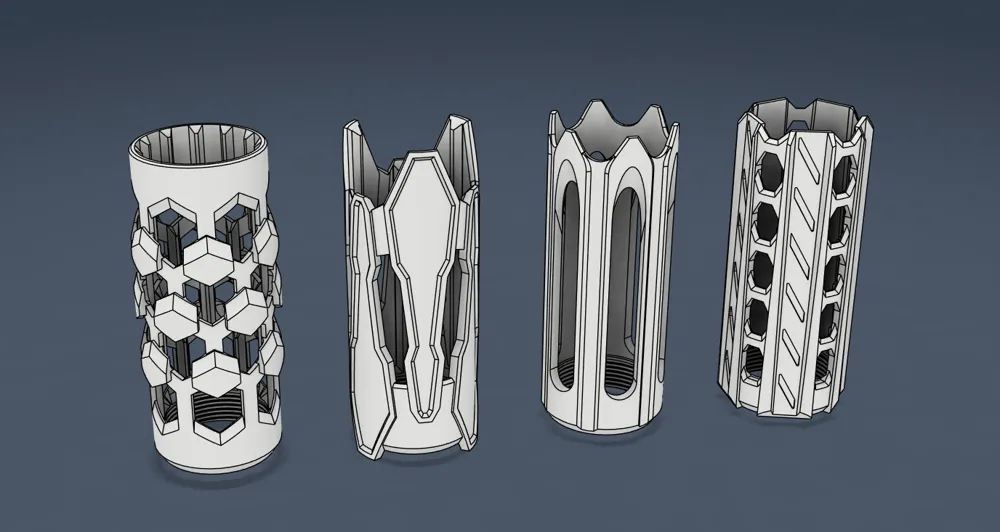

EXCLUSIVE PAINTBALL CAGES: Cage 11 - Spot - 115mm

Cage 11 - Spot - 145mm           Cage 12 - Hypen - 145mm          Cage 13 - Leaves - 145mm

Printing

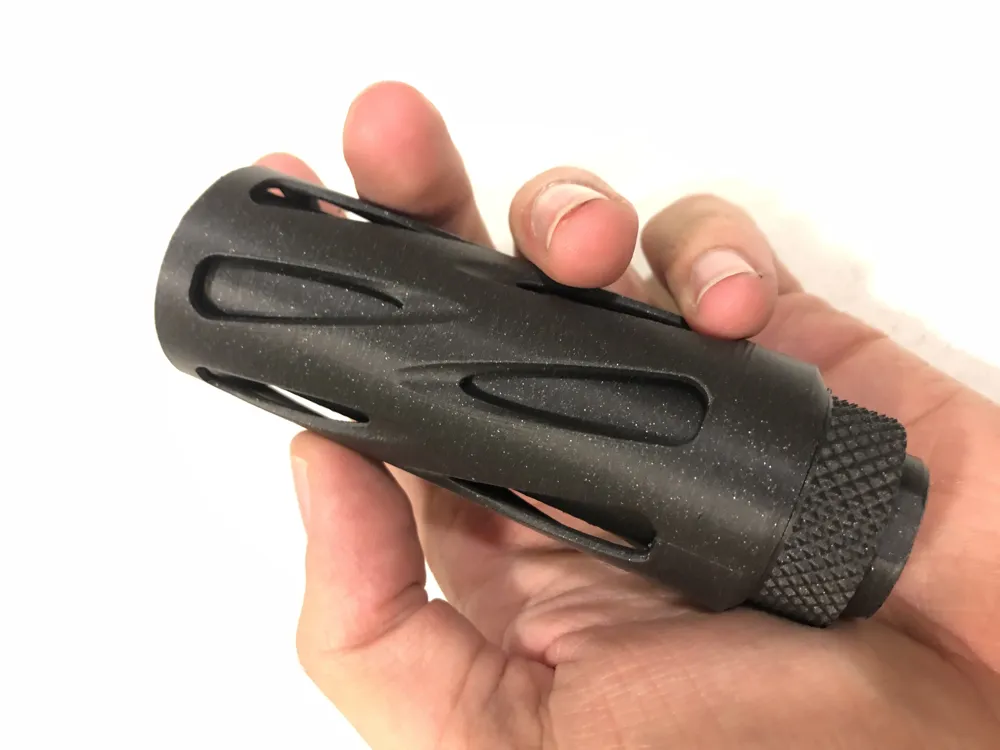

Avoid PLA, it snaps too easily. I printed mine in ASA, PA-CF, and ABS-like Resin for some cages. I suggest sticking to PAHT-CF.

Use strong parameters, such as several walls (at least 4 for the Main Barrel), slow printing, high temperatures and low cooling.

I also suggest using brims for the long and thin parts.

SUPPORT FREE (brim only for better adhesion)! CAUTION: small contact area!
