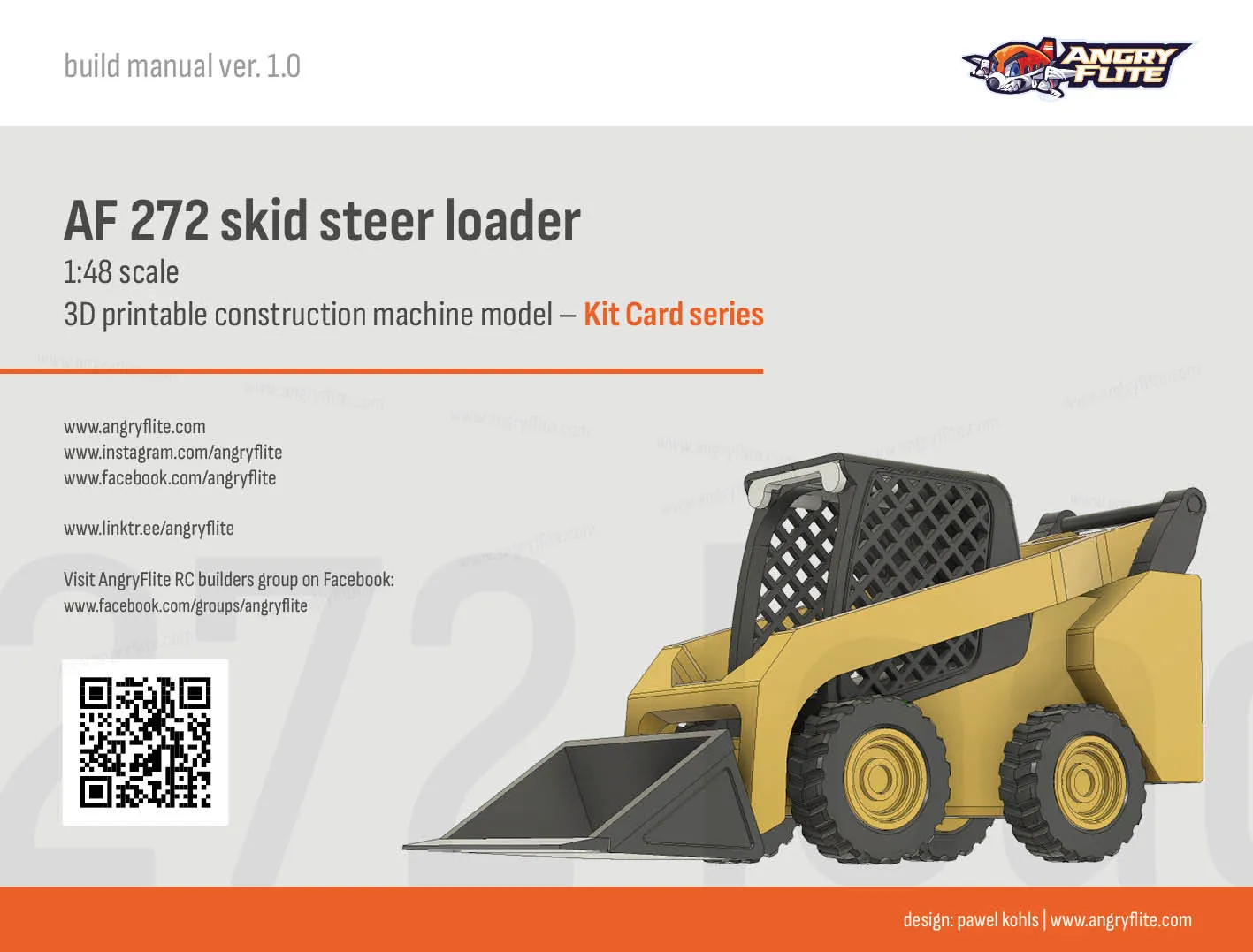

AF 272 Skid Steer Loader - Assembly Manual.pdf

cover



main body 01


main body 02


front lights


rear lights


0.2mm layer, 2 walls, 15% infill - NO AMS, NO FRAME

0.2mm layer, 2 walls, 15% infill

0.2mm layer, 2 walls, 15% infill - AMS, NO FRAME

Bedan Designs




AF 272 Skid Steer Loader.png

Description: This print profile was customized to make the AF-272 Skid Steer Loader (1:48 scale kit card) more efficient to produce while keeping the print quality high.<ul><li>All parts arranged on a single build plate – instead of the original four plates, every component now fits into one print job. This saves time and avoids the need to swap build plates multiple times.</li><li>Sequential (object-by-object) printing enabled – optimized for AMS, ensuring each object is printed cleanly without interference.</li><li>Adjusted retraction speeds – fine-tuned to minimize stringing and improve surface quality.</li></ul>Benefits:<ul><li>Significantly shorter overall print time.</li><li>No need to change plates during the process, which makes printing smoother and more convenient.</li><li>Reliable print quality with PETG/PLA thanks to retraction tuning.</li></ul>Big thanks to the original model author for this excellent design!

AF-272 Skid Steer Loader – Single Plate AMS Profile

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

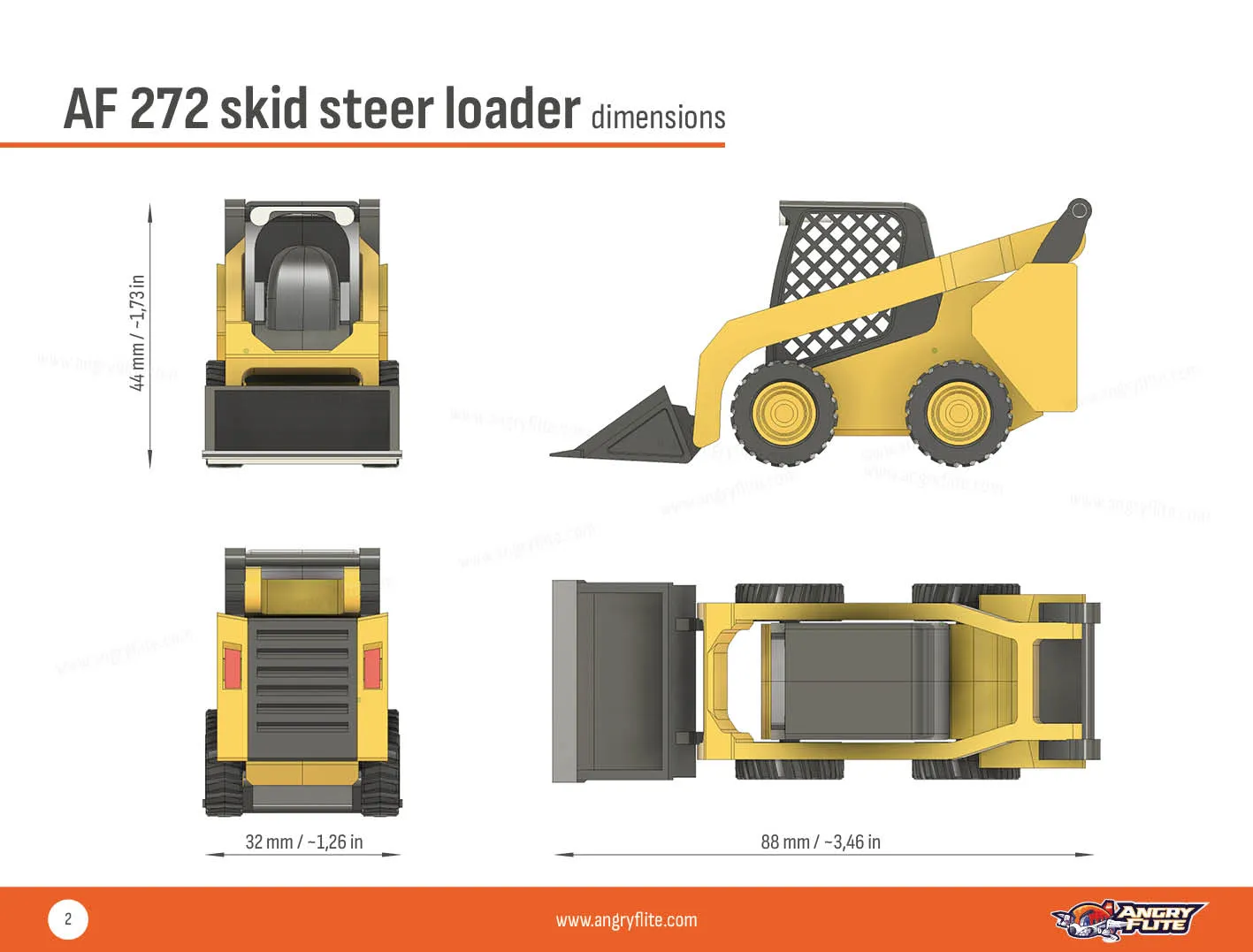

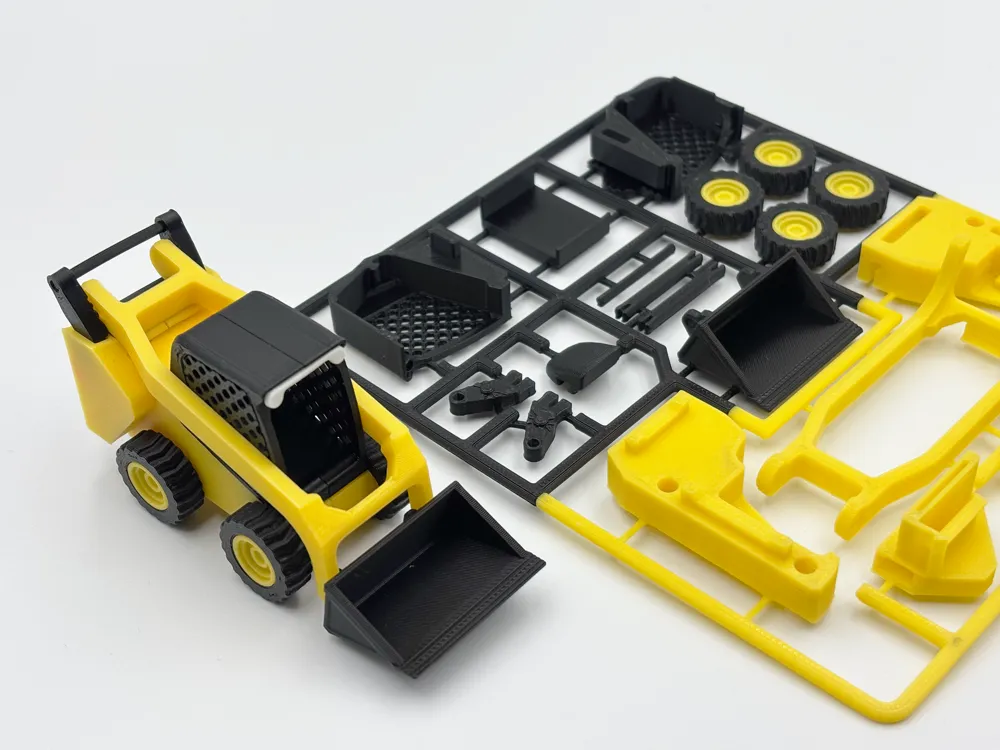

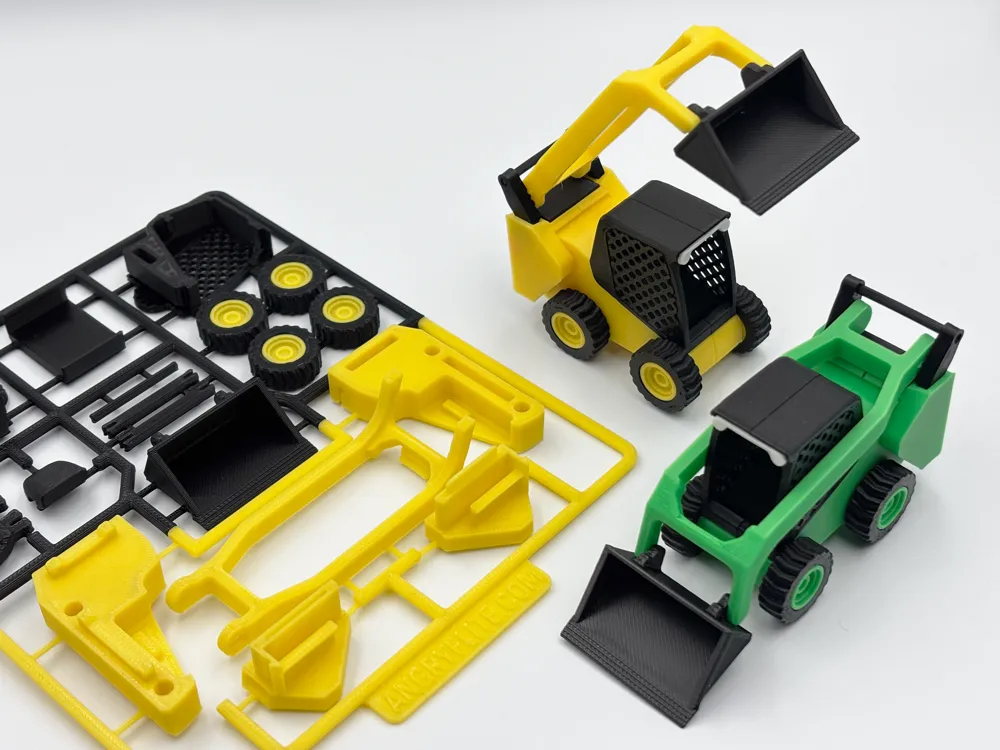

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>🔥 Like what you see? Smash that Boost Me button  – it’s free, it’s fun, and it gives me superpowers to make even cooler stuff! 🚀✨</boostcontent></boostme>&nbsp;Mini Skid Steer loader inspired by CAT 272 in 1:48 scale – a simple yet impressive Kit Card for 3D printing with a movable bucket and wheels. The project is designed to be glue-free – all parts snap together easily.The package includes several variants:<ul><li>classic framed version (like traditional scale models),</li><li>simplified version – without the frame, to save material and printing time,</li><li>AMS-free optimized version – perfect if you don’t use AMS.</li></ul>A great choice for fans of miniature machines, collectors in 1:48 scale, and anyone who enjoys quick and clever “plug &amp; play” projects.&nbsp;Recommended material: PLA or PLA+. PETG is not recommended for the snap-fit / press-fit connectors unless you adjust tolerances, as it may cause the parts to fit too tightly or flex differently.  <figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001822133/design/2025-09-24_d605b93fb899f8.jpg"></figure><figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001822133/design/2025-09-24_35f5b7a5a86f68.jpg"></figure>

AF 272 Skid Steer Loader 1-48 scale Kit Card AMS
